High Quality Steel Door Frame Press Roll Forming Machine For Steel Door Production Line
- Category: >>>
- Supplier: Cangzhou Forward Roll Forming Machinery Manufacturing Co. Ltd.
Share on (60724433359):
Product Overview
Description

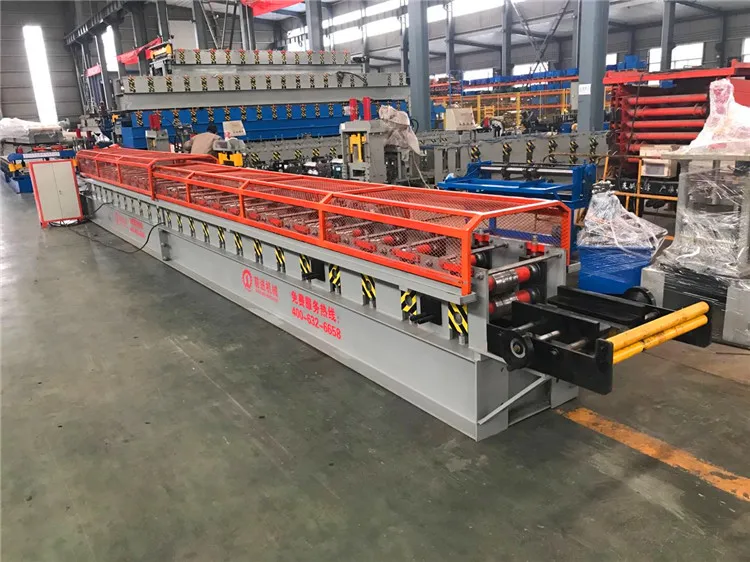

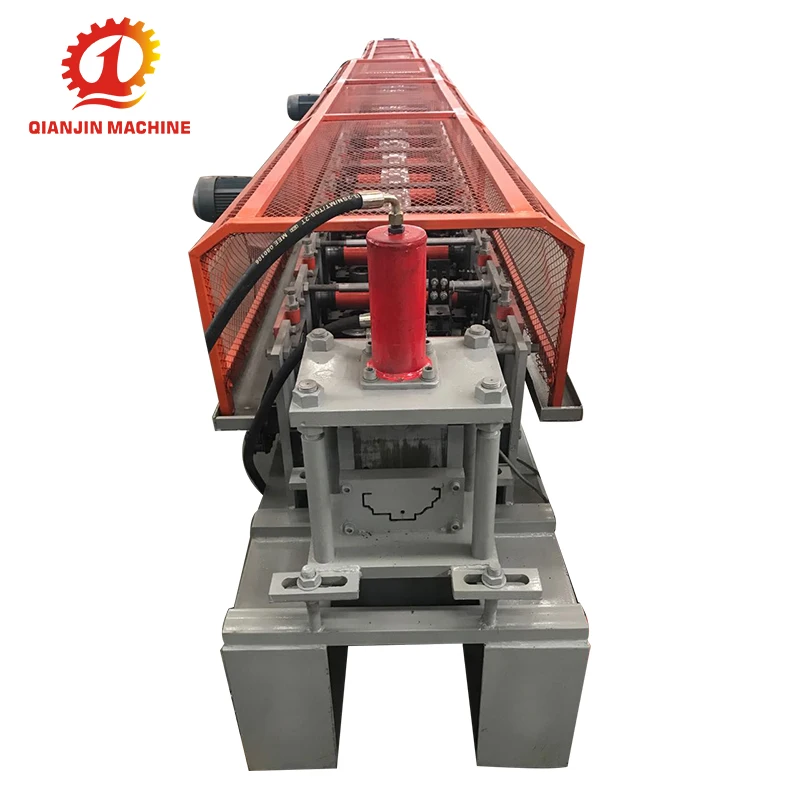

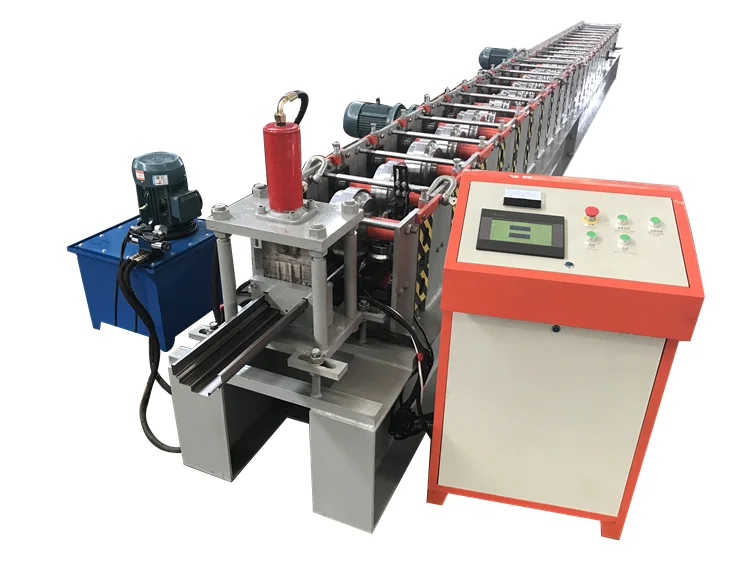

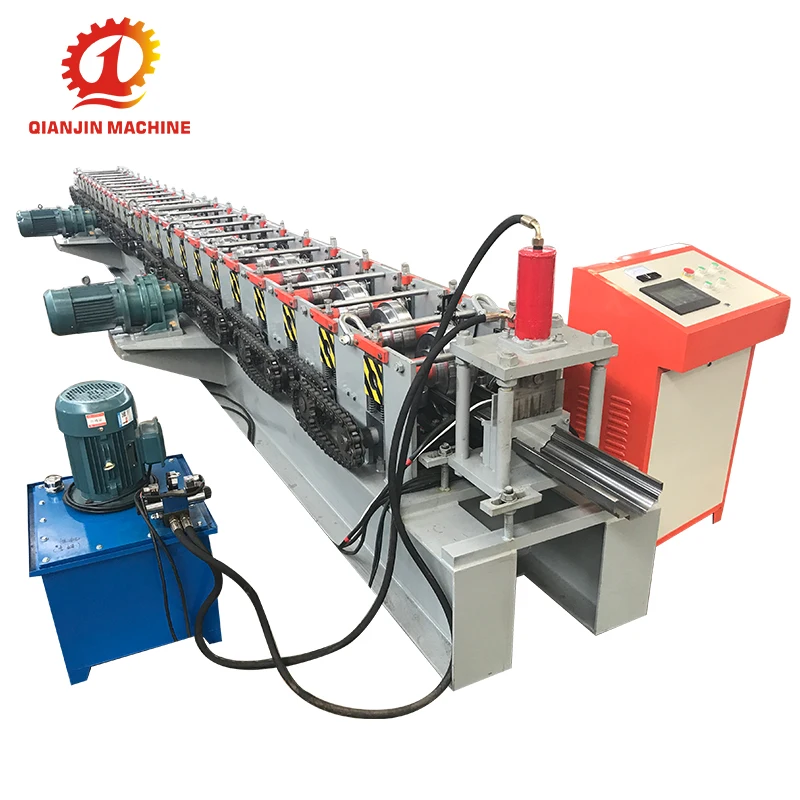

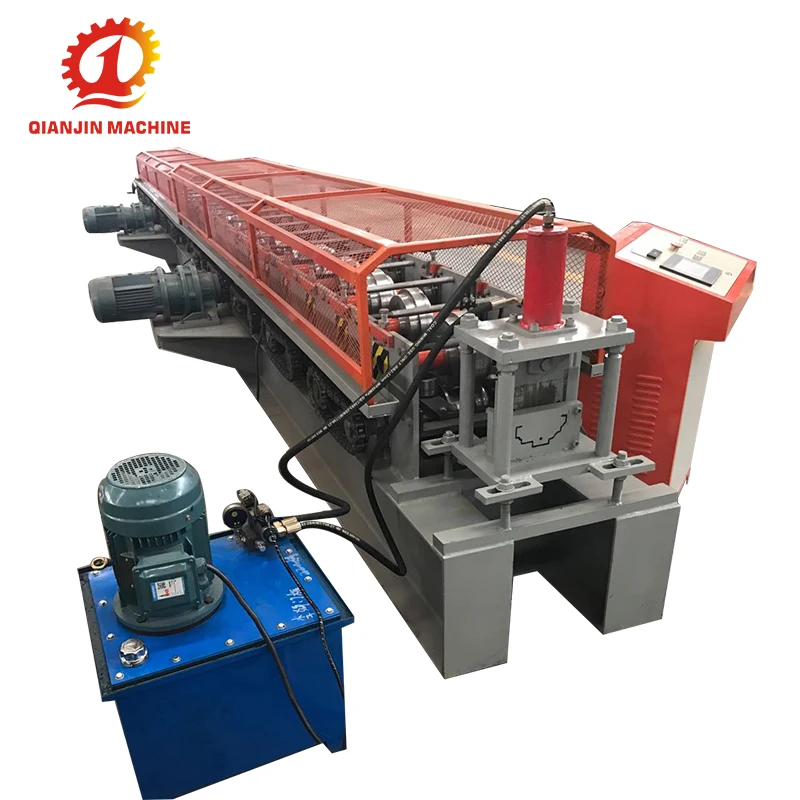

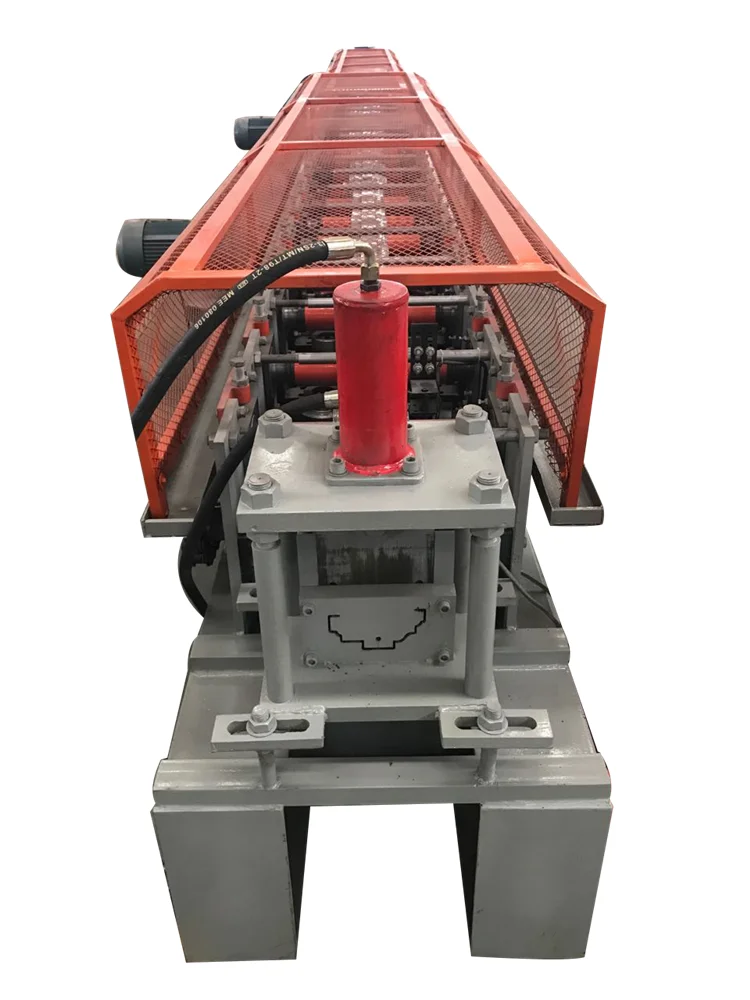

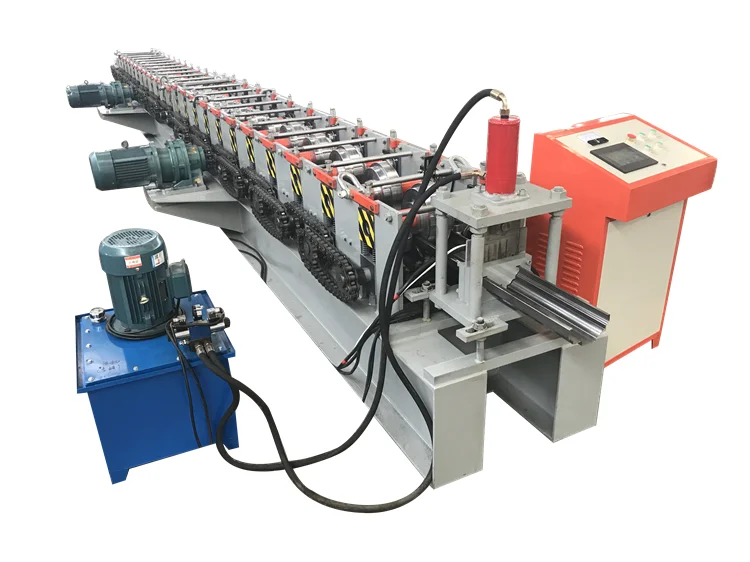

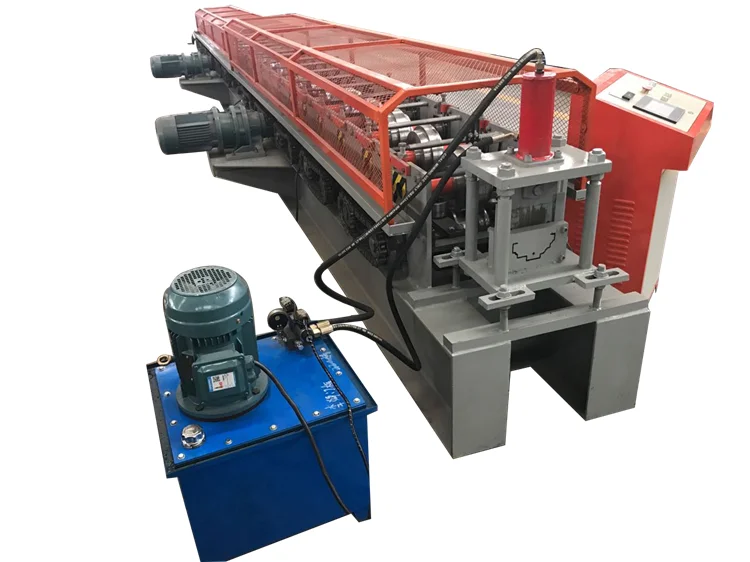

High Quality Steel Door Frame Press Roll Forming Machine For Steel Door Production Line
Product Description
The finished product of High Quality Steel Door Frame Press Roll Forming Machine For Steel Door Production Line is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.
| No. | High Quality Steel Door Frame Press Roll Forming Machine For Steel Door Production Line | |
| Sample |  | |
| 1 | Profile Size | YX 280 |
| 2 | Suitable Raw Material | 0.3-0.6mm, G350-G550, Color steel coil, Galvanized coil, Aluminized zinc coil or as your request |
| 3 | Under Frame | 400 H-beam |
| 4 | Sidewall | 16mm |
| 5 | Connect Bar | 25mm, zinc plated |
| 6 | Roller | High grade 45# steel, processed by CNC lathe, hardening and tempering, polishing, hard chrome plated 0.05-0.07mm, with keyway |
| 7 | Shaft | 70mm, solid, finish turning, cylindrical grinding, with keyway |
| 8 | Forming Stations | 25 |
| 9 | PLC | DELTA, TAIWAN |
| 10 | Main Motor | 5.5kw, Lichao, Shanghai, with reducer |
| 11 | Hydraulic Pump station | 4kw |
| 12 | Cutting blade | Cr12Mov, quenching 58-62°, double oil cylinder |
| 13 | Oil paint | National standard grey |
| 14 | Computer screen | DELTA, TAIWAN |
| 15 | Chain | 1inch |
| Ours | Others |
Under Frame | High strength 400-500 standard H-frame | 300-350H steel |
Roller and Shaft material | High Grade 45# forged,heated and quenched, steel(with keyway) | Normal A3 steel instead of 45# Steel without keyway |
sidewall thickness | High strength 16-20mm, 45# | 14-16mm, A3 |
Motor and Pump,Bolts and Screws | Shanghai Lichao Brand Motor for standard National Standard 8.8 for high strength | Local market Motor with cheap price normal 4.8 with soft strength |
Electricalelements | imported PLC control system(Mitsubishi PLC Programme),touch screen of multilingual | all the normal parts that easlily broken |
Cutter Device | Hydraulic cutting device(Guide Pillar Device with double cycliner),cutting material:Cr12Mov, Quenched treatment 58℃-62 ℃ | Normal steel plate welded frame and Cr12 without treatment |
Note: What we do is to supply the high standard machine with good quality, comfortable service and low fault rate. As the buyer, we also want to buy high quality machine with low price. | We will be your best supplier In China | |

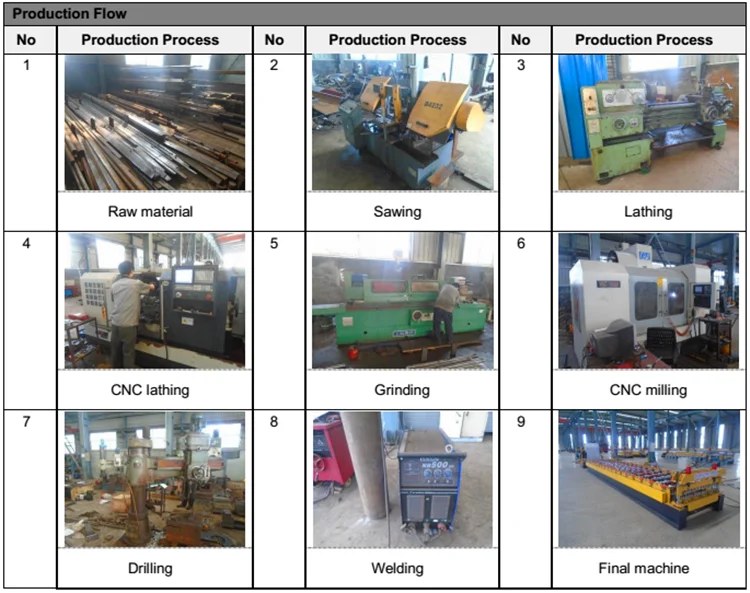

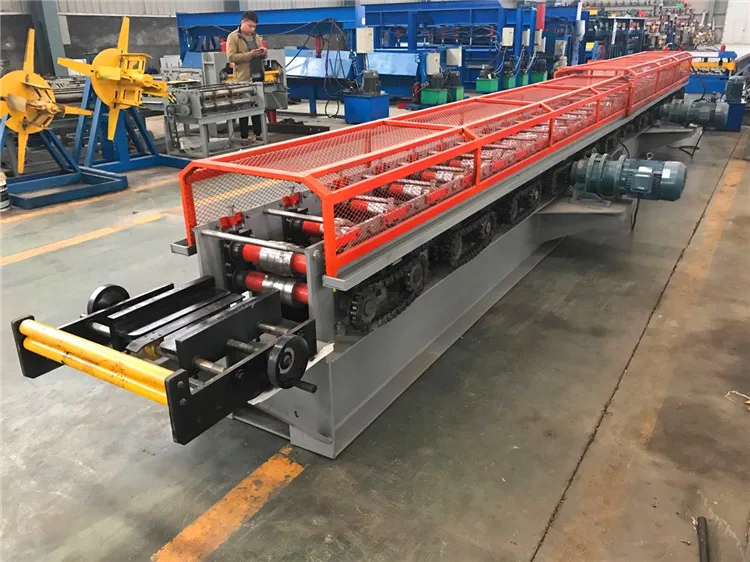

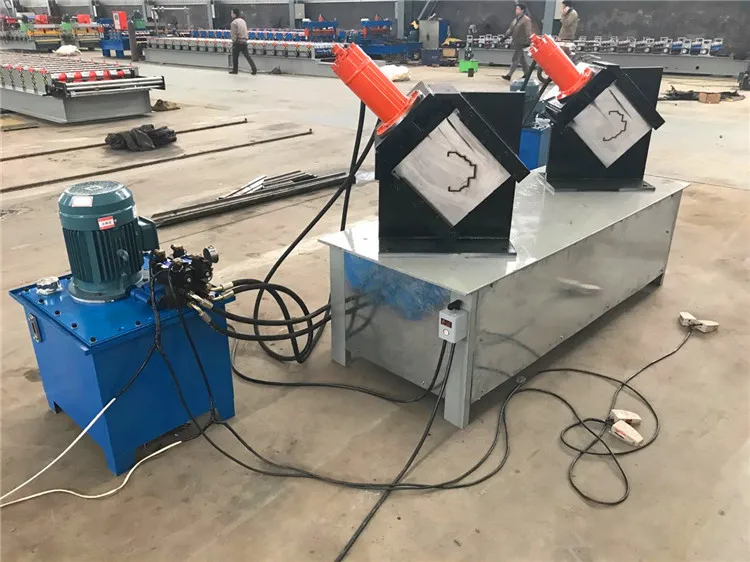

Production Process

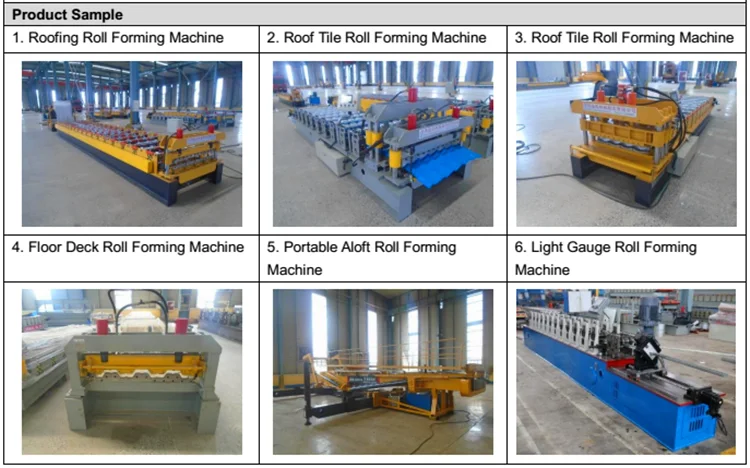

Hot Sale Machines
Here are different model roll forming machines for your reference, and we can customize the roll forming machine exactlly according to your profile drawing.

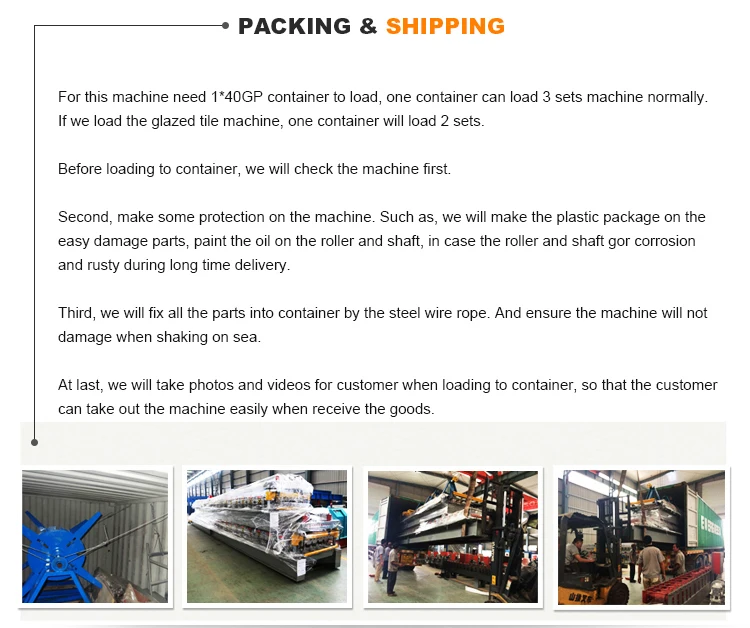

Packaging & Shipping
Customers

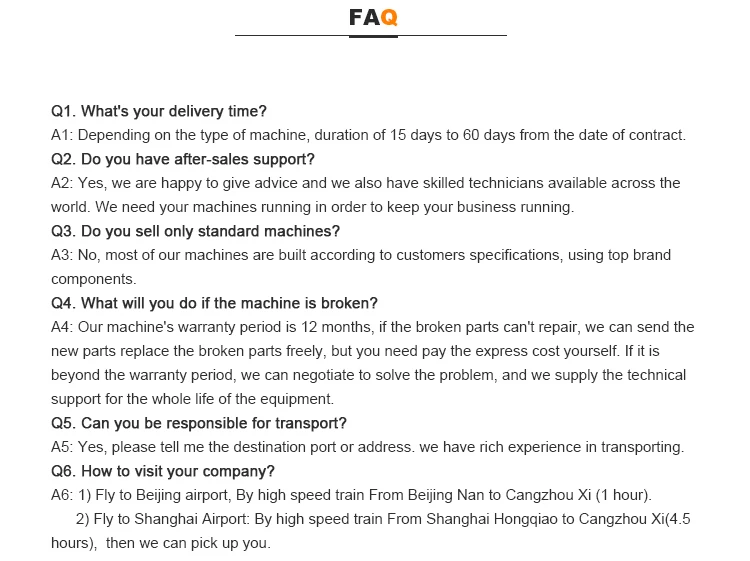

FAQ

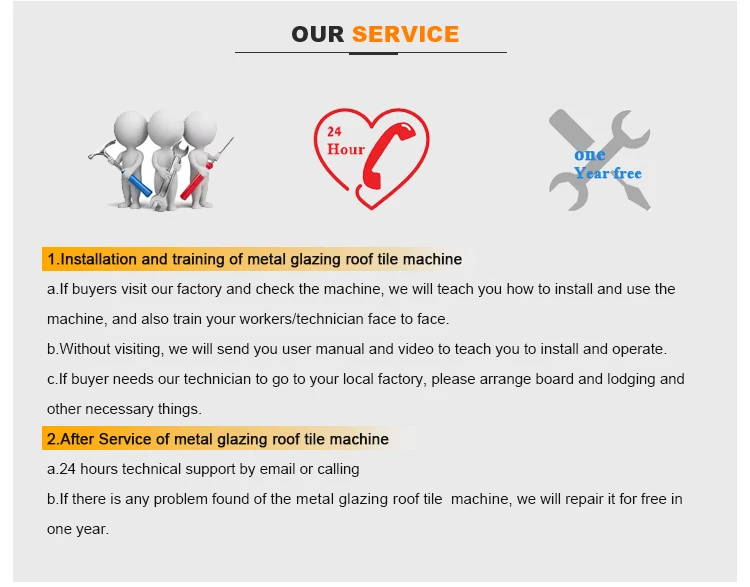

Our Services
| Item | Name | Qty |
| 1 | Manual Decoiler | 1 |
| 2 | Feeding platform with hand cutting system | 1 |
| 3 | Main forming system | 1 |
| 4 | Hydraulic cutting system | 1 |
| 5 | Hydraulic pump station | 1 |
| 6 | Electrical motor | 1 |
| 7 | PLC control system | 1 |
| 8 | Touch screen operation | 1 |
| 9 | Finished products receive table | 1 |
| 10 | Safety shield(optional) | 1 |
| 11 | Hydraulic decoiler(optional) | 1 |
| 12 | Automatic stacker(optional) | 1 |
Contact way
Thanks for your view . If any further detailed information you want to know, please feel free to contact me !
Sincerely welcome to visit us and looking forward to your kind inquiry and long cooperation ! !
