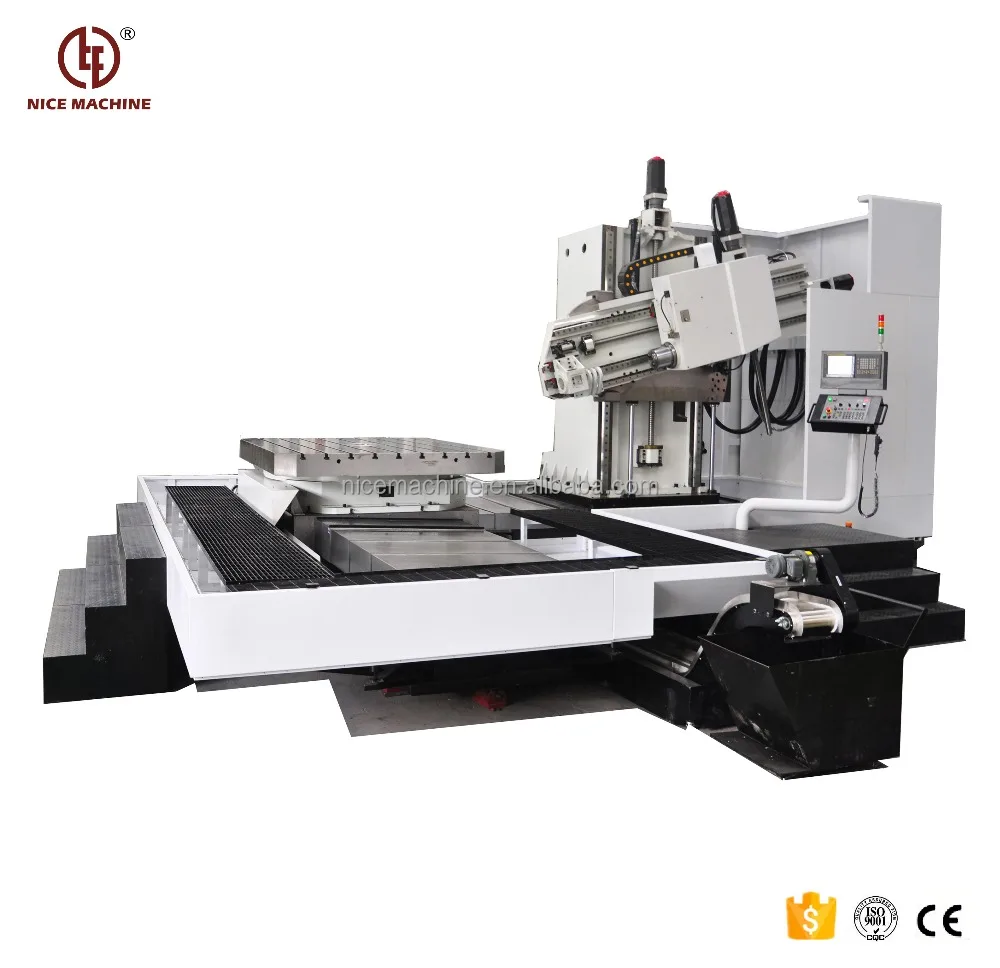

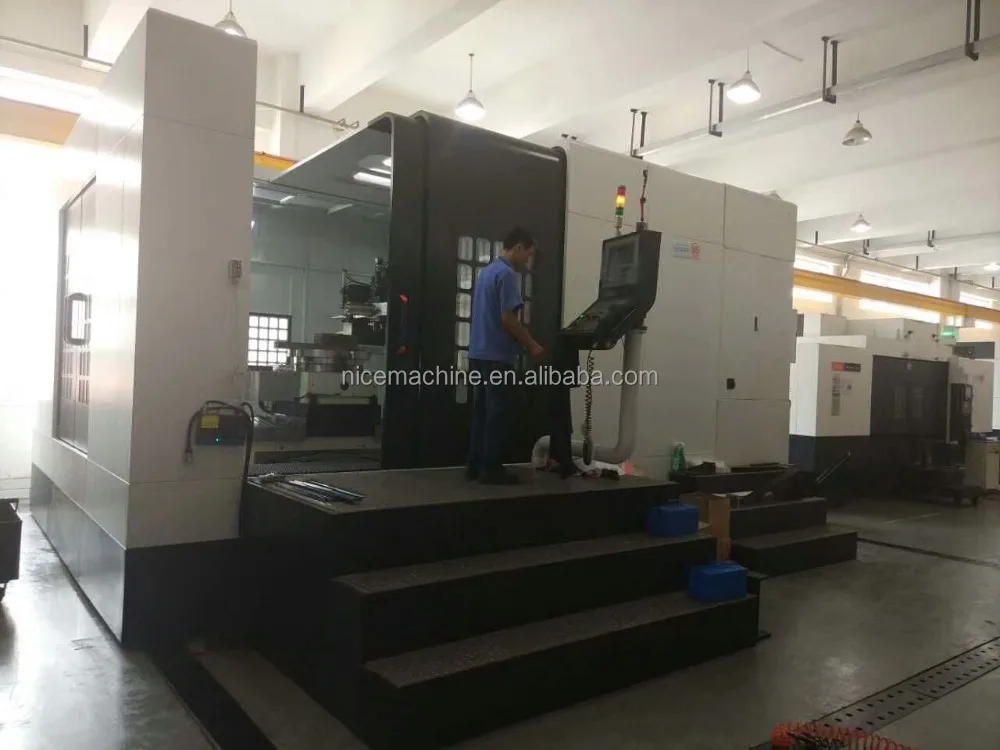

Manufacturing CNC 6 Axis Milling And Deep Hole Drilling Machine For Mold

NCS6Z series six axle multi-function CNC drilling and milling machine is a multi function CNC machine which integrates milling, deep hole tapping into one.for process multiple processes with one clamping.The main features of six axle multifunctional milling & drilling machine to be divided as :

1, The spindle (A axle) turn upward 15 degrees, down 25 degrees high-precision rotation for processing.
2, Work with powerful milling function (cutter for option).
3, Equipped with jet absorption drill, to achieve high efficiency, high precision, high finish of large hole processing, the fineness reach 0.4-0.8.
4, Machine body parts adopt high strength casting, with high strength, high rigidity.endow smooth operation of the machine tool to provide effective guarantee.

Application field

The machine wide applicated in milling and deep hole processing of complex metal parts, mold tool. etc.

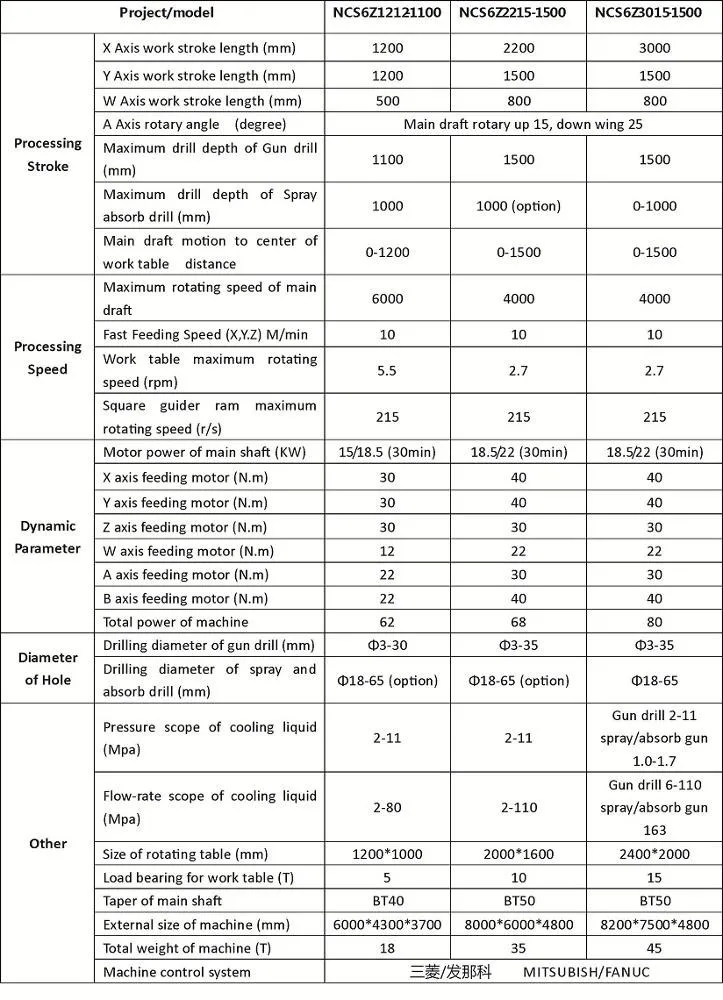

Technical parameters

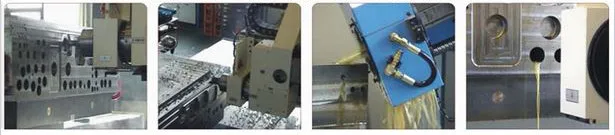

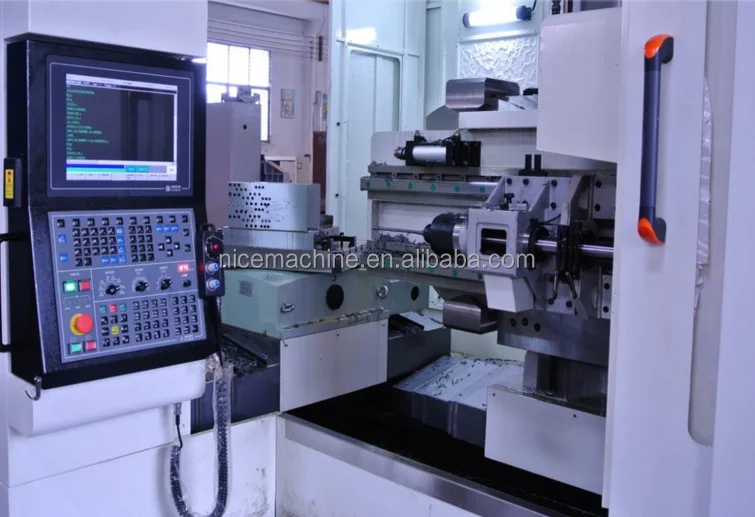

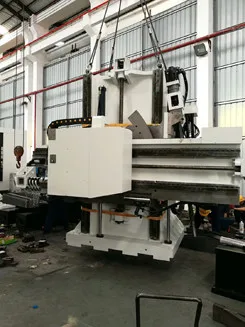

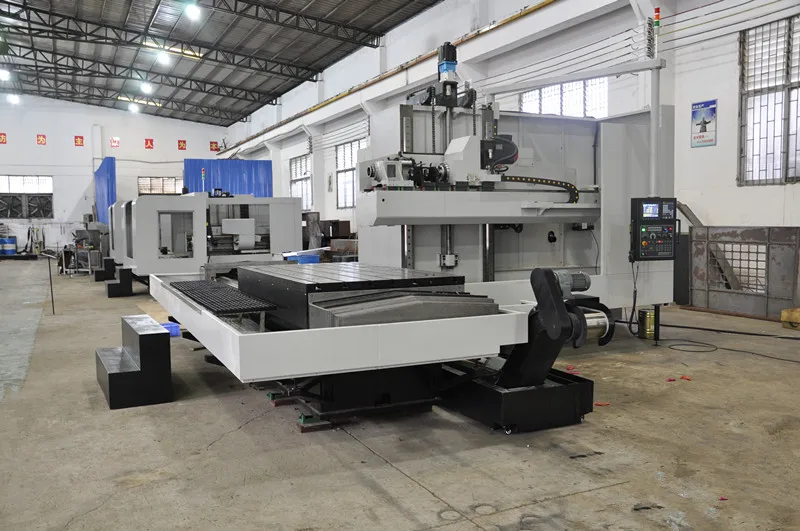

Detailed Image

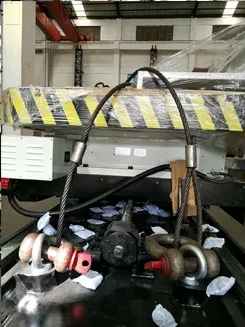

Packing & Delivery

1) Outside package: Standard export wooden cases / tin trunk (optional) .
2) Inner package: Stretch film & air bubble film.
3) 2x40' OT & 2x20' GP container.

Our Service

Pre-Sales Service

* Inquiry and consulting support.
* View Factory.
* Machinery customization and drawing confirm.

After-Sales Service

* Training of using the machine free.
* Engineers available to install machinery overseas.
* Technical support by email and phone.
* Engineers available to service machinery overseas.
