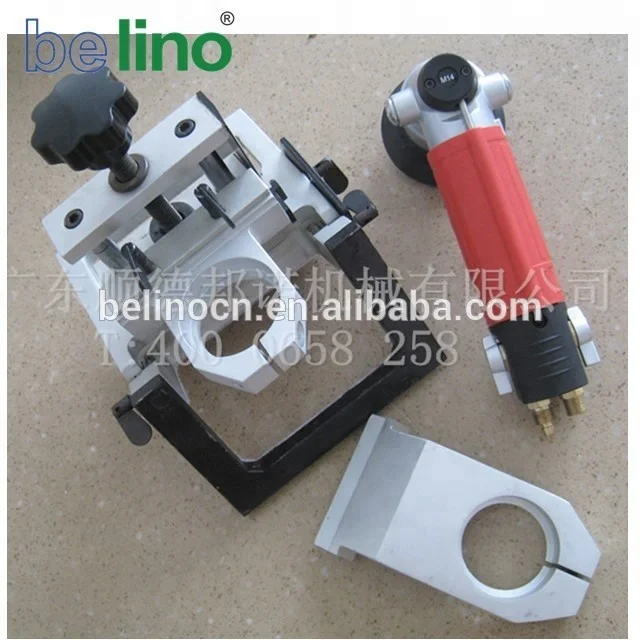

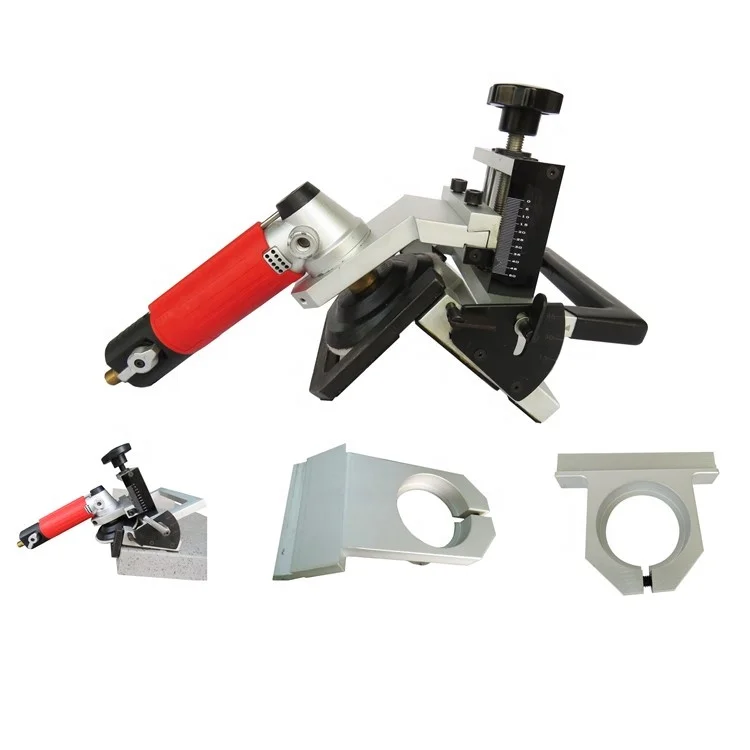

Portable stone edge air wet polishing grinding machine chamfering machine
Product Description
Patent Of Utility Model:ZL 2011 2 0098539.7
1) It is designed for chamfering at bevel 15-45 degree with easy, precision and high efficient features for operation, it combines with air polisher and 45 degree beveling auxiliary base.
2) Air polisher connects with air and water while working and can be used independently serves as an electrical polisher, even it can bevel 15-45 degree when assembled with 45 degree beveling auxiliary base.

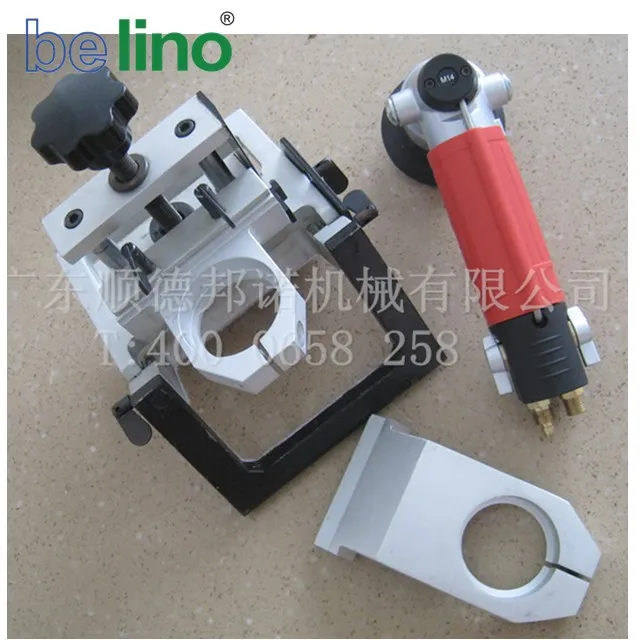

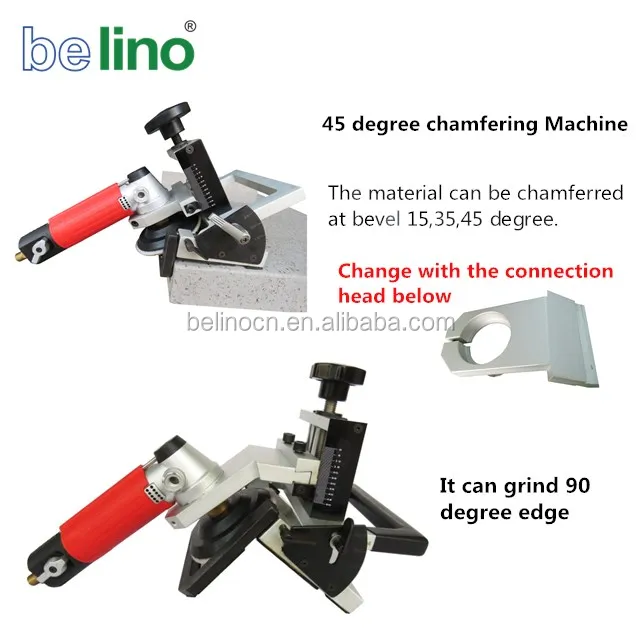

3) Assemble with the connection head below, it can not only bevel at 15-45 degree but also grinding 90 degree edge. The 2 connection heads can be replaced easily depending on your angle preference and presents you different effects.
Function and Charact
1.Fix the tool and adjust the angle can work out a standard part without chatter marks.
2.Lower the professional requirements to the processing workers, even a new one can indicate a standard angle with this tool to reduce the labor cost.
3. Bevel angle from 15 ° to 45 °.
4. The chamfering depth at 0.1 to 10mm.
5. 4" (100mm) Polishing pad on air polisher can be replaced at any time, with strong Velcro can provide good adhesion.
6. The gross weight of the tool only 4.5kgs, it is easy to carry.
Technical Parameter
Product
Code
Bevelling
Angle
Bevelling
Depth
Max.Pad
Size
Products Dimensions
(L*W*H)
Gross
Weight
BNT04
15-90 degree
0.1-10mm
4"(100mm)
200*190*170mm
4.5KGS

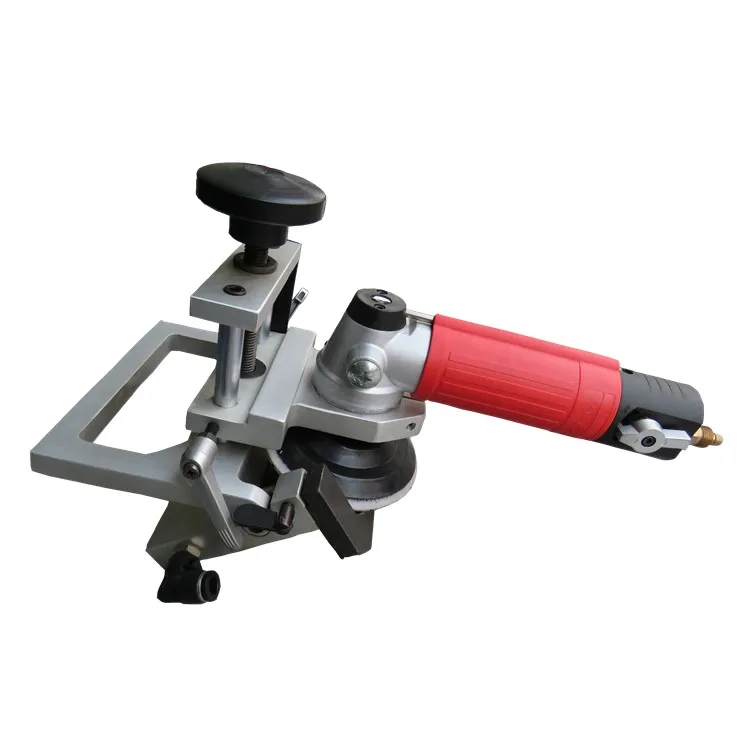

Product Show

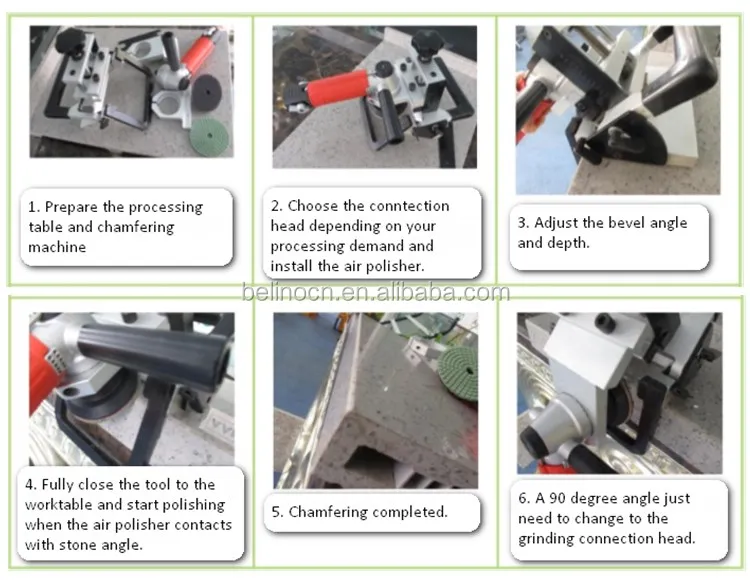

How to use it?
1.After installing the multi-functional chamfering machine, just put the air polisher to the stone material which need to be processed.
2.Connect to air and water and start polishing and grinding.
3.Polishing pad is directly laminated to the plastic polisher head by Velcro, in the course of processing, you can change the pad from rough to fine and then DF to reach a smooth stone surface.
4. If a 90 degree angle is needed, just replace the grinding connection head to the base.

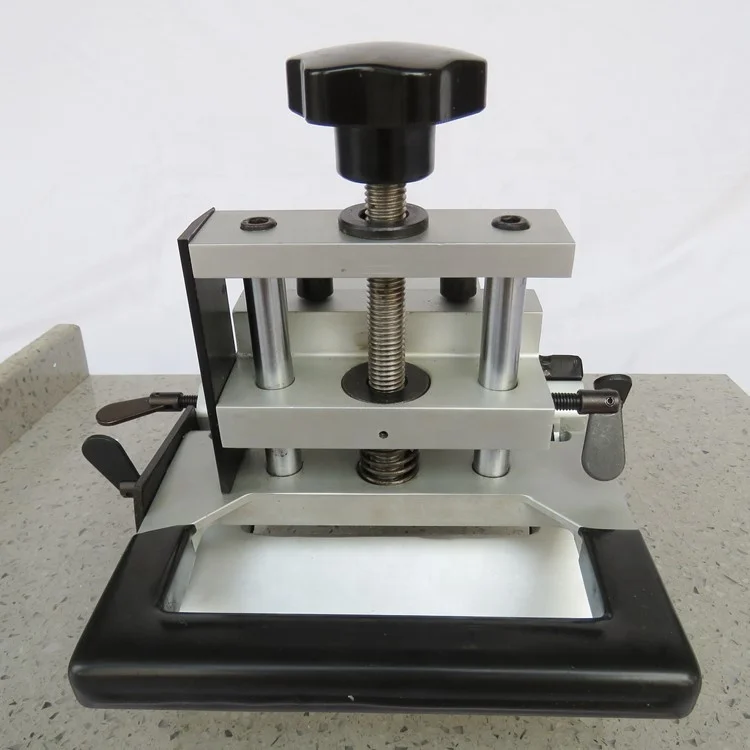

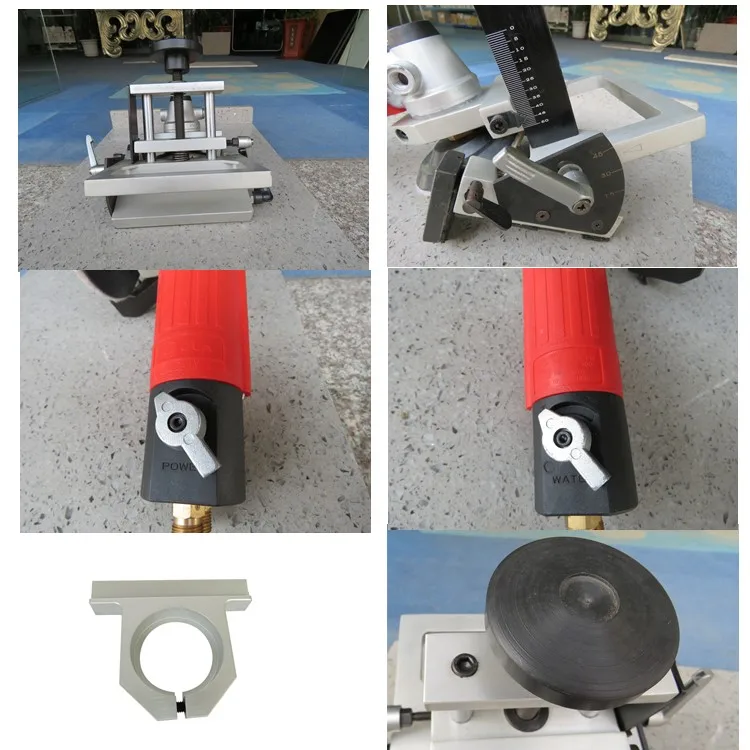

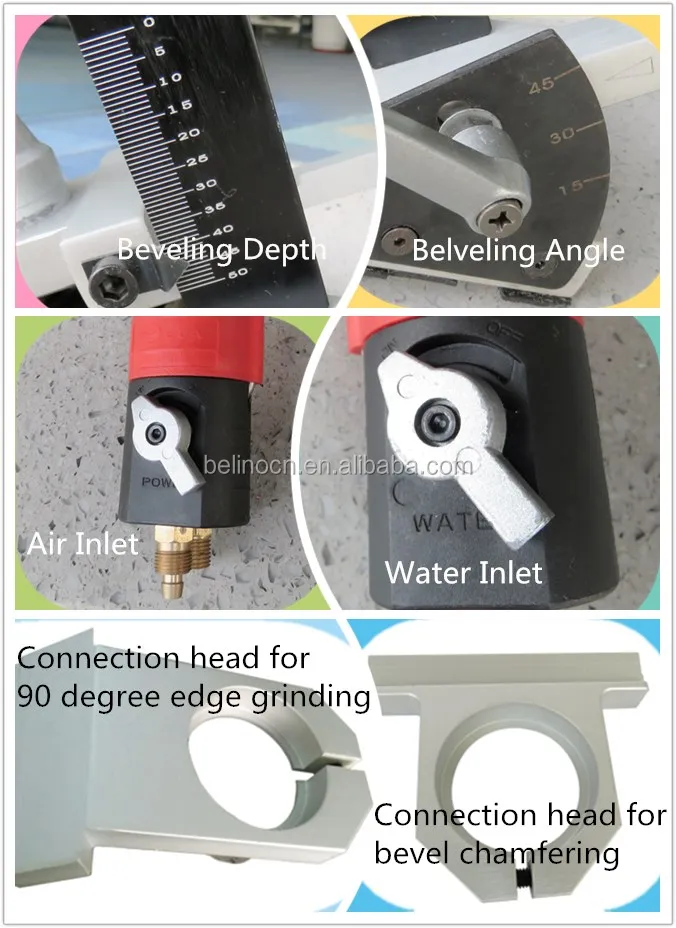

Product Details

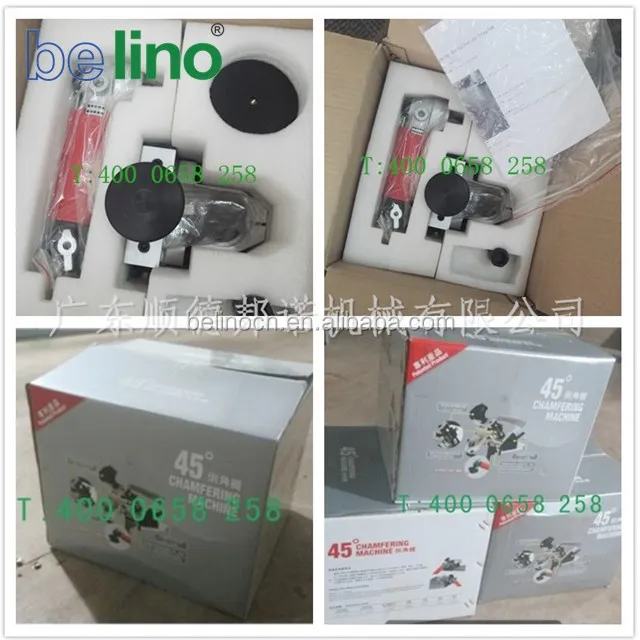

Packaging & Shipping
Product Code
Packing Dimensions (L*W*H)
Net Weight
BNT 04
280*255*220mm
4.50KGS
