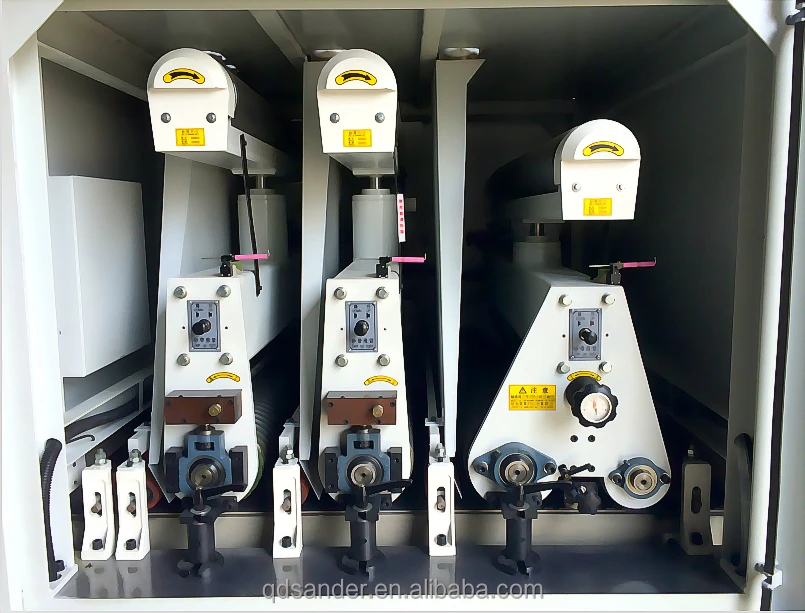

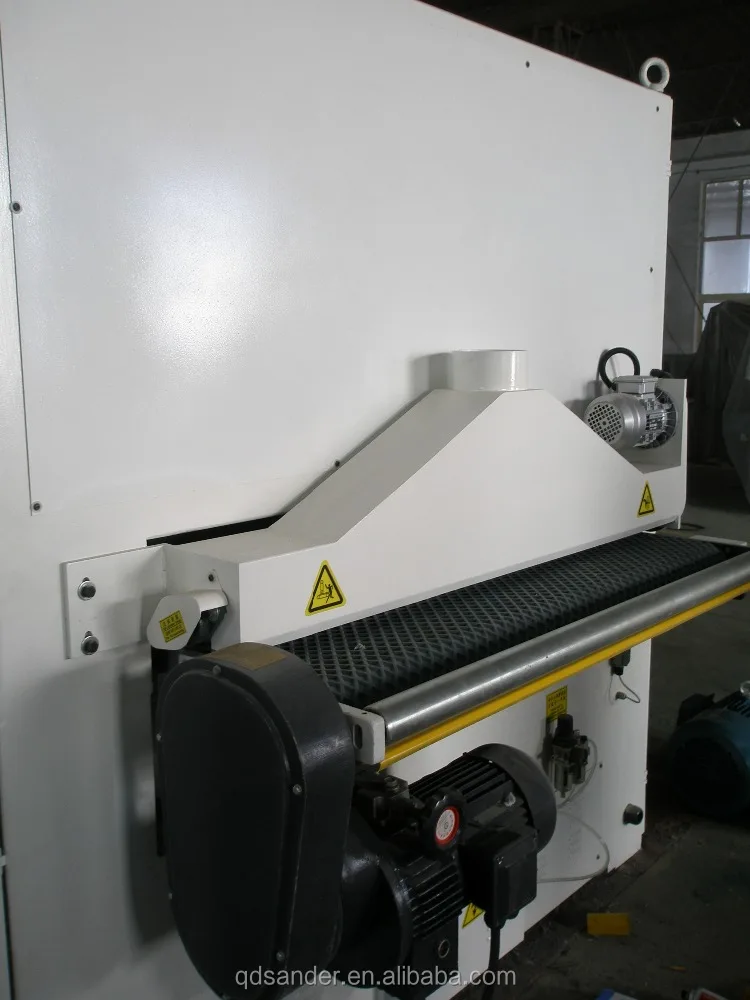

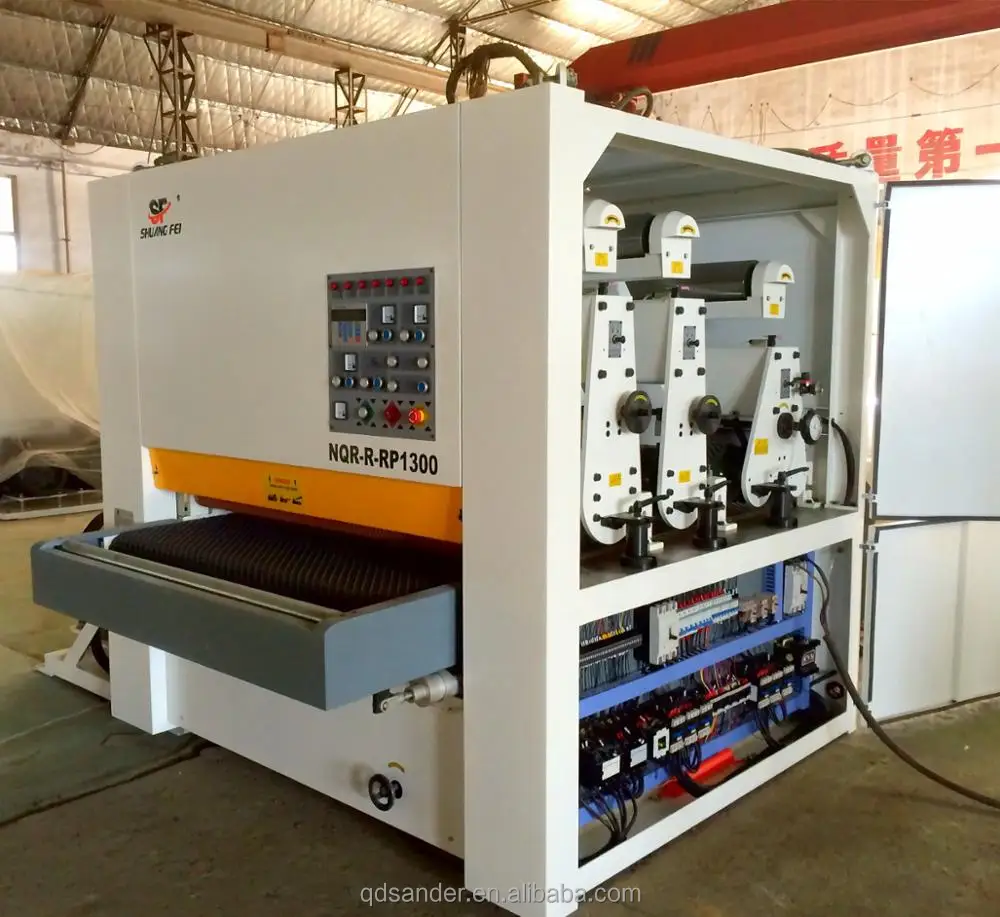

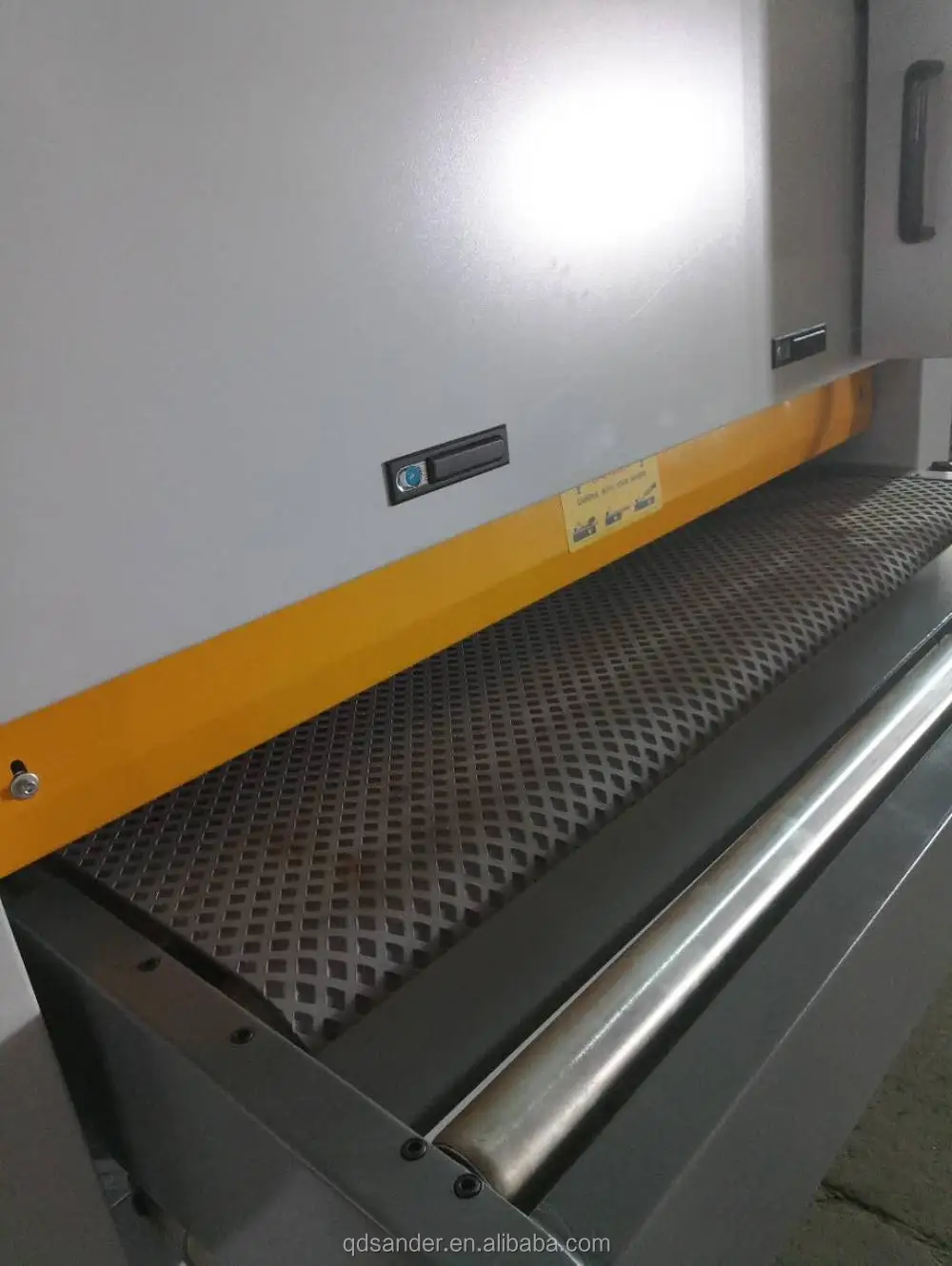

This type characters:1.power sanding machine
2.has three heads,with sanding pad
3.sanding and polishing

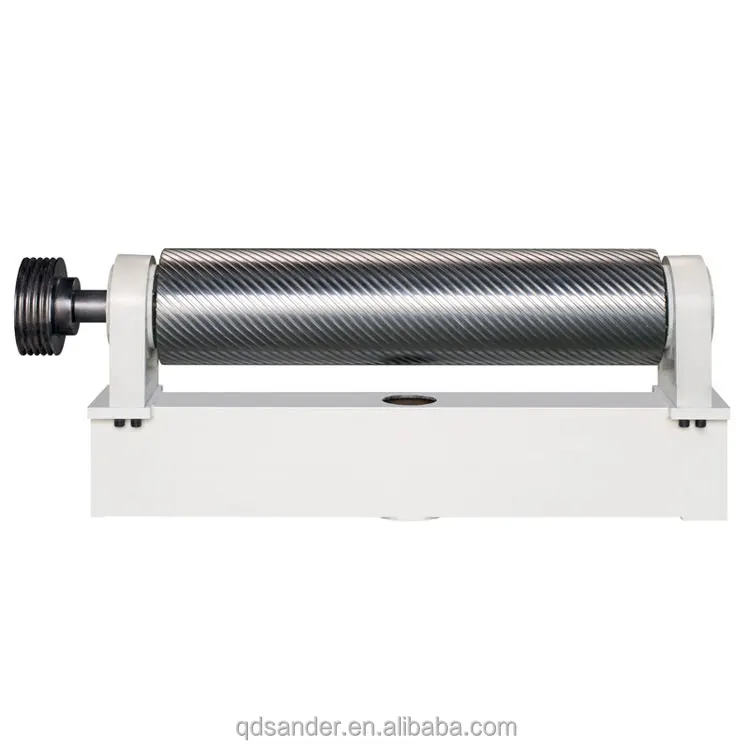

-This machine is for the development of a heavy ecological board inclined sander, using a large diameter double oblique roller technology,sanding large and high precision thick setting, solved corrugated, eating head edging phenomenon, mainly applies to the eco-board, melamine board, plywood, particleboard, pull density and thickness of timber puzzle sanding and fine sanding.
Technical Parameters
There are two types of structures, customized according to customer requirements.
Model
NQR-RP1300
NQR-R-RP1300
Working width
40-1300mm
40-1300mm
Working thickness
3-110mm
3-110mm
Working length
≥600mm
≥600mm
No.1#sanding belt speed
20m/s
20m/s
No.2#sanding belt speed
18m/s
18m/s
Feeding speed
6-30m/min
6-30m/min
Size of sanding belt(W*P)
1330*2200mm
1330*2200mm
Total motor power
73.42kw
103.62kw
Main motor power(two motors)
45kw,30kw
45kw,30kw,22kw
Working air pressure
0.55Mpa
0.55Mpa
Consumption of comperessed air
0.2m³/min
0.25m³/min
Volume of sucked air
10000m³/h
14000m³/h
Speed of sucked air
25-30m/s
25-30m/s
Overall dimension(L*W*H)
2300*2900*2100mm
2700*2900*2100mm
Net weight
4000kg
5000kg
Show details
Factory Video Display
Company Introduction
Qingdao Sefe Trading Co., Ltd. is a subsidiary of Sefe Woodworking Machine Manufacturing Company.
With more than 30 years of experience in woodworking and metalworking, Sefe sanding machines are well-known brands in the Chinese market, including wide belt sanding machine, paint sanding machine, water sanding machine, double-sided sanding Machine,planer sanding machine, heavy-duty inclined sanding machine and sanding machine production line.
Workshop details display
Machine Assembly Workshop
Rigorous Skilled Workers
Packing&Shipping
Stretch Film or Wooden Packing
Exhibition Show
Certifications
Related Products
Why Choose Us
1. We will come standard with the wearing parts.
2. We accept the 30% TT deposit, machine will be completed within 15 to 20 days delivery.
3. We have specialized technical staff tooverseas service.
4. Our warranty period is one year, if you have any questions, please communicate with us promptly.
FAQ
Q1:Why is our price more expensive than our peers? Because we do ishigh-end products, accessories are high, the cost determines the price.
Q2:What is the Max working width of machine? We recommend using standard sizes(630/700/1000/1300mm), but all our machines can be customized.
Q3:How long is the shelf life of the product? What to do if something goes wrong? Our machines are one year shelf life, if problems arise we will allow technical staff to communicate, if necessary, will be on-site service.
Q4:How to cooperate with us? At present, we already have distributors from many countries. Once we cooperate, we will establish a single trade relationship and work together to safeguard our interests.
