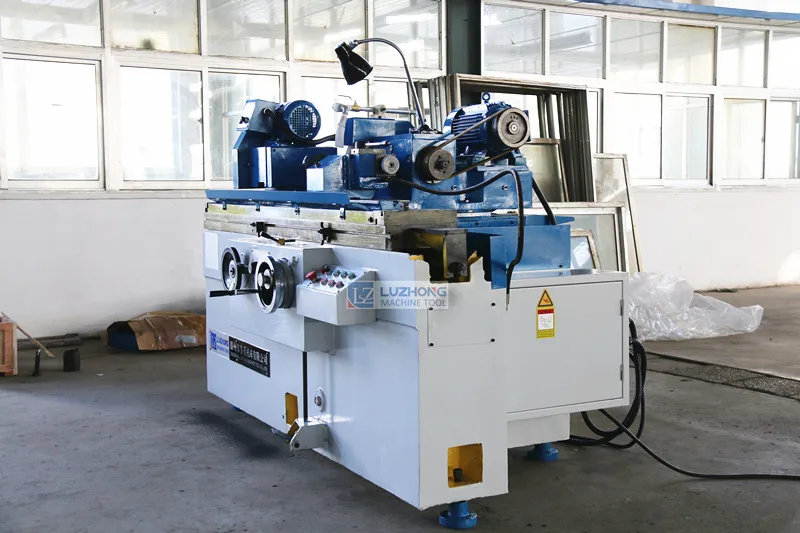

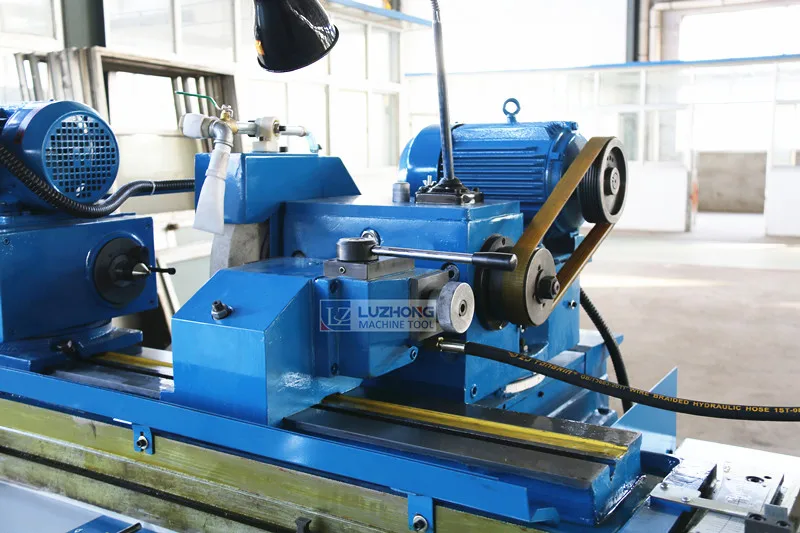

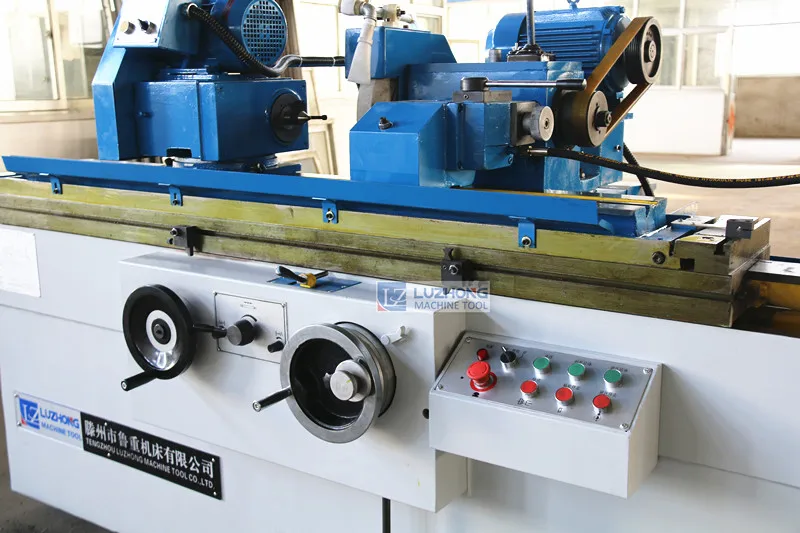

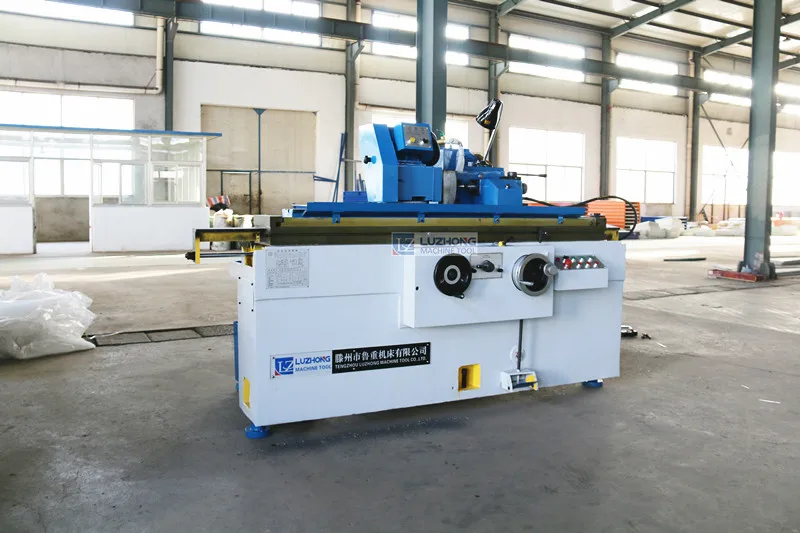

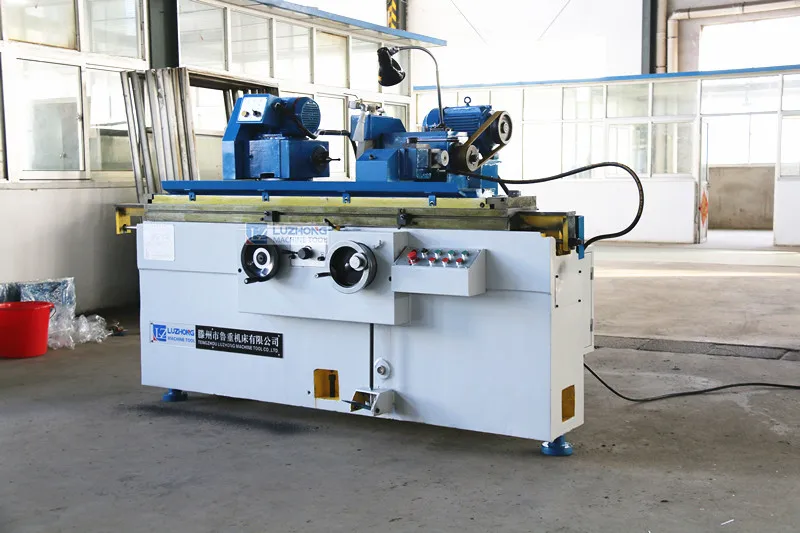

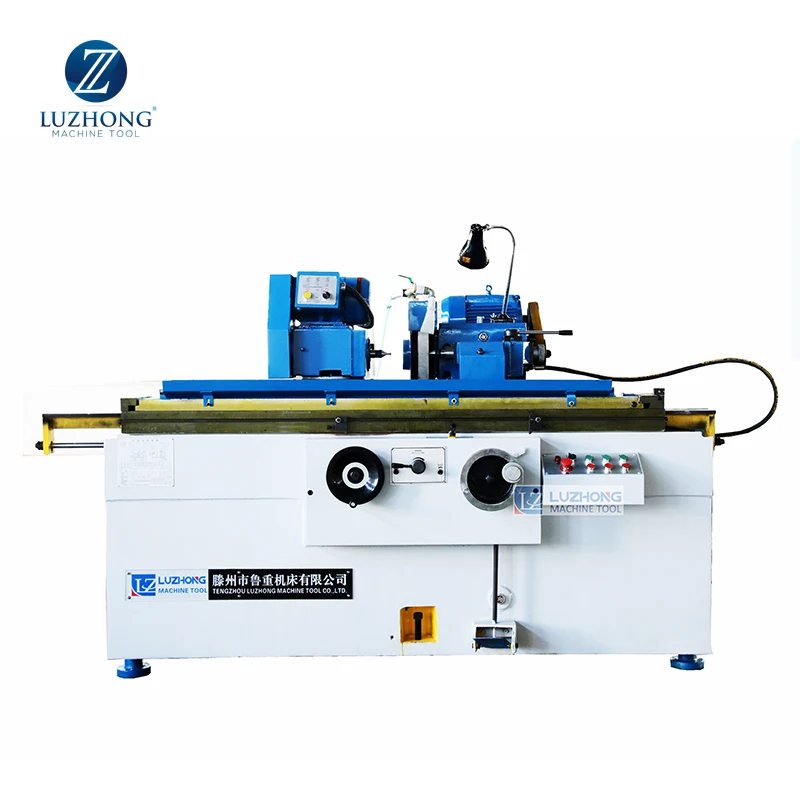

MW1320 Cylindrical Cylinder Head Grinding Machine
- Category: Cylindrical Grinding Machines >>>
- Supplier: Shandong Luzhong Machine Tool Co. Ltd.
Share on (60726667005):
Product Overview
Description
Specification
Specifications | Units | MW1320 | ||
Distance between centers | mm | 500/750 | ||
Center height | mm | 135 | ||
Dia. Ground(O.D) | mm | 8-200 | ||
Max. length ground(O.D) | mm | 500/750 | ||
Max. weight of work piece kg | kg | 100 | ||
Center taper | MT | 4 | ||
Spindle speed | r/min | 50HZ:25~380 Stepless | ||
Swiveling angle | r/min | 1335 | ||
Wheel head rapid travel | mm | 50 | ||
Max. travel | mm | 205 | ||
Hand feed per rev | mm/rev | rough: 2 precision: 0.5 | ||
Hand feed per gra | mm/gra | Rough: 0.01 Precision: 0.0025 | ||
Wheel size (ODxWxID) | mm | 500*50*203 | ||
Peripheral velocity | m/s | 35 | ||
Hand feed per | mm/rev | 6 | ||
Max. swiveling angle of table | Clockwise | ° | 3° | |
Anticlockwise | ° | 9° (500) 8° (500) | ||
Longitudinal speed range of table | m/min | 0.1-4 | ||
Center taper | MT | 4 | ||
Quill travel mm | mm | 30 | ||
Wheelhead motor power | kw | 5.5 | ||
Workhead motor power | kw | 1.1 | ||
Machine weight | kg | 3000(500) 3100(750) | ||
Overall dimension(L * W * H) | mm | 2350*2030*2050(500) | ||
2750*2030*2050(750) | ||||
Details Display
Recommend Products
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
