Pdf417 RS232 USB Яркий 2D встроенный сканер штрих кода модуль турникет qr код считыватель
- Category: Scanners >>>
- Supplier: Shenzhen Rakinda Technologies Co. Ltd.
Share on (60727492574):
Product Overview
Description

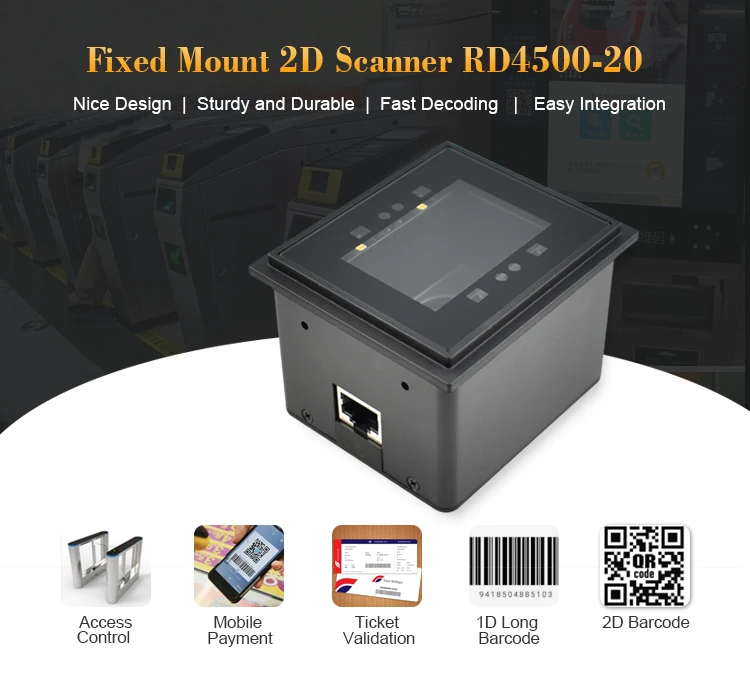

High quality RS232 or USB 2D Fixed Mount Barcode Scanner Reader For Kiosk or Turnstile Mobile Access Control
Product Description
Product Introduction:
RD4600 fixed mount barcode scanner is designed primarily for such applications as electronic tickets/coupons, mobile marketing, mobile payment, kiosk, turnstile, and office automation, the series fixed mount barcode scanner is able to read barcodes on paper and mobile phones.
Compatible OS: Android, Windows, Linux
Projects: Turnstile, Kiosk, ATM, Payment Terminal, Ticketing Validator, etc.
RD4600 2d barcode reader boasts the following features:
1. It can read both printed and phone screen 1D/2D barcodes

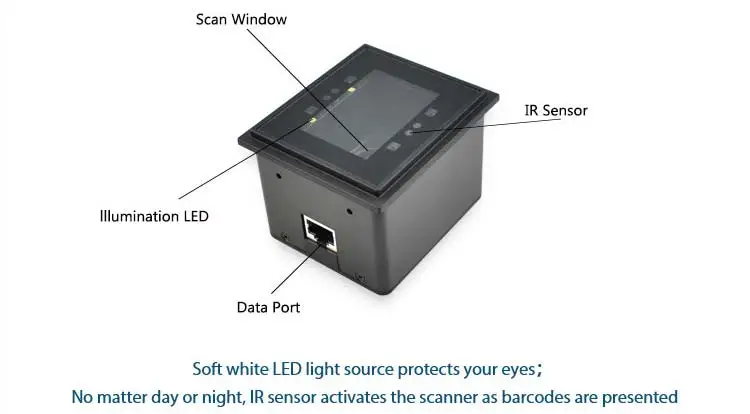

2. Designed with IR sensor, it can read even in total darkness.
3. White LED light source protects users' eyes.
4. Instant reading and decoding within 0.3 sec.
5.Outstanding Power Efficiency
6.The advanced technology incorporated in the scanner helps to reduce the power consumption and prolong the service life of the device

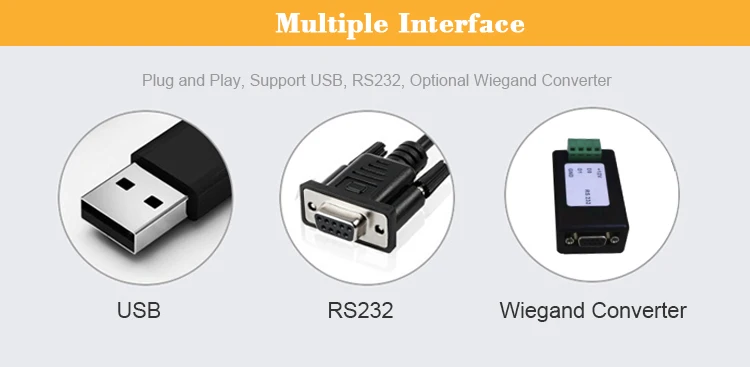

7.USB/RS232 Cable Power Adaptor
Product Specification:
| Product name | Fixed Mount 2D Barcode Scanner |
| Item number | RD4600 |
| Interface | RS232/ USB |
| Image Sensor | 752 x 480CMOS |
| Symbologies | 2D: PDF417, Data Matrix, QR Code 1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, |
| Precision | 10 mil |
| Light Source | White LED |
| Scan Window | 38.3mm*60.4mm |
| Depth of Field* | 40mm-430mm |
| Print Contrast Signal | ≥ 30% |
| Illumination | 0 ~ 100,000 LUX |
| Power Consumption | 1.75W (max) |
| Power Adaptor | Output: DC5V, 0.5A, Input: AC100~240V, 50~60Hz |
| Weight | 300g |
| Dimensions | 79 mm(L) X 67mm (W) X 62mm(H) |
| Notification | Beep |
| Operating Temperature | -10 ℃ to + 50 ℃ |
| Storage Temperature | -20 ℃ to + 60 ℃ |
| Humidity | 5% - 95% ( non-condensing ) |
| Certification | FCC Part15 Class B, CE EMC Class B |
Application Case:
RD4500R fixed mount barcode scanner is designed primarily for such applications as electronic tickets/coupons, mobile marketing, mobile payment, kiosk, turnstile, and office automation, the series fixed mount barcode scanner is able to read barcodes on paper and mobile phones.
Compatible OS: Android, Windows, Linux
Projects: Turnstile, Kiosk, ATM, Payment Terminal, Ticketing Validator, etc.
Related Products
5 Series of Fixed Mount 1d 2d Barcode Scanner:
We have scanner models in different size which could be installed flexiblely in various applications, if there is any product you are interested in for your projects, please click it for more details and Contact Us.
Company Information
FAQ
Q1: Can I get some samples? Are they free?
A1: Of course you can get sample for testing before bulk order, but samples are not free.
Q2: What's the delivery time?
A2: Depend on product and quantity of your order. Usually, samples can be sent to you in 3 work days after your payment.
Q3: What about payment methods?
A3: Payment terms: Online payment, T/T,West Union and Paypal, etc.
Q4: Can you list the product of your company?
A4: Barcode Scanner Module, RFID Scanner, Desktop/Handheld Barcode Scanner.
Q5: Where can we download the user manual of your products?
A5: User manual will be sent to you by email after the sample order.
Q6: Warranty time?
A6: 1 year.
Q7: Do you provide Evaluation Kit for testing barcode scanner modules?
A7: Yes,but EVK should be purchased separately.
Q8: Product OEM?
A8: Yes, but it requires certain MOQ and the cost need to be added separately.
Q9: Customer service?
A9: Any questions of product after you receipt,please contact us,we'll reply you in 24 hours.
Q10: What shiping methods do you have?
A10: Since our products are very small, the common shiping methods are post air mail or fast express.
