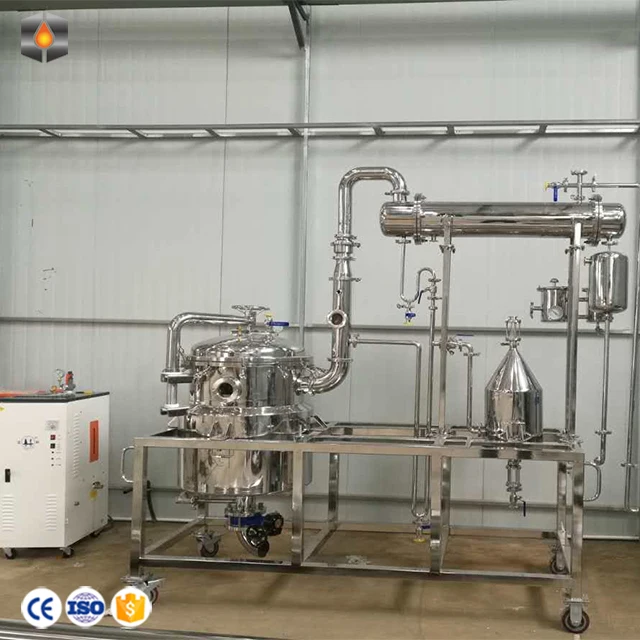

High quality Supercritical Co2 Machine For Essential Oil Extraction

Product Overview

Description



HDC brand,essential oil steam distillation,advanced and Continuously improving .We had specialized in essential oil extracting technology and equipment for more than 30 years,serviced for thousands of customers all over the world.we hope to bring customers extraordinary experience and sincerely hope to serve you.

Application of essential oil distillation equipment:

This essential oil distillation equipment is popular,famous,advanced and with top quality in production of Chinese medicines,health products,biological drugs,cosmetics and food .This essential oil Distill equipment uses technology and chemical separation,can extract plant components efficiently by steam distillation , have good effect in collecting essential oil from plants.

Main advantage of essential oil distillation equipment :

(1)By steam-distillation to reach the extraction of essential oils.

(2)Easy operation. One people can operate this machine easily .

(3)High efficiency. Using indirect heating of heat- transfer oil, it can quickly reach 100℃ high temperature under the conditions of cleanness, safety and atmospheric pressure. If required, with vacuum pump, the extraction speed of essential oils will be ore faster. (4)Compact structure.It covers only about 1.5 square meter.

Oil quality

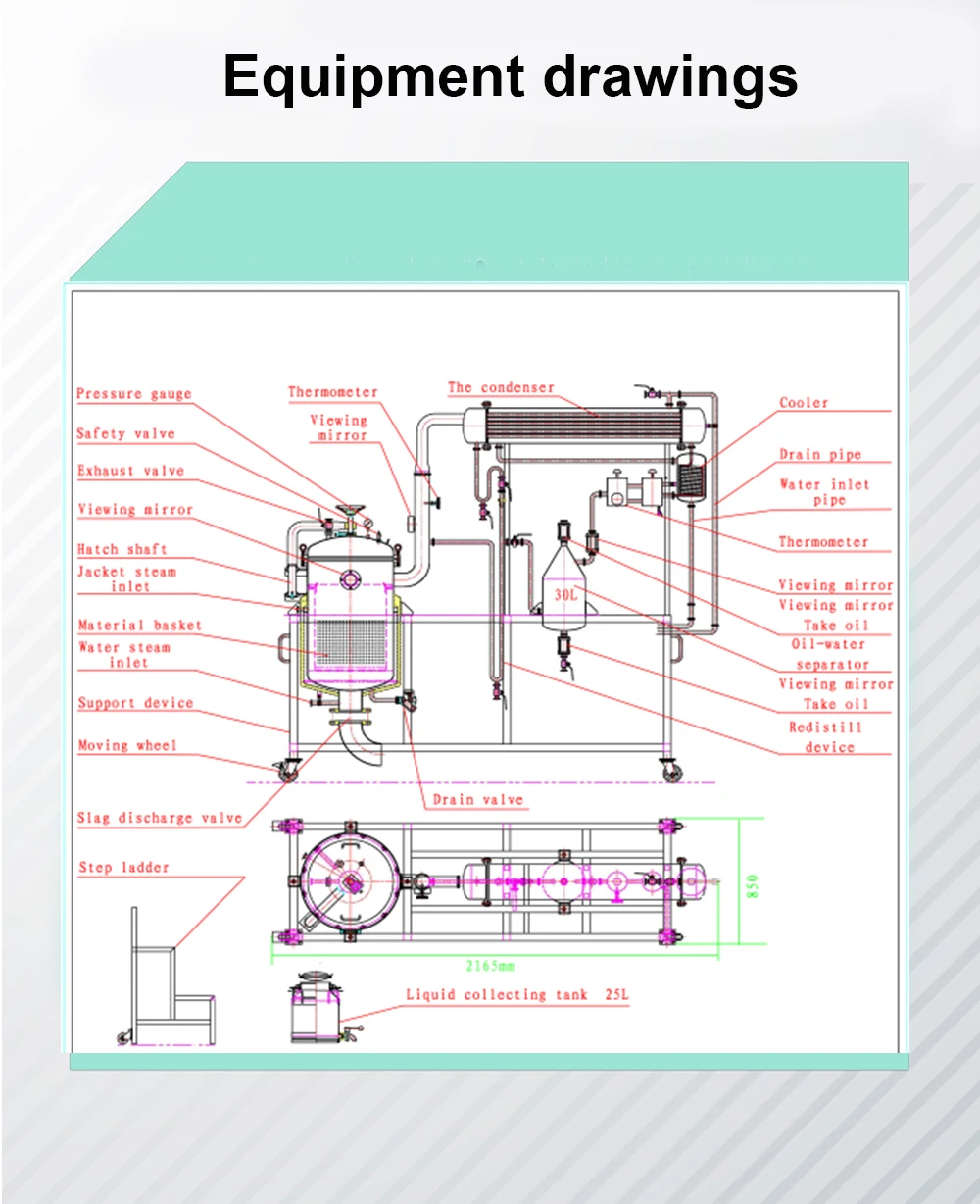

Machine Structure

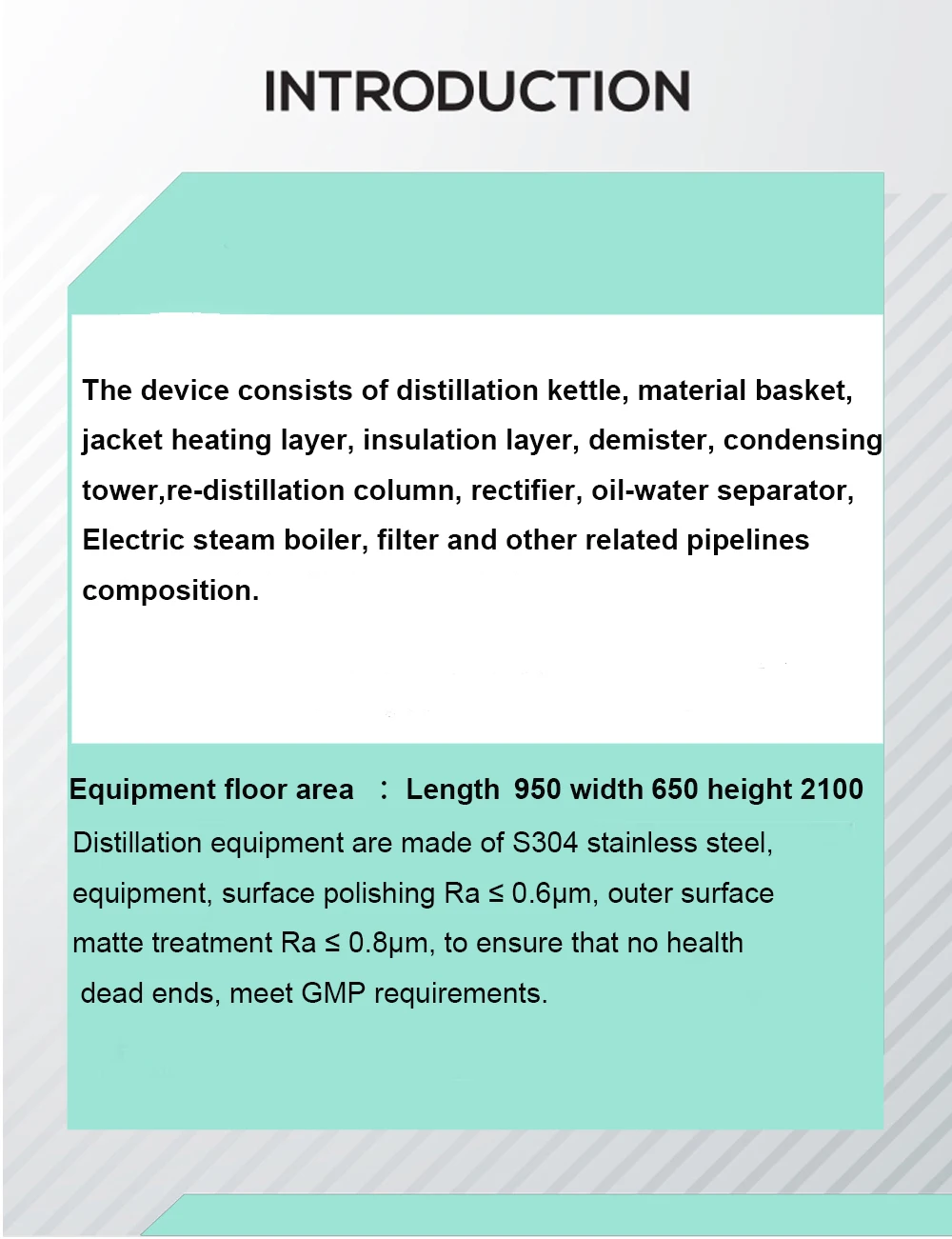

The device consists of distillation kettle, material basket, jacket heating layer, insulation layer, demister, condensing tower,re-distillation column, rectifier, oil-water separator, Electric steam
 boiler, filter and other related pipelines composition.
1, Distillation equipment are made of S304 stainless steel, equipment, surface polishing Ra ≤ 0.6μm, outer surface matte treatment Ra ≤ 0.8μm, to ensure that no health dead ends, meet GMP requirements.
2, Include control box, manhole, cleaning ball, the water inlet, depending on the light mouth, sight glass, spare mouth, pressure gauge interface, thermometer interface, return port, outlet, through steam mouth and other related fittings.





Model		HDC-0.1
Distillation kettle volume L		10
Kettle inside design pressure MPa		0.09
Jacket layer  working pressure MPa		0.3
Jacket layer inside work temperature ℃		143
Heating area m2		0.7
condenser system m2 (Condenser +cooler)		0.87
Feed port diameter(mm)		196
Oil-water separator(fermentor)L		8
Pure dew storage tank(L)		/
Equipment floor area	Length	950
	width	650
	height	2100
evaporation capacity (kg/h)		10

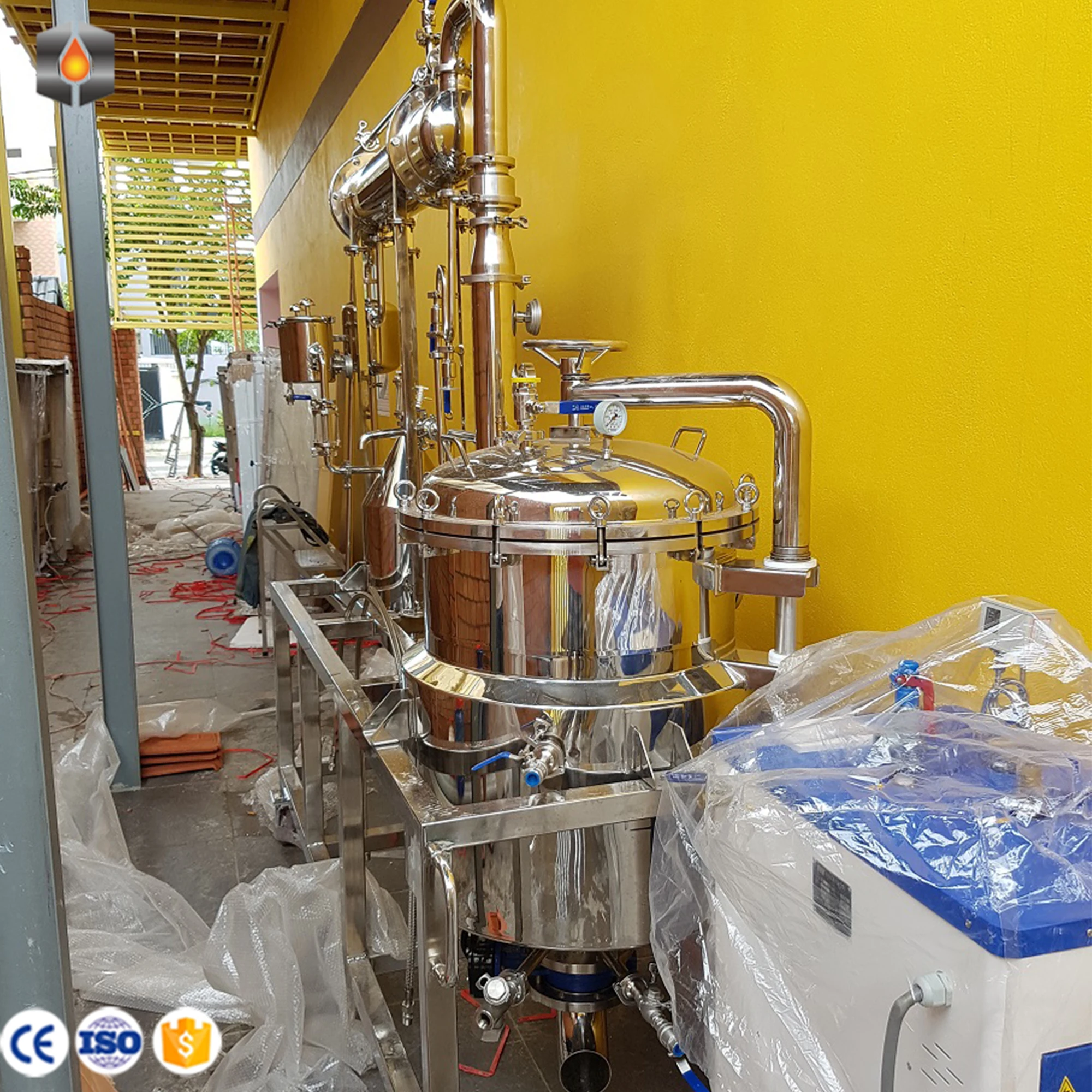

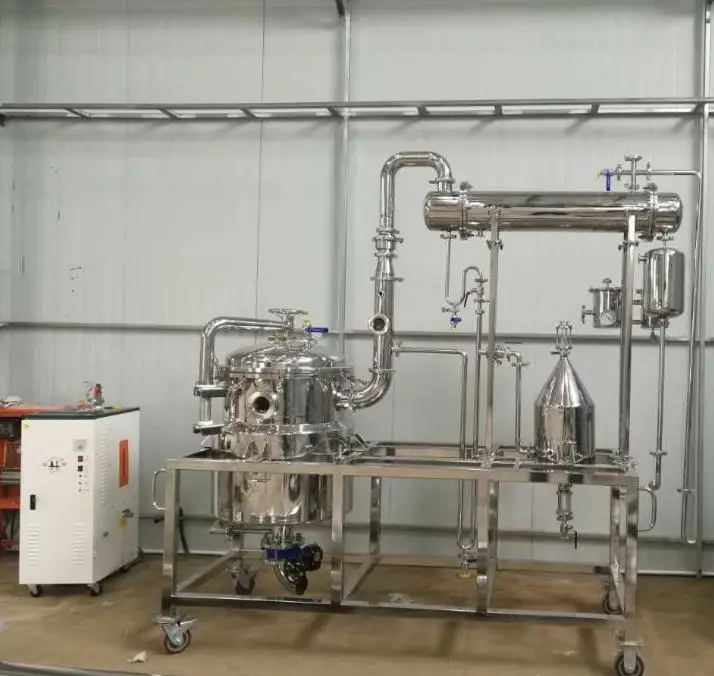

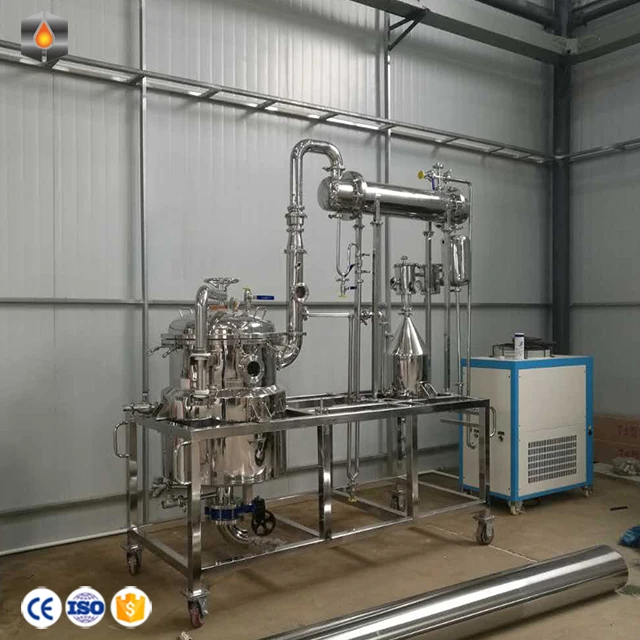

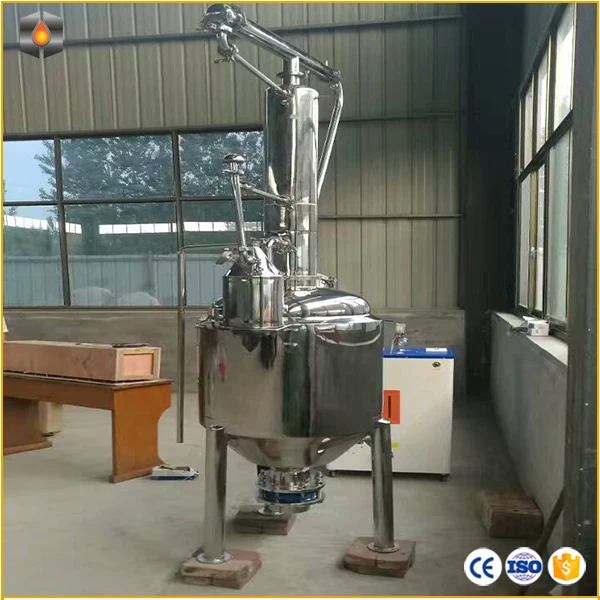

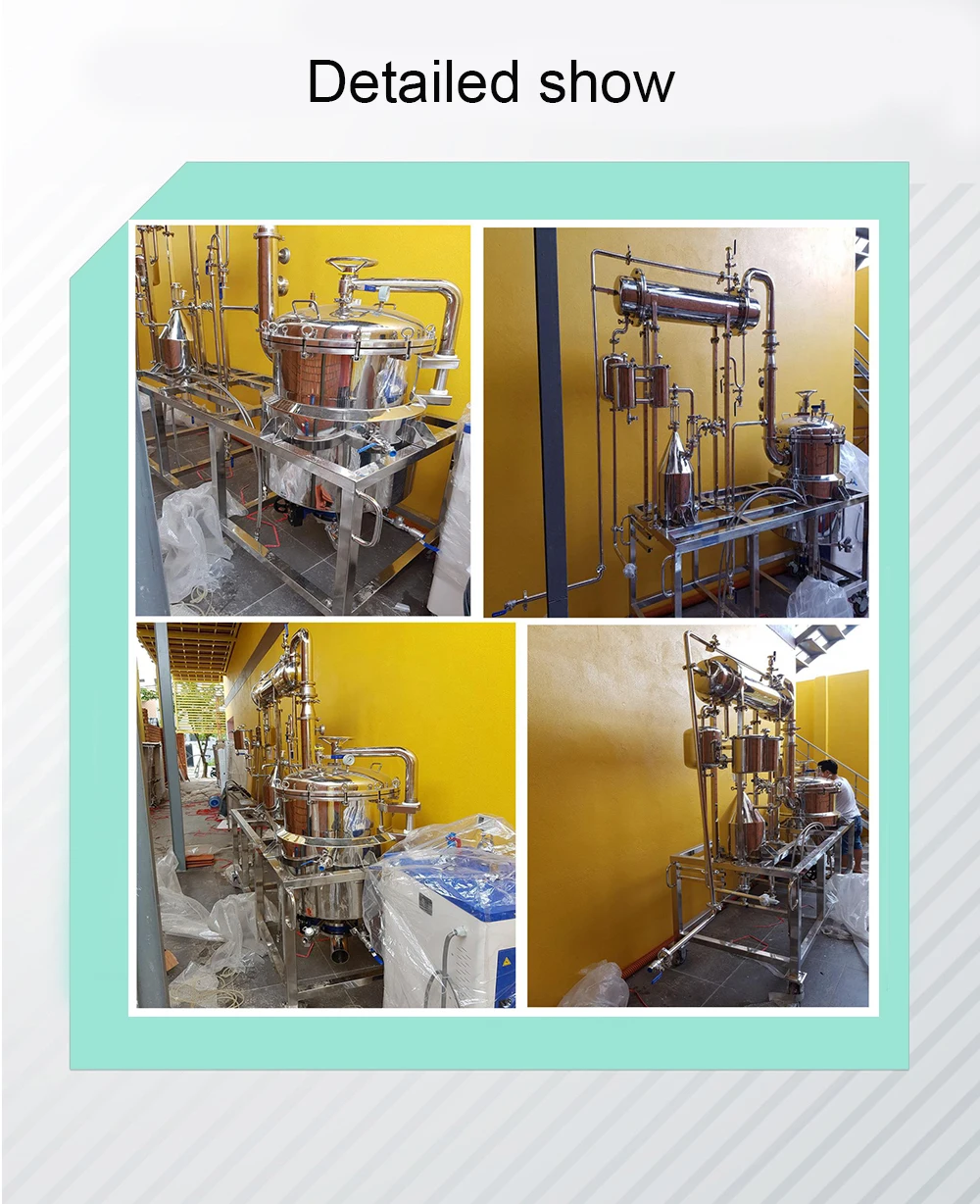

Detailed show

Raw material



Flowers	Rose; jasmine; lavender; chamomile; ylang ylang; geranium; neroli; clary sage;achillea millefolium; osmanthus; peony; marigold;l aurel;
Leaves	Tea tree; eucalyptus; mint; patchouli; juniperberry; cypress; pine needles; spearmint; basil.
Roots	Ginseng; ginger; angelica; garlic; vetivert; angelica root; mugwort; borneol camphor.
Grasses	Rosemary; verbena; lemongrass; melissa; nardostachys; tarragon; caraway; dill; valerian; houttuynia; wintergreen;  evening primrose.
Wood	Sandalwood; cedar wood; rosewood; agarwood; Birch; holly; camphor; melaleuca; sassafras.
Resins	Frankincense; myrrh; benzoin; fir tree; amyris; Elemi.
Bark	Cinnamon.
Citrus	Bergamot; grapefruit; lemon; orange; lime; tangerine .
Seeds	Cloves; almonds; cardamom; carrot seed; pomegranates; pepper; capsicum ; fennel.
