DN15-DN300,DN150~DN2000 can use the insertion vortex flowmeter, and the big caliber is more suitable for insertion type.

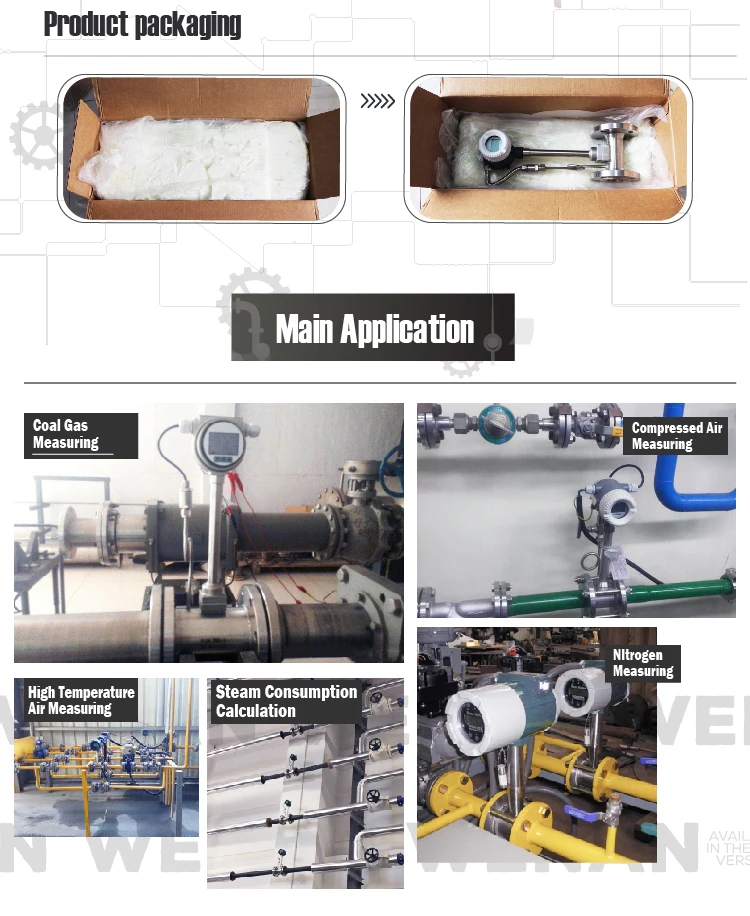

Scope of application
Gases (air, oxygen, nitrogen, gas, natural gas, chemical gas, etc.), liquids (water, high temperature water, oil, food liquid, chemical liquid, etc.), steam (saturated steam, superheated steam)
Medium temperature
-40°C~250°C,-40°C~350°C,-40°C~400°C
Nominal pressure
≤1.6MPa ≤2.5MPa ≤4MPa Special pressure can be customized
Accuracy level
Liquid 0.5%
Gas, steam 1.5%
insertion type 2.5%
Medium velocity range
Liquid:0.6~6m/s,Gas:5~60m/s,steam:5~70m/s.
Output Signal
Voltage pulse,4-20mA Current output,HART Agreement,RS485.

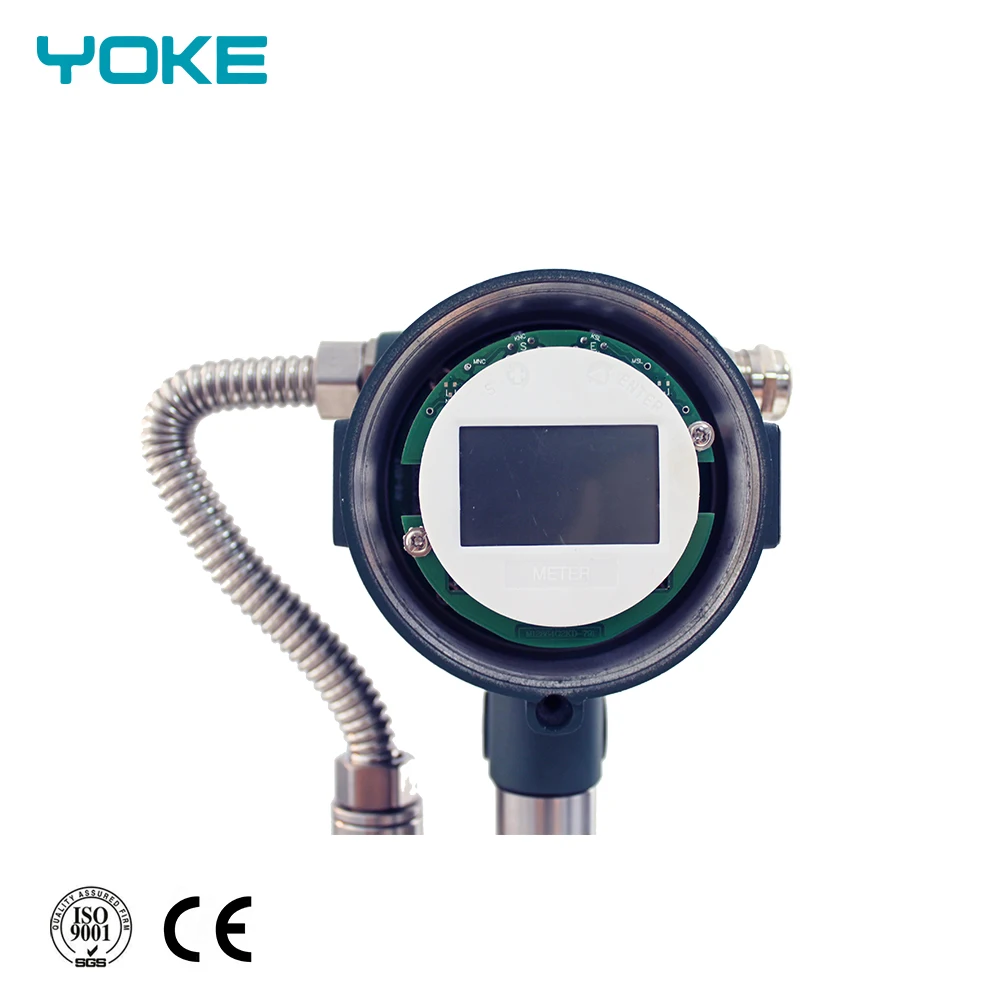

Converter power supply
Voltage pulse output:+12VDC, 4~20mA Current output:+24VDC; Live LCD display:3.6V1 No. 1 lithium battery power supply, the service life is more than 2 years
Ambient temperature
Voltage pulse output:-30°C~+65°C, 4~20mA Current output:-10°C~+55°C; Live LCD display:-25°C~+55°C

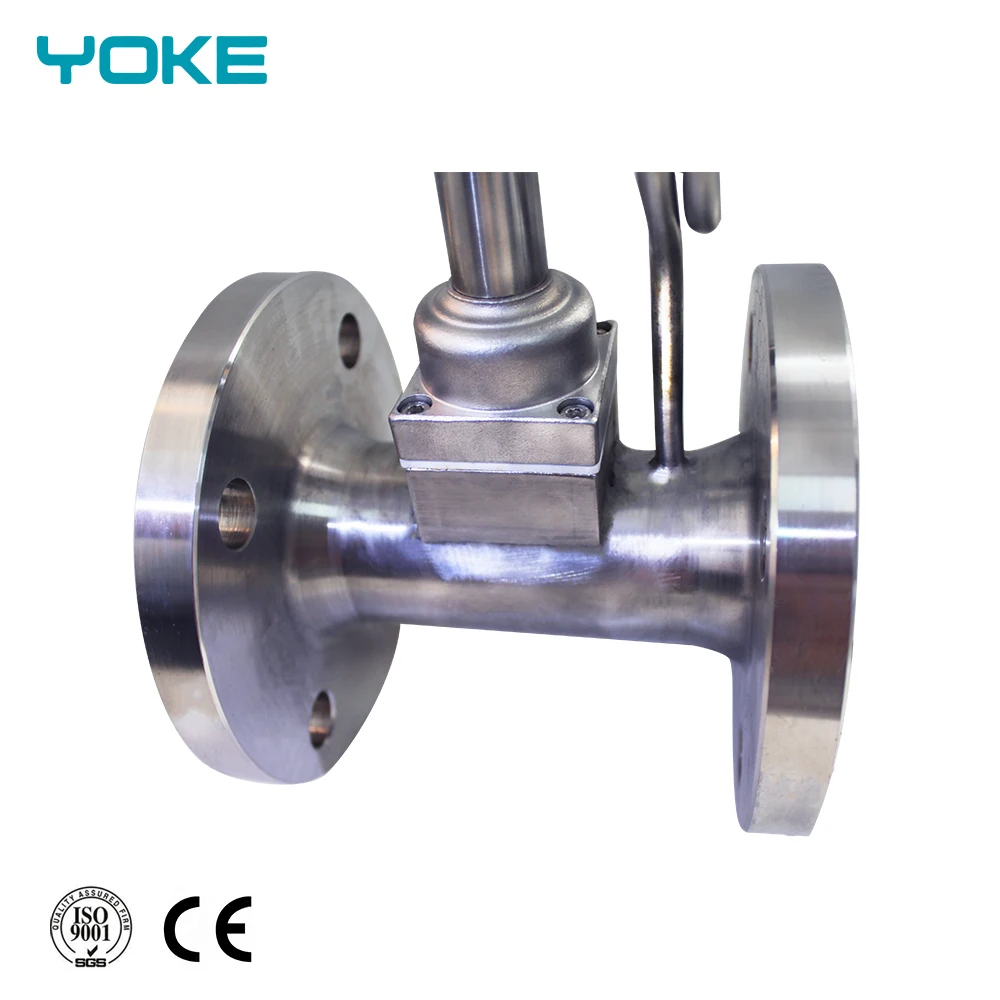

Body material
1Cr 18Ni 9Ti (Other materials according agreement to supply)
