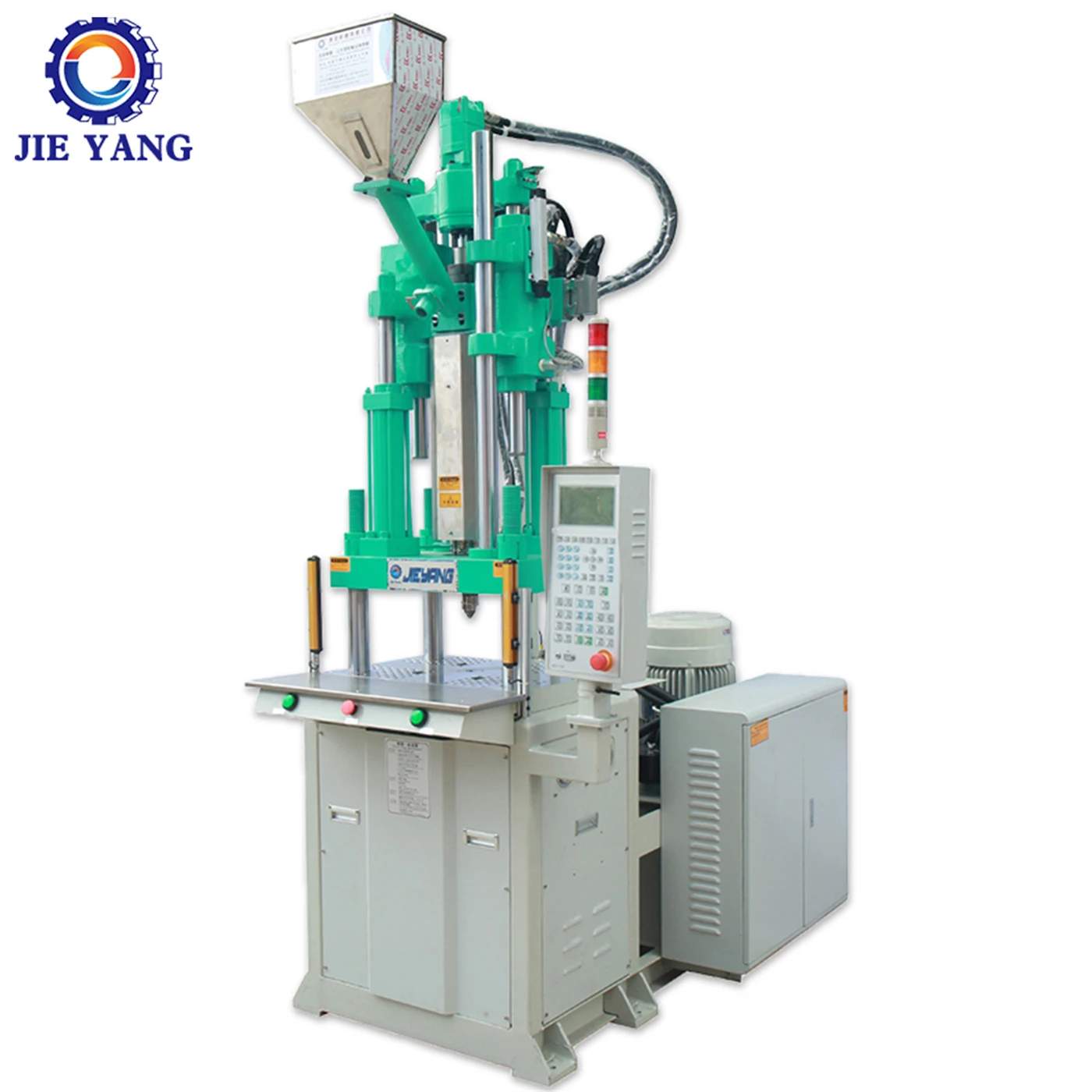

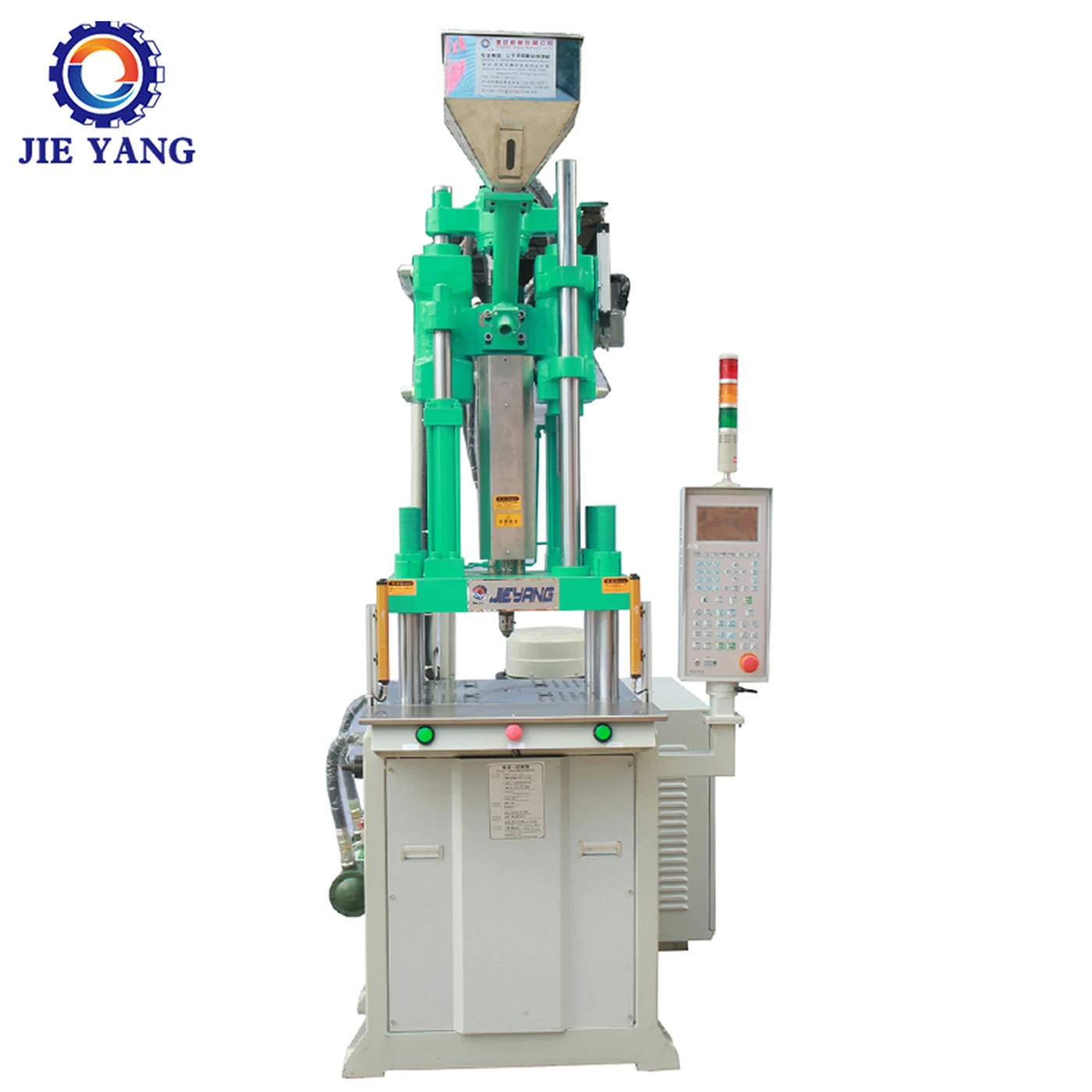

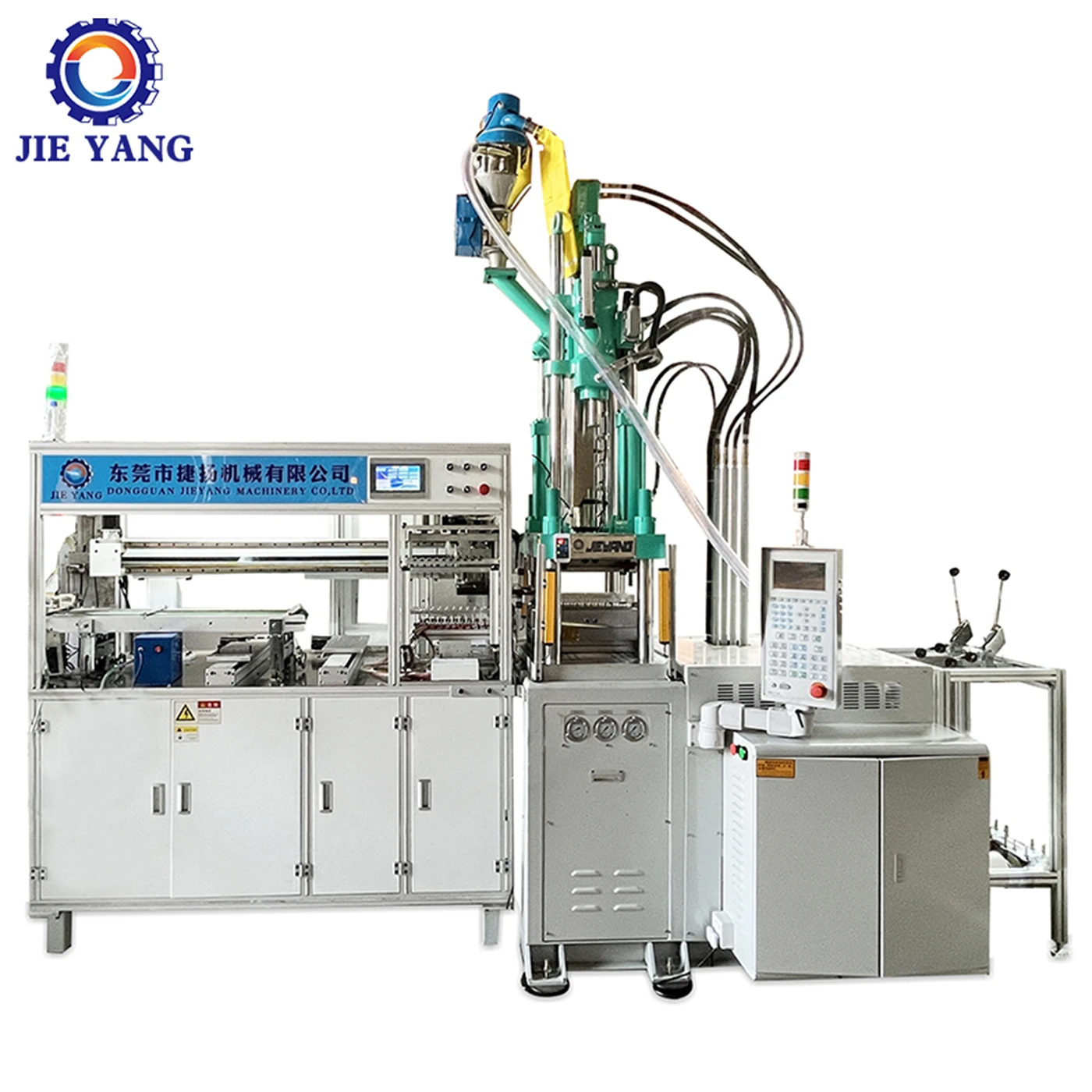

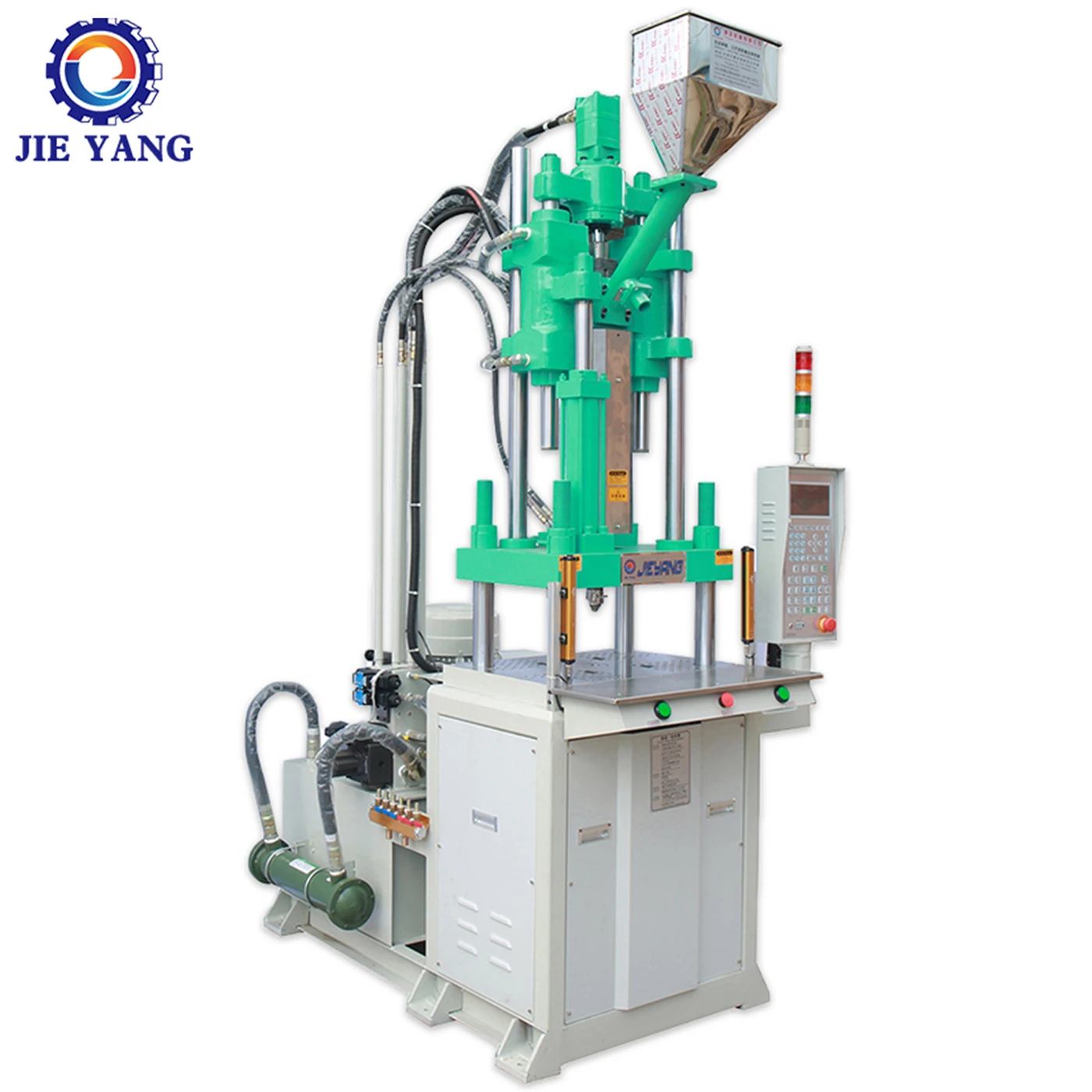

new brand full electric dental floss injection molding machine
- Category: Injection Molding Machines >>>
- Supplier: Dongguan Jieyang Machinery Co. Ltd.
Share on (60730717917):
Product Overview
Description
Product Description
Product Application
Vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, connectors, cables,auto parts, Plug ,etc.
MODEL | JY-250ST | JY-350ST | JY-500ST | JY-850ST | JY-1000ST |
Screw Diameter | 30mm | 35mm | 42mm | 48mm | 48mm |
Max.Shot Weight | 74g | 106g | 176g | 227g | 260g |
Clamping Force | 35Tons | 45Tons | 55Tons | 85Tons | 120Tons |
Opening troke | 180mm | 200mm | 200mm | 255mm | 300mm |
Ejector Force | 1.3Tons | 1.76Tons | 1.76Tons | 2.1Tons | 4.8Tons |
Ejector Stoke | 35mm | 35mm | 35mm | 45mm | 45mm |
Oil Resservoir Capacity | 100L | 130L | 150L | 180L | 200L |
Pump Motor Power | 3.75KW/5.5HP | 5.5KW/7.5HP | 7.5KW/10HP | 11KW/15Hp | 14.5KW/22HP |
Power | 6.3KW | 9KW | 12KW | 16KW | 20KW |
Machine Weight | 1.5Tons | 2.4Tons | 3.0Tons | 5Tons | 6.8Tons |
Machine Dimensions(LxWxH) | 1.55x0.93x2.45m | 1.7x1.2x3.0m | 1.85x1.2x3.0m | 2.0x1.3x3.2m | 2.0x1.4x4.1m |
Shipping Weight | 1.8Tons | 2.7Tons | 3.4Tons | 5.4Tons | 7.2Tons |
Shipping Measurment(LxWxH) | 1.76x1.15x2.3m | 1.92x1.3x2.3m | 2.1x1.4x2.3m | 2.2x1.4x2.5m | 2.2x1.6x2.8m |
Main Features
1) Straight screw ejected assembly.
2) Two(three)-phase temperature, ejected speed, backing pressure and screw speed is suitable for various plastic to confectioned.
3) Low-die fixed top active mode makes inserted objects excellent positioned features and the machine has liftout attachment for finished goods.
4) Low-pressure closed die assembly can protect the safety of die.
5) Material tube can be lifted. It is easy to clean stub bar. It is easy to fix die.
6) Can be installed a single mold or double shuttle table.

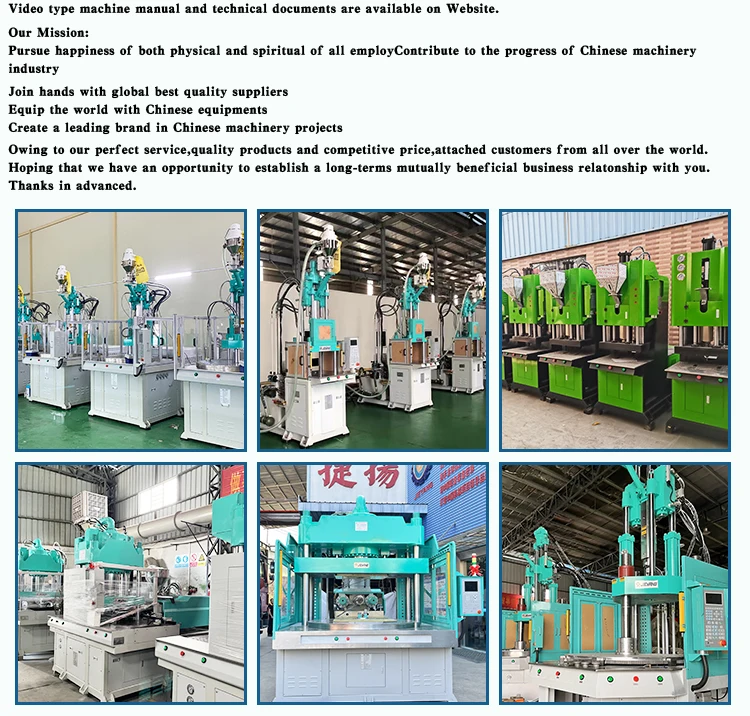

Details photos:

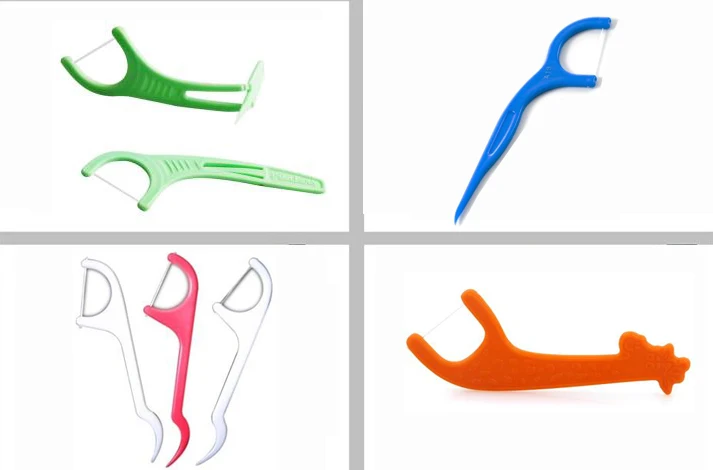

Machine Main Products:
Youtube Vedio:
European Plug:https://youtu.be/xtM1aSLv9uw
South Africa Plug:https://youtu.be/4TSYylWwO7M
USB Cable:https://youtu.be/rReF6ysrMvE https://youtu.be/pDyWrFNPxjI
Mac wire: https://youtu.be/rReF6ysrMvE
DC wire:https://youtu.be/t5V6N71EQcQ
Network wire:https://youtu.be/iuxdJ8pjqh0
FAQ
Q1: Are you a trading company or a manufacturer? |
A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements |
Q2: What's your warranty for the machine? |
A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance. |
Q3: What's your Delivery Time? |
A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season. |
Q4: Where is your factory? How can visit you? |
A4: Our factory is next to Guangzhou and Shenzhen. We will drive you to our factory by car when you arrive at Dongguan or Changping Railway(Bus) station. |
Q5: Why choose Jieyang Machinery Co., Ltd.? |
A5: "Customer Satisfaction, Continual Improvement & Innovative Service" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service. |
Welcome to visit our factory to view more details.
