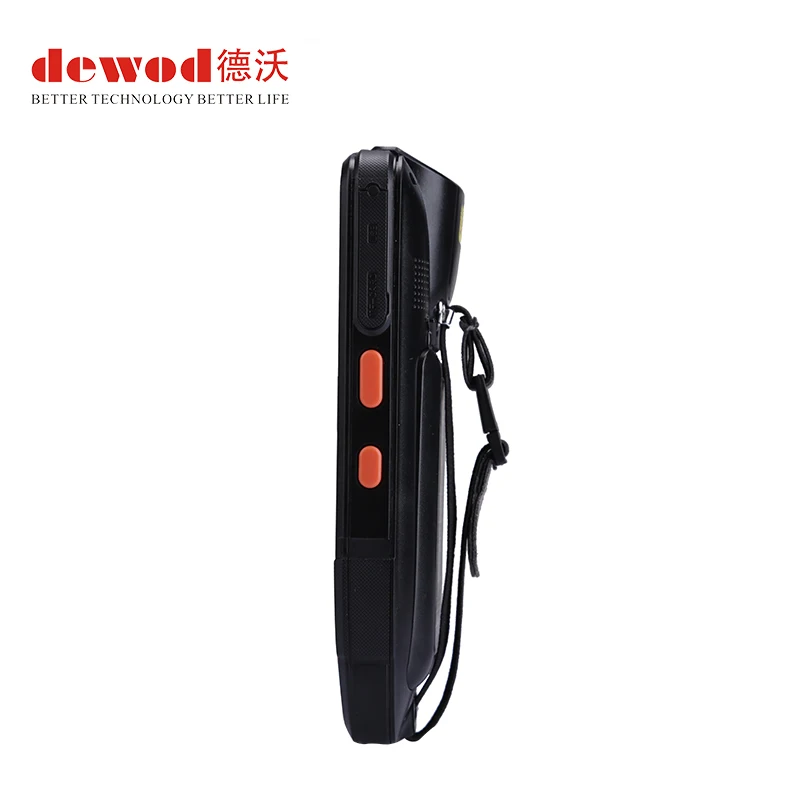

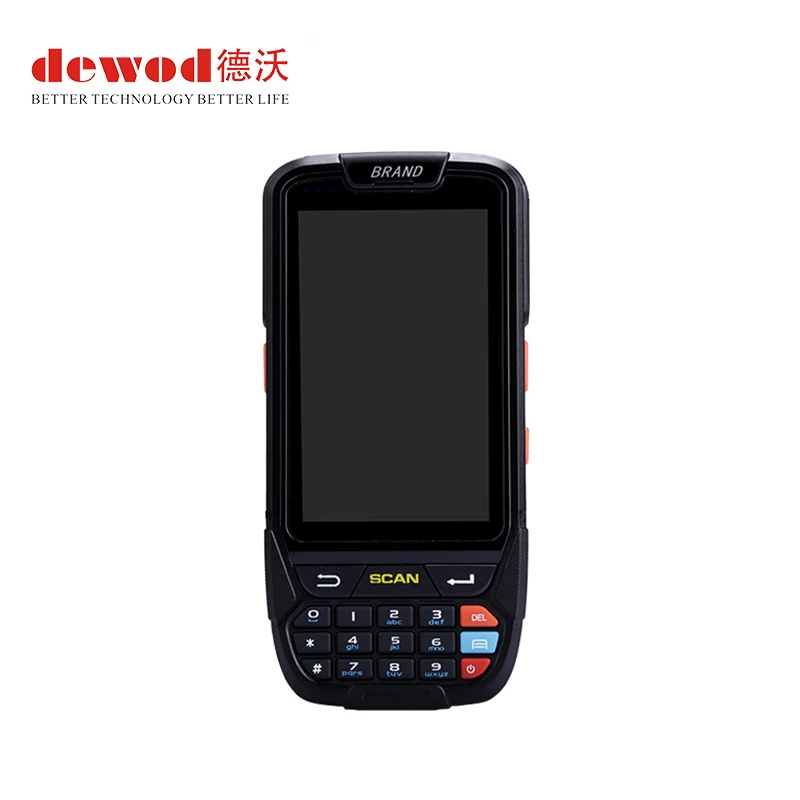

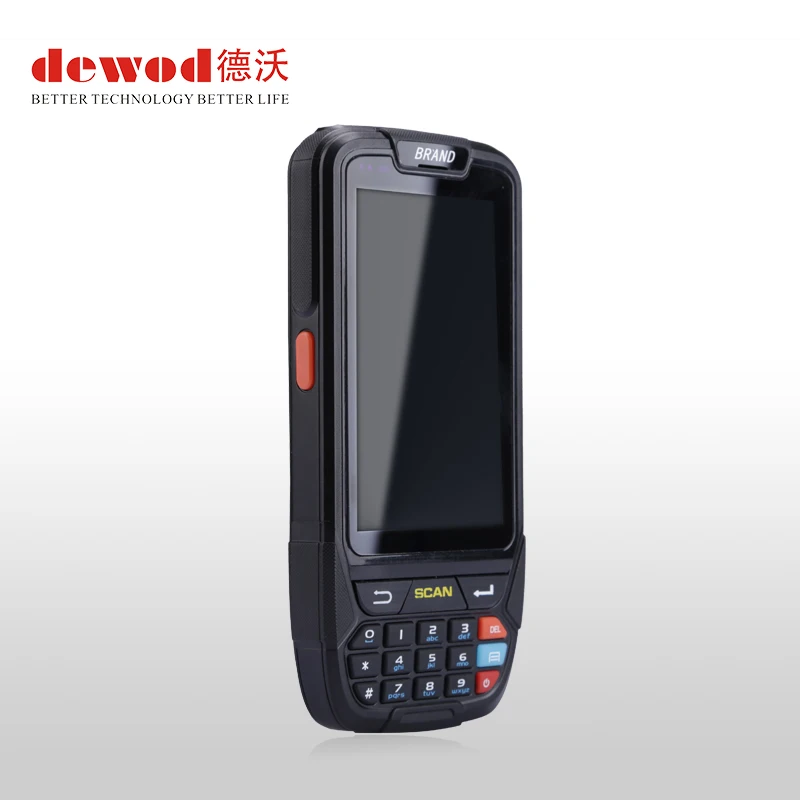

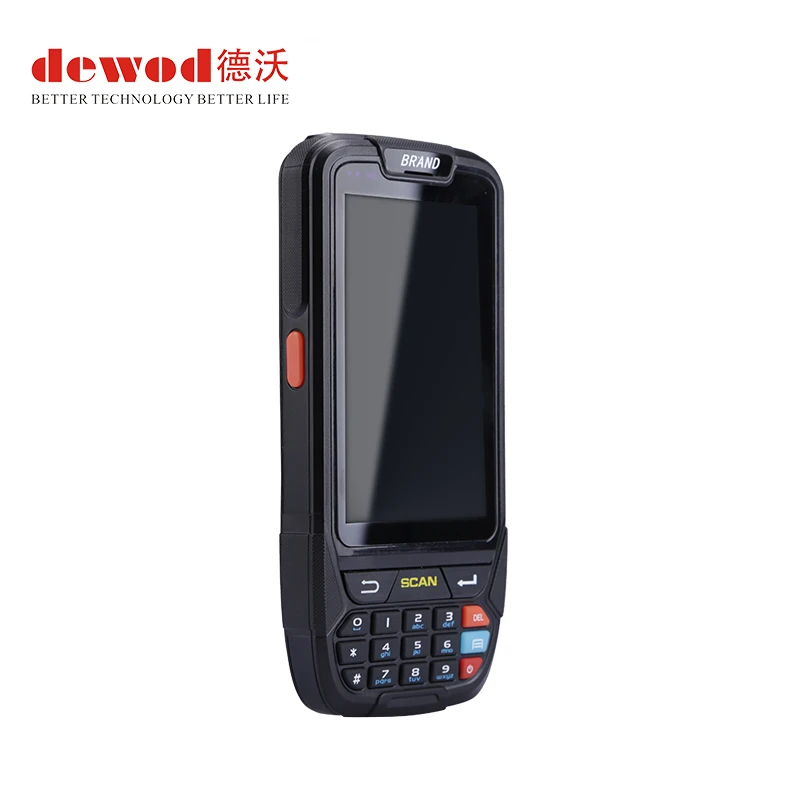

Rugged handheld smartphone 1D 2D barcode scanner PDA with 4G/ Wifi/ BT /3G/ 4G Android5.1

XN-9000 PDA

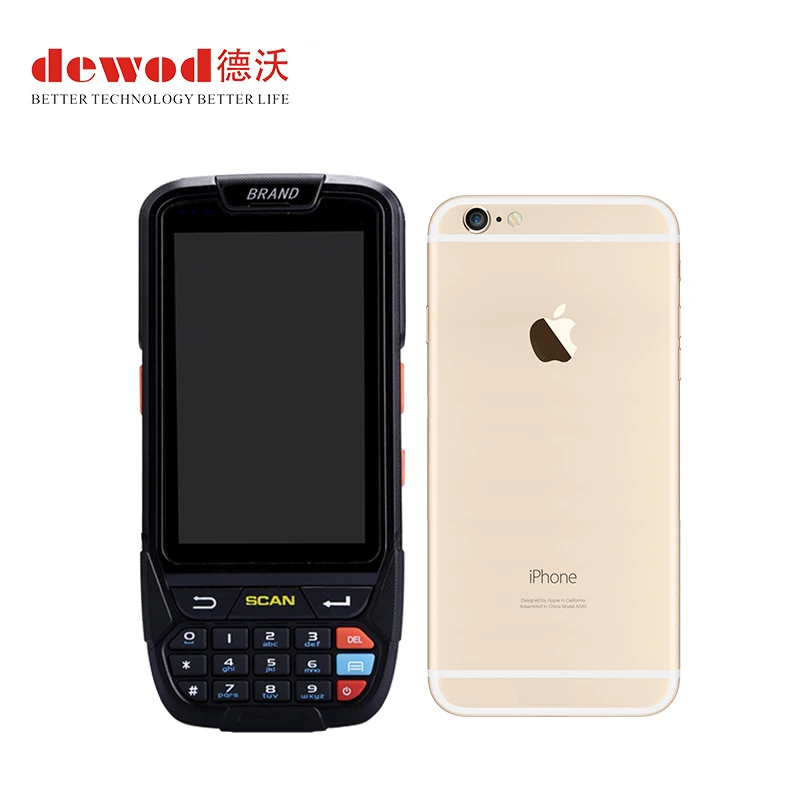

Size:

152mm(L)×77mm(W)×29mm(H)

Weight:

<500g

Display Screen:

Color 4.0 inch QVGA imitative glass durable touch screen
TFT-LCD, 650000 colors, 480*800 (QVGA size)
The brightness of LED Backlight is adjustable

Expand Port:

SIM Card,PSAM  Card,Micro SD  Card (TF)

Interface:

USB2.0 Device/RS-232

Input Mode:

Handwriting/touching input/keyboard input

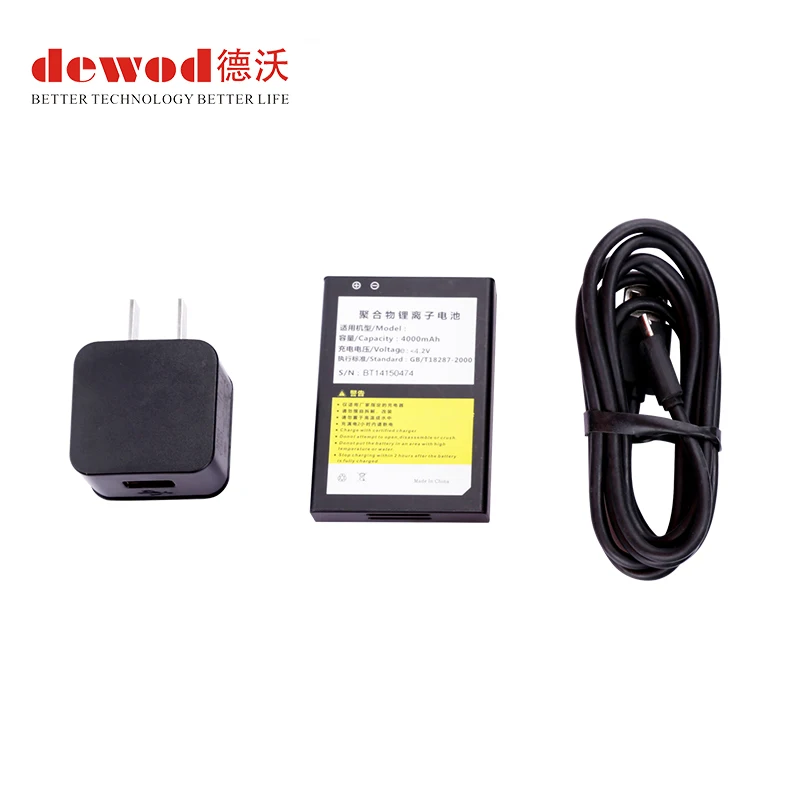

Battery Capacity:

3.7V 4,000mAh/RTC

Performance Parameter:

Operation System:

Android5.1

CPU:

ARM Cortex-A53 64 (1.3GHz)

RAM:

2G

Flash ROM:

16G&MicroSD/TF(Max enlarge32G)

Data Communication

WIFI/GPRS(A-GPS)/3G/4G

Operating Enviroment

Operating Temperature:

-20℃-50℃

Storage Temperature:

-25℃-70℃

Environment Humidity:

5%RH--95%RH(no condensation)

IP Standard:

IP65

Decoding Capacity

1D

2D

Scanner reading

CCD/laser  Symbol SE655/ Symbol SE955

CMOS  Symbol SE4500, HONEYWELL5180

Decode range:

5Mil/4Mil

Ambient Light:

0ft.candles-10000ft.candles

9000ft.candles/96900 lux

Scan speed:

50/sec

104(±)12/sec

Scan angle

53º±3º

655nm ± 10nm

Support barcode type

UPC/EAN, Bookland EAN, Code 128, Code

39, Code 93,Code 11, Interleaved 2 of

5,Discrete 2 of 5, Chinese 2 of5, Matrix

2 of 5,Inverse 1D, MSI, Gs1 DataBar,

UPC/EAN, Code128, Code39, Code93,

Code11, Interleaved 2 of 5, Discrete 2

of 5,Chinese 2 of 5, Codabar, MSI, RSS

PDF417, MicroPDF417, Composite, RSS,

TLC-39, Datamatrix, QR code, Micro QR

code,,Aztec, MaxiCode; Postal Codes: USPostNet,

US Planet, UK Postal, Australian

Postal, Japan  ,Postal Dutch Postal (KIX)

    RFID

LF

5K/134K;ISO11784/ISO11785

HF

56MHz;ISO14443A/B

Camera

Hd 8 million pixels, automatic focusing

GPS

Support A-GPS

One pc in a inner carton ,10 pcs into a out carton

Inner carton size :22*18*5.5cm   Gross weight :0.45kg

Out carton size :38*39*23cm         GRoss weight :5 kg

OEM PACKING, WHITE BOX PACKING , BROWN BOX PACKING for the barcode scanner
