OPTO-EDU A12.1305-B China Binocular Professional Laboratory Microscope
US $214.29-$266.67

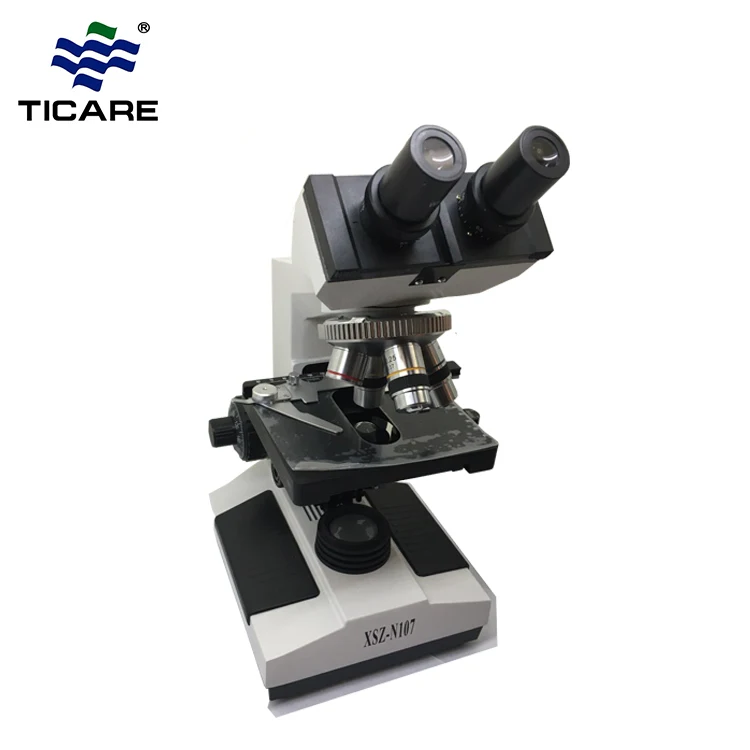

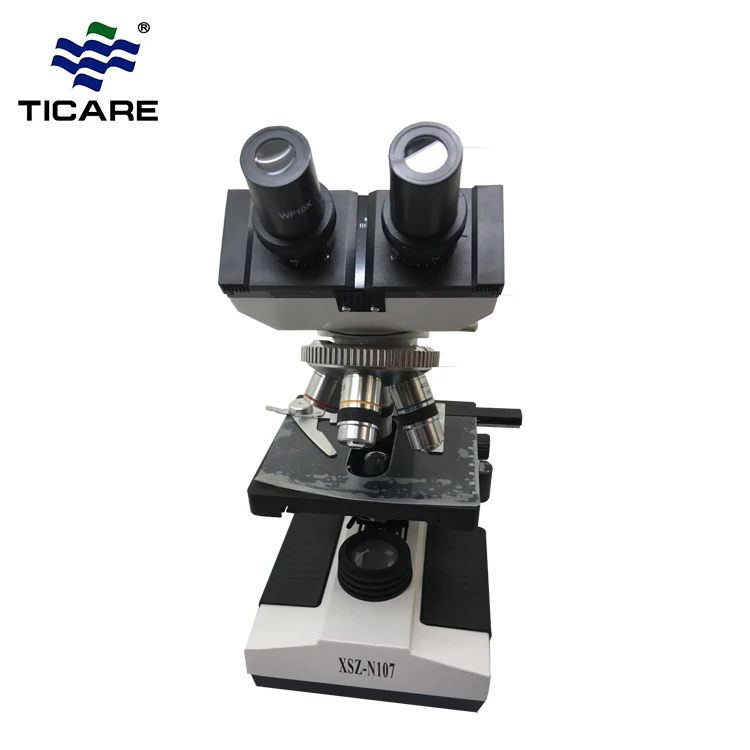

Professional XSZ N107 Polarizing Biological Binocular Microscope with Adjustable Three Objective Lens
- Category: Microscopes >>>
- Supplier: Xiamen Ticare Imp. & Exp. Co. Ltd.
Share on (60735257476):
Product Overview
Description
Product Description
The biological microscope model XSZ-N107, can be widely used in medical and sanitary establishments, laboratories, institutes, network of agricultural research, colleges and universities for clinical microscope inspections and used as instructional equipment. They also can be used in research work such as biology, bacteriology, cytology, histology and pharmaceutical chemistry.
XSZ N107 Detail Main Specification | |

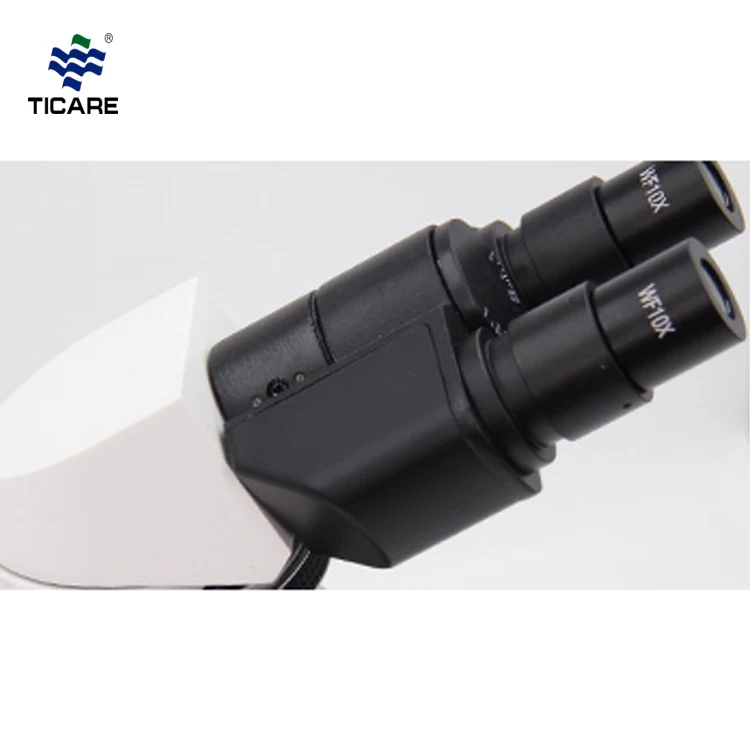

Viewing Head | Monocular(45°), Rrotalatable(360°) |
Nosepiece | 4 Holes Revolving Nosepiece |
Eyepiece | WF10x(WF16x For Choice) |
Achromatic Objective | 4X 10X 40X 100X |
Stage | 140*140mm double layer mechanical stage, move 75*45mm |

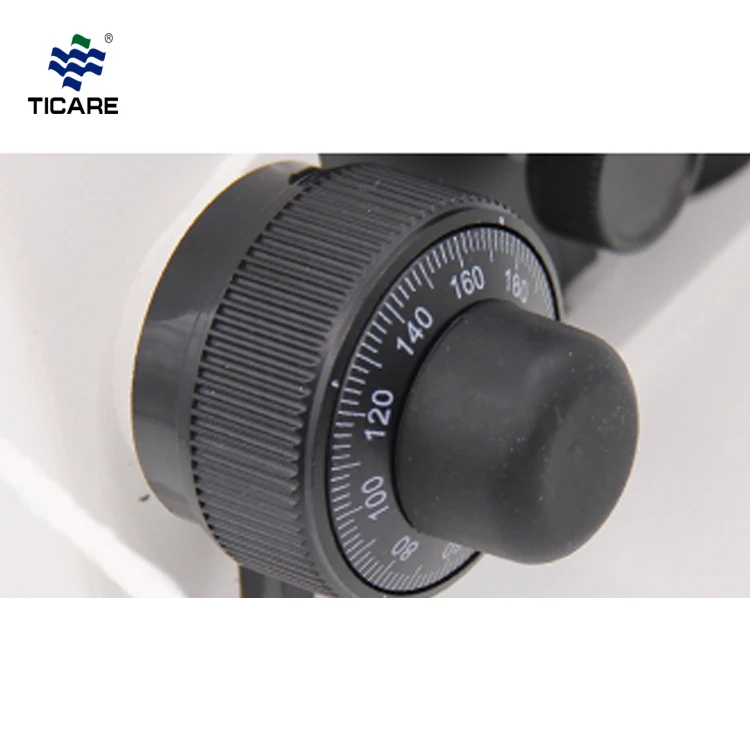

Focusing | Coaxial coarse fin adjustment, range 30mm, interval 0.002mm |

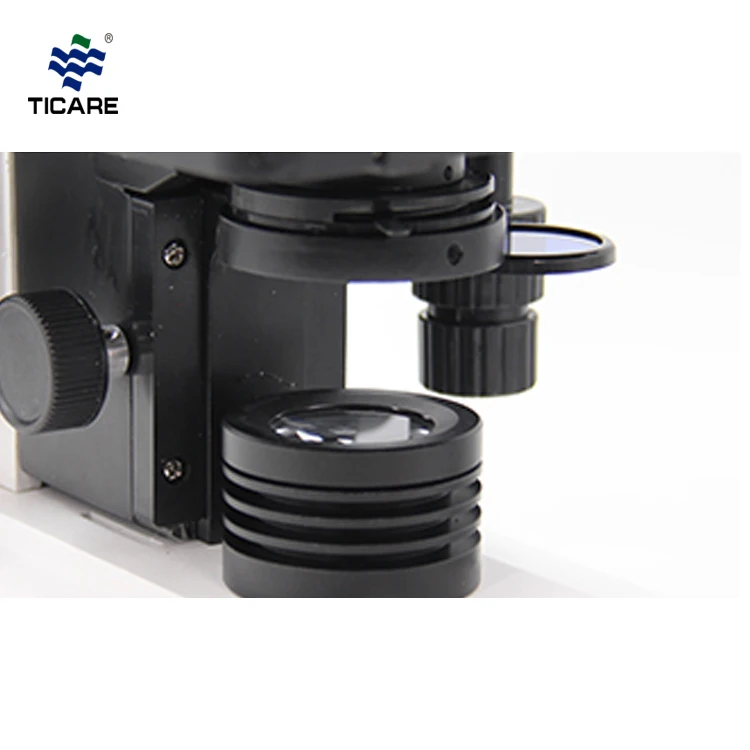

Condenser | Abbe NA=1.25 |
lllumination Condenser | 20W, 220V/110V, 6V, LED |
No. | Item | Comment |
1 | 10xplan eyepicec | WF10x/18F=25 |

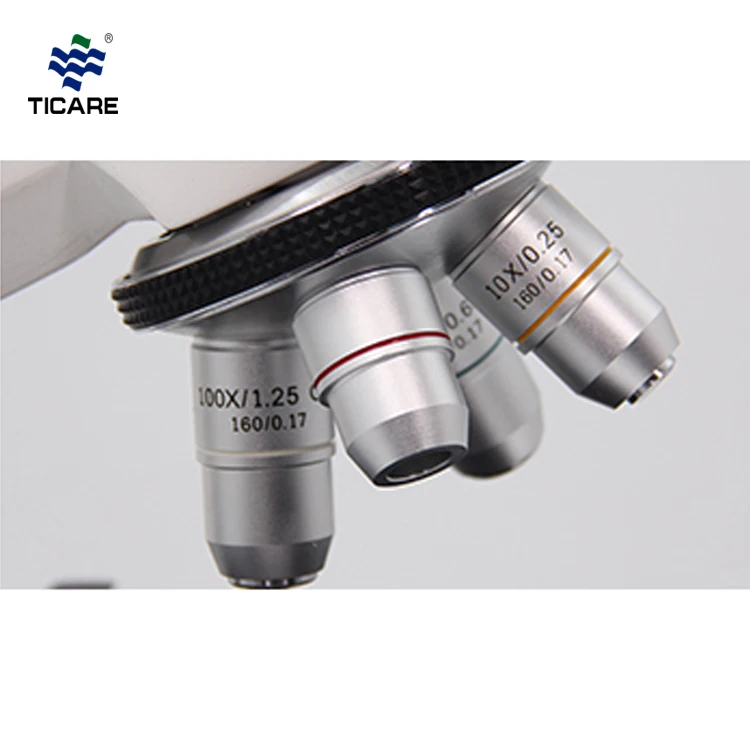

2 | 4xachromatic objective | NA=0.10 WD=35.8 |
3 | 10xachromatic objective | NA=0.25 WD=6.64 |
4 | 40xachromatic objective | (s)NA=0.65 WD=0.62 |
5 | 100xachromatic objective | (s)NA=1.25 WD=0.35 |
6 | Head | Binocular/Trinocular |
7 | Body | Coaxial Coarse and Fine Focus Mechanism |
8 | Stage | size:140*140 move range: 75*45 |
9 | Condenser | Abbe NA=1.25 |
10 | LED parts | 20W LED |
More Accessories
No. | Accessories | Photo |
1 | Abbe NA=1.25 |
|
2 | attachable lluminator plain concave mirror |
|
3 | Moving scale |
|
4 | simple polarization set |
|
5 | eyepieces |
|
6 | objective |
|
Application
Company Information
Packaging & Shipping
