mexico kr 18 roof roll forming machine

Product Overview

Description

mexico kr-18 roof roll forming machine



  floor deck cod roll forming machine,good price floor deck forming machine,easy operation roll forming machine

floor deck plate roll forming machine

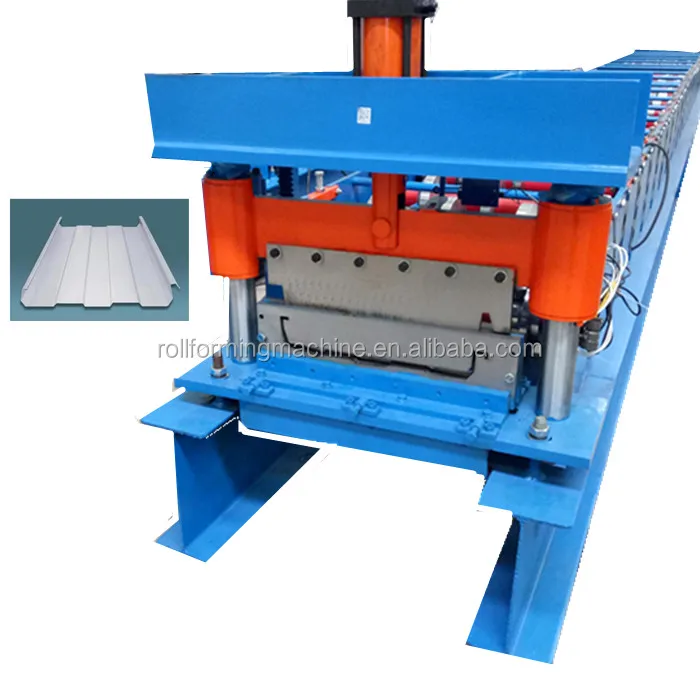

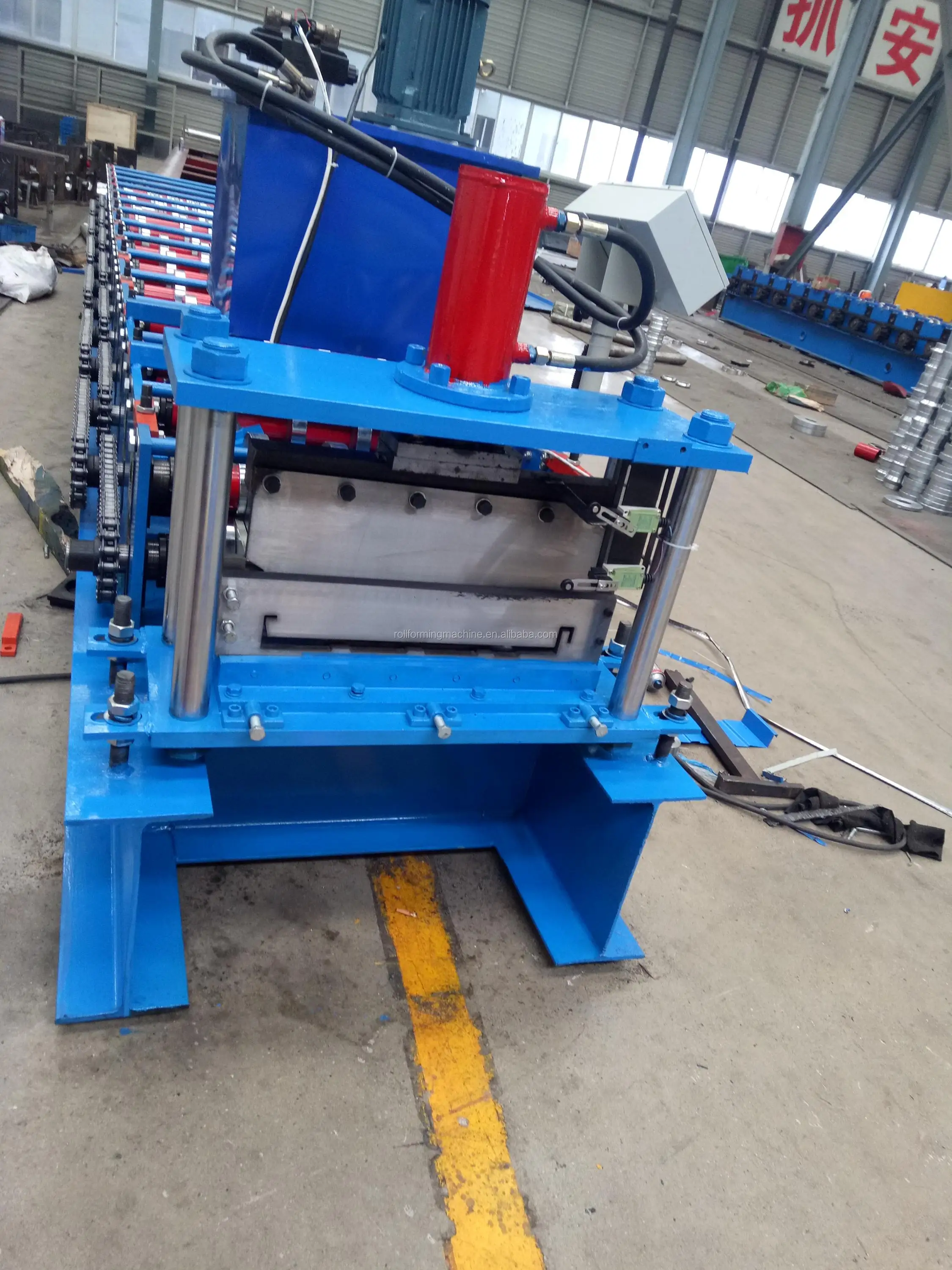

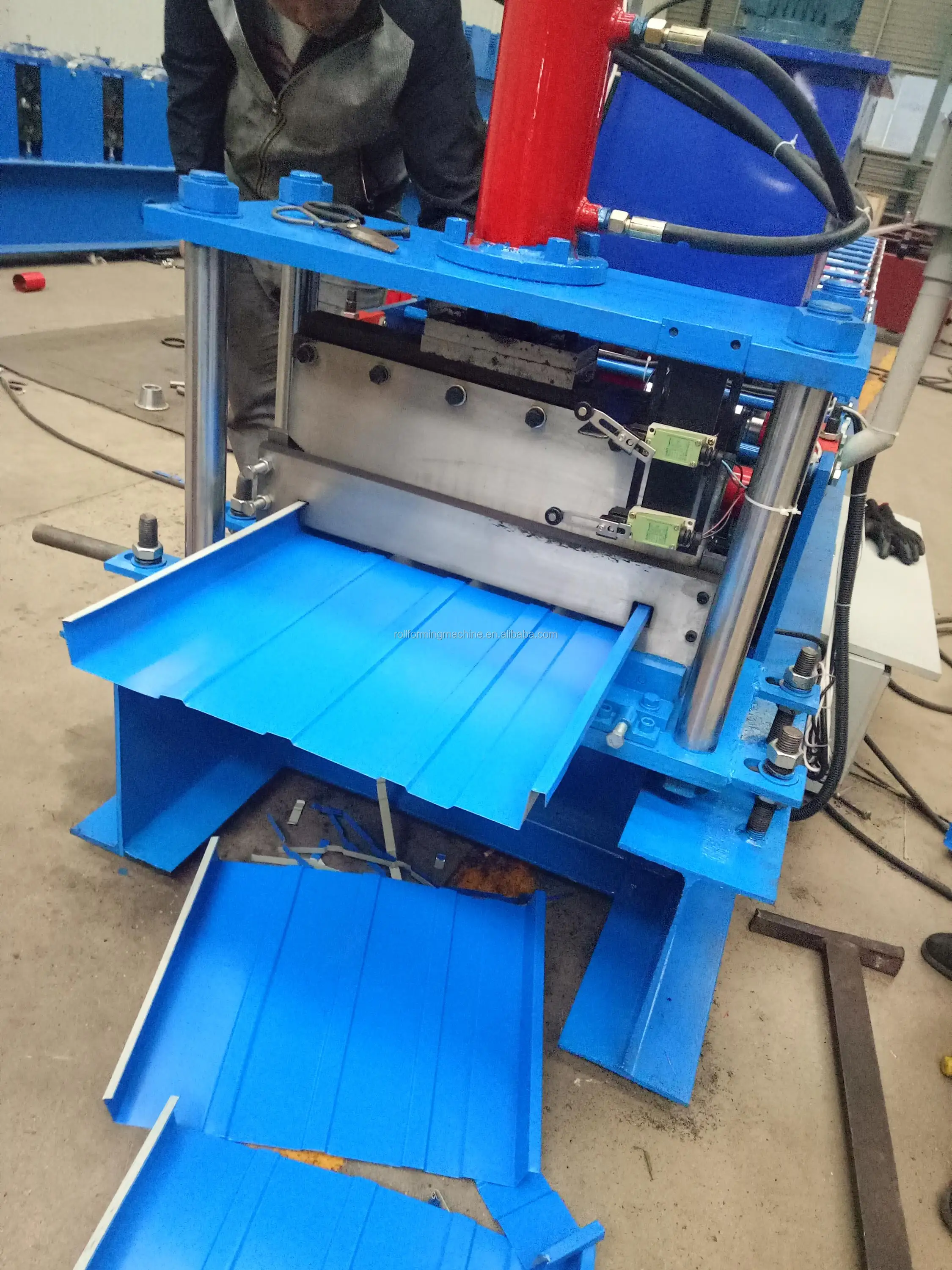

                                                      1.The picture machine:







                                       2.Product information



Technical Datas clicklock standing seam roof machine
1	Material Width	600mm

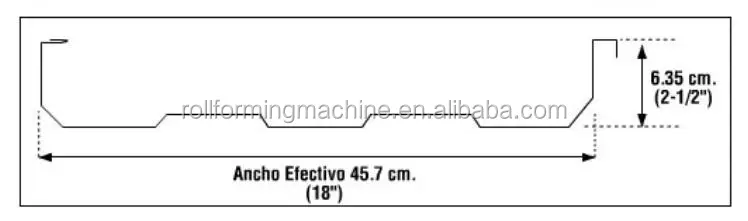

2	Effective Width	18inch
3	Thickness of Coil	22,24,26 gauge

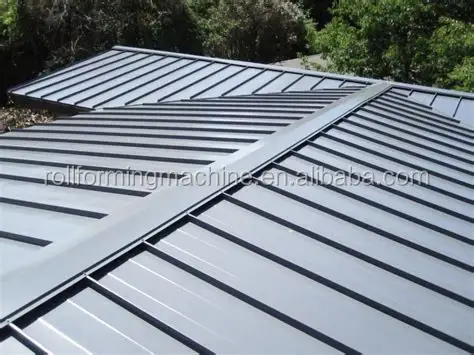

4	Application	standing seam roof panel
5	Estimated Dimension	4500mmX1100mmX1200mm
6	Total Weight	3.6
7	Main Power	gasoline diesel engine 15HP
8	Decoiler	Manual or Hydraulic Decoiler
9	Inner Diameter	508mm
10	Outer Diameter	600
11	Loading Weight	4-5T
12	Forming Speed	0—13m/min
13	Forming Station	6 stations
14	Bracket	Welded with 36 # I-steel
15	Material of Shaft	High Grade forged 45# Steel with 1st Rough Finished and  then 2th Refined Finished
16	Diameter of the Roll	60mm
17	Material of Roller	High Quality  Cr12 Quenched HRC58-62 °
18	Processing Technology	Rough Processing ---Refined Processing--Hard Chromium Plating.
19	Material of Rack	Complete Welded Structure of A3 Steel  Plate 20 mm Thickness
20	Transmission	Chain driving
21	Material of cutting blade	Cr12 with Quenched Treatment 60-62 °
22	Cutting system	Hydraulic Stop or Tracking Cutting
23	Voltage	380V/50HZ/3 Phase or as Customer Require





Bridge Highway Barrier Guardrail Profiles Roll Forming Machine (Complete Machine Picture)





                              3.The production process



Decoiler→Flating→Feeding →Forming→Cut to length→Colletion

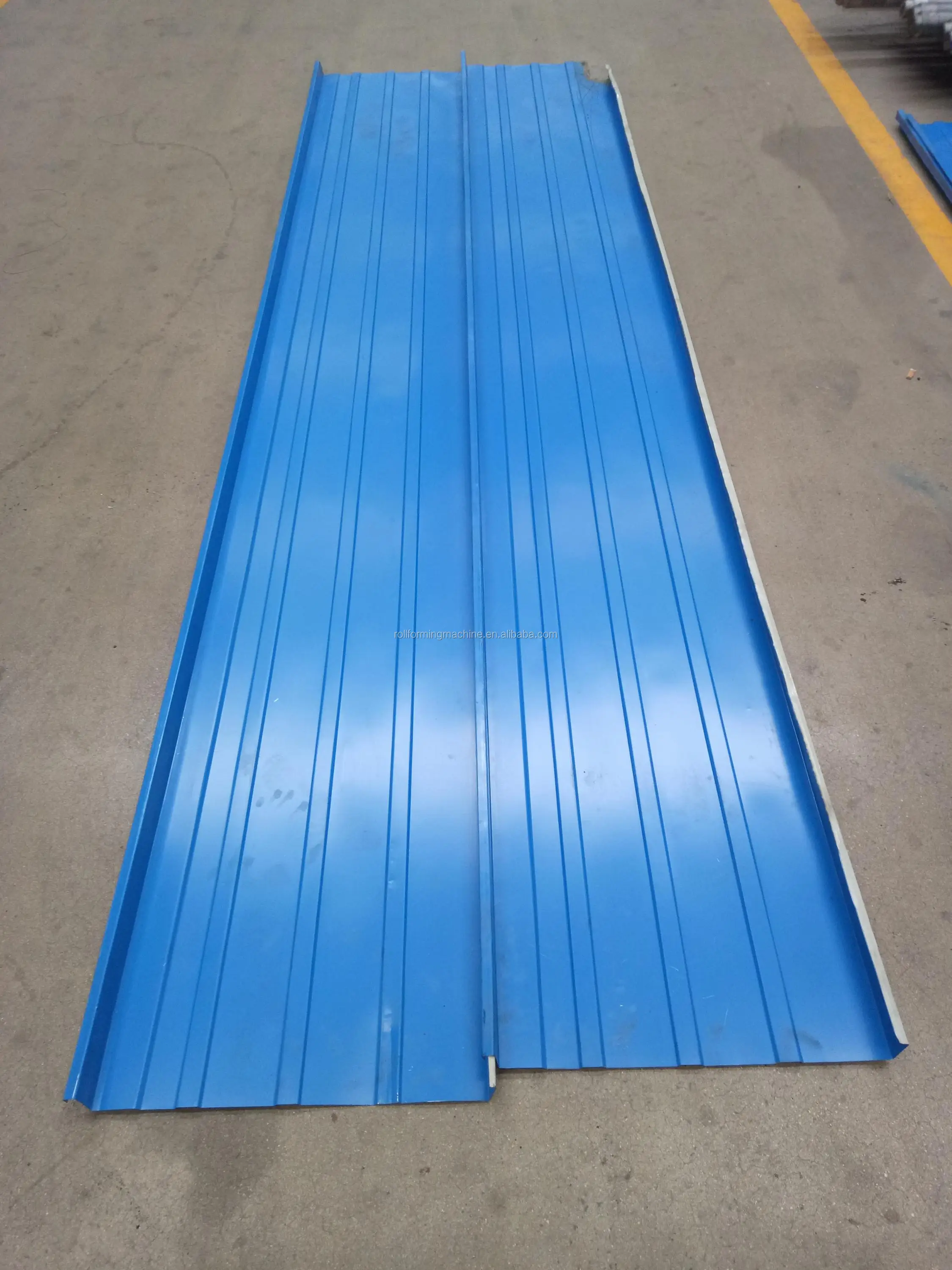

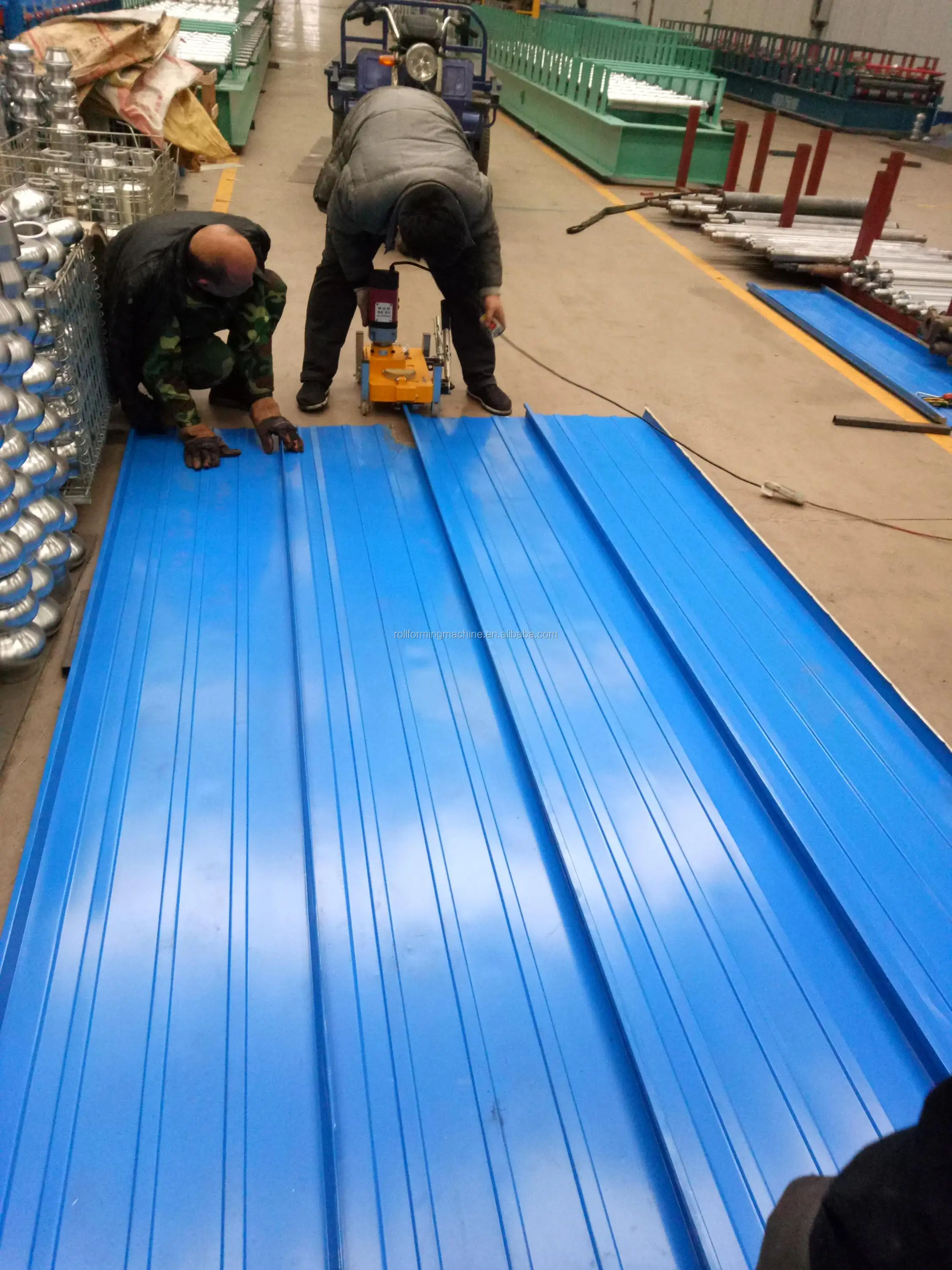

(finish goods)







 roof tile making machine,roll forming mchine roof making machine,roof sheet making machin



                              4.Production Flow

                                5.Production Machinery













We provide the technical support for whole life.



Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free.



When need the technician to go abroad, we will arrange the technician.



But the buyer should take all the cost, including Visa, Roundtrip ticket,



suitable accommodation and pay the service fee to the technician with $150/days









payment:

T/T( 30% by T/T in advance, the rest 70% to be payed by T/T after you inspect the machine in seller's factory before delivery )

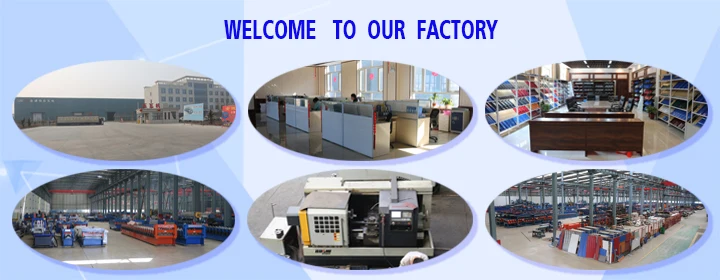

Our company has been built over 15 years,it is located in north of China,near from Tianjin port,we have strong selling team and exquisite technology











1:How to make an order you?



Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK



2:How to go to our company?



Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.



Fly to Tianjin Airport: then we can pick up you.



If any questions,you can call me mobile phone at any times:0086-15028723007



3:If the quality is good?



We have beening making and exporting the machines since from the year of 1998,not small factory or trading also with good after service.



4:Why your price is higher?

For example,2 kinds of apples here,2 different prices, why prices are still different?You can see the difference from the appearance directly,the cheap one some holes in the apple,it is going to fade.And make your stomach not good.The more expensive one,it is fresh,no scrath,no holes,no worm.The most important,you can if you give it to your girlfriend she will be happy!If your budget is a problem now,ok we offer you 3 standard machine with different prices and parameters.



 Like our machine,appearance good,the machine run well with life long tracking service.The most important little problem,running well to help you make more money!!!
