Wastewater evaporators price
US $7800

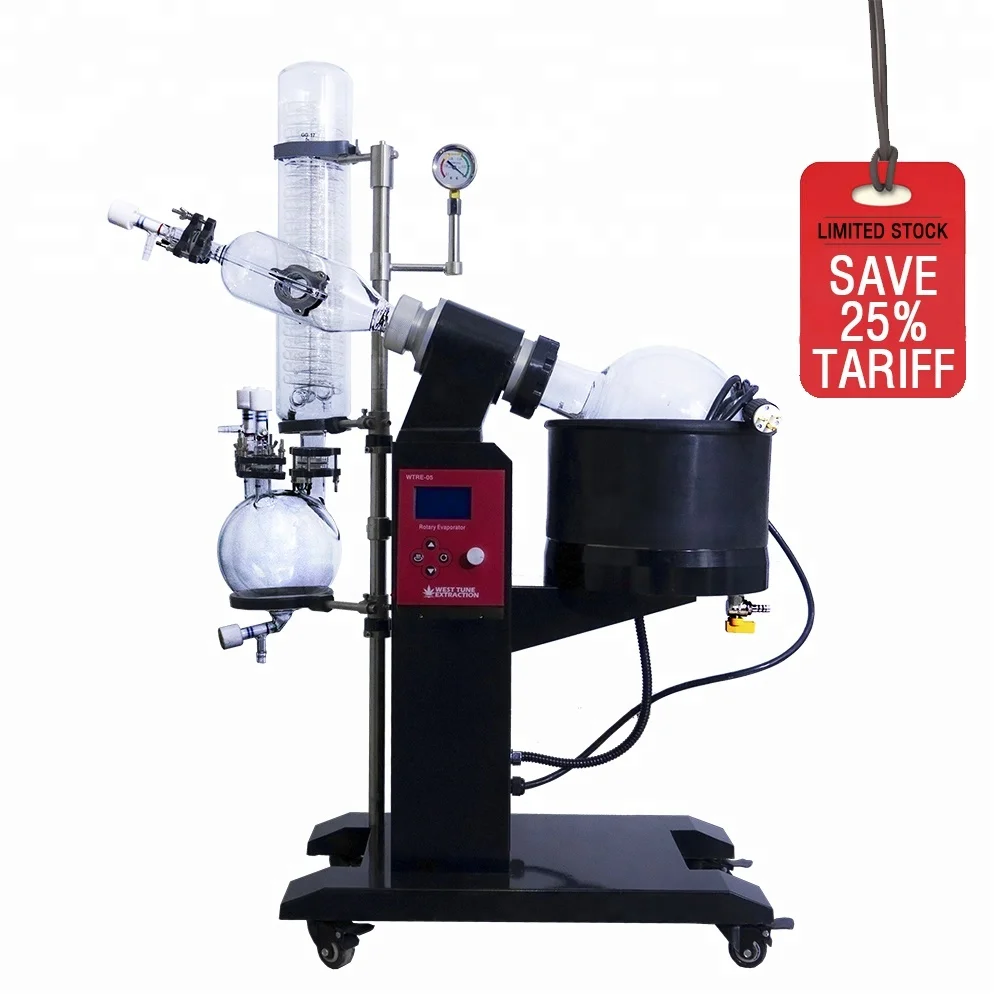

Китай (материк) WTRE 05 5L моторизованный алкоголя вакуумный роторный испаритель Rotovap с 2 летней гарантией цена
- Category: Evaporator >>>
- Supplier: Hangzhou West Tune Trading Co. Ltd.
Share on (60736801247):
Product Overview
Description
Products Description
A Rotary Evaporator is a device used in extraction laboratories for efficient and gentle distillation of solvents from samples by evaporation. Rotary evaporation is most often and conveniently applied to separate “low boiling” solvents such a butane or ethyl alcohol from compounds which are solid at room temperature and pressure.

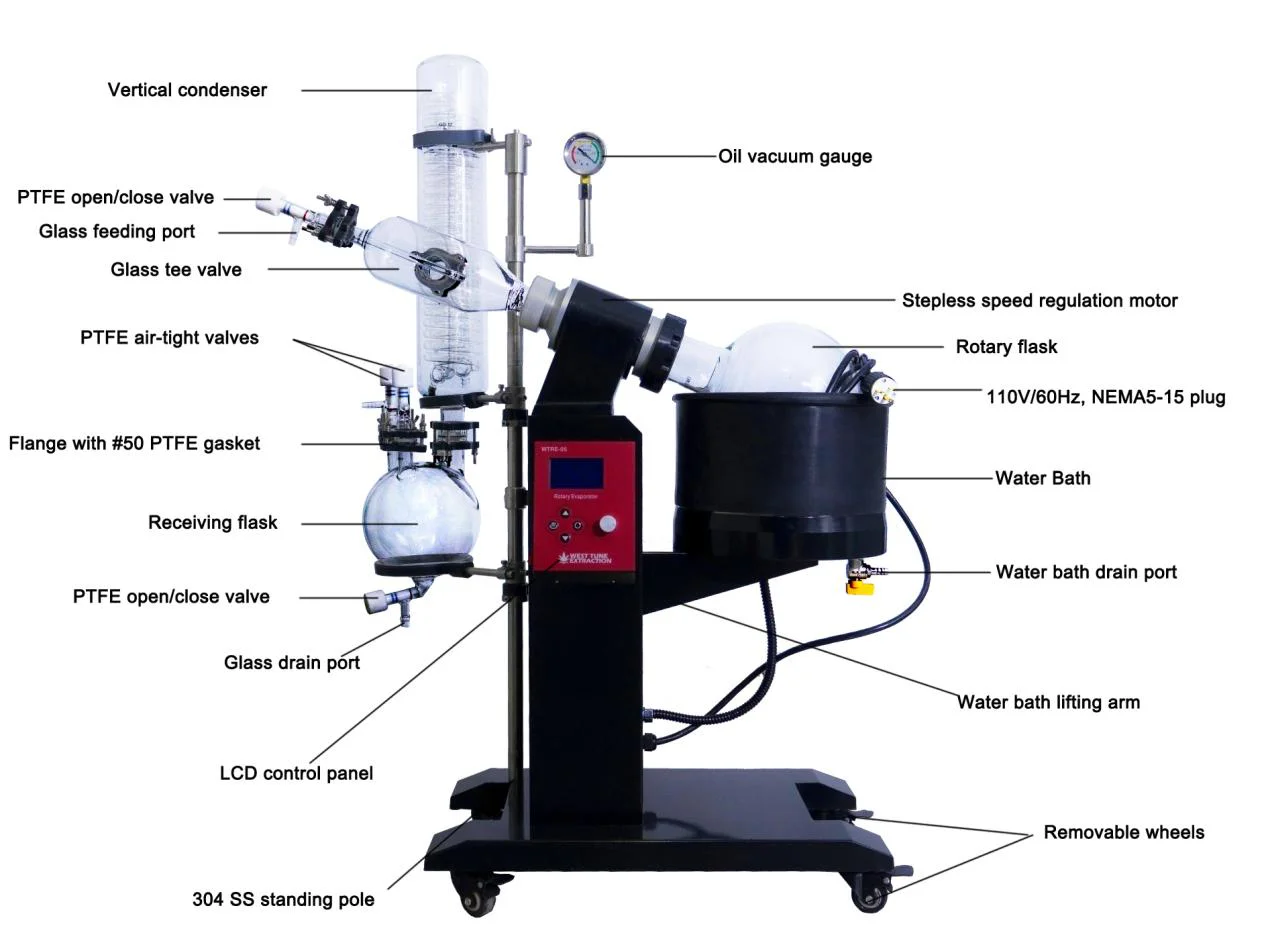

WTRE-05 evap is an ideal model made for users who are looking for more capacity than the standard 2L.

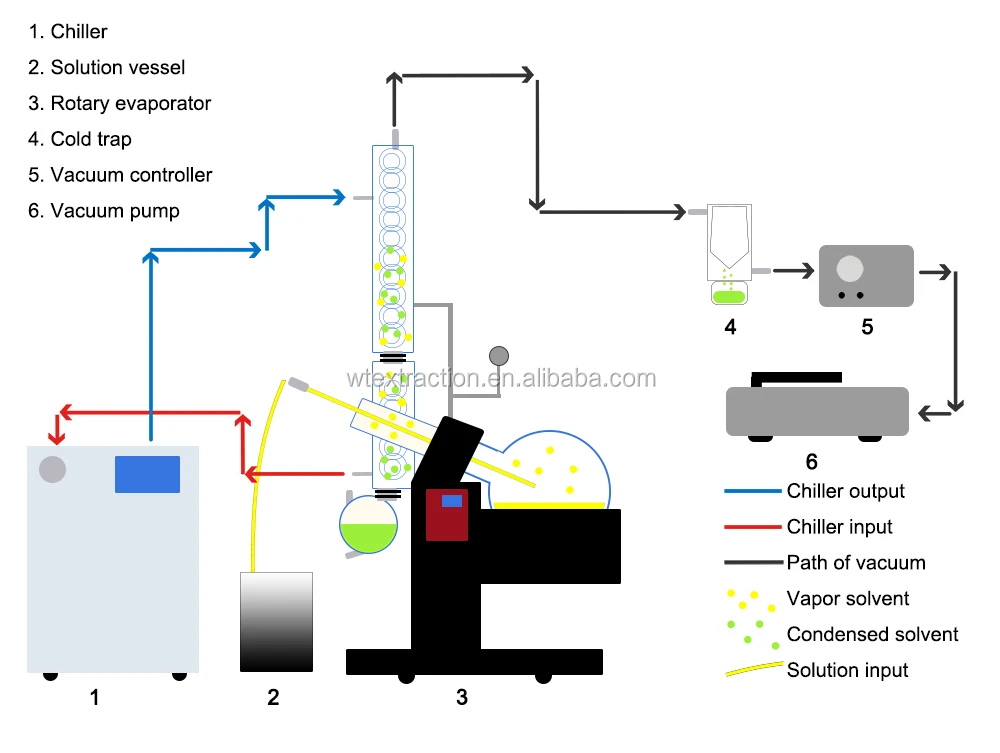

Follow chart of WTRE-05
WTRE-05 evap is an ideal model made for users who are looking for more capacity than the standard 2L.
Follow chart of WTRE-05
Features
All PTFE valves for improved sealing and chemical resistance
Anti-dry heating function

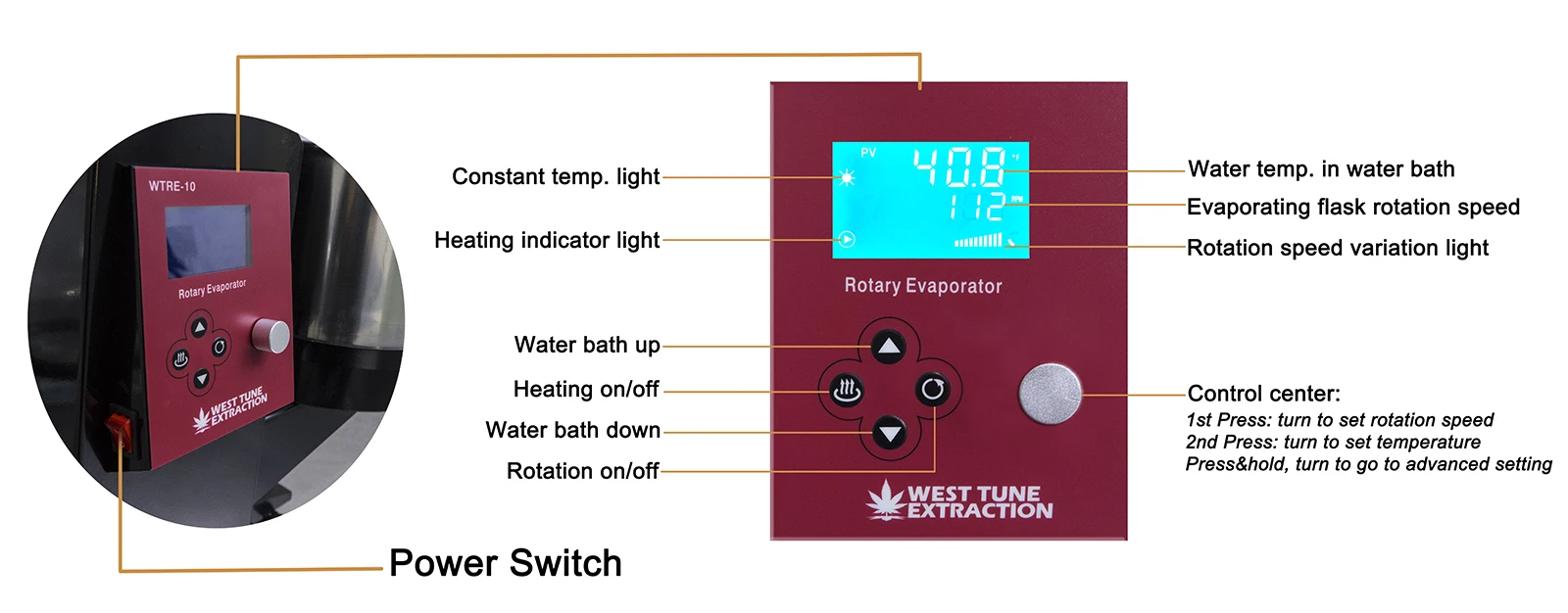

Large LCD display
PID temperature and rotation speed controls
Direct injection capability for continous feeding of your material
Compact wheels design for improved workspace allocation
Receiving flask drain port for easy draining
Mobility with locking casters
Motorized water bath lifting for precise control.
Specialized motor for no classless adjustable speed
Anti-dry heating function
Large LCD display
PID temperature and rotation speed controls
Direct injection capability for continous feeding of your material
Compact wheels design for improved workspace allocation
Receiving flask drain port for easy draining
Mobility with locking casters
Motorized water bath lifting for precise control.
Specialized motor for no classless adjustable speed
Specifications
Model | WTRE-05 Rotary Evaporator |
Operating Ambient Temperature | 5~35C / 41~95F |
Glass Material | GG-17 High Borosilicate |
Power (V/Hz) | 110V 60Hz Single Phase |
Speed Regulation | Digital Step-less Regulation |
Rotation Speed | 10~140RPM |
Set Temperature | 0-99C / 0-210F |
Temperature Control | Digital Temperature Control |
Maximum Vacuum Pressure | < 3 torrs |
Evaporating Flask Capacity | 5L / 1.3-Gallon |
Receiving Flask Capacity | 3L / 0.65-Gallon |
Condenser Style | Vertical Double Helix |
Evaporation Capacity | Alcohol >/= 4 L/H |
Heater Max Current Draw (Amps) | 18.2 |
Water Bath Material | 304 Stainless Steel |
Water Bath Size | 11.5 x 7.5'' |
Lifting Function | Electric |
Lifting Stroke | 150mm / 5.9'' |
Total Power Consumption (kW) | 2.2 kW |
Dimensions | (L) 36 x (W) 18 x (H) 54'' |
Weight | 90 lbs. |
Vacuum Connection | 3/8” Barb |
Condenser Connection | 3/8” Barb |

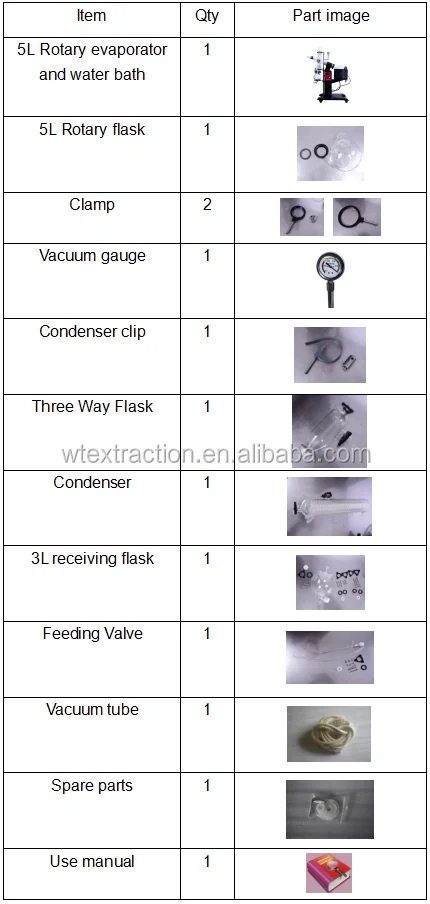

Packing List
