PVC wire chain link fence making machine price
Product Description
Product Description
The automatic chain link fence machine is made of high-quality steel and channel steel material. So, the frame of the machine will be more stable and stronger.
PLC control system, Easy operation and high-speed efficiency.
We mainly have two models of machines: DP-25-80 (Double wire) and DP-20-100 (Single wire).
DP-20-100(single wire) This type of machine adopts a single-sided spiral into the wire to weave the wire mesh. And equipped with automatic locking edge and automatic roll net system. Easy to operate and debug. |
DP-25-80(double wire) This type of machine uses a double-sided spiral into the wire to weave the wire mesh. It has high productivity and is equipped with automatic locking and automatic roll netting system. |
Technical Parameter
Technical Parameter
| Model | DP20-100 | DP25-80 |
| Wire diameter | 1.3-4mm | 1.8-4mm |
| Mesh size | 20-100mm | 25-100mm |
| Mesh width | 0.5-4m | 0.5-4m |
| Speed | 70-80m²/h | 120-180m²/h |
| Mesh length | 30m, adjustable freely as your request | |
| Mesh side | Knuckled and twisted, or knuckle, or twisted | |
| Raw material | Galvanized wire, PVC coated wire, etc. | |
| Machine size | 4.2*2.2*1.7m | 6.7*1.43*1.8m |
| Weight | 1800kg | 4200kg |
- We can design the machine according to your wire diameter, mesh hole size, mesh width, and voltage.

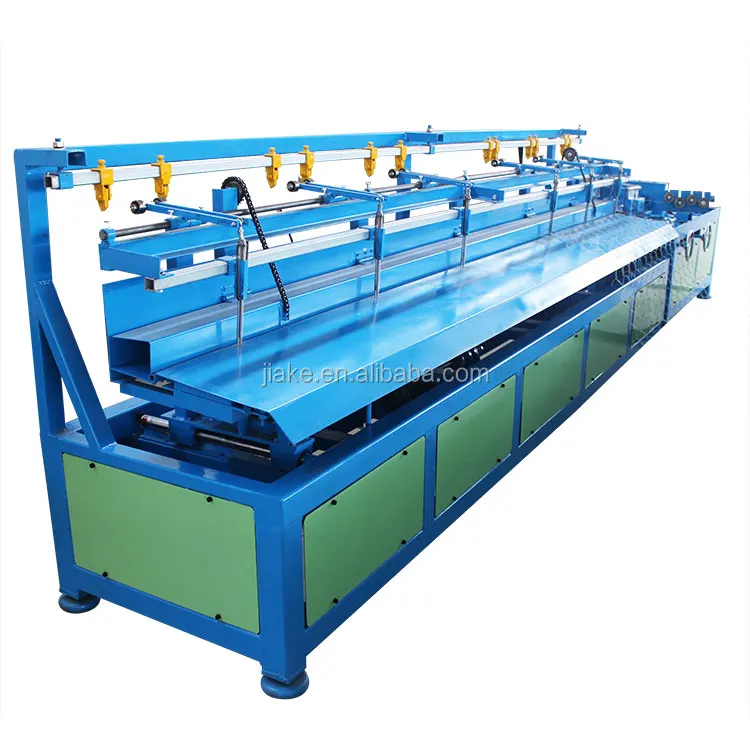

DP-20-100 Display
DP-20-100 Display
DP-20-100: Automatic single wire chain link making machine
1. weaving module: Single die single spiral wire feeding method
2. The machines are controlled by touch screen, famous brand electrical components. Easy to operate. Electrical appliances are durable and have a low failure rate.
About our main machine, we have adopted the Servo Motor(Delta, Panasonic, Housine) and Reducer. Work efficiency increased by three times, saving electricity and high output.

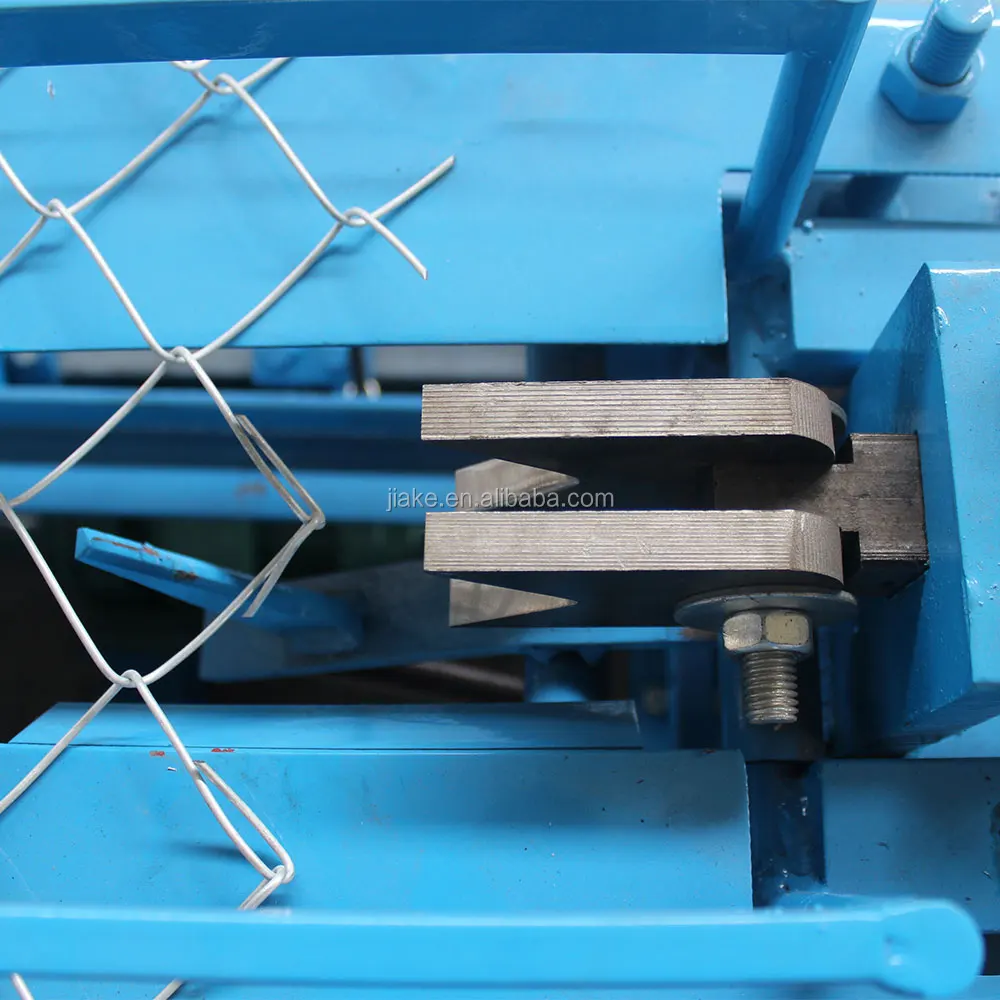

| 3. Automatic locking device | 4. Automatic roll netting device |
| The machines can implement three types of automatic locking: Knuckled and twisted, or knuckle, or twisted. | The machines are equipped with a rolling net device, which can reduce costs, of course, it can be selected according to your needs. |

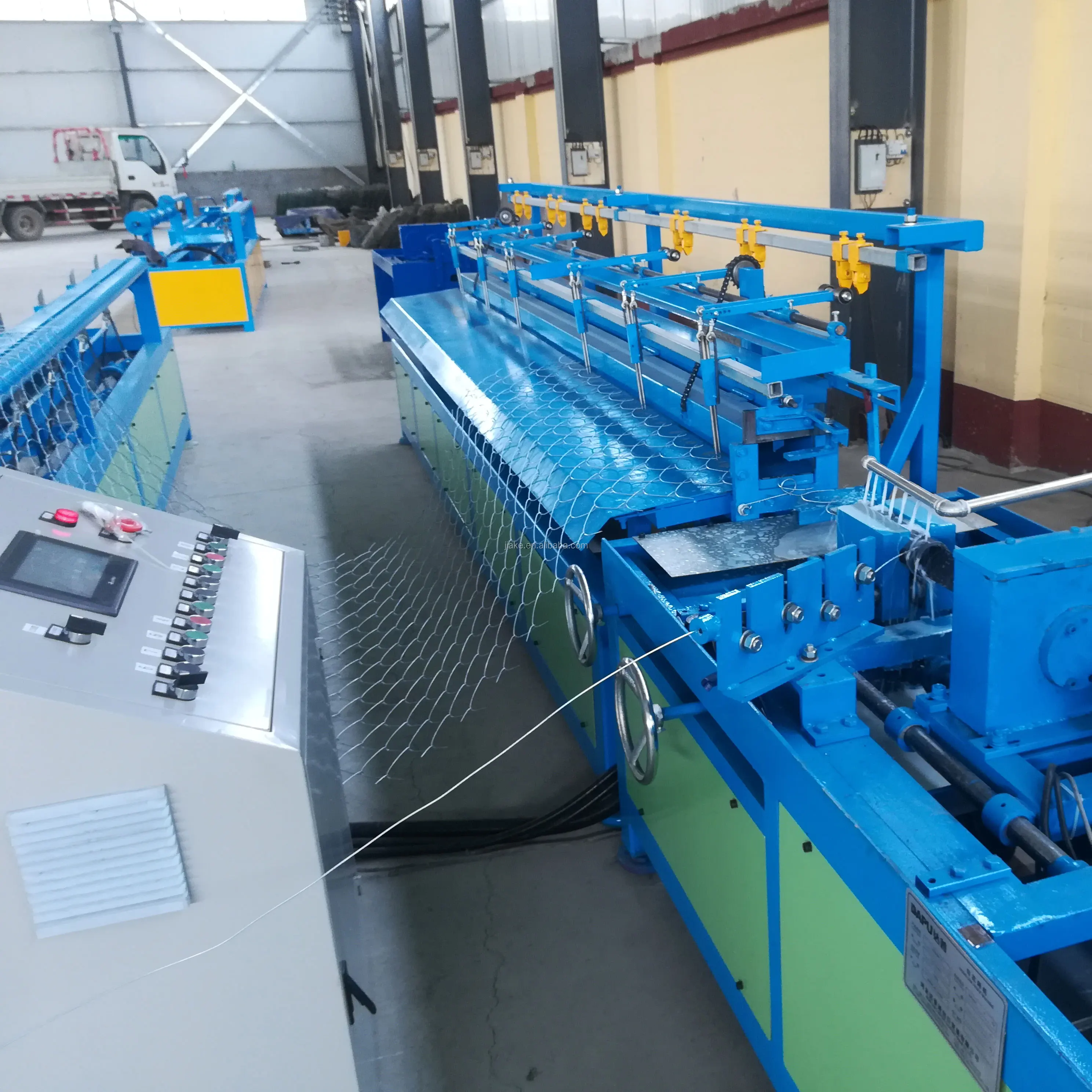

DP-25-80 Display
DP-25-80 Display
DP-25-80: Fully automatic double wire chain link fence machine
1. Weaving module: Single die double spiral wire feeding method, high output.
2. The machines are controlled by touch screen, famous brand electrical components. Easy to operate. Electrical appliances are durable and have a low failure rate.
About our main machine, we have adopted the Servo Motor(Delta, Panasonic, Housine) and Reducer. Work efficiency increased by three times, saving electricity and high output.
| 3. Automatic locking device | 4. Automatic roll netting device |
| The machines can implement three types of automatic locking: Knuckled and twisted, or knuckle, or twisted. | The machines are equipped with a rolling net device, which can reduce costs. |

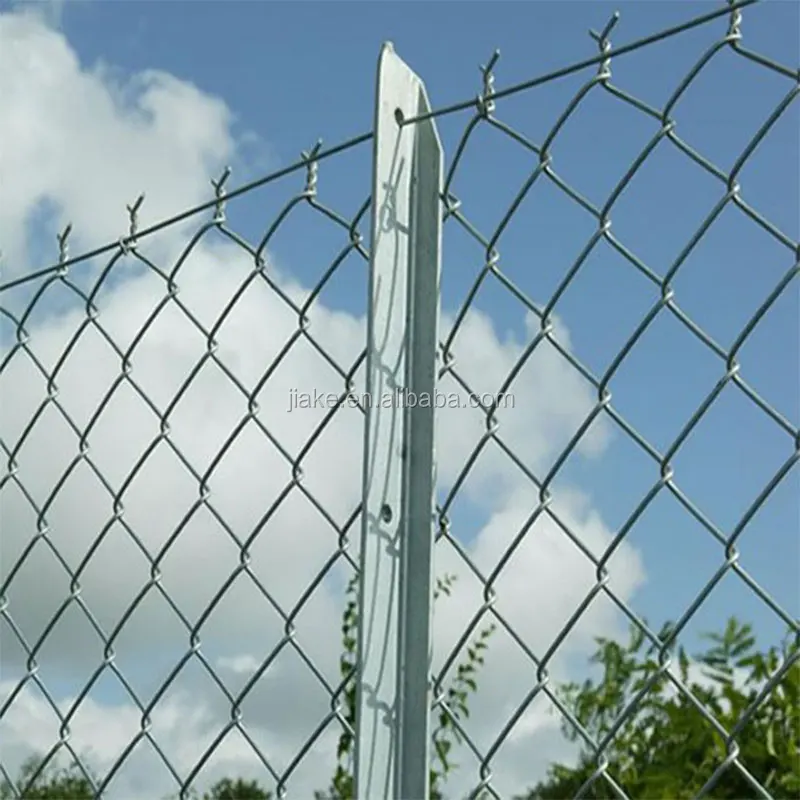

Finished Picture
Finished Picture
The chain link fencing system is one of the most widely accepted fence types in no matter residential or commercial applications.
The flexible and soft structure, corrosion and rust resistance surface, architectural colors, and easy installation features, all these make the chain link fencing more and more popular all over the world.
About Us
About Us
Hebei Jiake Welding Equipment Co., Ltd. It’s the leading manufacturer of wire mesh machines in China and we always offer ADVANCED WIRE MESH TECHNOLOGY.
Jiake factory is engaged in wire mesh machine design and manufacture since 1999.
Jiake machine design and manufacture go through Jiake 9S management system to control machine quality.
Hope to cooperate with you soon.
Our Service
Jiake factory provide you the complete after-safe service: Technical documents, our engineers commision locally, machine parts supply, technical support & improvement by WeChat/Email.
FAQ
FAQ
Q: Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 25 years. We have our own technology to develop the department and testing department.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.
Q: What's the guaranteed time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience with exporting. And we can supply the CE certificate, Form E, passport, SGS report, etc, your customs clearance will be no problem.
