Wenzhou Factory Hot Brand 12m Steel Q235 Street Lighting Pole For Trunk Road
- Category: Lamp Poles >>>
- Supplier: Wenzhou Jiuzhao Photoelectric Co. Ltd.
Share on (60737206819):
Product Overview
Description
Wenzhou Factory Hot Brand 12m Steel Q235 Street Lighting Pole For Trunk Road
Product Description
Specifications of 12m Steel Q235 Street Lighting Pole:
| Pole’s height | 3m to 15m |
| Shape of pole | Round conical; Octagonal tapered; Straight square; Tubular stepped Shafts are made of steel sheet that folded into required shape and welded longitudinally by automatic arc welding machine |
| Material | Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 and others equivalent steel material |
| Torlance of dimension | ±0.02 |
| Application | Motorway,Trunk Road,Collector Streets,Branch Road,Park,Community etc. |
| Brackets/ Arm | Single or double brackets/ arm are in the shape and dimension as per customers requirement |
| Length | Within 14m once forming without slip joint |
| Wall thickness | 2.5mm to 20mm |
| Welding | It has past flaw testing.Internal and external double welding makes the welding beautiful in shape. And confirms with international welding standard of CWB |
| Jointing | Jointing of pole with insert mode,inner flange mode,face to face joint mode. |
| Base plate mounted | Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement. |
| Ground mounted | The length buried underground as per customers requirement. |
| Galvanizing | Hot dip galvanization with thickness of 80-100µm average in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123, IS: 2626-1985. |
| Powder coating | Pure polyester powder painting, color is optional according to RAL Color standard. |
| Wind Resistance | Against wind pressure of 160Km/h |
| Quality Control | We control the quality according to the flow of ISO9001-2008. Quality is employed at every stage of production to ensure the product compliance to the specifications/standards. Careful inspections are carried out by highly trained inspection engineers as per the defined procedures from raw material stage to finished product and delivery. Prototype assembly of towers is carried out in the plant. |
| Certificates | ISO9001-2008, SGS Audited Supplier |

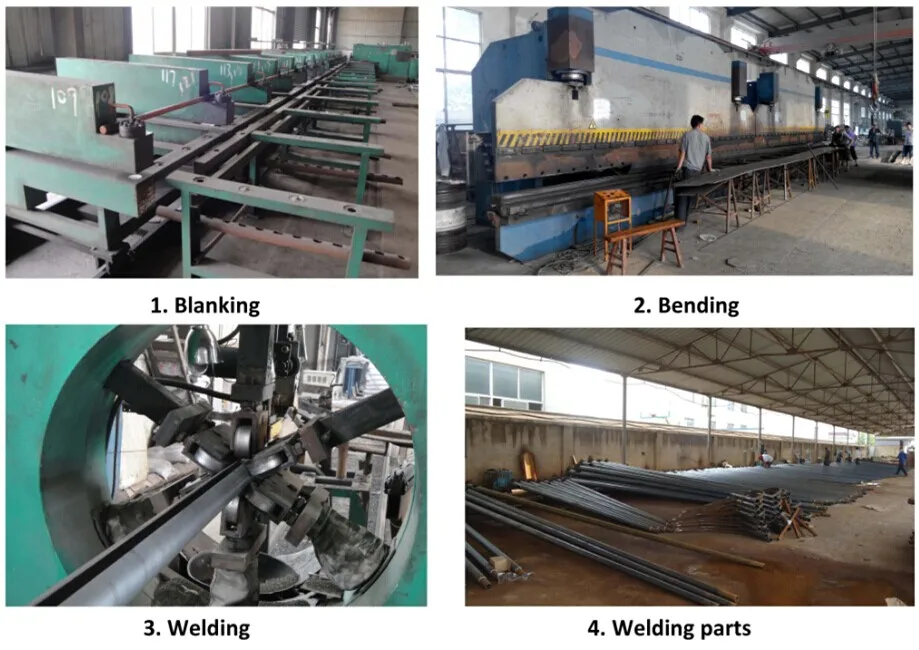

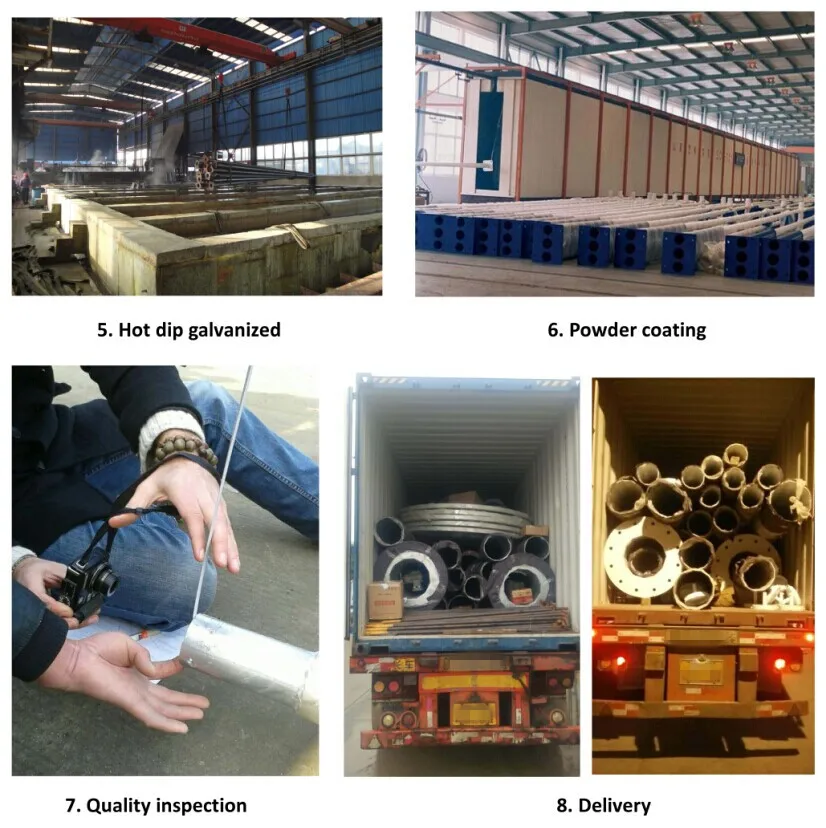

| Production Process | Material Preparation→Blanking→Bending→Welding→Repair grinding→Shaping→Flush→ →Powder spraying→Inspection→Packing→Shipment |
| Packages | Our poles as normal cover by bubble pack/blanket or straw bale at the top and bottom ,anyway also can following by client required |
| Warranty | At least 20 years. |
Work Flow
♦ We are not only provide lighting pole ,but also included: Lamps, Solar panel, Wind turbine, Storage battery, Controller, Cable wires, Anchor bolts etc.complete set which meet your requirement. Welcome for your inquiry!
♦ JIUZHAO can customized various kinds of lighting pole which you need. Please contact our sales staff to get the suitable configuration.
COMPANY PROFILE

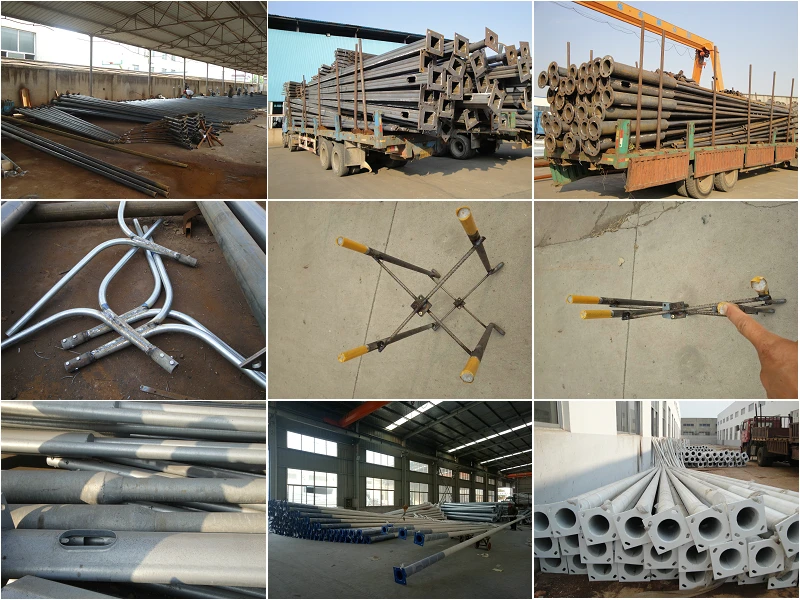

WORKSHOP
PATENT CERTIFICATE

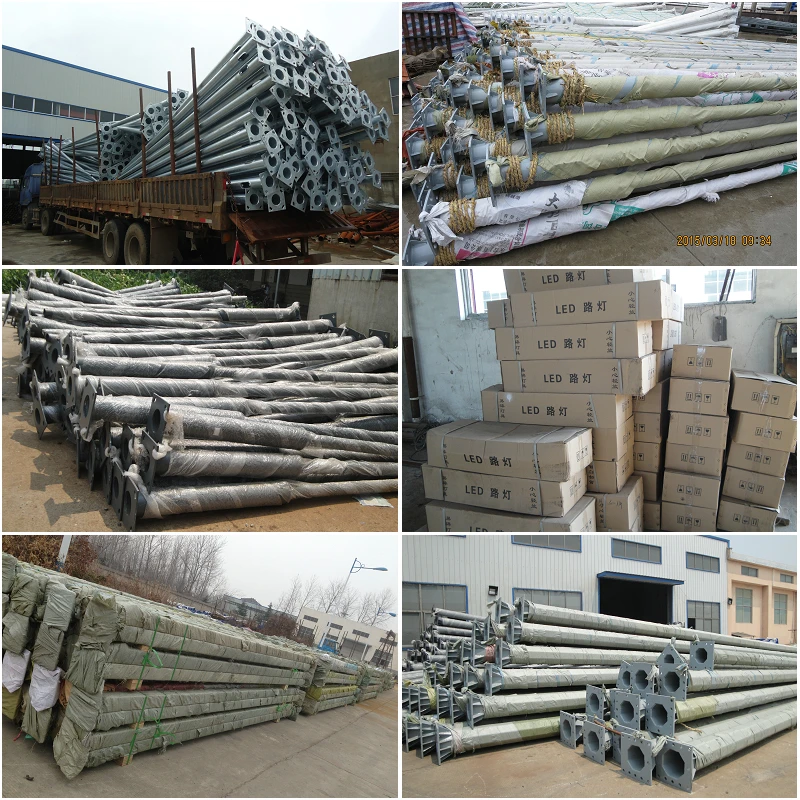

PACKING AND SHIPPING
