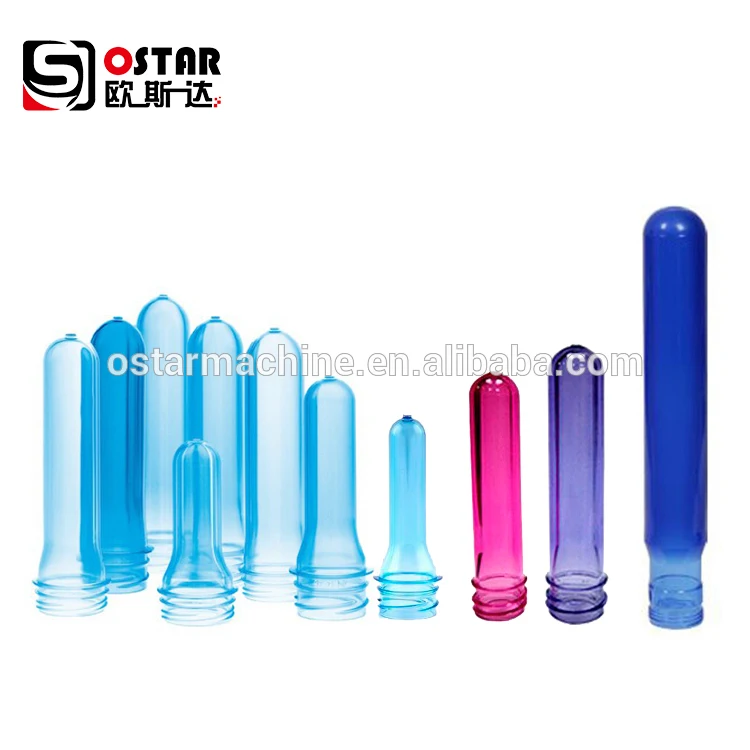

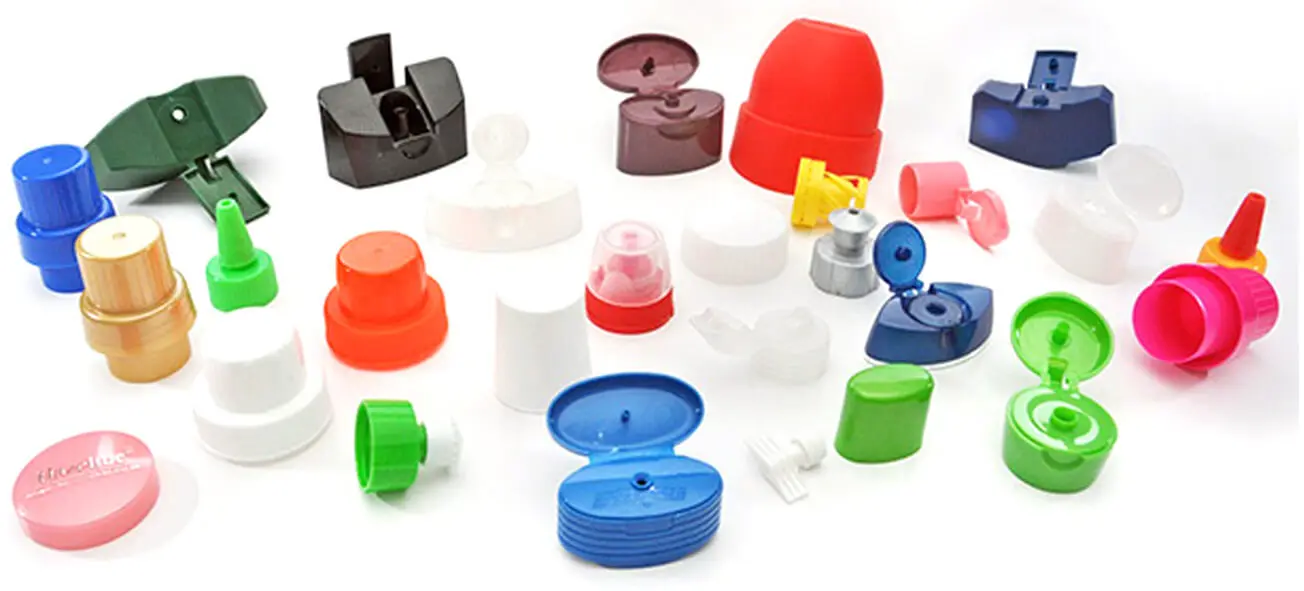

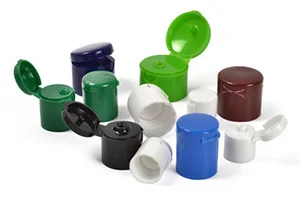

Factory price PCO neck 28mm 30/25 oil milk juice cola bottle cap making injection molding moulding machine
- Category: Injection Molding Machines >>>
- Supplier: Zhangjiagang Ostar Machinery Co. Ltd.
Share on (60738207013):
Product Overview
Description
Machine Introduction

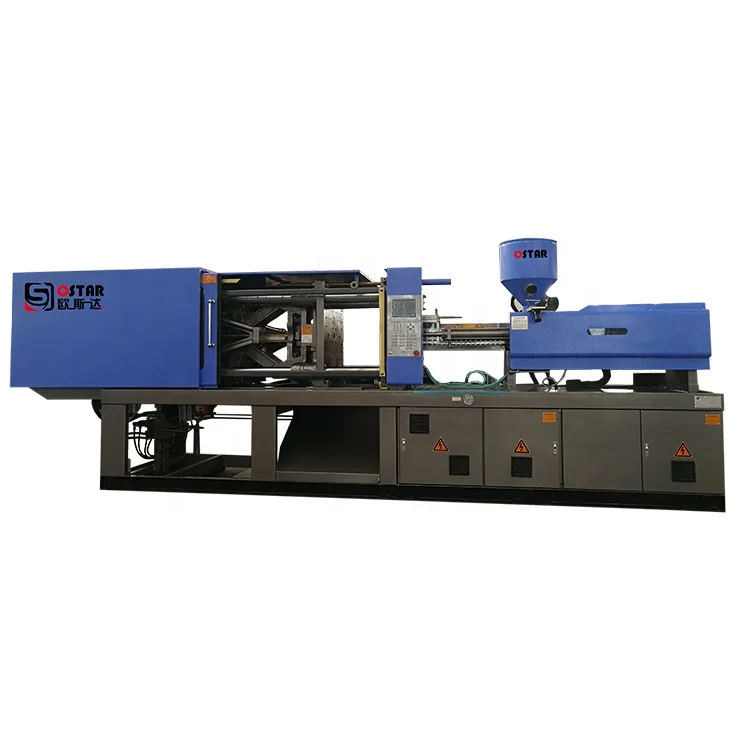

Plastic Injection molding machine 200T
1) Precision hydraulic synchronous template adjusting system.
2) Optimal design of high-strength, precision clamping unit.
3) Large screen, high precision machine computer system.
4) Optimized electric system.
5) Balanced type of double whole transfer oil cylinder.
6) Large torque oil motor.
7) High abrasion-resistant alloy sliding block.
8) The integrate type of detachable oil tank, magnetic filter and bypass strainer.
9) Reasonable and high efficient lubrication system.
10) Modularized energy conservation, high response oil-way system.
2) Optimal design of high-strength, precision clamping unit.
3) Large screen, high precision machine computer system.
4) Optimized electric system.
5) Balanced type of double whole transfer oil cylinder.
6) Large torque oil motor.
7) High abrasion-resistant alloy sliding block.
8) The integrate type of detachable oil tank, magnetic filter and bypass strainer.
9) Reasonable and high efficient lubrication system.
10) Modularized energy conservation, high response oil-way system.
Injection Unit
Large Torque hydraulic motor, for high efficiency raw material plasticizing
Clamping Unit
adopt finite element design with higher strength and more precise operation
Controller Unit
Professional injection molding machine controller, high precision, high respond, high stabilization.
Electrical Unit
Optimal electrical parts, imported international brands, stable control, long service life.
Hydraulic Unit
Highly response oil way system, impove the machine speed and also save energy comsumption.
Machine Paramenters
MACHINE MODEL | UNIT | OST-1300 | ||||||
INJECTION DEVICE | ||||||||
SCREW DIAMETER | MM | 40 | 42 | 45 | ||||
SCREW DOAMETER RATIO | L/D | 21.7 | 20.7 | 19.3 | ||||
THEORETICAL SHOT VOLUME | CM3 | 232 | 256 | 294 | ||||
INJECTION WEIGHT ( PS) | G | 211 | 233 | 267 | ||||
INJECTION RATE ( PS) | G/S | 97 | 107 | 123 | ||||
INJECTION PRESSURE | MPA | 180 | 163 | 142 | ||||
PLASTICIZING CAPACITY( PS) | G/S | 15 | 16 | 19 | ||||
SCREW SPEED | RPM | 185 | ||||||
CLAMPING UNIT | ||||||||
CLAMPING FORCE | KN | 1300 | ||||||
TOGGLE STROKE | MM | 380 | ||||||
SPACE BETWEEN TIE-BARS | MM | 410X410 | ||||||
MIN-MAX MOULD THICKNESS | MM | 150-430 | ||||||
EJETION STROKE | MM | 120 | ||||||
EJECTING FORCE | KN | 38 | ||||||
EJECTOR NUMBER | PC | 5 | ||||||
OTHERS | ||||||||
MAXIMUM SYSTEM PRESSURE | MPA | 16 | ||||||
OIL PUMP MOTOR POWER | KW | 13( 10.5) | ||||||
HEATER POWER | KW | 10.6 | ||||||
OIL TANK CAPACITY | KG | 200 | ||||||
OVERALL DIMENSION (ROUGH ) | MM | 4600X1150X1885 | ||||||
MACHINE WEIGHT ( ROUGH ) | TON | 3.8 | ||||||
Company Introduction
About Us
Our company was founded in 1995, more than 15 years experience on plastic injection molding machine manufacturing&exporting. we
have own machine compoent processing workshop, R&D team, experienced machine assembly workers. machine inspection and
after-service department. we supply machine from 30tons to 2000tons, for different customer choose. We are not only win by
machine price, but also win by machine quality and service. we sure our machine would make you happy and benefit if you choose us.
have own machine compoent processing workshop, R&D team, experienced machine assembly workers. machine inspection and
after-service department. we supply machine from 30tons to 2000tons, for different customer choose. We are not only win by
machine price, but also win by machine quality and service. we sure our machine would make you happy and benefit if you choose us.
Why Choose Us
We have own machine design department, for new machine design, and each machine component are process in our own workshop, to make
sure strictly quality control. inspection team would check every machine before shipment, keep every machine in good condition
sure strictly quality control. inspection team would check every machine before shipment, keep every machine in good condition
Shipment
We are experience on machine loading and ocean shippment. we use strong belt to fix the machine, make sure no any movement during long time shippment.
Machines good protected with anti-rust.
Customer Photos
We provide ovesea services, after machine arrive your factory, our engineer would come to you, to help you install and star the machines, training your workers, to start everything.
Recommend Products
FAQ
Q1: Are you a trading company or a manufacturer?
A1: We are a manufacturer, we supply the factory price with good quality, welcome to visit !
Q2:How about quality control in your factory?
A2: We have a pre-shipment inspection team, every machine need at least automatic running over 72 hours before shipment.

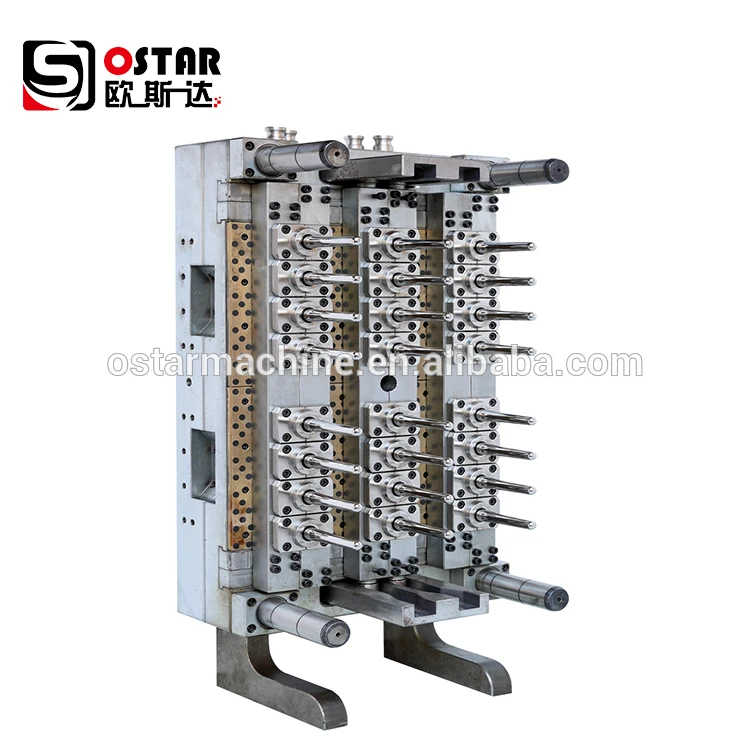

Q3: Is there complete machine include mould and other auxiliary equipment ?
A3: Yes ,what we are provide is the complete A-Z solution line.
Q4: Could you send your engineer to my country, to start the machine?
A4: Surely, we have experience technical engineer for oversea service, they would help you install machine, training your workers.
Q5: Can you help us with the shipment of this machine ?
A5: We have our special shipment company which already cooperate
for long time, we will give you the best price, fast delivery.
A1: We are a manufacturer, we supply the factory price with good quality, welcome to visit !
Q2:How about quality control in your factory?
A2: We have a pre-shipment inspection team, every machine need at least automatic running over 72 hours before shipment.
Q3: Is there complete machine include mould and other auxiliary equipment ?
A3: Yes ,what we are provide is the complete A-Z solution line.
Q4: Could you send your engineer to my country, to start the machine?
A4: Surely, we have experience technical engineer for oversea service, they would help you install machine, training your workers.
Q5: Can you help us with the shipment of this machine ?
A5: We have our special shipment company which already cooperate
for long time, we will give you the best price, fast delivery.
