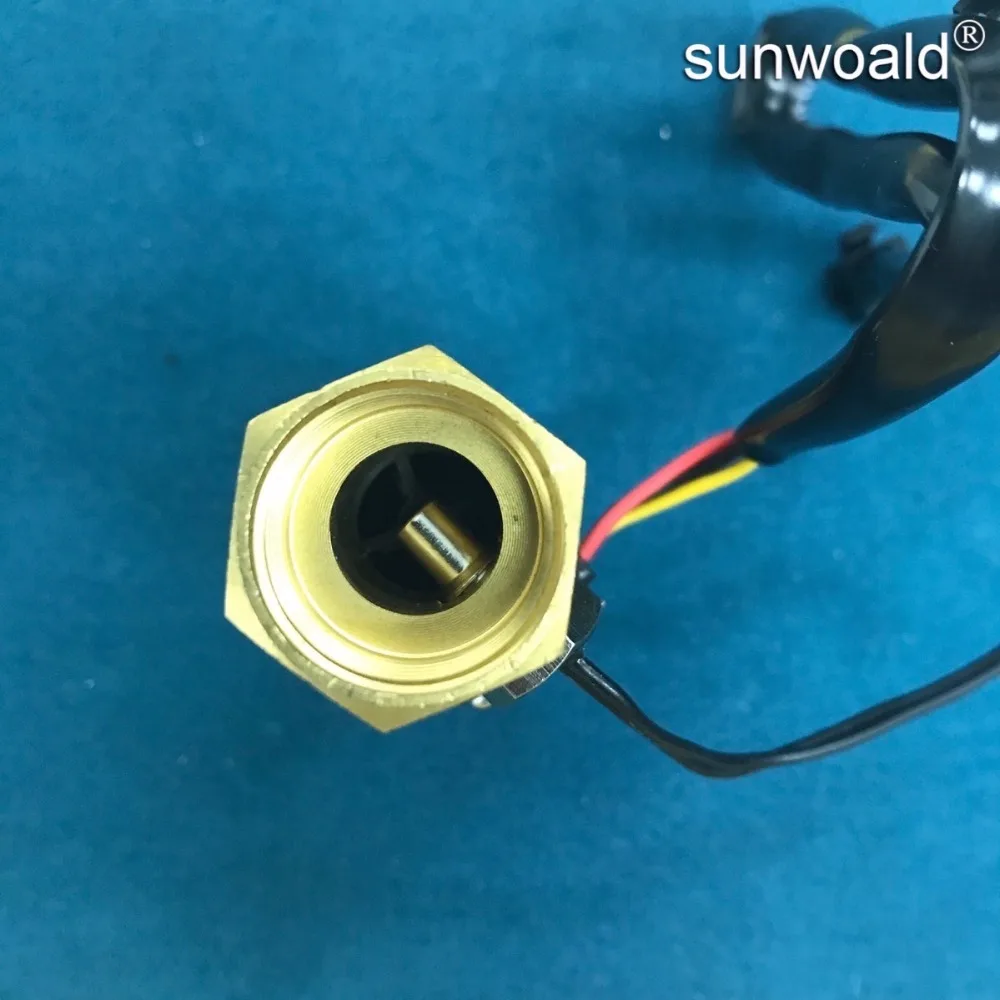

Латунный датчик расхода воды Sunwoald G1/2 дюйма, 1 ~ 20 л/мин, измеритель расхода воды для резервуара с температурой. Датчик

Product Overview

Description



YF-B4 G1/2" Magnetic Flow Rate Sensor

Product Description



Working theory:



The magnetic hall flow sensor is a device used to sense the water flow rate in a tank. There is a Hall element in the flow sensor. When liquid flows by the sensor, it drives the Hall element inside the sensor to rotate. By calculating the rotate speed of the element, the water flow sensor can give a precise outcome of the water flow rate passed by the pipe.



Product Application

The magnetic hall flow sensor can be used to monitor liquid flow rate in water machine, water heater, coffee machine, vending machine, water meter, medical testing machine and the like. They are widely applied in industrial equipment, agricultural equipment and household electrical appliances in the future.





Product Specification



Electrical Characteristic		Technical Characteristic
Suffering Pressure	1.5MPa	Mounting Position	Vertical or Horizontal
Operate Temperature	0 °C ~ +80°C	Output Pulse Duty Cycle	50%±10%
Flow Range	1~25L/min ±5%	Max Output Pulse Voltage	>DC4.7V
Flow Pulse	F=11xQ±5% Q=L/min	Min Output Pulse Voltage	<DC0.5V
Min Insulation Resistance	100m Ohm	Electrical Life	3x 105(5Vdc,10mA)

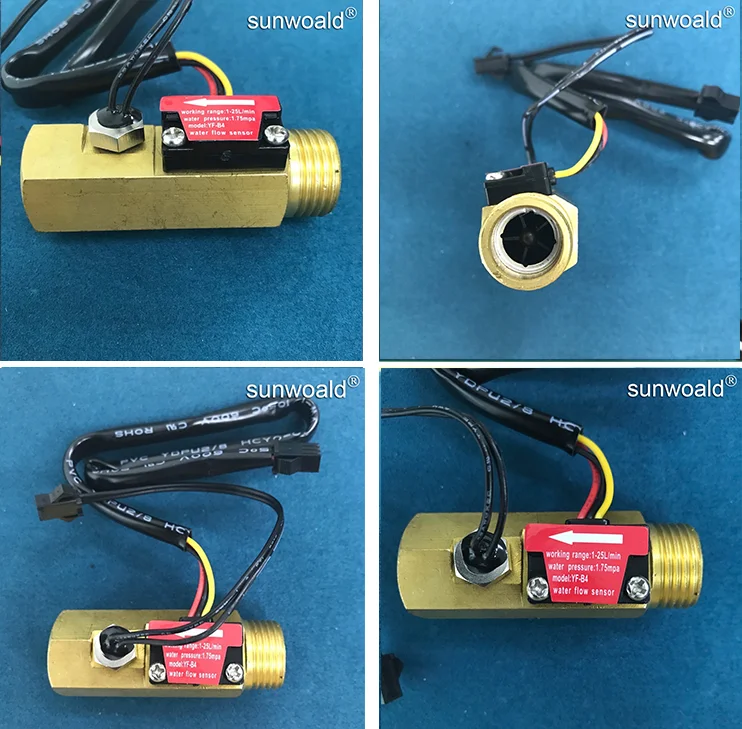

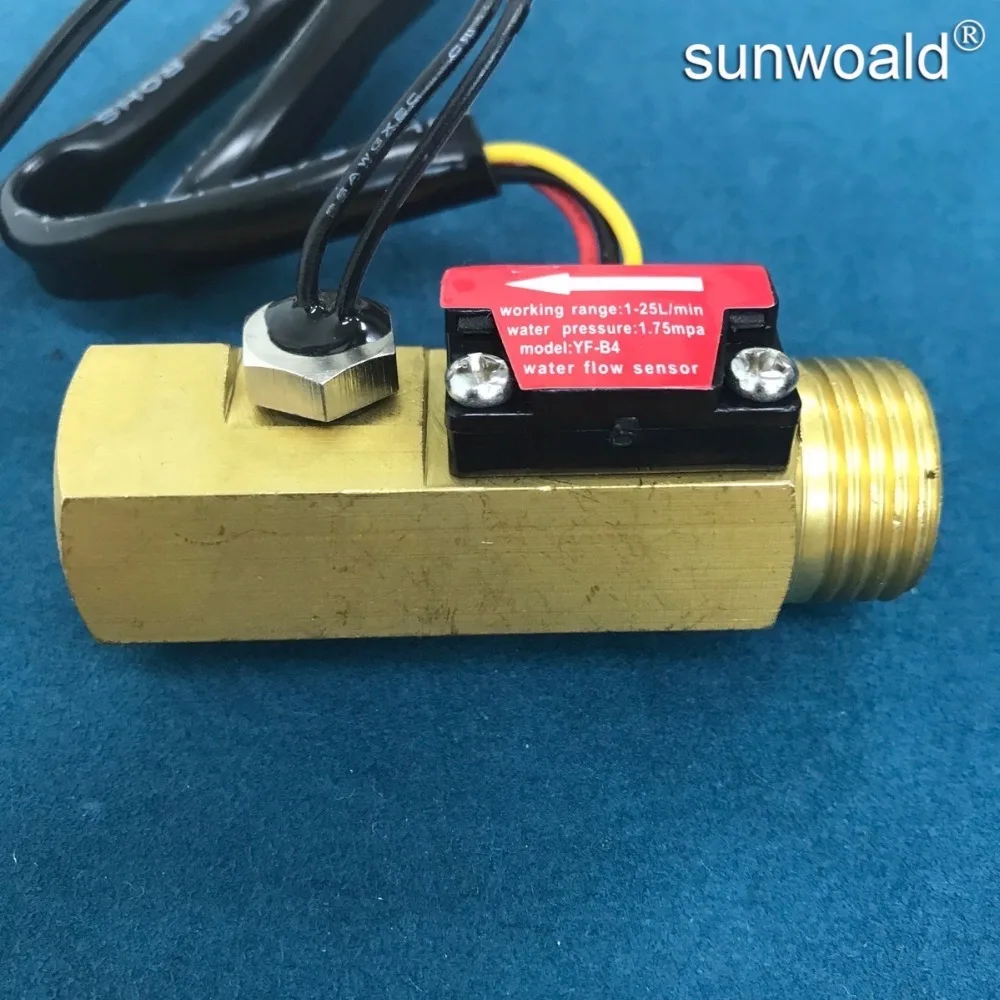

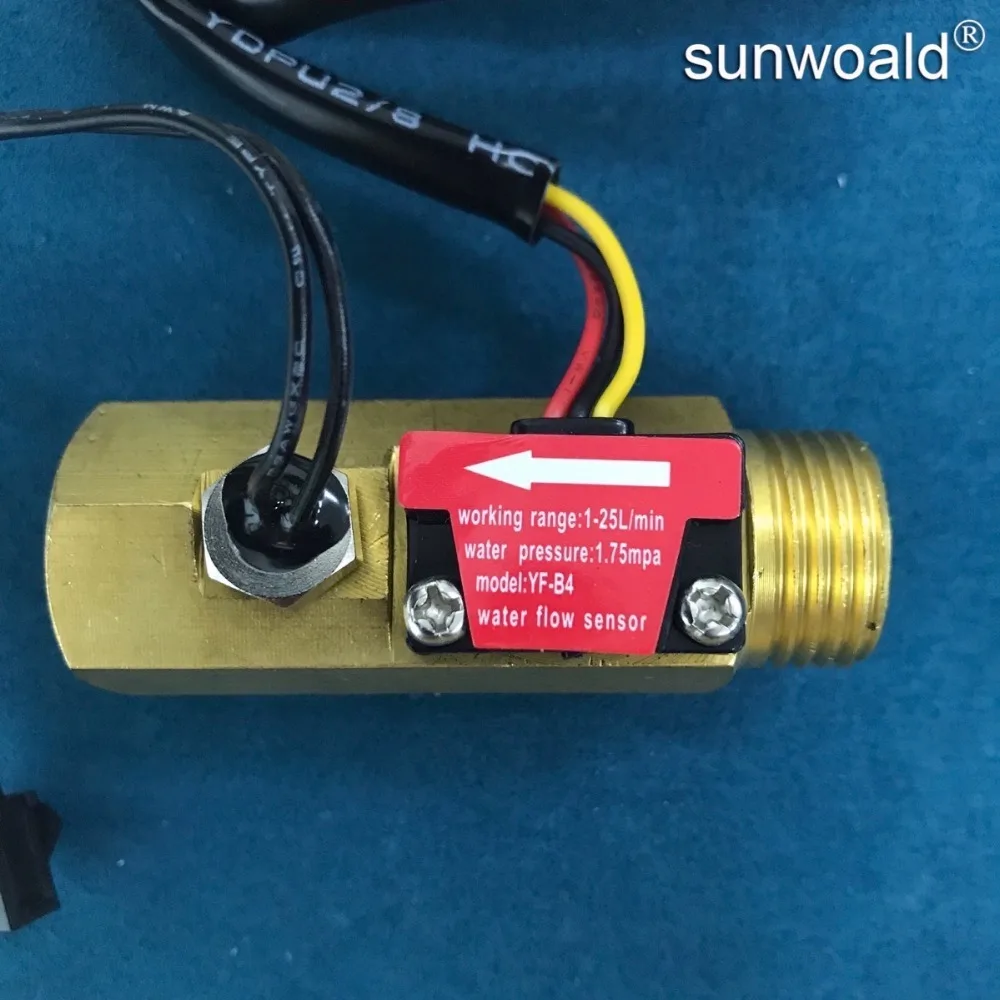

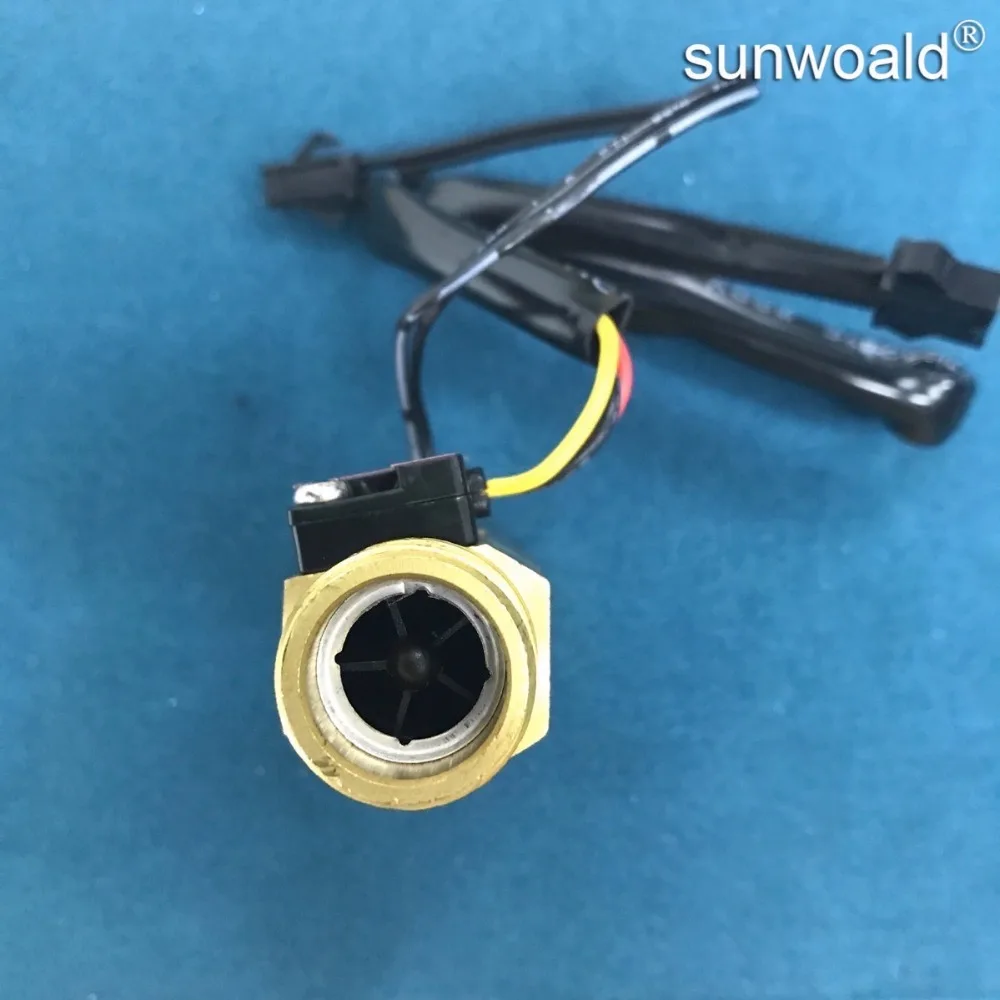

Product Image





Related Products



YF-B1	YF-B2	YF-B3



Certifications

FAQ

1.Question:  What are your main products?

Answer: We mainly focus on water float switch, flow sensor and door contact switch. We ensure a reasonable price and high quality products.

2.Question: Where is your company?

Answer: We are a factory based in Shenzhen, Guangdong, China. All of our products are safely manufactured according to UL, ISO9001 and RoHs principles, and carefully checked before packed.

3.Question:  What are the available materials for magnetic flow rate sensor?

Answer: Plastic PP,Brass

4.Question: Are these materials safe for drinking water?

Answer: Sure! All of our materials are made according the RoHs principles, they are nontoxic and environmental friendly.

5. Question: There is no magnetic flow rate sensor in the list suitable for me, can you OEM a new model according to our desire?

 Answer: Yes, we can! Please send us your requirement and basic data or pattern of the product you want, our engineers will take care and OEM the model for you!
