28 30mm 5gallon flip top wine shower medical plastic pp pe pet water bottle cap making injection molding moulding machine price
- Category: Injection Molding Machines >>>
- Supplier: Zhangjiagang Ostar Machinery Co. Ltd.
Share on (60739160207):
Product Overview
Description

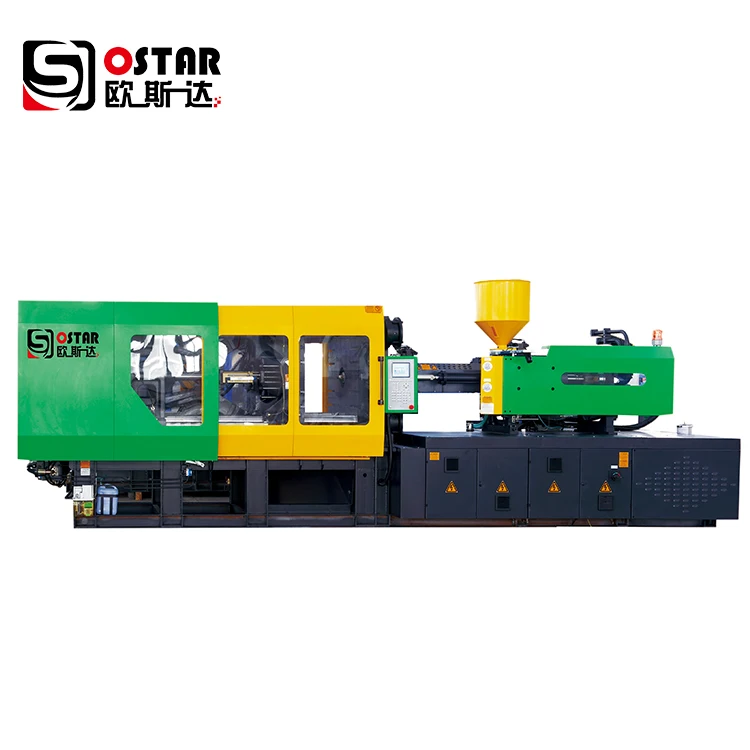

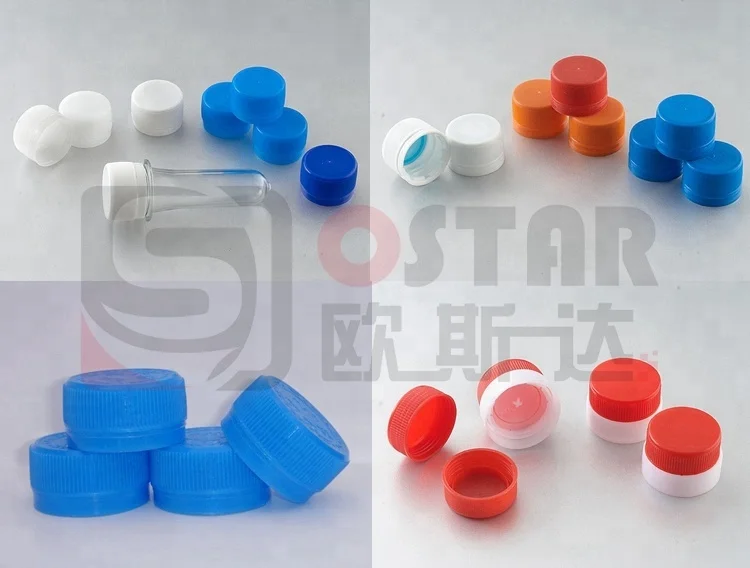

Products Name: 28 30mm 5gallon flip top wine shower medical plastic
pp pe pet water bottle cap making injection molding moulding machine price
bottle cap injection molding machine features:
1) Automatic cap production, fast speed, high efficiency
2) A-Z solution for your cap production, cap injection machine, mold mold, and related auxiliary machine.
3) Experienced engineer sent to your factory, for machine installation and worker training service
4) cap mold, with hot runner system, no material waste, HRC45-48 hardness mold material, durable, and for good quality cap
5) fast response for technical support , spare parts.
Bottle Cap Injection molding machine Specifiation::
MACHINE MODEL | UNIT | OST-2000 | ||
INJECTION DEVICE |
| |||
SCREW DIAMETER | MM | 45 | 48 | 52 |
SCREW DOAMETER RATIO | L/D | 21.5 | 20.2 | 18.6 |
THEORETICAL SHOT VOLUME | CM3 | 373 | 425 | 498 |
INJECTION WEIGHT ( PS) | G | 340 | 387 | 453 |
INJECTION RATE ( PS) | G/S | 142 | 162 | 190 |
INJECTION PRESSURE | MPA | 188 | 165 | 140 |
PLASTICIZING CAPACITY( PS) | G/S | 20 | 22.3 | 24 |
SCREW SPEED | RPM | 215 | ||
CLAMPING UNIT |
| |||
CLAMPING FORCE | KN | 2000 | ||
TOGGLE STROKE | MM | 436 | ||
SPACE BETWEEN TIE-BARS | MM | 460X460 | ||
MIN-MAX MOULD THICKNESS | MM | 180-500 | ||
EJETION STROKE | MM | 140 | ||
EJECTING FORCE | KN | 70 | ||
EJECTOR NUMBER | PC | 5 | ||
OTHER |
| |||
MAXIMUM SYSTEM PRESSURE | MPA | 16 | ||
OIL PUMP MOTOR POWER | KW | 18.5( 22) | ||
HEATER POWER | KW | 14.1 | ||
OIL TANK CAPACITY | KG | 300 | ||
OVERALL DIMENSION (ROUGH ) | MM | 5200X1457X2036 | ||
MACHINE WEIGHT ( ROUGH ) | TONS | 5.7 | ||

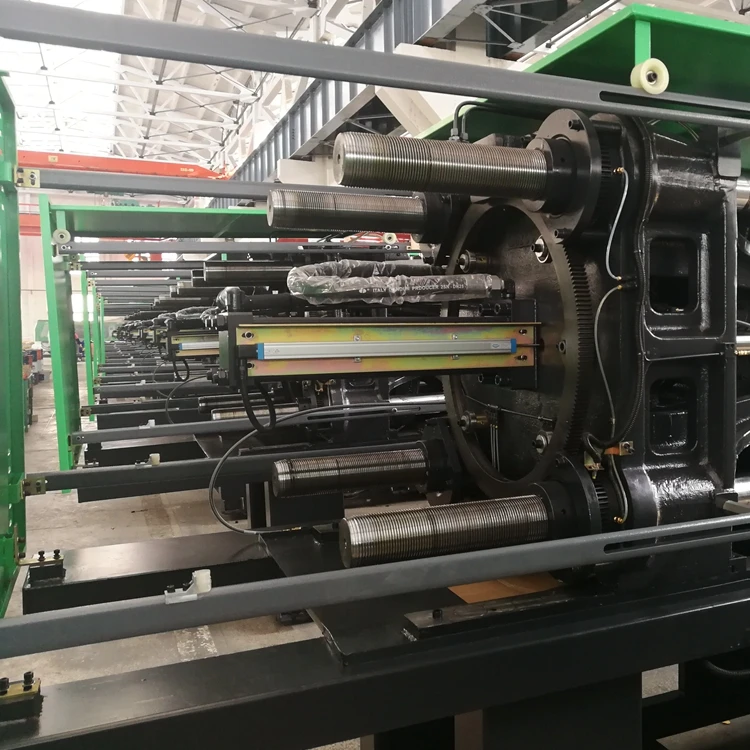

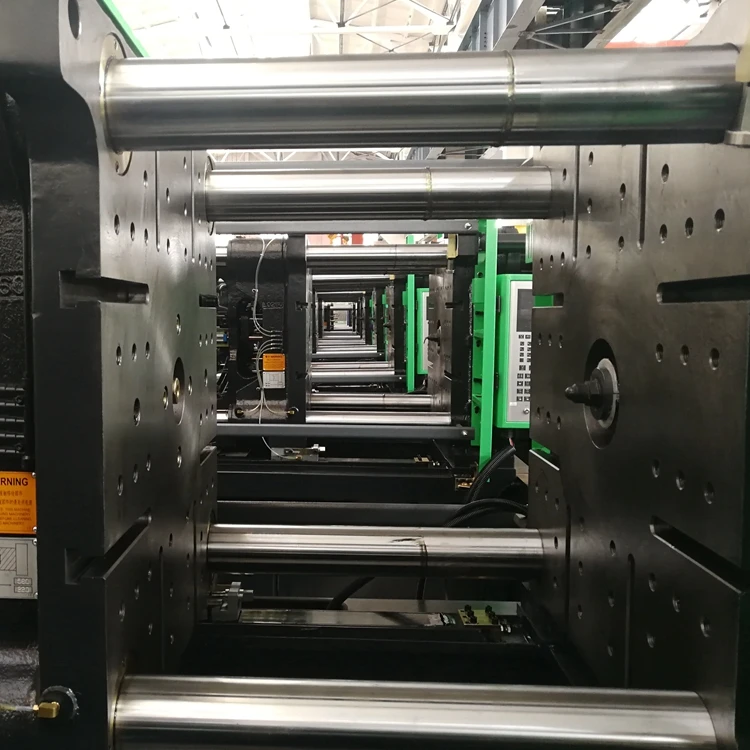

PET Bottle cap Injection molding machine details:

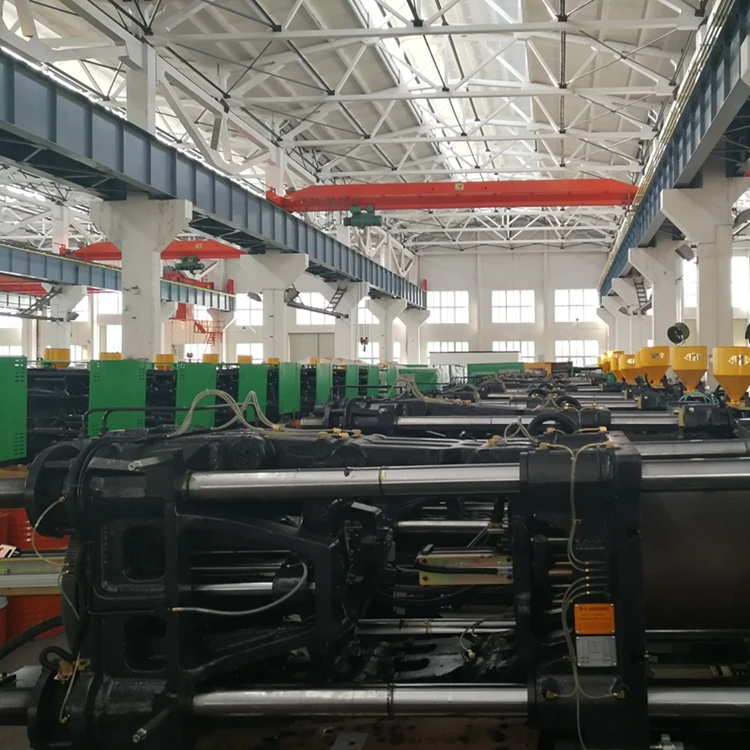

production process
customer with machines
shipment
customer visit
certificate
