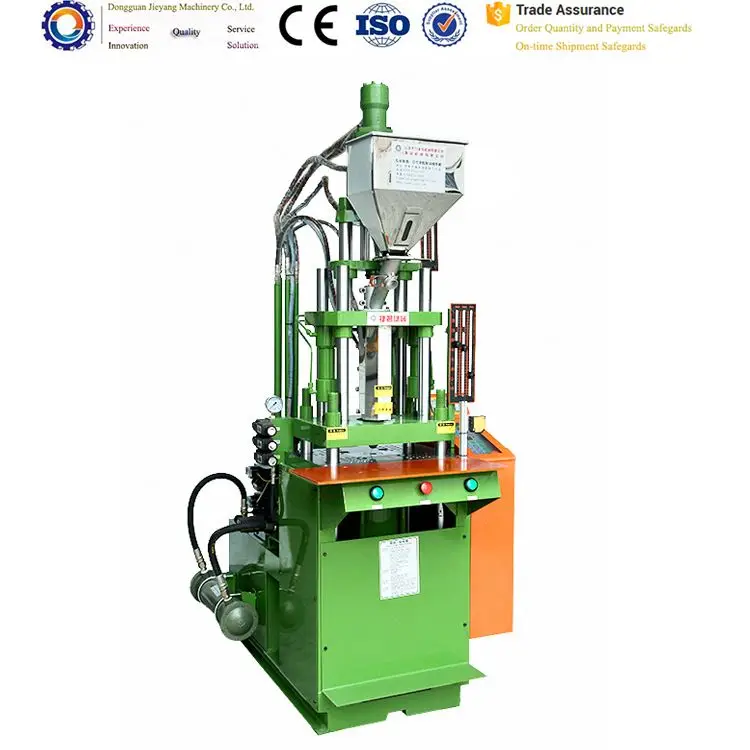

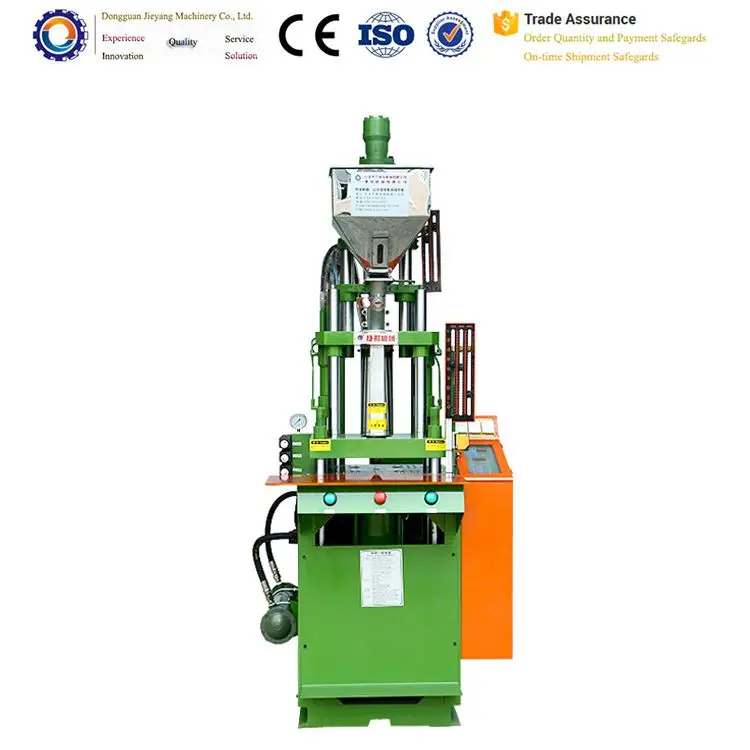

Small Business flower making machine Bone shooter injection molding machine
- Category: Injection Molding Machines >>>
- Supplier: Dongguan Jieyang Machinery Co. Ltd.
Share on (60739355804):
Product Overview
Description
Machine Description
Small Business flower making machine
——————————Specification———————————
| MODEL | UNIT | JY-250ST | |||
| Injection Unit | Screw Diameter | mm | 26 | 28 | 30 |
| Injection Pressure | kg/cm2 | 1530 | 1278 | 886 | |
| Max.Shot Weight(PS) | g | 56 | 64 | 74 | |
| Injection Rate | mm | 115 | |||
| Clamping Unit | Clamping Force | Tons | 35 | ||
| Platen Size | mm | 540x380 | |||
| Distance Between Tie Bere | mm | 375x205 | |||
| Min.Mold Height | mm | 158/58 | |||
| Opening Stroke | mm | 180 | |||
| Enjection Force | Tons | 1.3 | |||
| Enjection Stroke | mm | 35 | |||
| Power Unit | Max.Hydaulic Pressure | kg/cm2 | 140 | ||
| Pump Motor Power | KW/HP | 3.75/5HP | |||
| Total Weight | KW | 6.3 | |||
| Other | Machine Weight | Tons | 1.5 | ||
| Machine Dimensions(LxWxH) | m | 1.5x0.93x2.45 | |||
| Shipping Weight | Tons | 1.8 | |||
| Shipping Measurements(LxWxH) | m | 1.76x1.15x2.3 | |||
—————————Main Features ————————————
1.Straight screw ejected assembly.
2.Two(three)-phase temperature, ejected speed, backing pressure and screw speed is suitable
for various plastic to confectioned.
3.Low-die fixed top active mode makes inserted objects excellent positioned features and the
machine has liftout attachment for finished goods.
4.Low-pressure closed die assembly can protect the safety of die.
5.Material tube can be lifted. It is easy to clean stub bar. It is easy to fix die.
6.Can be installed a single mold or double shuttle table.
7.English/Arabic/Spanish LCD and so on about ten language display, which can memorize 999
groups of mold data.
