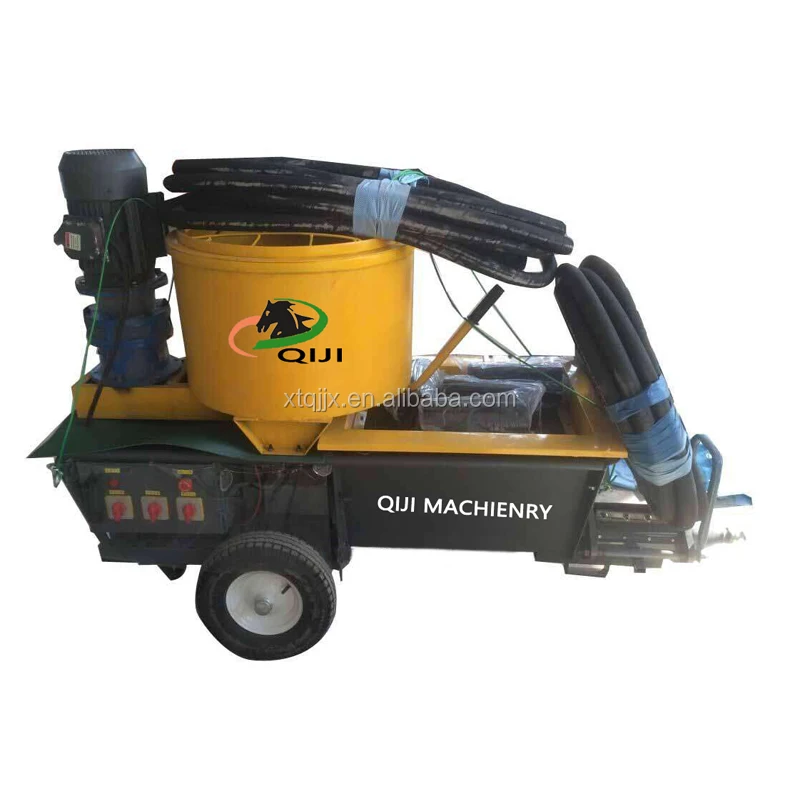

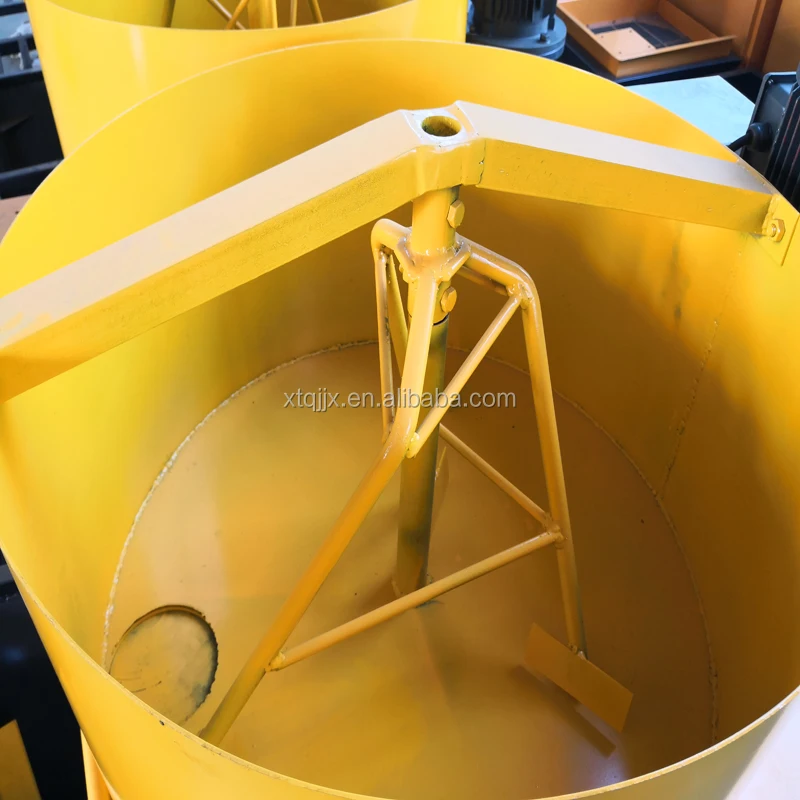

Hot selling new mortar mixing and spraying machine cement plaster mixing spraying machine

Share on (60739894952):


Price:$2,658.00 - $2,700.00

Quantity:


Product Overview

Description



Product Description


Product Application

Suitable for spraying materials: putty powder, paint, latex paint, real stone paint, cement mortar, dry mortar, insulation mortar, waterproof material, fireproof material, heat insulation material, sound absorbing material and other water-soluble materials.

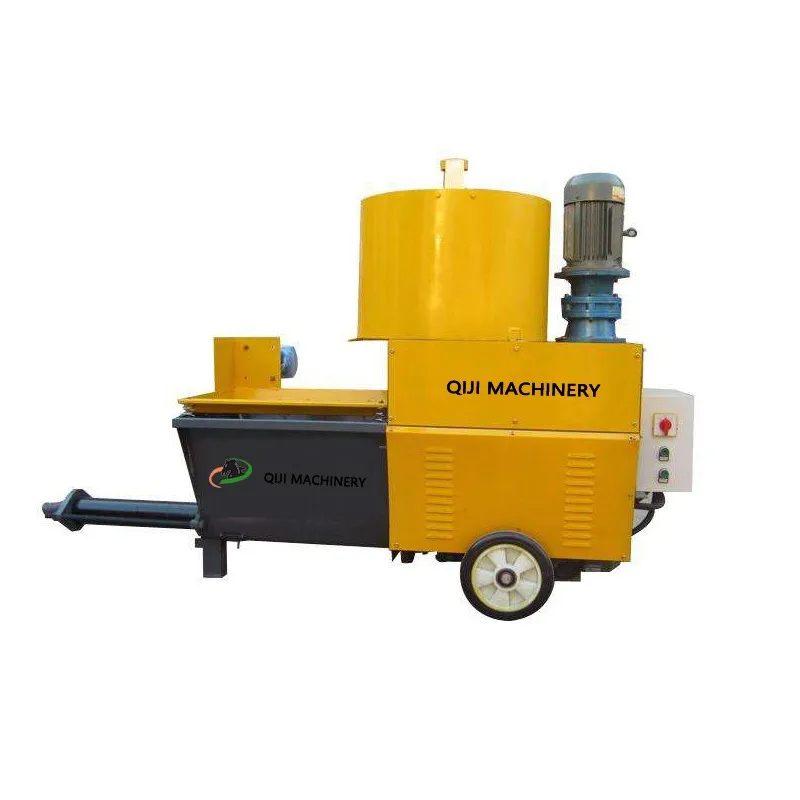

Mortar spraying machine
The product name
QJ-180  mortar spraying machine
Voltage and power
380v,7.5KW
Delivery pressure
3 mpa
Conveying flow
3 m3
Transmission distance
0 to 50 m
Conveying height
30 m.
Can after spraying pipe
50 m.
Through the largest particles
3 to 5 mm
The weight
320 kg
Feeding way
Blender mixing materials
Hopper capacity
70L
Mixing motor
3KW
External dimension
1980*800*1200MM
weight
380KG






Main Features

With the traditional manual white wall, plaster and market before white wall machine performance compared to using rapid mortar spraying machine has the following advantages:

1. The little French grey, save water, save material, can reduce more than 20% of the cost.Mixing spray finishing, saving manpower, speed

2, the operation is simple, do not need scaffolding, don't have to mobile devices, need not repair the grounds, Yin and Yang are free to spray Angle, roof, shortening the time limit for a project, to improve the schedule, and section

About the frame material expenditures.

3, the high speed, high efficiency, low labor intensity, a sprayer (multi-function control) per hour can easily spray 150 ㎡, remove preparation time, work 8 hours a day calculations,

Can be sprayed over 1000 ㎡, is equivalent to 20 skilled hard day of work.

4, small investment, large gains, if each every day (multi-function control) coating equipment coating 1000 ㎡, according to the market average of $4 per ㎡, remove the worker's wages of about 500 yuan, every day

Each device can be a profit of 3000 yuan, the removal of other factors, the annual income of 500000 yuan of above, are also expected.

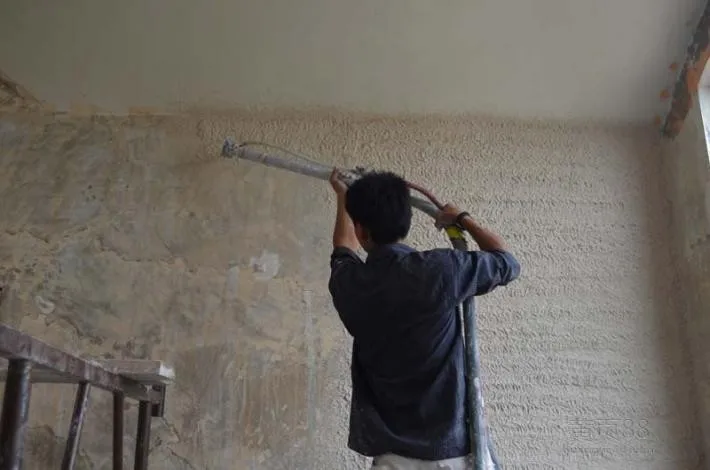

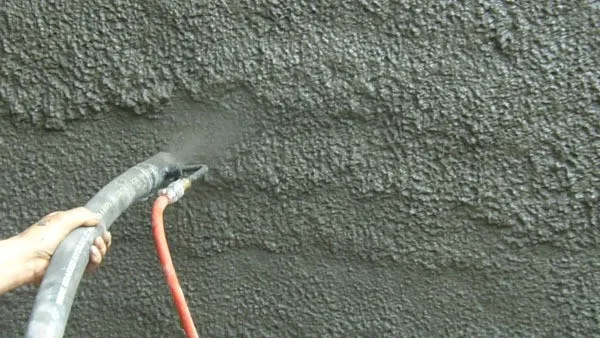

To adapt to the spraying range:

Roof, wall, ceiling wall wire mesh reinforcement (building reinforcement), metope hair starting point, high embankment slope protection, tunnel, subway, garden rockery, bricky system template,

Steel structure layer, etc.Building exterior wall thermal insulation material inside and outside wall mortar spraying, spraying, mortar roughcast, refractory coating building large spray fire materials, waterproofing agent

Paste the project.

Features:

1. Adjust the flow, bring up the best painting effect.

2. Besides you can switch on the electric cabinet, also equipped with remote control switch spraying.

3. The spray gun and feeding tube connections can rotate and easy operation.

4. The construction of high efficiency and good quality.

5. Volume is moderate, on-site handling, and low cost of accessories, maintenance is simple.

6. Easy to use, high speed, province materials, artificial and cheaper, one machine with three people, only 150 square/hour (thickness 2 cm).

8. The material ratio (cement) 0.7:3 mortar.



Certifications




Detailed Images

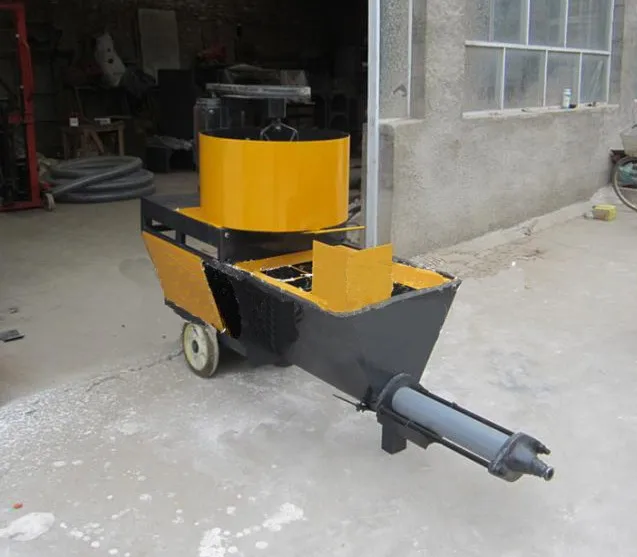

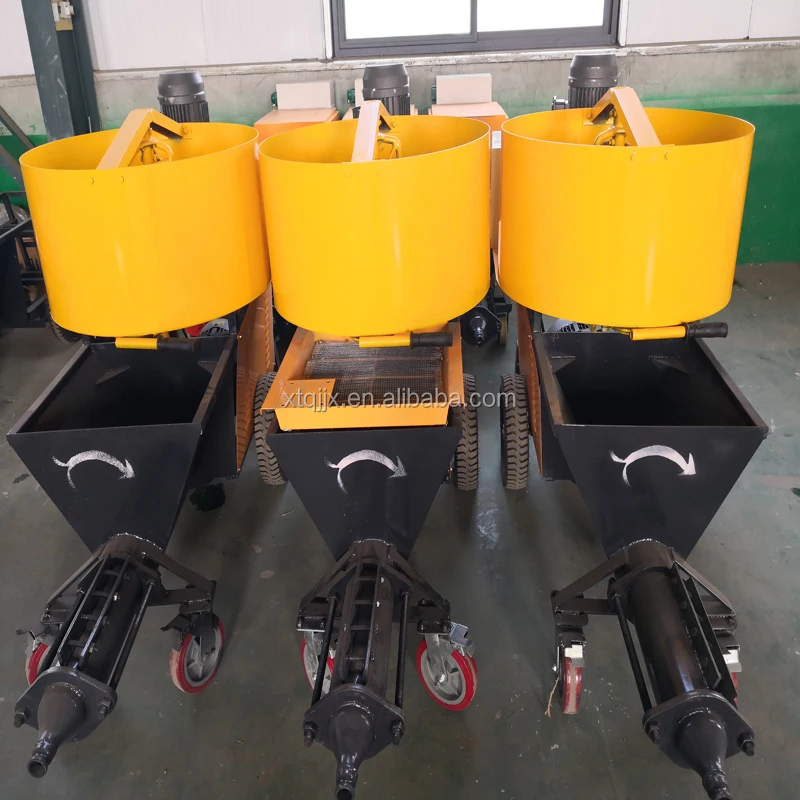

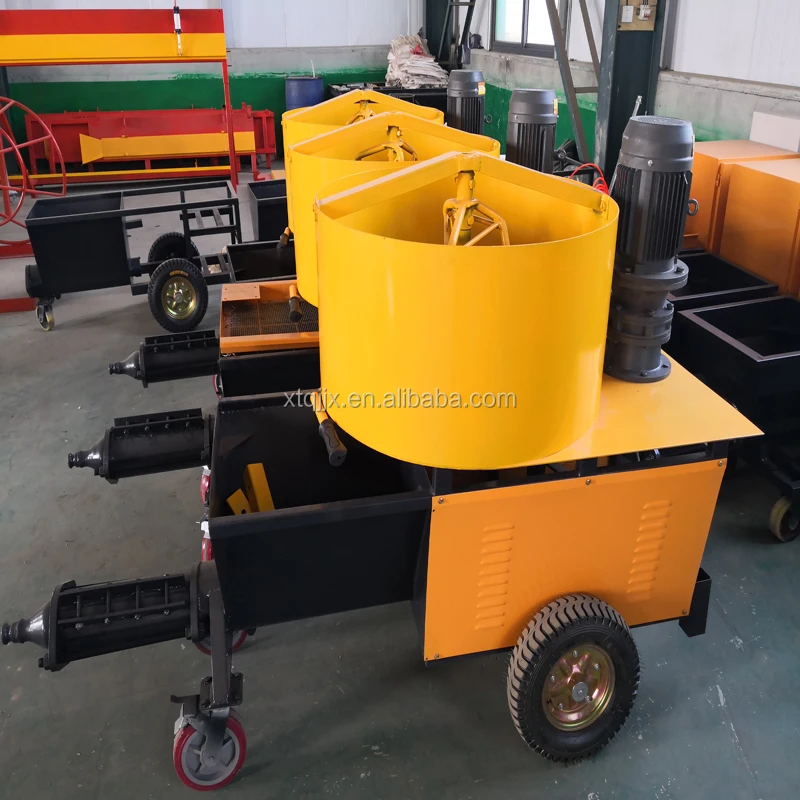

Machine

Name: Mortar spraying machine

Brand: QJ-180

Original: CHINA

A sprayer can easily spray 150 m2 per hour, remove preparation time, work 8 hours per hour calculation, can be sprayed

More than 1000 m2, is 20 skilled hard day of work.



Our Service


Pre-Sales Service

* WhatsApp;+8613703194661

* QQ;402670646

* WeChat;fanminga

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.



Packing & Delivery


Packaging
Size
210(L) *85 (W) *122 (D)
Weight
0.42T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
