This Licorice Extract Ultrasonic Extraction Equipment /Machine is applicable for the multiple technology of normal pressure ,micro pressure,water frying ,warm soaking ,thermal reflux,compulsory circulation,filtration,redolent oil extraction and organically solvent recycling in traditional Chinese medicine,food and chemical industry. It is equipped with CIP cleaning device in the tank. solvent extraction
Model
Capacity
Hot water generator power
Material
Heating Area of Extraction Tank
Condensing Area of Condenser
Vacuum pump power
HST10
10L
6KW
SUS304/316
0.21M2
0.22 M2
0.55KW
HST20
20L
8.8KW
0.28 M2
0.5 M2
0.55KW
HST30
30L
10KW
0.33 M2
0.72 M2
1.5 KW
HST50
50L
12KW
0.5 M2
0.83 M2
3KW
HST100
100L
24KW
0.98 M2
0.95 M2
4KW
HST150
150L
25KW
1.45 M2
1.2 M2
4KW
HST200
200L
27KW
1.85 M2
1.5 M2
6.5 KW
HST300
300L
35KW
2.85 M2
2.3 M2
8KW
Main Features

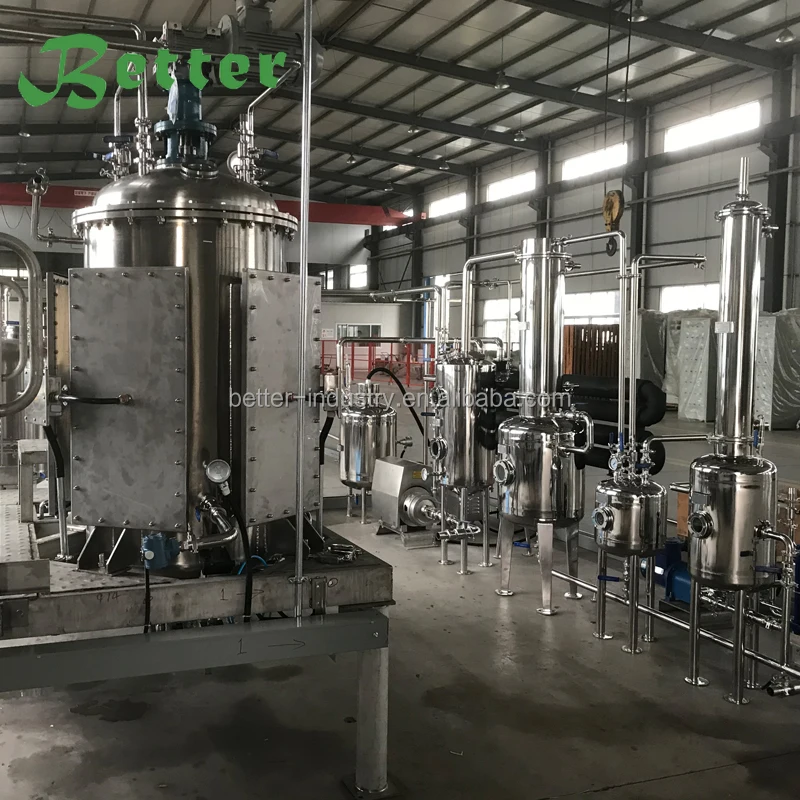

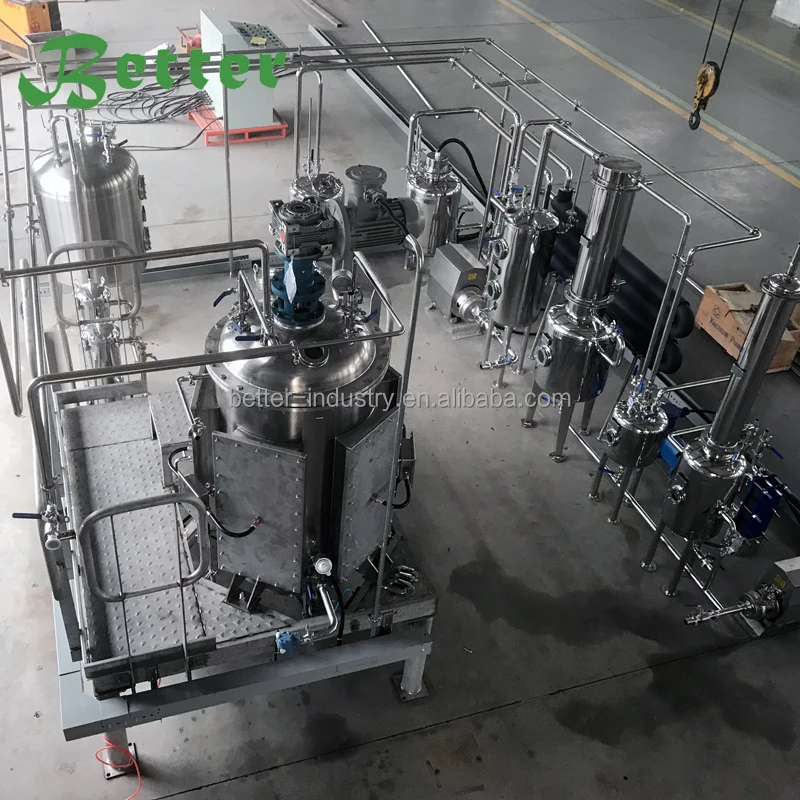

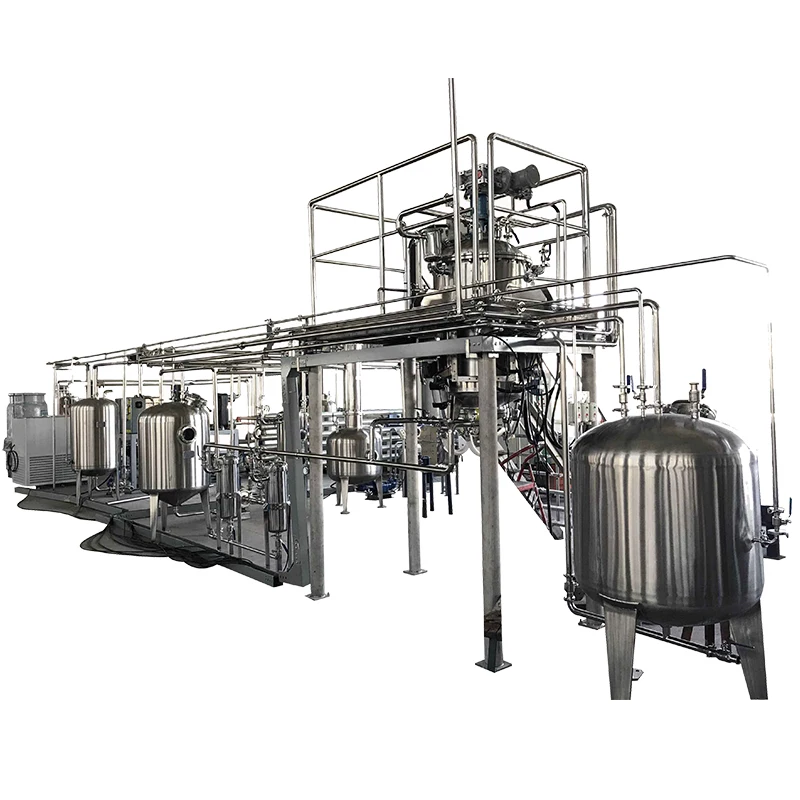

1. The Licorice Extract Ultrasonic Extraction Equipment /Machine consists of extractor, tubular heater, evaporator, condenser, oil-liquid separator, oil collector, medicine liquid pump, weighing vent, liquid storage tank, filter, vacuum pump, and electric cabinet. Defoamers are fixed in the steam outlet of the extractor and evaporator. The units without steam heating can be fixed with oil heating system.
2. It can be operate to hot recyling distill and condense, normal extraction, concentration, precipitation and percolation.
3. It can work in the condition of negative pressure, atm. and positive pressure. It can apply to distill water, ethanol and solvent, up to GMP standard.
4. The Licorice Extract Ultrasonic Extraction Equipment /Machine has great advantages in multi-function, high efficiency, energy saving, and wide operation arrange. It pioneers in comprehensive capacity in nationwide; it is the pilot equipment in distilling natural herbal medicine, especially fit for research institution, universities and collages, and factory pilot experiment, or distilling valued medicine, or low temperature fresh herbal. It has been widely used in factories.
Application
Pharmaceutical
analytical solution of antibiotic resin for desalination and concentration, vitamin concentration
Dye
desalination and concentration, instead of salting out, acid
Amino acid
decolorization, impurity removal, concentration and desalination
Food
oligosaccharides, starch, sugar, separation, purification, fruit juice concentrate, plant extract
Recovery of mother liquor
MSG mother liquor purification, glucose crystallization solution impurity etc.
Water treatment
printing and dyeing waste-water treatment, water reuse, ultra pure water preparation
Acid, alkali recovery
pharmaceutical industry washing column acid, alkali waste liquid, chemical fiber industry waste acid, alkali
Certifications
Packing & Delivery
Packaging of Licorice Extract Ultrasonic Extraction Equipment /Machine
Size
1200*1150*900
2700*1500*1400
2600*2000*1100
2000*2000*1800
Weight
4000kg
Packaging Details
The normal Licorice Extract Ultrasonic Extraction Equipment /Machine package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
User Demand Analysis
Once the project is confirmed, the product level, processing technology and consulting group are analyzed according to the actual demands of customers so as to provide suitable engineering plans, form a complete production line and calculate the budget.

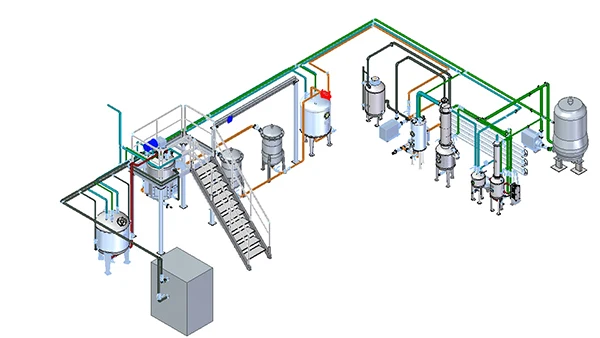

Engineering Design
We carry out planning and designs on details of engineering plans through introducing internationally advances design conception to provide valuable project technological plans and ensure effective implementation of all steps.
Product Manufacturing
The approved production drawing is the basis for production and manufacturing. All equipment that is not manufactured on the site shall be indentified by our quality responsible person so as to meet the strict stipulations.
Automatic Control Integration
The installation of the system and the whole automatic project meets the GMP standard and FDA standard. According to our years of experience, the installation and process rules will help simplify the starting and commissioning of equipment.
Trial Running and Training
During the equipment commissioning, our engineers will provide guidance on the site and carry out various tests with respect to all performances of the equipment with customers. Approval will be received from users.
Verification Services
To ensure normal production, we can set up maintenance and servicing plans for a single machine, the whole production line or the whole factory and provide equipment maintenance services and offer fittings according to customer requirements.
