Full Hydraulic High Pressure Grouting Machine Cement Grout Injection Pump for the high pressure grouting

Full Hydraulic High Pressure Grouting Machine - Cement Grout Injection Pump for the high pressure grouting

Instruction & Application

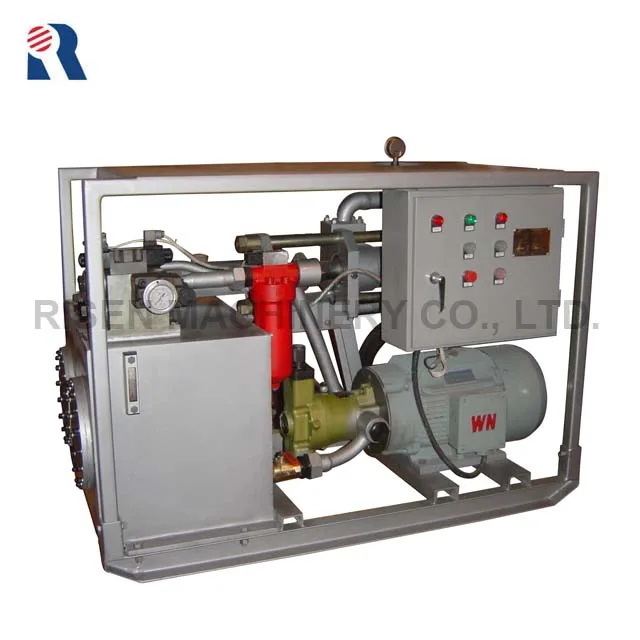

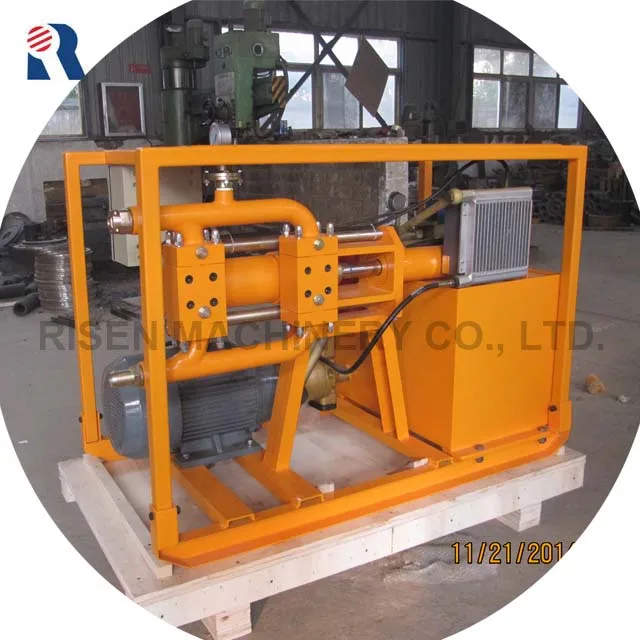

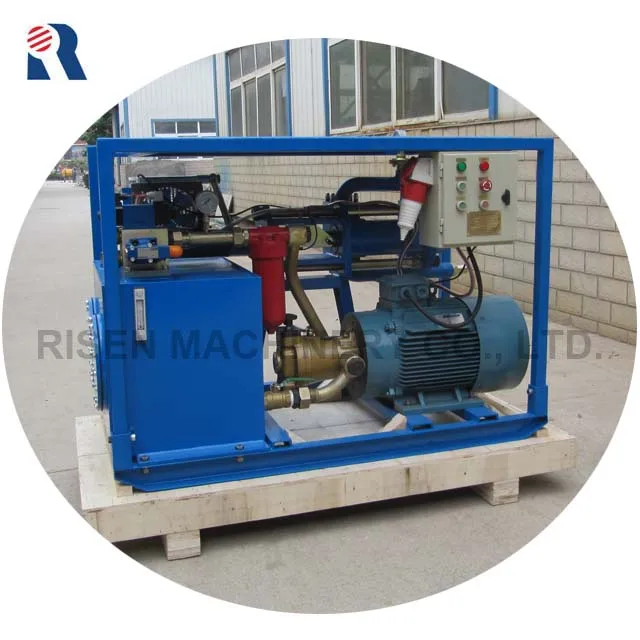

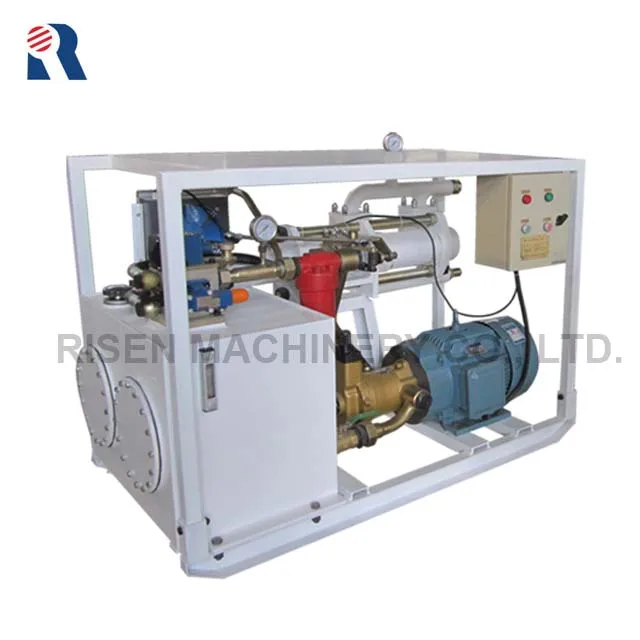

Full hydraulic high pressure grouting machine RISEN RG90Y is a cement grout injection pump, mainly applied for the high-pressure grouting. It is a kind of piston pump with single cylinder and double acting. Its main oil pump is a variable piston unit adjusted by hand, so the output of pump can be adjusted. It has many advantaged characters of simple structure, higher working pressure, mainly applied for grouting the cement slurry or similar slurry under the high pressure to do the sealing, strengthening and stabilizing of rock and soil in tunneling, mining, hydro-power project, slope stabilizing and underground project, etc.

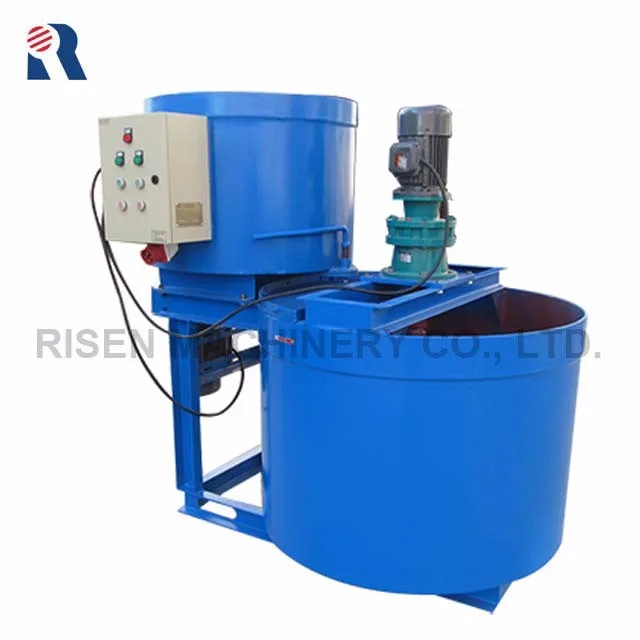

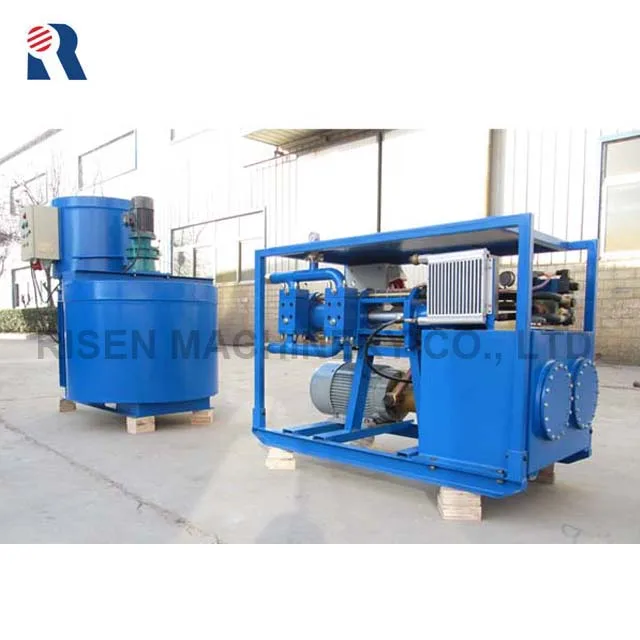

RISEN RG90Y often works together with RISEN grout mixer.

Main Features

\tPlunger pump as oil pump for the reliable work under high-pressure;
\tVariable displacement pump for the low heat system and high system efficiency;
\tSolenoid operated directional valve or mechanical direction valve can be chose according to the different work environment.

Advantages

\tSpecial electroplating for the work cylinder’s inner wall;
\tFamous domestic or international standard hydraulic elements;
\tIP55 100% new electrical motor;
\tElectrical control box manufactured by thicker plate and standard Schneider electrical elements;
\tStandard seal parts to ensure the excellent seal quality;
\tPainted after sandblasting for a pretty appearance;

Machine Parts

Name: Oil Pump Motor

Original: China

IP55, 100% new brand with good quality.

Main Features

Name: Solenoid Operated Directional Valve
Original: China
Solenoid Operated Direction Valve is the standard one for RISEN RG90Y grout pump. The Mechanical Direction Valve is optional. You can make your choice as your request.

Machine Parts

Name: Electric Control box, Electrical Elements
Original: China, Schneider (CHINA) Co.
RISEN  uses the thick plate to make the box and install the standard Schneider elements which are the safe and trustable electrical elements.

Main Features

Name: Suction Inlet and Discharge outlet
Original: China
Single Suction Inlet and Discharge Outlet is the standard one for RISEN RG90Y. The double Suction inlets and Discharge outlets is optional.
