5.5mm Palmscope: 3' TFT 720P HD Video Borescope inspection camera with 1m camera probe coiled inside the case for storage
- Category: Surveillance Products >>>
- Supplier: Shenzhen Hivibel Technology Co. Limited
Share on (60742272008):
Product Overview
Description
Product Description
3'' TFT 720P HD Video Borescope with 5.5mm camera head

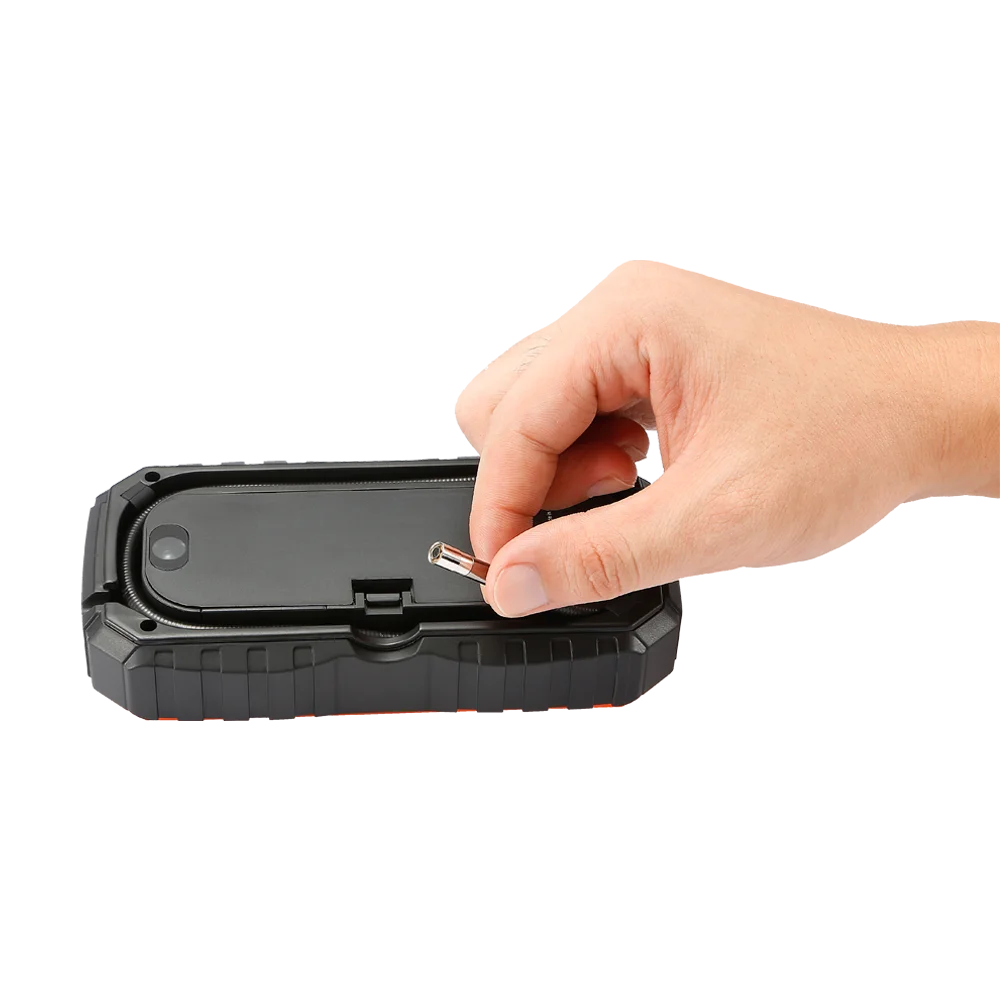

1m camera probe is coiled inside the case for storage
Portable Design
Simple Operation
High Performance
Small Size
Light Weight
Saving Space & Freight
FEATURES
1M waterproof camera probe is coiled inside the case for storage
φ5.5mm camera head with flexible snake tube
6 light-adjustable LEDs on camera head
3 inch TFT HD display for moniting
7 navigation buttons for function operations
Flashlight for standalone lingting purpose or auxiliary light for camera
Support Micro SD card(MAX.32G) for image/video storage
4AA bateries for power supply(not included)
The probe tip accessories Hool, magnetic pickup with hook and 45° mirror are provided for different applications
SPECIFICATIONS
| Items | Product Standard | Specifications |
| Snake Tube Camera | Camera Lens | SCMOS |
| Resolution | 1280*720 | |
| Viewing Angle | 65° | |
| Focal Distance | 4CM | |
| Depth of Field(DOF) | 0.7CM-30CM | |
| Light Source | 6LEDs | |
| LED Light Irradiation Distance | 30CM | |
| Camera Outer Diameter | 5.5MM | |
| Length of Metal Camera Part | 3CM | |
| Video Output | / | |
| Working Current | 95MA | |
| Working Voltage | 3.5V-5V | |
| Working Temperature | -10°~60° | |
| TFT Display | Size(Active area) | 3inch |
| Resolution | 640*480 | |
| Luminance for LCM | 400 | |
| Image Zoom | 1-3times | |
| Image flip | 180°flip | |
| Brightness Control | / | |
| Video | Video input/Output | 1280*720 |
| Image/Video Resolution | 1280*720 | |
| Signal Format | Digital | |
| Image Format | .JPG | |
| Video Format | .AVI | |
| Internal memory | Micro SD card | |
| Flashlight | Power Output | 0.5W |
| Power Supply | Working Voltage | 6V |
| Working Current | 380MA | |
| Internal Dry Battery | 4AA | |
| Work Time | Continuous working time | >3Hours( typical ) |
| Product Dimension | L*W*H(mm) | 160mm x 85mm x 35mm |
| Product Weight | Unit(g) | 289g |
| Package Dimension | L*W*H(mm) | 180mm x 120mm x 40mm |
| Package Weight | Unit(g) | 473g |
APPLICATIONS
Automobile service, Aviation maintenance, Archaeological expedition, Lab observation, Search and rescue, Oil&Gas industry inspection, Equipment or Furnishing installation, etc.
Notice:All graphics and specifications are subjuct to minor change without prior Notice. All rights reserved.
