Xhorse VVDI PROG Programmer V4.6.4 Plus PCF79XX Adapter

Product Overview

Description

Xhorse VVDI PROG Programmer V4.6.4 Plus PCF79XX Adapter

Main Feature:

1. The built-in update software allows user to update VVDIProg firmware timely.
2. High-speed USB communication interface enable the software automatically connect.
3. Smart operation mode: the possible causes of error will be listed
4. Reserve ports: for future update.
5. The self-test function enable you check if the machine works well.
6. Can supply power via USB cable, the software will automatically prompt if the external USB power supply is needed.



Firmware Version: 1.2.2

Note:Just as the software update at a high frequency,so that we cancel the CD in the package,sorry for this.But do not worry,we will send you the download link when you place an order,or you can contact me for the newest version,Hope you can understand that!



Adapters Detailed Description:

Adapters Detailed Description:

16Pin Locking Socket
Read the common EEPROOM, note: please insert the chip by following the below picture.


1.3.2 MCU Reflash Cable
Used to program MCU on board



1.3.3 ECU Reflash Cable
Used to program ECU



 1.3.4  MC9S12 Reflash Cable
Used to program MC9S12 series chip







                                                           ECU

Manufactures	Types	Support	Remark
VAG	MED17.1-TC1796	£
	MED17.11-TC1796	£
	VAG MEG17.5-TC1766	£
	VAG MED17.5.1-TC1796	£
	VAG MED17.5.2-TC1767	£
	VAG MED17.5.5-TC1766	£
	VAG MED17.5.20-TC1766	£
	VAG EDC17 CP14/CP20-TC1796	£
	VAG EDC17 CP04-TC1796	£
	VAG EDC17 C46-TC1767	£
	VAG EDC17 CP24-TC1796	£
	VAG EDC17 CP44-TC1797	£
	VAG EDC17 U01-TC1766	£
	VAG EDC17 U05-TC1796	£
	VAG/Porsche Siemens Continental SDI 3- TC1796	£
For BMW	MEVD172(N55)	R
	MEVD172P(N20)	R
	MEVD172G(N55)	R
	MEVD172S(N55)	R
	MEVD1724(N20)	R
	MEVD1725(N13)	R
	MEVD1726(N55)	R
	MEVD1729(N20)	R
	MEVD1728(N63/S63)	R

Note: R means the type is supported £ means the type will be supported soon in the future.

Package List:

Parts	Number	Remark
Programmer multiplexer	1
Square USB cable	1
SOP16 test socket	1
16pin converter	1	Support SOP/SOT/SSOP
MCU reflash cable	1
ECU reflash cable	1
MC9S12 reflash cable	1	Used to program MC9S12 series chip
12V3A power adapter	1	High quality power supply

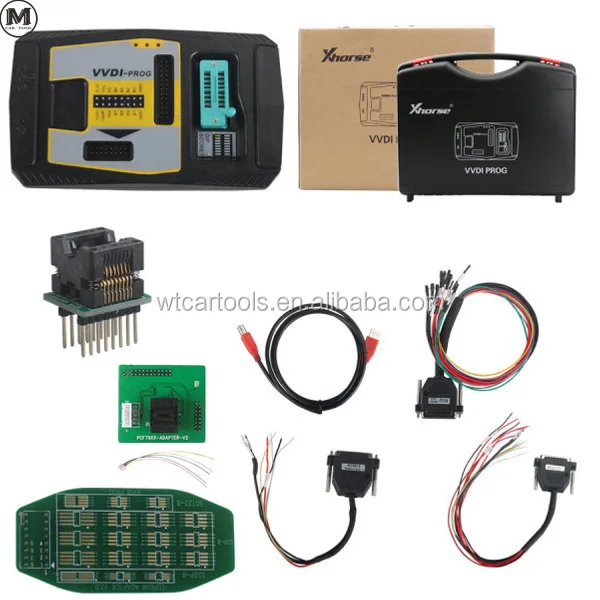

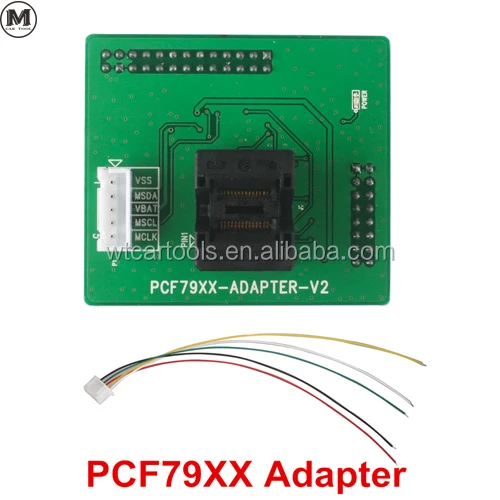

PCF79XX Adapter for VVDI Prog(optional)





1. Supported Chip Models:



PCF7922 PCF7941 PCF7945 PCF7952 PCF7953 PCF7961



2. Two Optional Ways to Read Write PCF79XX Chip



(1) Remove the chip and put it in the IC socket, select option “PCF79XX chip” shown as follows.

(2) Connect wire to the circuit board, select option “PCF79XX adapter” shown as follows.

Note: If PCF79XX adapter option can't recognize chip due to the affection of circuit board, just remove chip and put it in IC socket, then use option “PCF79XX chip” to operate.
