Hot Sell Grout Mixer for mixing the cement and water in high speed


Product Instruction & Application

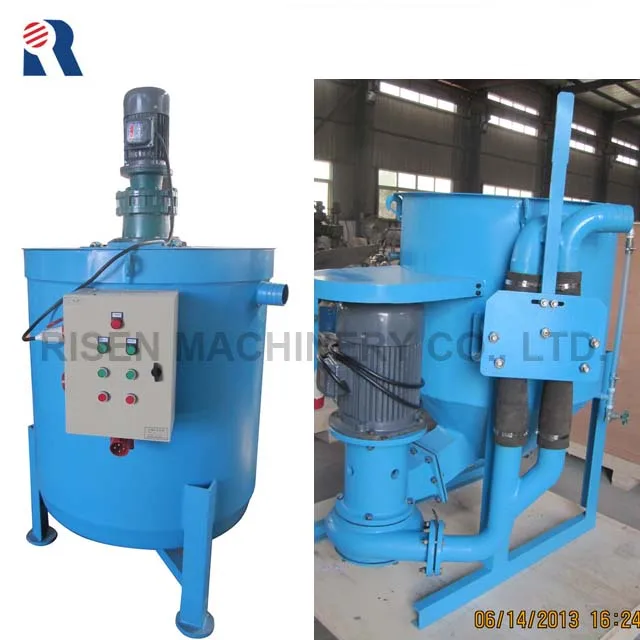

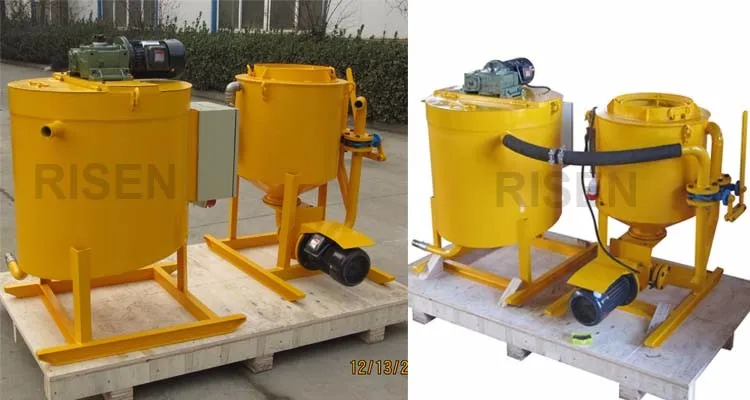

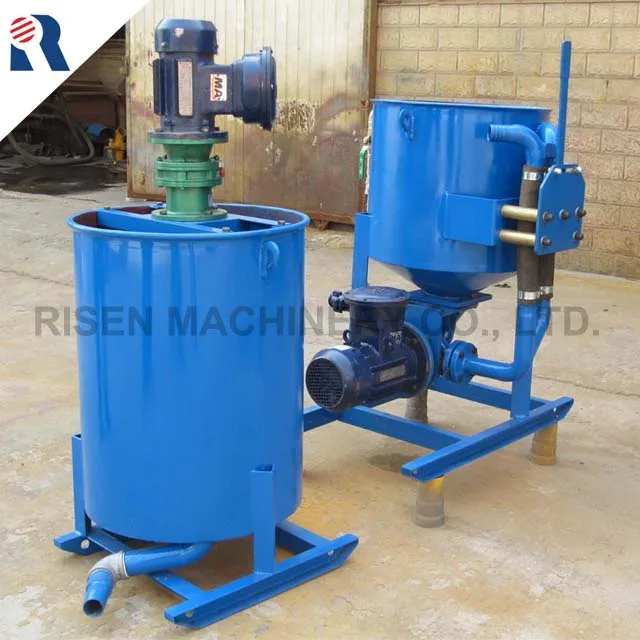

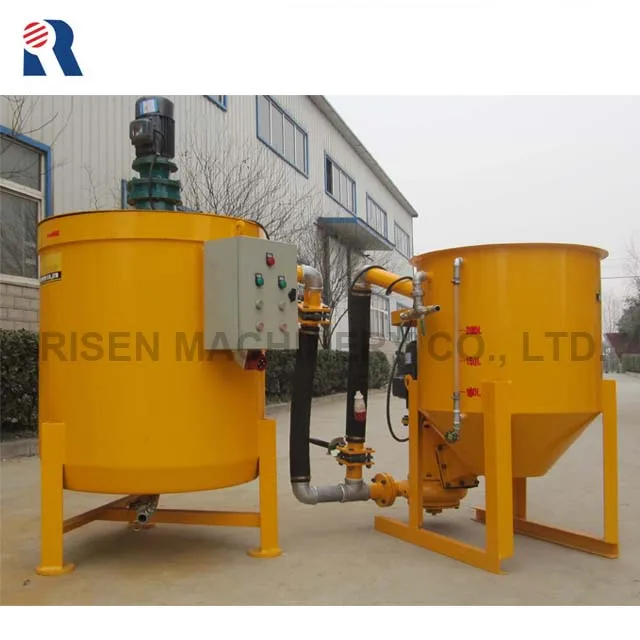

RISEN RM150/320 is a high work efficiency grout mixer for compounding / mixing the cement and water. It consists of two separate tanks---mixing tank and agitator tank, more convenient for transportation.

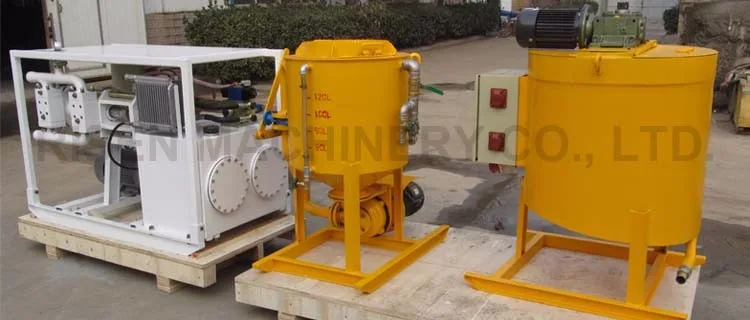

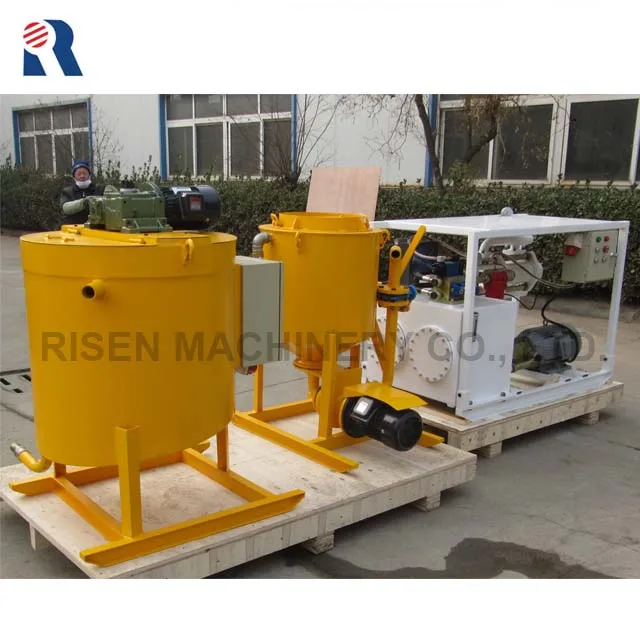

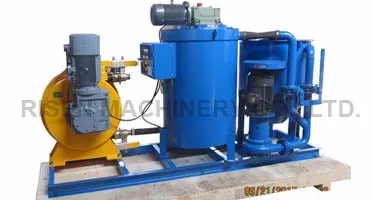

It is a good work partner of RISEN RG series grout pumps or RH series hose pumps.

Combine with grouting pump, it can grout with pressure in mining, tunnel, culvert, subway, hydropower engineering, underground excavation engineering etc.

\t
SPECIFICATIONS FOR RISEN RM150/320
\t







Main performance parameters
\t
Mixing tank capacity
\t
L
\t
150
\t
Agitator tank capacity
\t
L
\t
320
\t
Mixing Time
\t
\t
3 minutes at a time
\t
Mixing Power
\t
kW
\t
3
\t
Suitable W/C rate
\t
\t
0.5
\t
Agitating Power
\t
kW
\t
1.5
\t
Chassis
\t
\t
kickstand
\t
Overall Size of Mixing Tank
\t
mm
\t
970*650*1128
\t
Overall Size of AgitatingTank
\t
mm
\t
920*920*1593
\t
Weight
\t
KGS
\t
450

Main Features

\tHigh mixing efficiency, motor directly driving impeller to get the high-speed liquid flow, about 2~3 minutes to complete a mixing;
\tHigh reliability,  vertical or horizontal-mounted electric motor, low failure rate and good seal;
\tAdopt the ordinary rubber pipe as consumable part for control valve, easy to get it on construction site;

Advantages

\tTank body manufactured by the thicker plate for more reliable work and longer use life;
\tThe whole stamping structure for the tank bottom;
\tSpecial weld handling;
\tIP55 100% new electrical motor;
\tElectrical control box manufactured by thicker plate and standard Schneider electrical elements;
\tSpecial-design seal structure for the pump;
\tPainted after sandblasting for a pretty appearance;

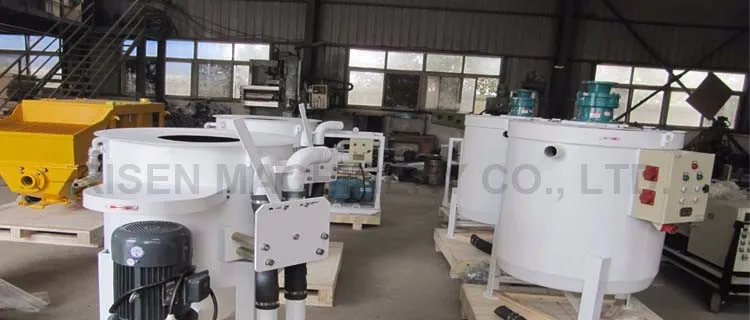

Factory Images
Detailed Images

Machine Features

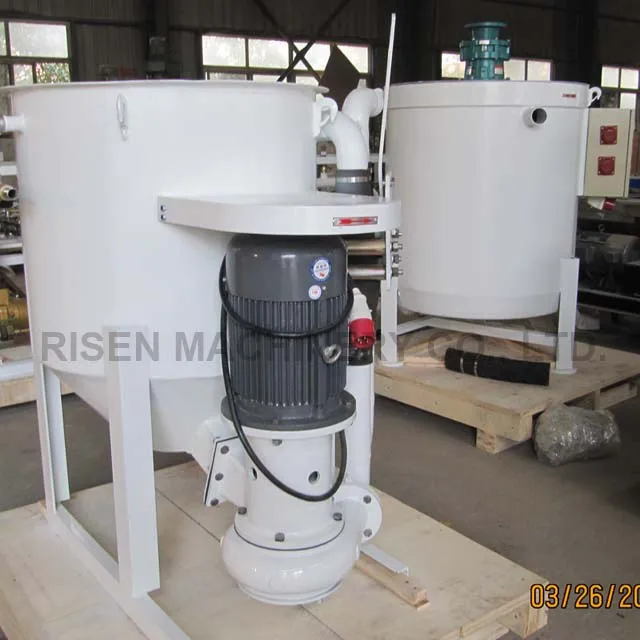

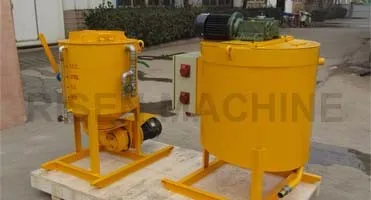

Name: Mixing Tank

Brand: RISEN

Original: China

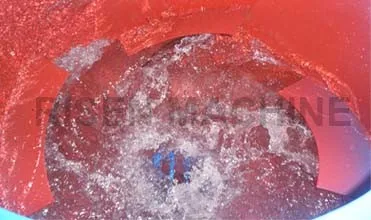

RISEN designed this high mixing efficiency mixing tank and used the thicker plate to make it.

Main Parts

Name: Agitator Tank
Brand: RISEN
Original: China

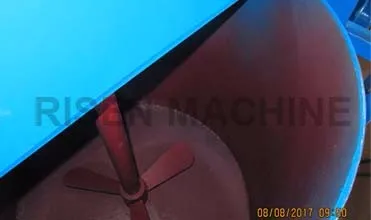

RISEN  used the thicker plate to make the agitator tank with paddles which can prevent from depositing and eduction.

Machine Parts

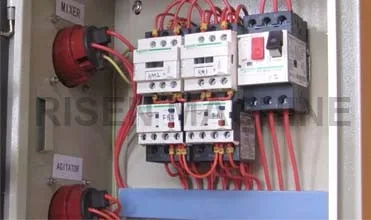

Name: Electric Control box, Electrical Elements

Brand: Schneider
Original: China, Schneider (CHINA) Co.
RISEN uses the thick plate to make the box and install the standard Schneider elements which are the safe and trustable electrical elements.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
\t
Packaging
\t
Size
\t
100 (L) * 70 (W) * 130 (H)cm; 95(L) * 95 (W) * 130 (H)cm
\t
Weight
\t
450KGS
\t



Packaging Details
\t

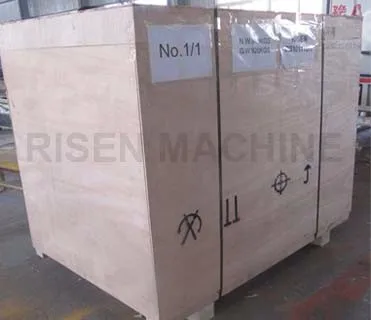

The normal package for one RM150/320 grout mixer  is two plywood crates (estimated size: 100 (L) * 70 (W) * 130 (H)cm; 95(L) * 95 (W) * 130 (H)cm) .If container is too tighter, we will use the pallet or nude packing or pack it according to customers special request.
