PVC Insulated Power Cable

Product Overview

Description

 PVC Insluated Power Cable

1.Standards and Scope of Application
With the characteristics of stable capability , advanced technology , broad materials resources , low price , good flexible and easy to lay and maintain , the PVC insulated power cables are suitable to be laid for distribution line with A.C.50HZ and tared voltage 10kV and below . We can produce the cables as per GB , IEC , BS , VDE , AS/NZS , ICEA ,JIS.
2.Specific Property for Using
1.The long-time permissible working ermperature of cable conductive core is not more than 70'C.
2.During short circuit(max . lasting time is not more than 5 seconds),the max . temperature of cable conductor is not more than 165'C.
3.The difference level of laying cable is not restricted . When laying the cable , ambient temperature is not lower than 0'C.
4.They have good chemical stability, and properties of acid trsistance, alkali resistance, salt resistance, oil resistance , solvent resistance and flame resistance .
5.Light weight , good bending property and easy installation and maintenance .
3.Technical Requirement

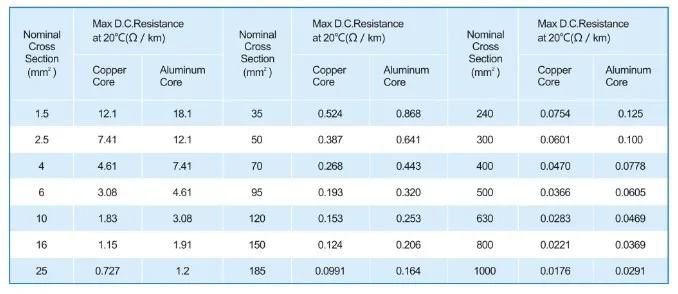

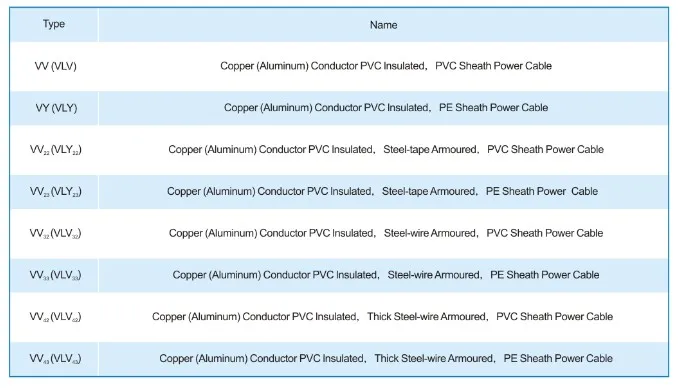

                                                        Type and Name                                              Nominal Cross Section of Conductive Core                                                    Nominal Thickness of Insulation                                                            DC Resistance of Conductor                                                                     Insulation Resistance
