Automatic tea bag packing machine/ teabag making machine
Product Description
It is suitable for various products packing, such as leafy tea, loose tea, diet tea, herbal tea, and so on.
Features of tea bag packing
1. Adopts heat sealing device. It can make inner bag with thread and tag and outer bag at the same time automatically.It would highly improve the working efficiency.
2. The machine can automatically complete bag-making, filling, measuring, sealing, thread feeding, labeling, cutting, counting, etc.
3. The packing capacity, the size of inner bag, outer bag and tag can be easily adjusted according to different requirements.
Technical Data of tea bag packing
Model
QT-T400
Product name
Automatic Tea bag Packaging Machine with Thread, Tag & Outer Envelope
Bag type
3 side sealing
Packing material
Paper/Plastic, Plastic/Plastic, Plastic/Aluminum/Plastic, Paper/Aluminum/Plastic, Tea filter paper, Thread, Tag
Feeding system
Volumetric cup filler
Package range
3-15ml
Inner bag size
L:50-70mm , W:40-80mm
Outer bag size
L:70-120mm , W:60-90mm
Tag size
L:20-24mm ,W:40-55mm
Length of the thread
155mm
Power supply
220V, 50HZ, 3.7KW
Packing speed
40-60bags/min
Weight
500KG
Dimension (L*W*H)
1250*700*1800mm

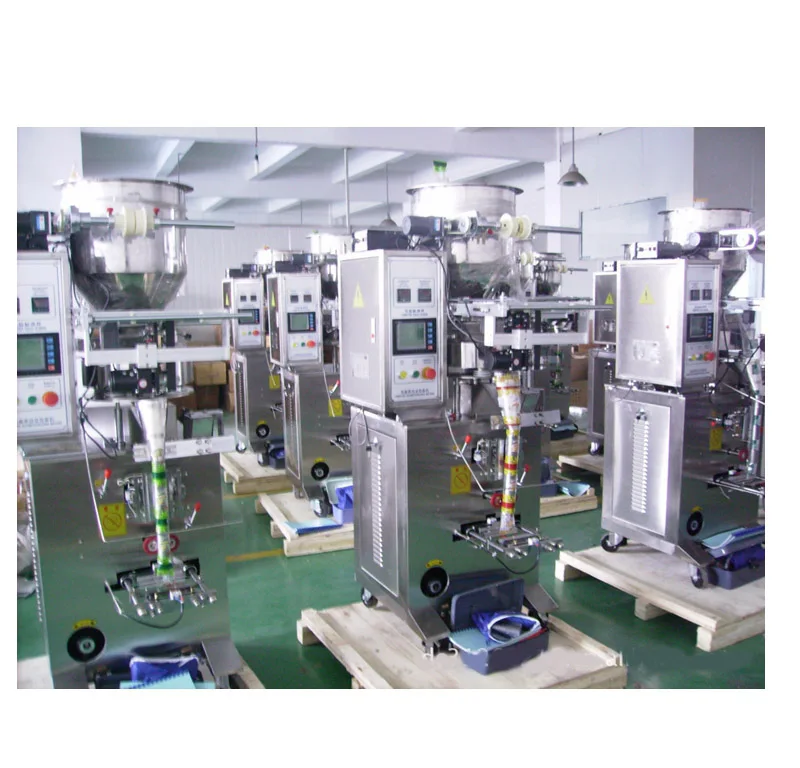

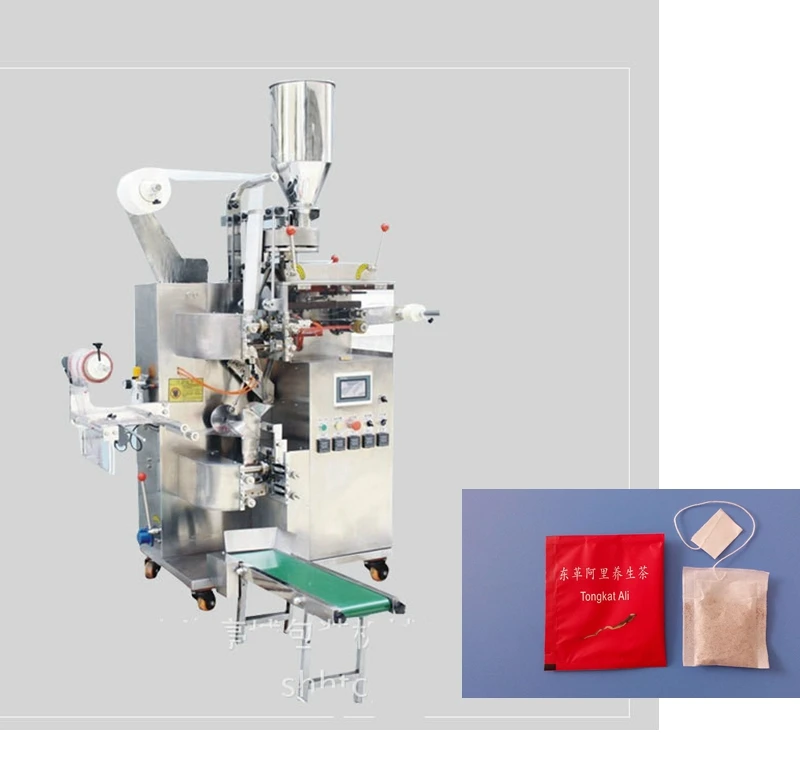

Pictures of Automatic tea bag packing machine/ teabag filling machine
