3 line round ceiling pir sensor body motion induction switch infrared ambient light indoor electronic module PIR

We also take OEM, ODM orders upon request, if you any questions, please feel free to contact us.

The induction switch type suction a top

                   Model:JL-027

Welcome to use our products, our company all products are through strict test and aging test, the circuit is stable and reliable in quality

Feature:

The product adopts good sensitivity detector, integrated circuit. It gathers automatism, convenient safe, saving-energy and practical functions. It utilizes the infrared energy from human as control signal source, it can start the load at once when one enters detection field. It can identify day and night automatically. It is easy to install and used widel. Suitable for the warehouse, garage, workshop, corridor, stair, absorb dome light.

Specification:

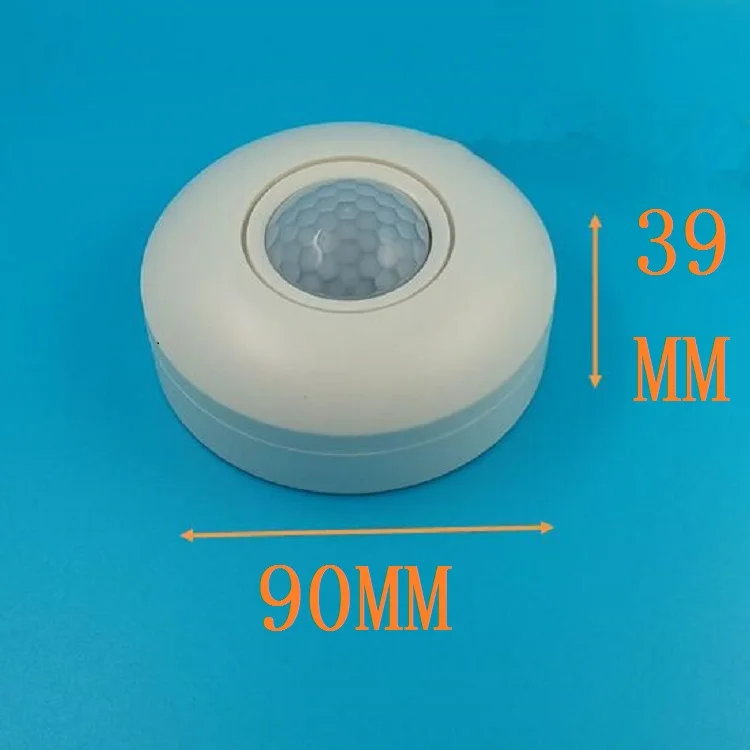

Size: 90mm * 39 mm

Working voltage:AC170-250V

Sensing method:Passive infrared pyroelectric

Static Power:0.05W

delay time:30S

Output Mode:relay

Illuminance:default 5LUX

Sensing distance:5-8M

detection angle:360 degree

load range:All the lamps and lanterns, exhaust fan

power:bulb 500W,energy saving lamp,LED bulb 100W

Operating Temperature:-20℃~+50℃
