BST-U AC Voltage Transmitter Volatge Transducer 0-10V AC 0-1000V Voltage Transducer

Introduction

<1>. BST-U AC voltage transmitter, it converts AC signals from AC transformers into standard process signals. It is used for monitoring the power supply line and its voltage,and monitoring the overload of nonstandard pressure drop.

<2>. The fully isolated AC voltage signal conversion terminal,converts the power frequency of AC voltage signal to the standard signal of the industrial instrument.

<3>. The input,output and power supply are isolated from each other.

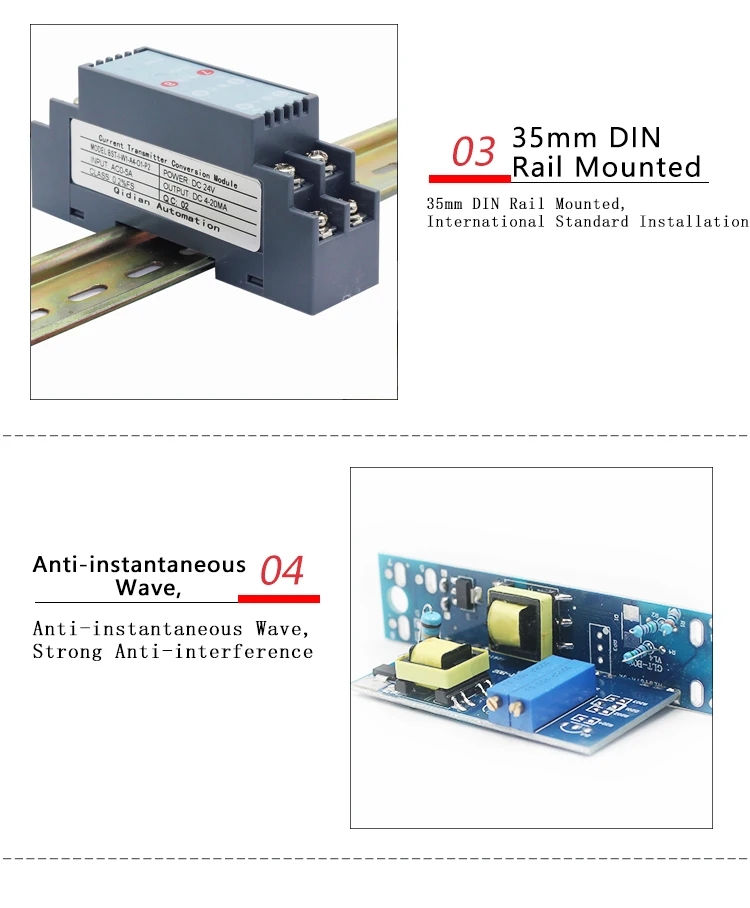

<4>. Standard 35mm DIN rail independent mounting. Full channel configuration, parameter customizable.

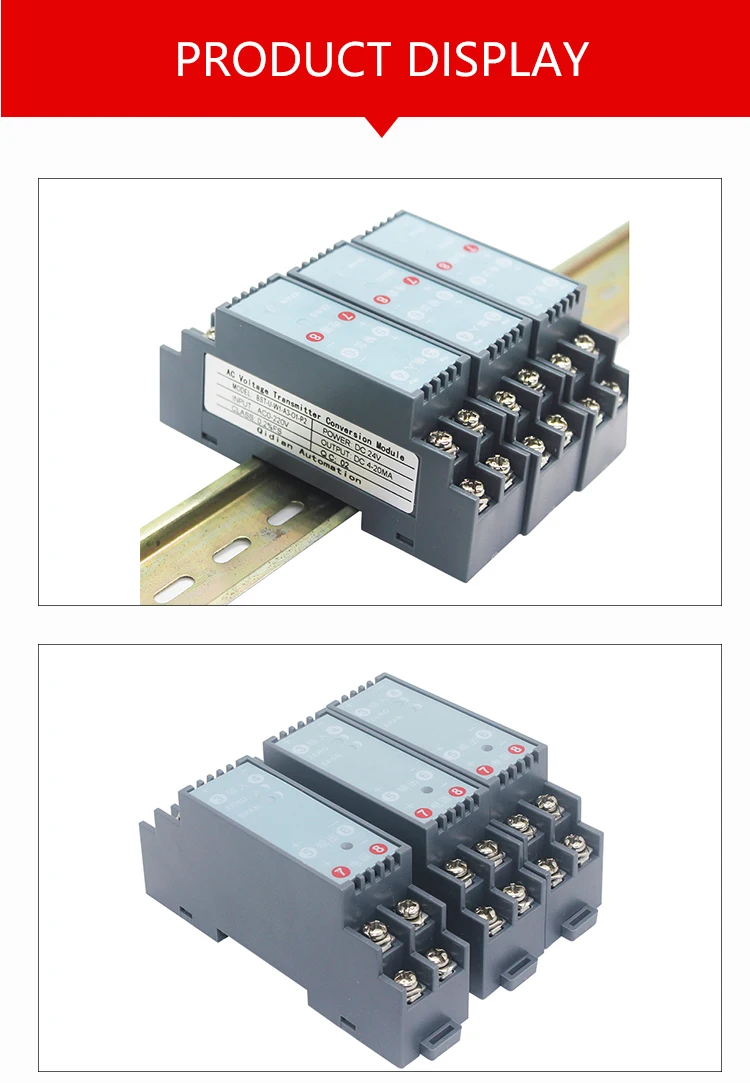

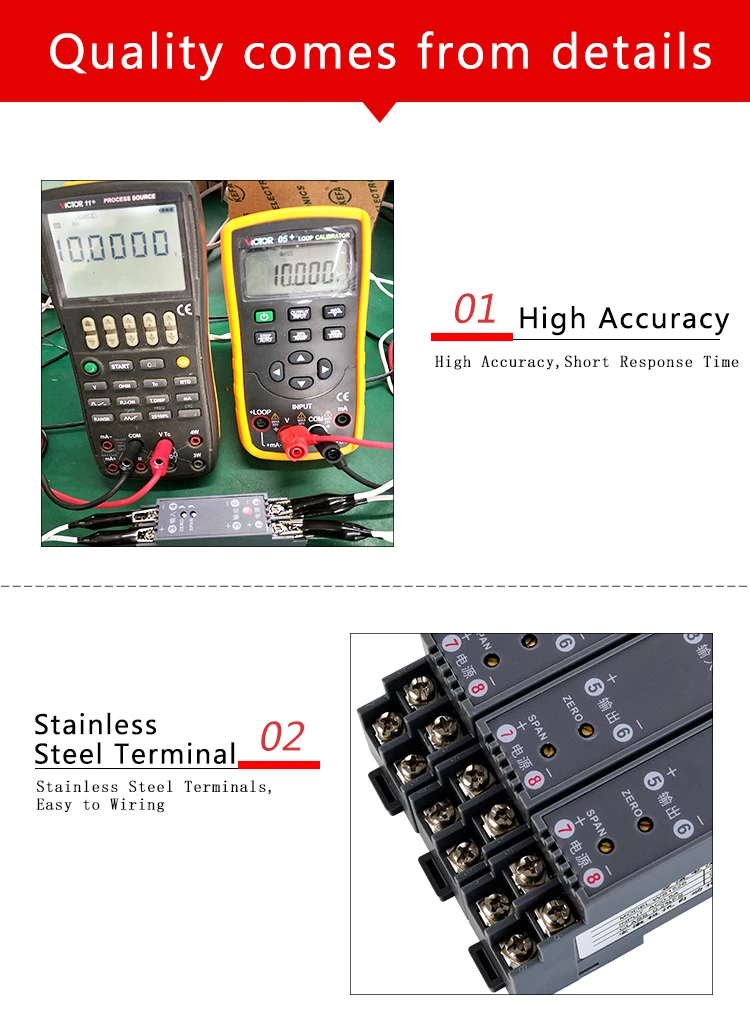

Product Display



Technical Parameters



Input
Input Voltage Range	AC 0-1000V; Customized
Frequency Range	40Hz-60Hz
Output
Output Signal	4-20mA;0-20mA;0-10mA;0-5V;0-10V;1-5V;Customized
Output Load Resistance	RL≤500Ω(output current signal)
	RL≥10KΩ(output voltage signal)
Other Parameters
Power Supply	DC24V,±10%
Accuracy	0.2%F.S.
Temperature Drift	0.02%F.S./℃ (-20℃~+55℃)
Respond Time	≤400mS(0-90%) (TYP)
Rated Power Consumption	≤1W(1 in 1 out,DC24V power supply,output 20mA)
Isolation Intensity	2000V AC/1min(between input-ouput-power)
Insulation Resistance	≥100MΩ(between input-ouput-power)
Working Temperature & Humidity	-20℃~+55℃
EMC	Complies with GB/T 18268.1(IEC61326-1)





Selection of BST voltage transmitter



Dimension of BST voltage transmitter

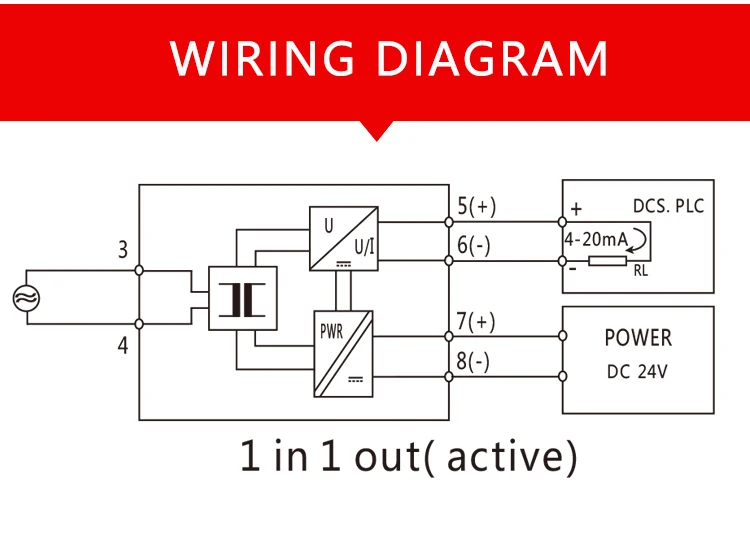

Diagram of BST voltage transmitter
