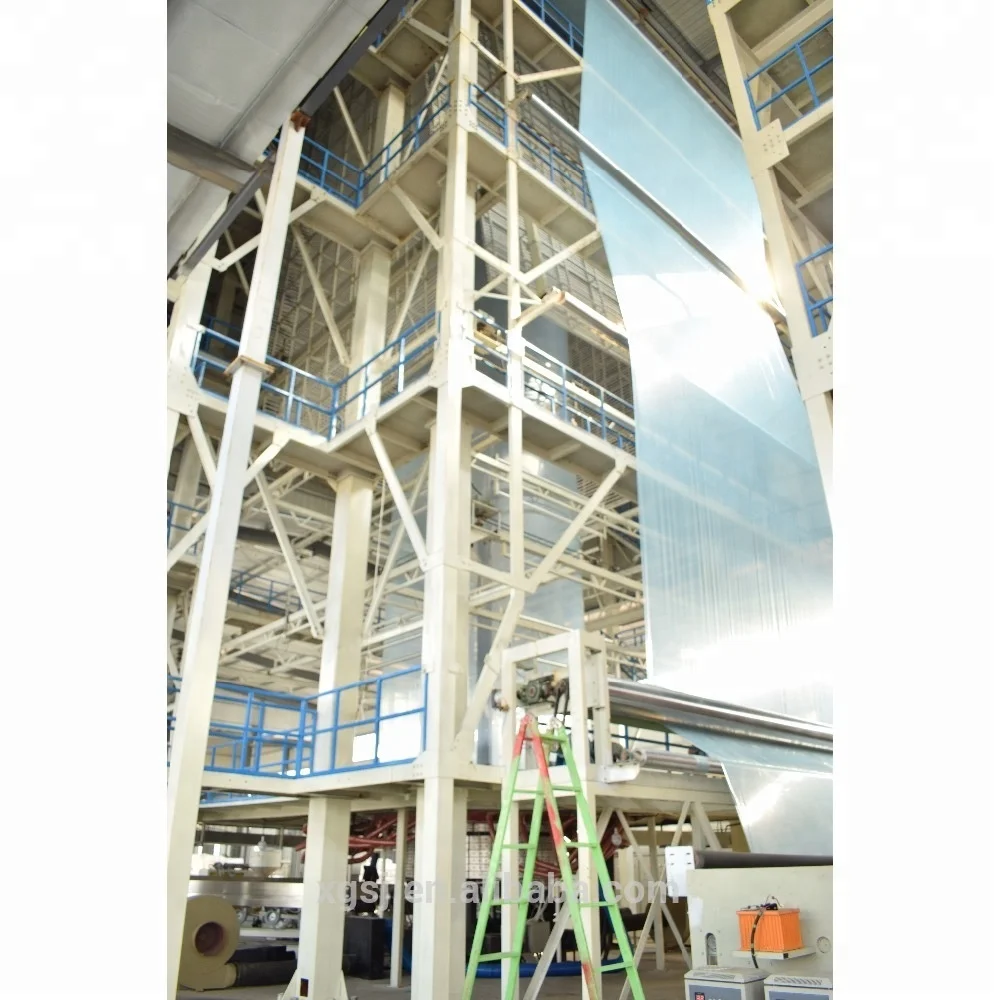

3 layer 16 meter Greenhouse Film Blowing Machine

The machine include three extruders, compound die head, air ring cooling system(inner cooling), internal bubble high-pressure air blasting system, traction system, winding system and control system for temperature and electric.
Applicable materials are: LLDPE, MLLDPE, LDPE, EVA and adhesive etc,

Capable to produce greenhouse-film and multifunction film, the unfold width of the film is 6m—26m.

SPECIFICATIONS FOR 3 LAYER 16 METER GREENHOUSE FILM BLOWING MACHINE
Extruder	Screw&barrel diameter	mm	180/30*1 150/30*2
	Main motor power	KW	280*1 220*2
	Extrusion capacity	KG/H	1700
Die	Die diameter	mm	2000mm
	Die material		42CrMo
	Die heating		Cast aluminum heater
Winder	Winding type	Center or friction winder
	Winding speed	m/min	3-30
	Max. weight per roll	KG	300

Main Features of 3 layer 16 Meter Greenhouse Film Blowing Machine:

Good greenhouse film is strong, long-life and possesses functional properties like light diffusion, extra warm-keeping and anti-condensate, dust reduction, etc.
(1).Widely used in greenhouse for vegetables, flowers, fruits and agricultural cultivation, etc.
(2).Widely used in livestock breeding industry.

Detailed Images

Machine Parts

Name: Extruder

Brand: XINFU

Original: China

Self-designed new type screw structure for greenhouse film production. Barrel heating uses cast aluminum heaters and cooling with Air fan.

Machine parts

Name: Die
Brand: XINFU
Original: China

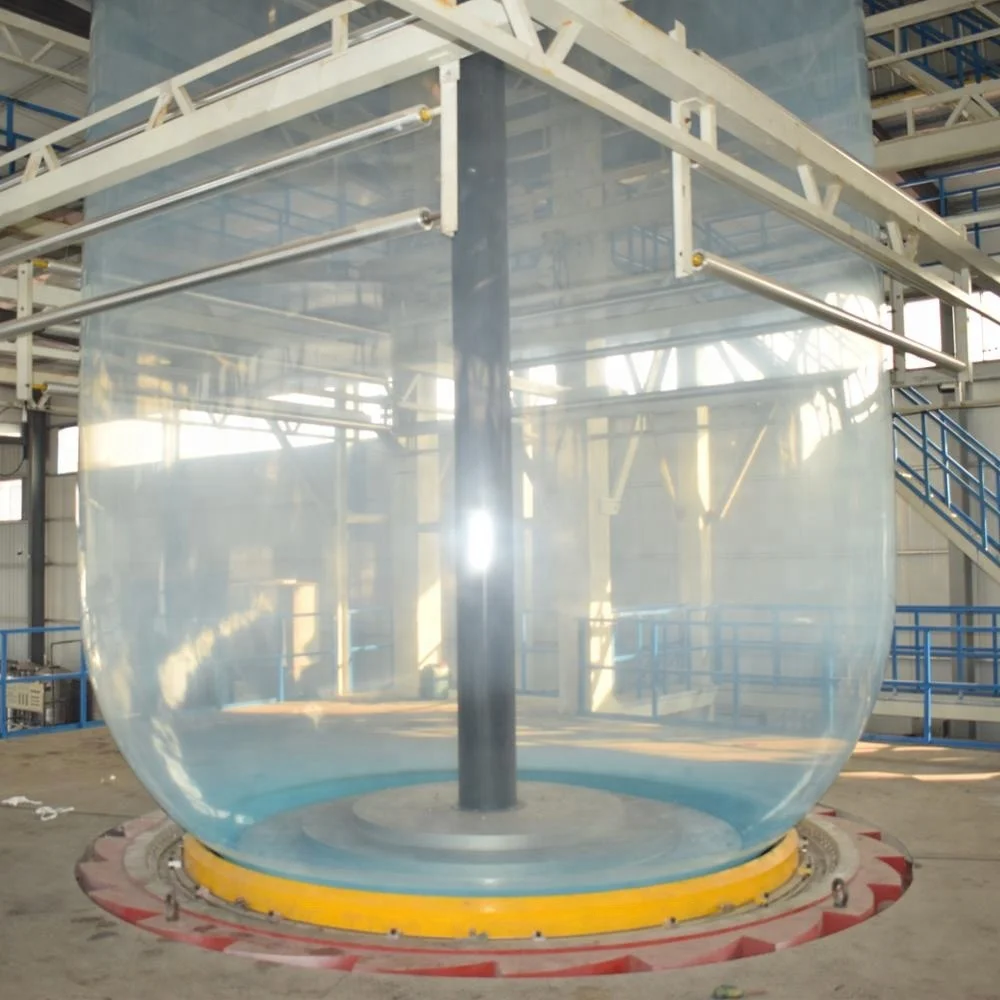

2000mm Die with lip 2.0mm can produce 3 layer 16 meter width greenhouse film. it can also produce geomembrane with special extra device.

Machine Parts

Name: Air ring
Brand: XINFU
Original: China

Large air room dedicated for Greenhouse film production can ensure good cooling effect with high film transparency. With IBC system, it can also cool thick greenhouse film with good mechanical quality.

Main Features

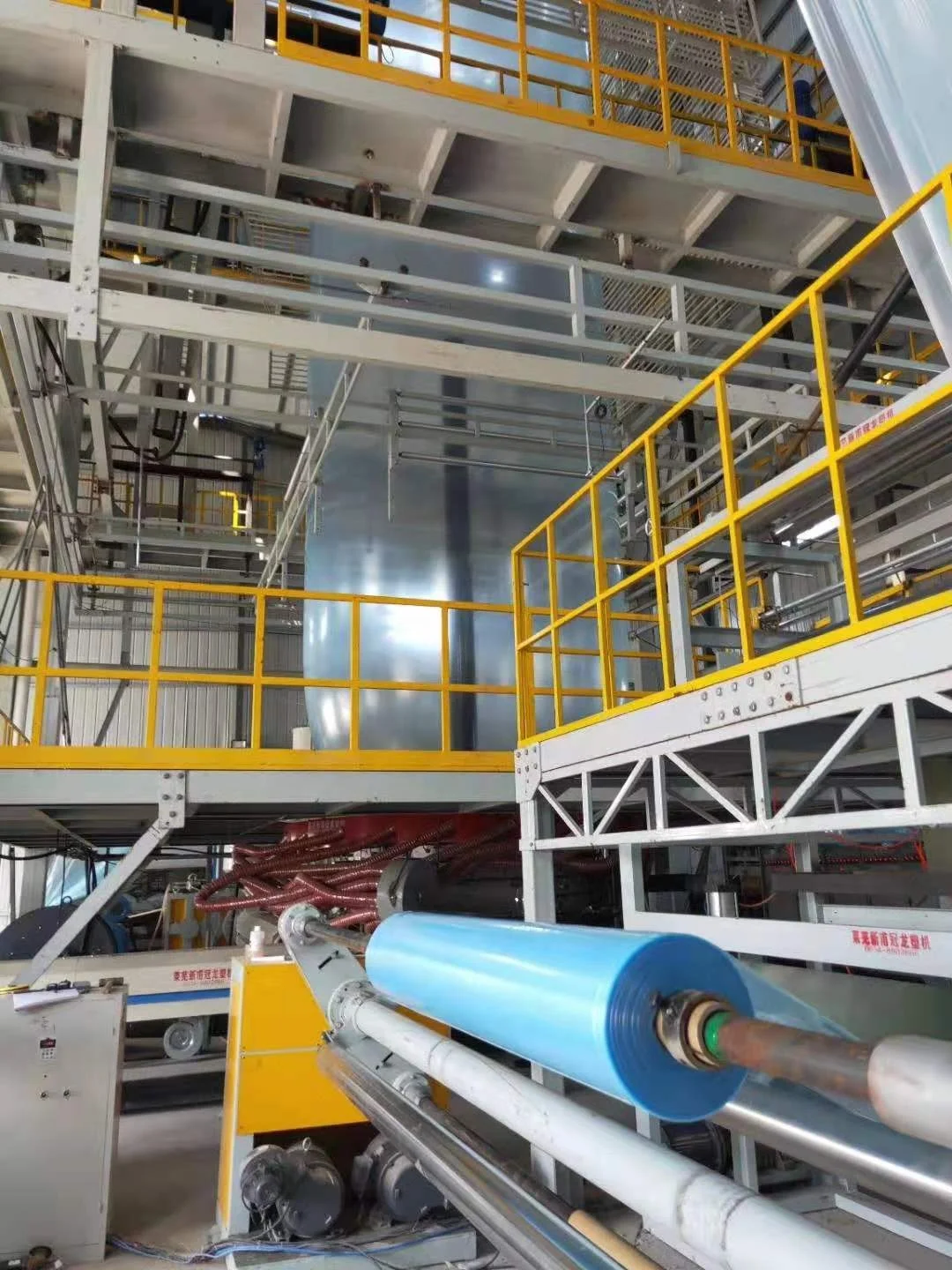

Name: Winder
Brand: XINFU
Original: China

Center winder or friction winder.

With eight folding for wide greenhouse film.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Prompt reply for technical questions.

* View our Factory.

After-Sales Service

* Training how to install and how to use the machine.

* Engineers available to service machinery overseas.

* Workers training in our factory.

Packing & Delivery

Sea Transportation

For bulk goods is by sea transportation. The goods will be packed well and suitable for long time sea transportation.

Transportation by air

For some urgent expensive parts, airline transportation is a better choice. 3 layer 16 meter Greenhouse Film Blowing Machine
