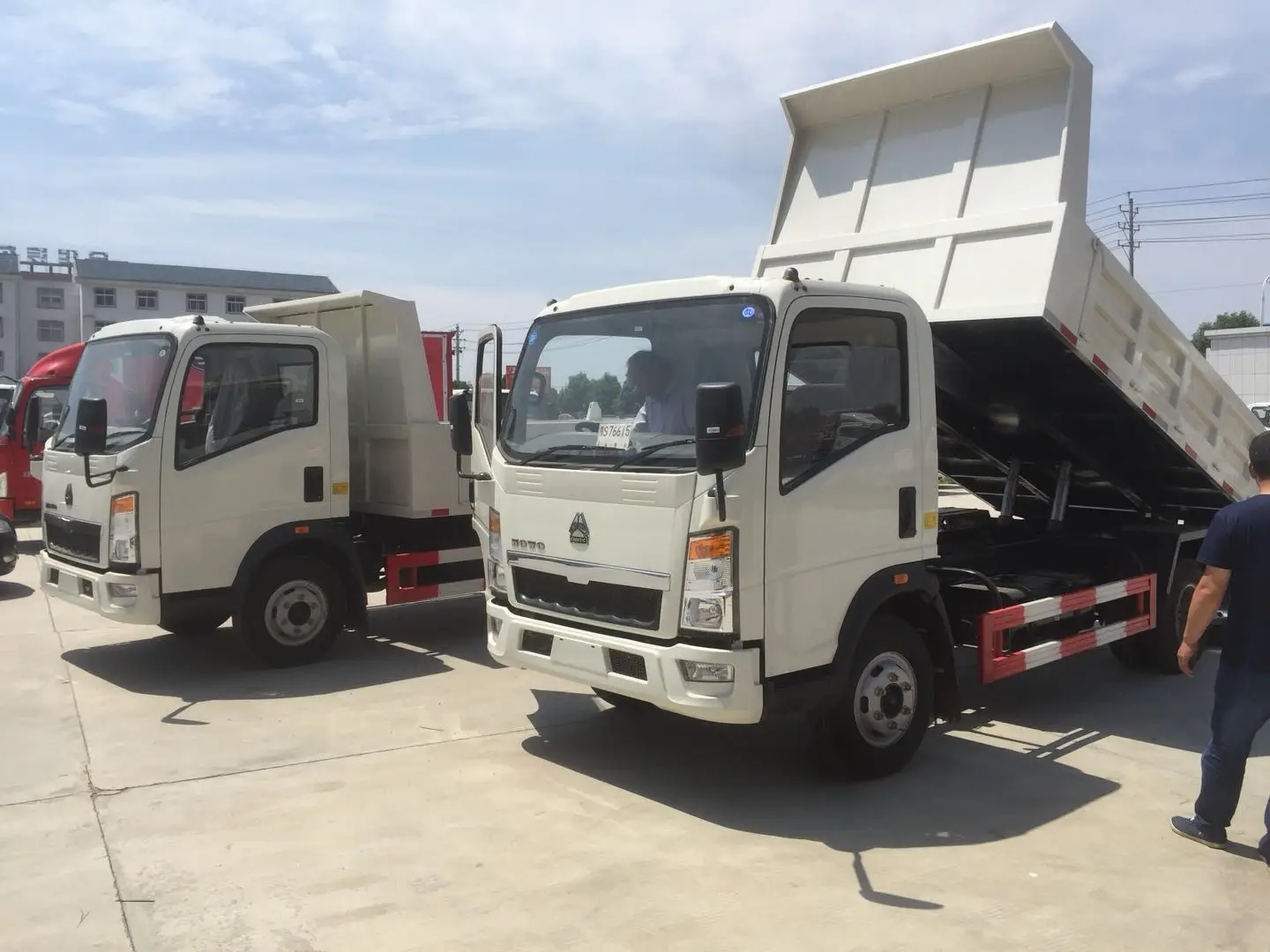

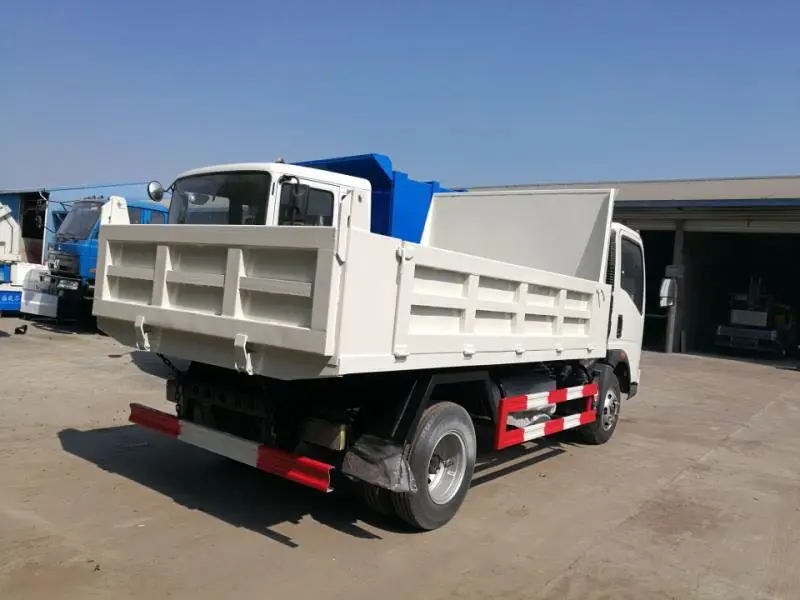

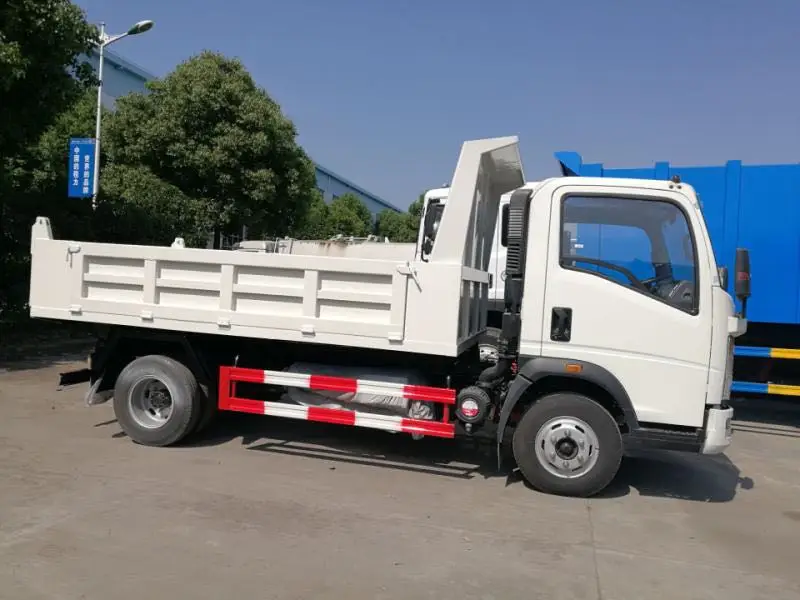

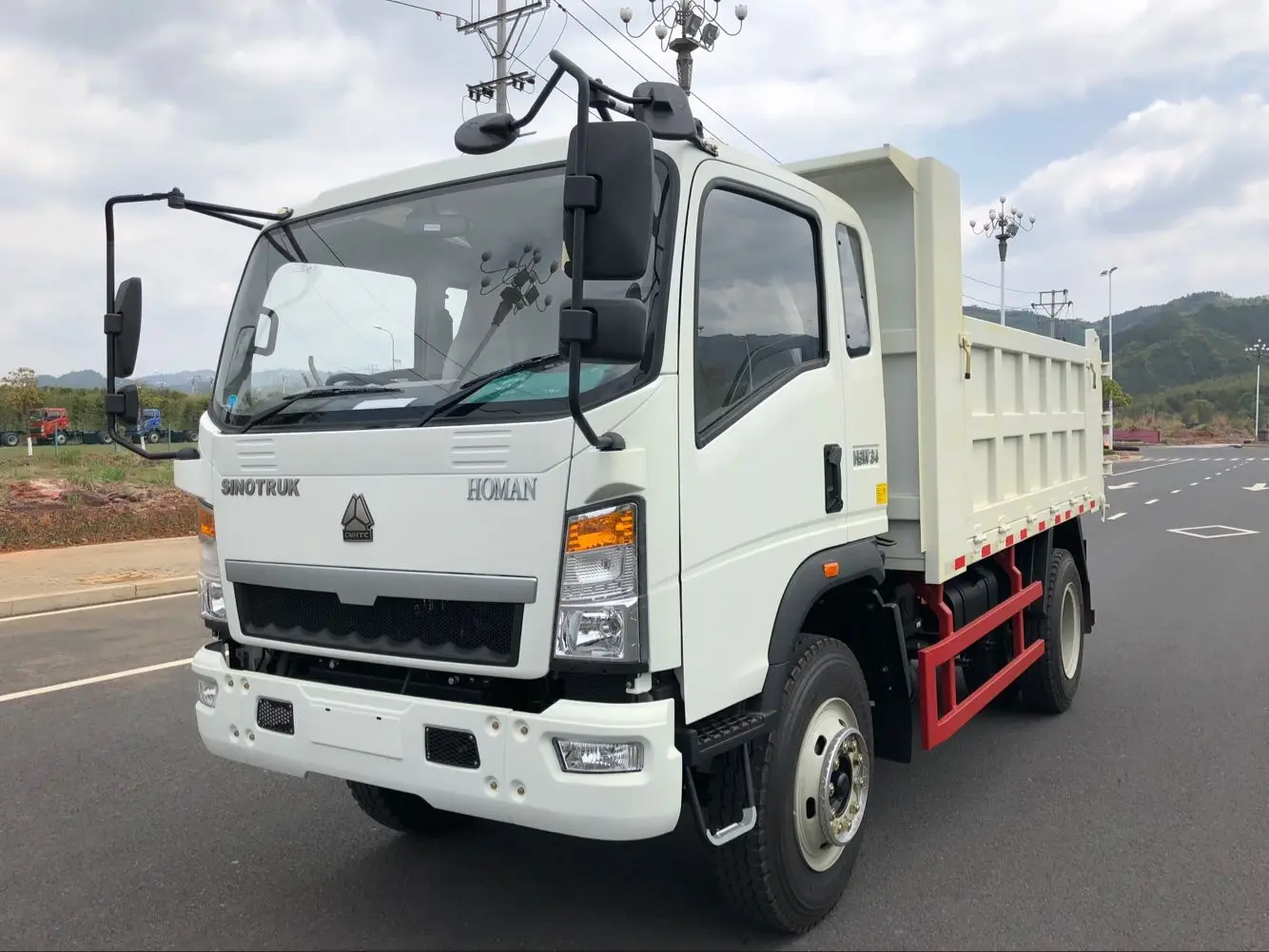

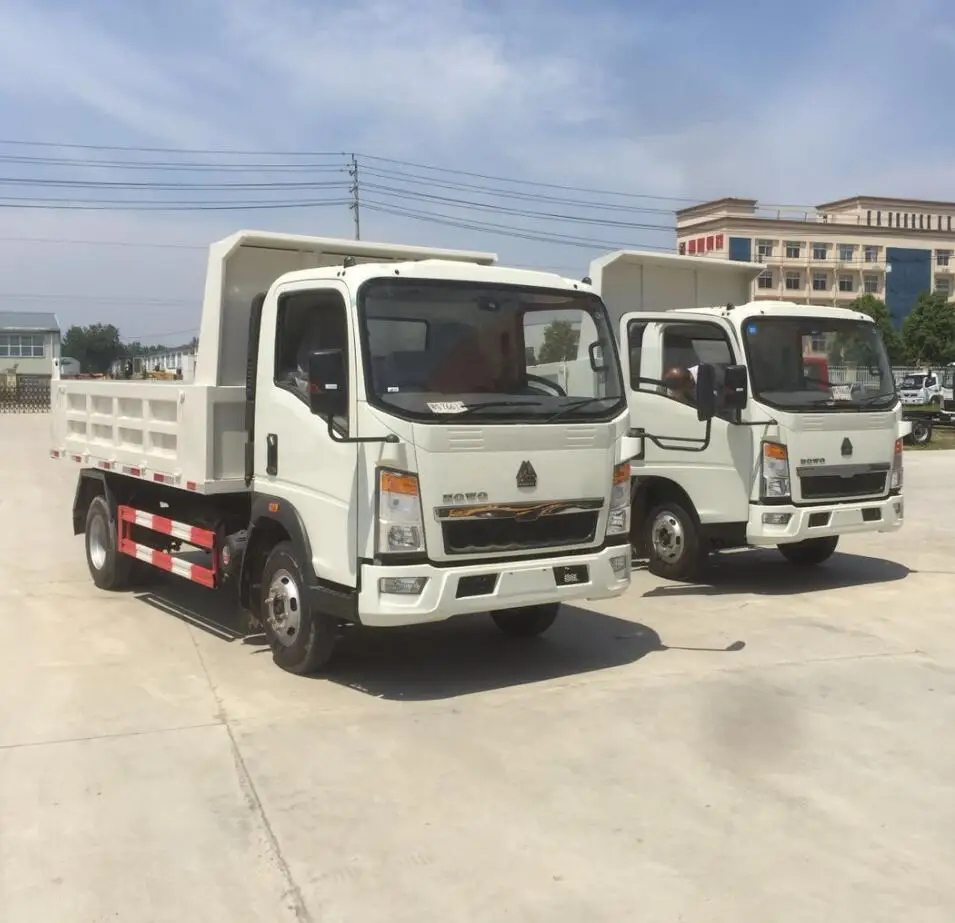

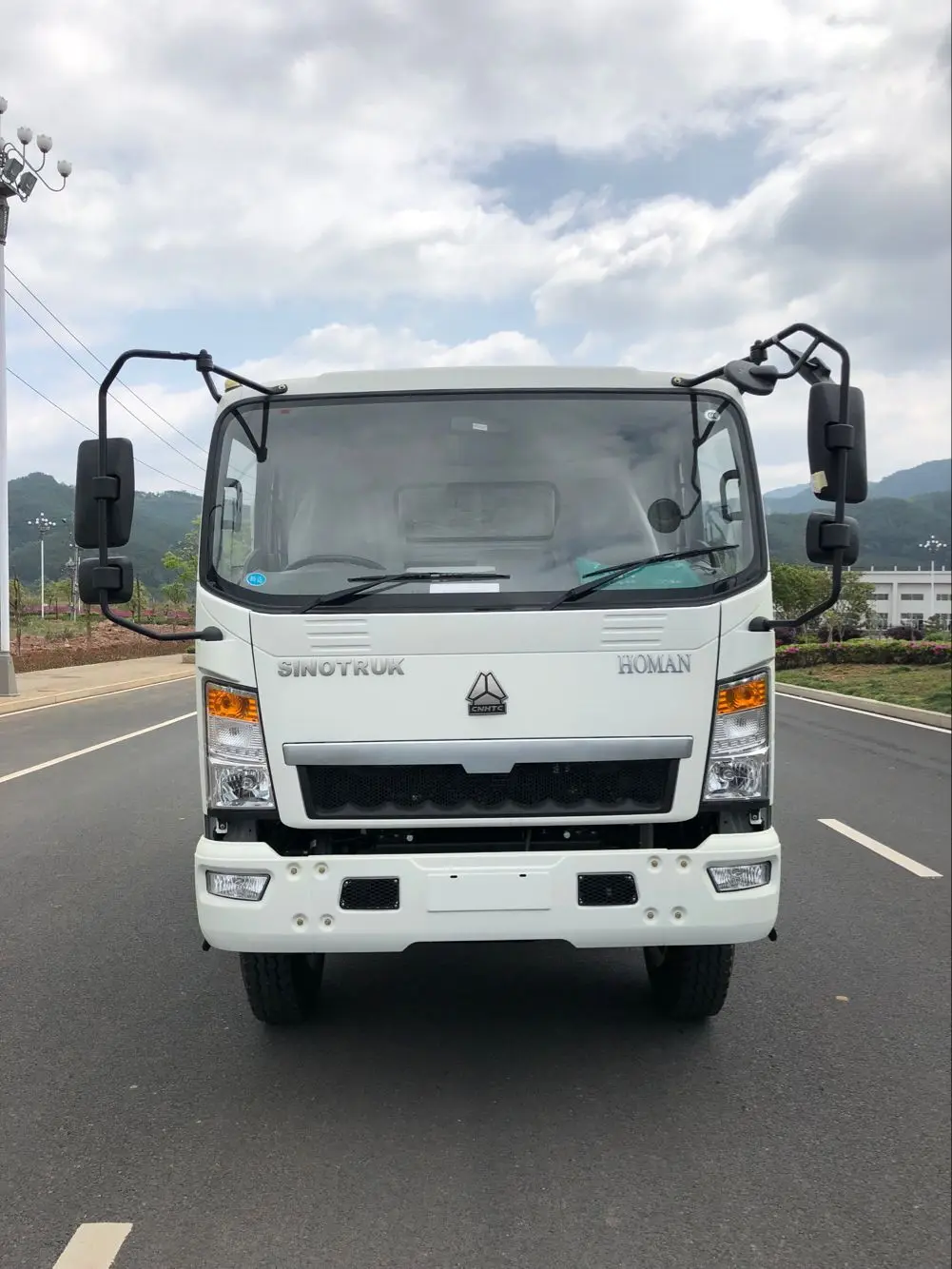

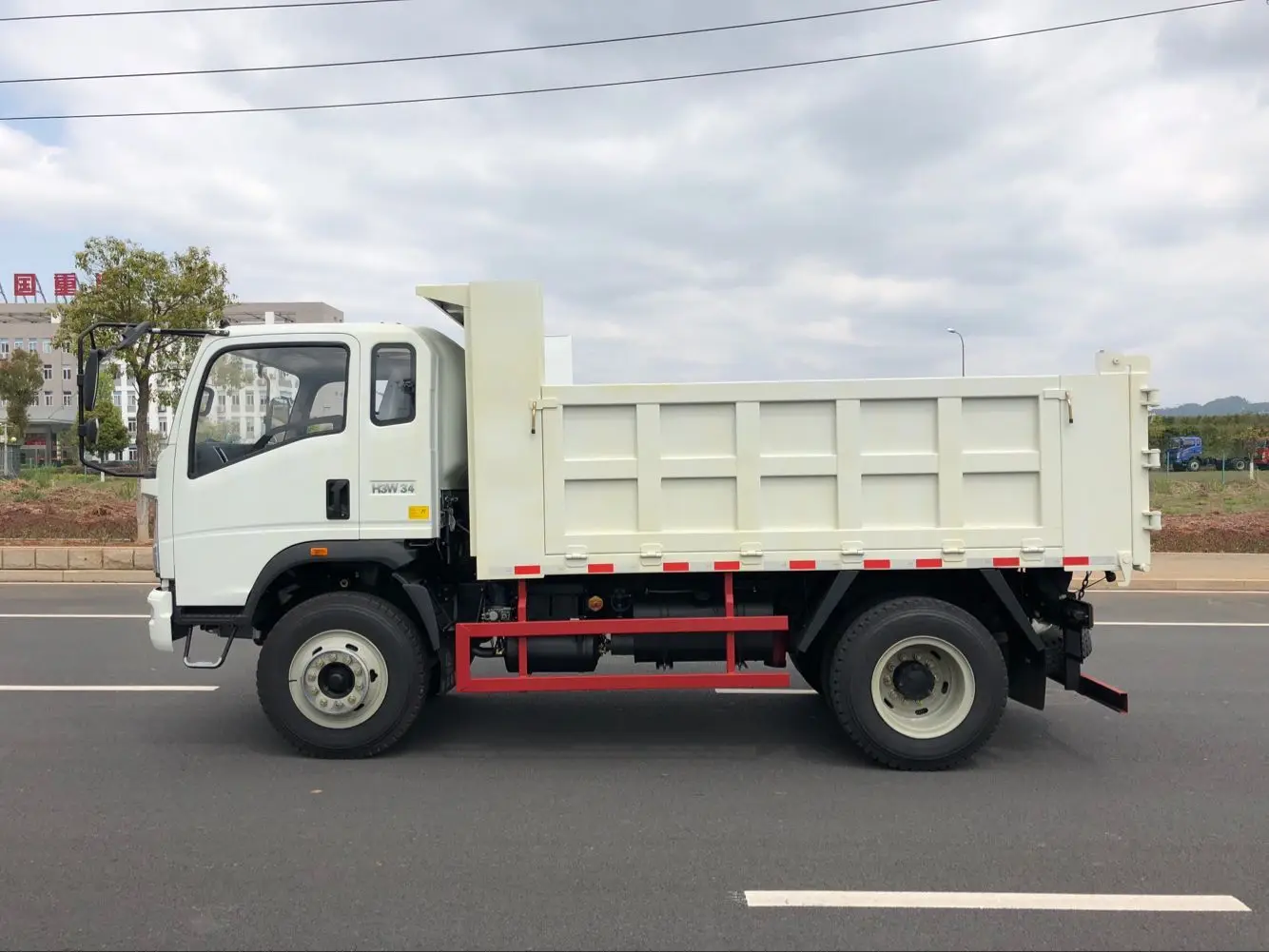

Sinotruk 4x2 Dump truck ,Tipper Truck on sales ,loading weight:8 10Tons

Product Overview

Description













II . STRUCTURE OF PRODUCT

TECHNICAL SPECIFICATION
Vehicle Dimensions (mm)		Wheelbase ( mm)		3450
		Front overhang ( mm)		1260
		Rear overhang ( mm)		1130
		Wheel track of front axles ( mm)		1760
		Wheel track of rear axles ( mm)		1750
		chassis length( mm)		5612
		Approach/departure angle ( o )		29/23
		Max driving speed (km/h)		76
		Maximum gradeability (%)		35-43
		Minimum ground clearance(mm)		257
		Minimum turning diameter (m)		＜15
		Overall Dimension(L*W*H)) mm)		6200mm*2400 mm*2850mm
Weight (kg)		Kerb.mass(kg)		6500
		Gross vehicle weight (kg)		16,000
		Front axle loading capacity (kg)		145D, drum type brake,loading 5,000kgs
		Rear axle loading capacity (kg)		153S, single-reduction axle,loading 10,000kgs
		Loading capacity (kg)		8,000
Engine		Engine Model		YC4D130
		Rated Power (HP/rmp)		130/2800
		Maximum Torque(Nm/rmp)		380/1400～1700
		Features		4-cylinder in-line,4.214liter
		Emission standard		Euro II
Cluth		350 diaphragm spring clutch, single plate
Gearbox		WLY653H 6 speed manual control
Wheels & Tyres		9.00R20 with one spare tire
Steering Gear		Hydraulically assisted,right hand drive
Braking System		Air brake system
Cab		2080 half and row With Air Conditioner With one set SINOTRUK standard tools
Fuel Tank		120 Liters (iron )
Cargo box		3850mm*2200mm*1000mm
		bottom 4mm, side 3mm
		middle lift system with double cylinders, rectangle cargo box
		Load capacity:8Ton

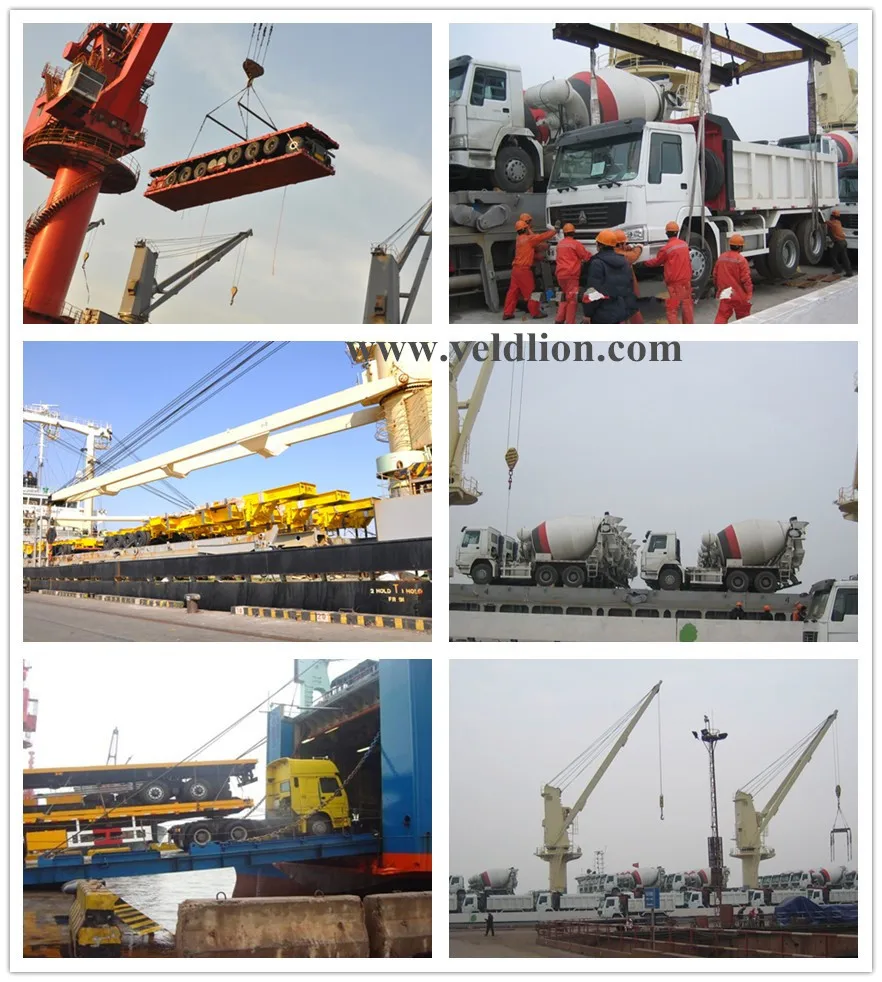

III. PROFESSIONAL PACKING AND TRANSPORTATION

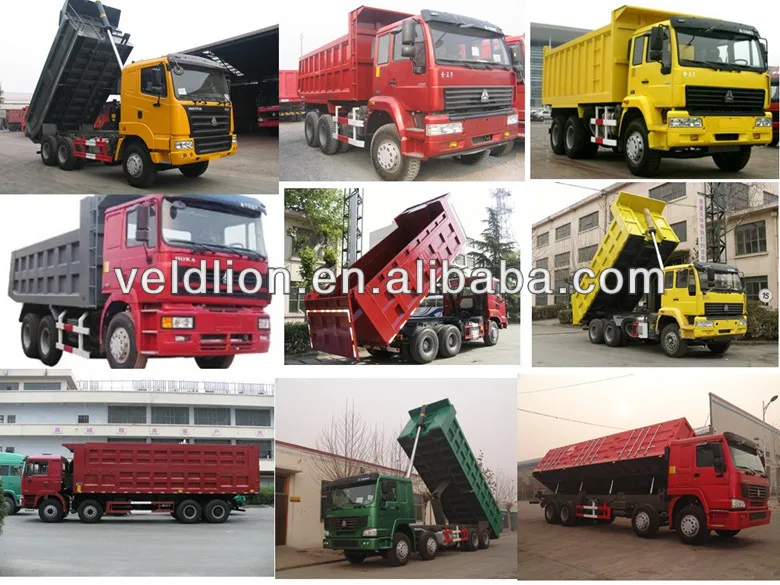

IV . DUMP  TRUCK    SPECIFICATION









TECHNICAL SPECIFICATION
Chassis		ZZ3168,4x2, RHD
Cabin		H5F cab with single bunk,with Air Conditioner
Vehicle Main Dimensions		L×W×H(mm)			7000×2500×3400 mm
		Curb weight(kg)			7760
		Loading Weight(kg)			16000
		Total weight (kg)			10000
		Wheel base(front/rear) (mm)			4000
Engine		Model			YC6J190-33,
		Horse Power(HP)			190HP
		Fuel			diesel
		Emission Standard			Euro 3
Front axle		EQ153 5T, drum type brake
Rear axles		EQ153 10T, single-reduction axle
Transmission		HW90510C,10 forward, 2 reverse
Steering		RHD with power assistance
Clutch		GF430 Single plate, dry type, air assisted, mechanically operated.
Fuel Tank(L)		300
Tire number		6+1
Tire		10.00R20
Thickness		Side		4mm in high tensile strength carbon steel
		Front		4mm in high tensile strength carbon steel
		Bottom		6mm in high tensile strength carbon steel
Dump Body Size		L×W×H		4200×2300×1000 mm
Tipping Hydraulics		Tipping Type		Middle lifting









1. Chassis Model: Dongfeng,FAW,Foton,Sinotruck,North Benz,Isuzu,tec.



2. Drive model: 4x2 , 6x2 , 6x4 , 8x4;



3. Crane rotation angle: 360° with hydraulic systems,



4. Straight /folding boom crane max loadingweight:

5T,8T,10T,12T,14T,16T,20T,25T;30T



5. Engine: EuroⅡand EuroⅢEuroIV emission standard;



6. Right/Left hand drive ;
