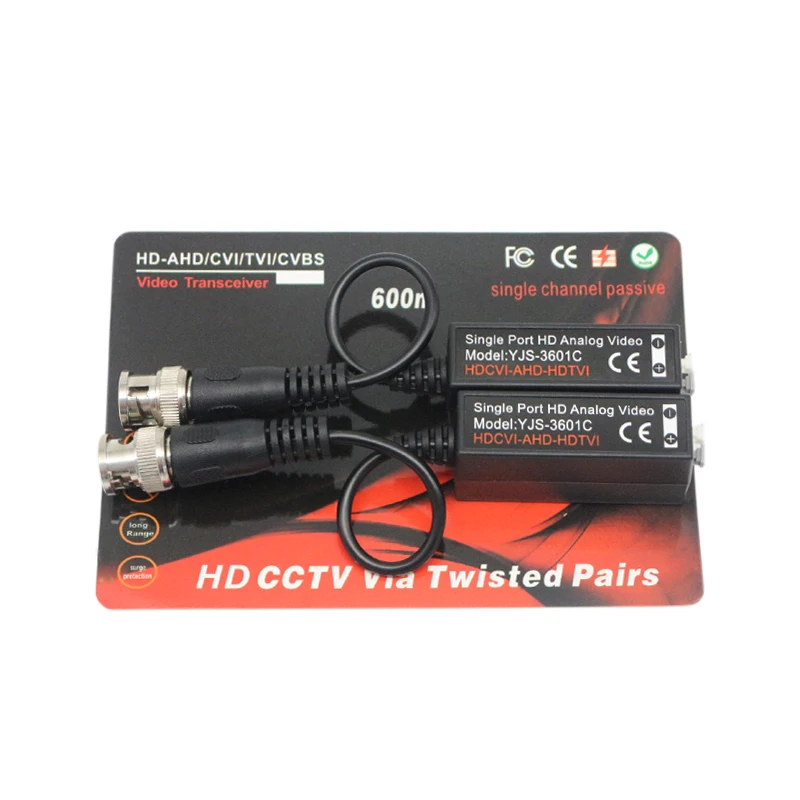

YJS 3601C CCTV Accessories AHD/HDTVI/HDCVI/CVBS single channel passive hd video balun for cctv camera
- Category: Surveillance Products >>>
- Supplier: Shenzhen Yongjiasheng Technologies Co. Ltd.
Share on (60746240070):
Product Overview
Description
Product Description

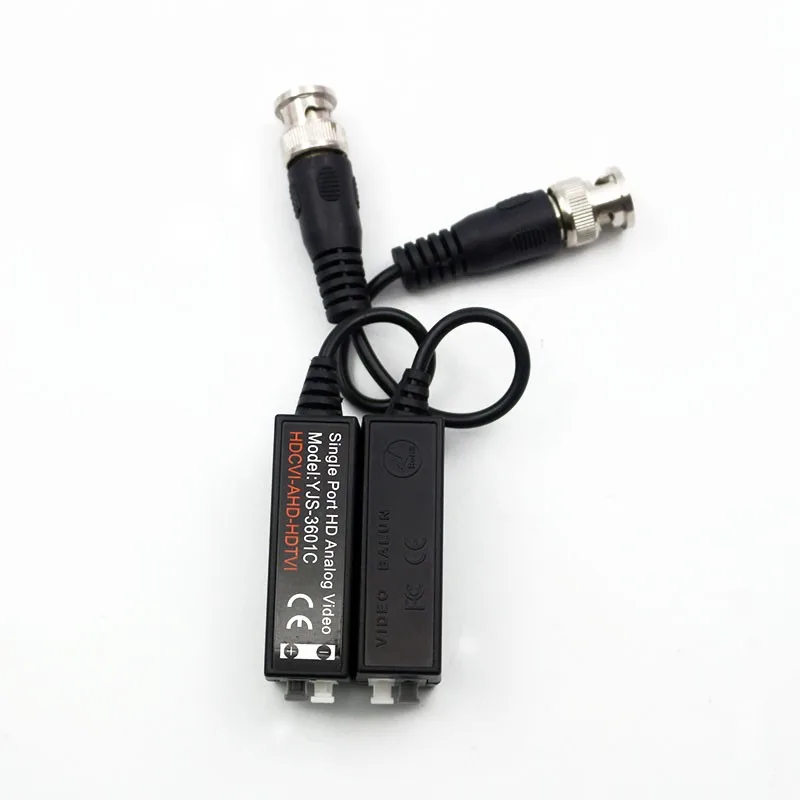

Single Port HD Video Passive UTP Bablun
Transmission Distance:
AHD:1080P/300M
CVI:720P/600M
TVI:720P/1080P:300M
Bandwidth:0~50MHz
Common-mode/Differential-mode Rejection
Coaxial Cable Connector:2KV(common-mode)Per:IEC 61000-4-5
UTP Cable Connector:2KV(different-mode/common-mode)Per:IEC 61000-4-5
Impedance:BNC male:75Ω,UTP cable:100Ω
Networking Wiring:UTP cable 24-16 AWG(0.5-1.31mm)
Category Type:Cat5e/6 suggested
Impedance:100±20Ω
DC LoopResitances:52Ω/1000ft(18Ω/100m)
Differential Capacitance:19 pF/ft max(62pF/m max)
Temperature:0~55℃
Relative Humidity:0~95%
Transient Immunity:per AN SI/IEE E 587 C62.41

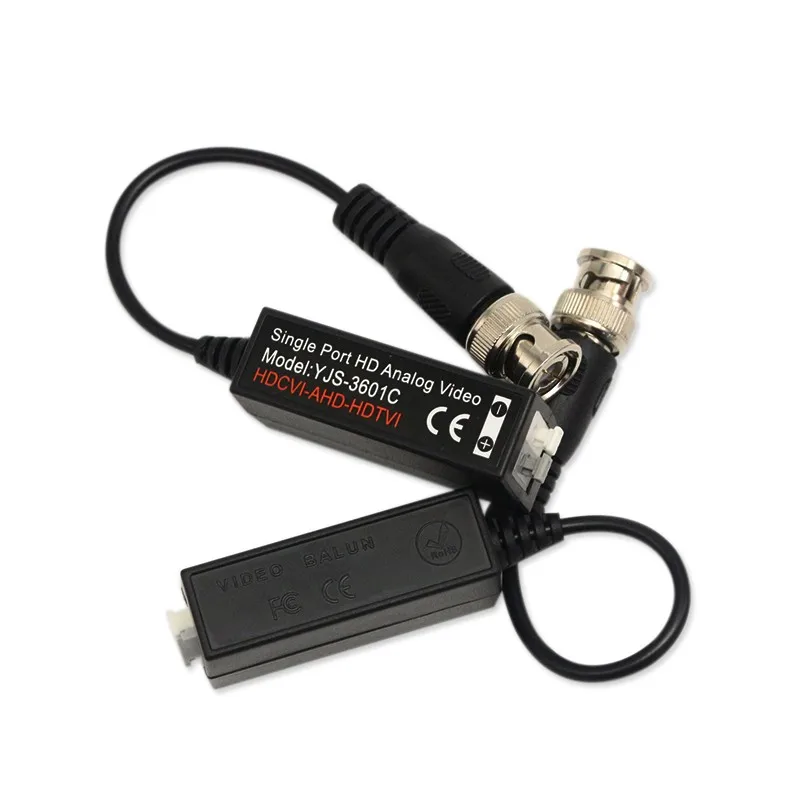

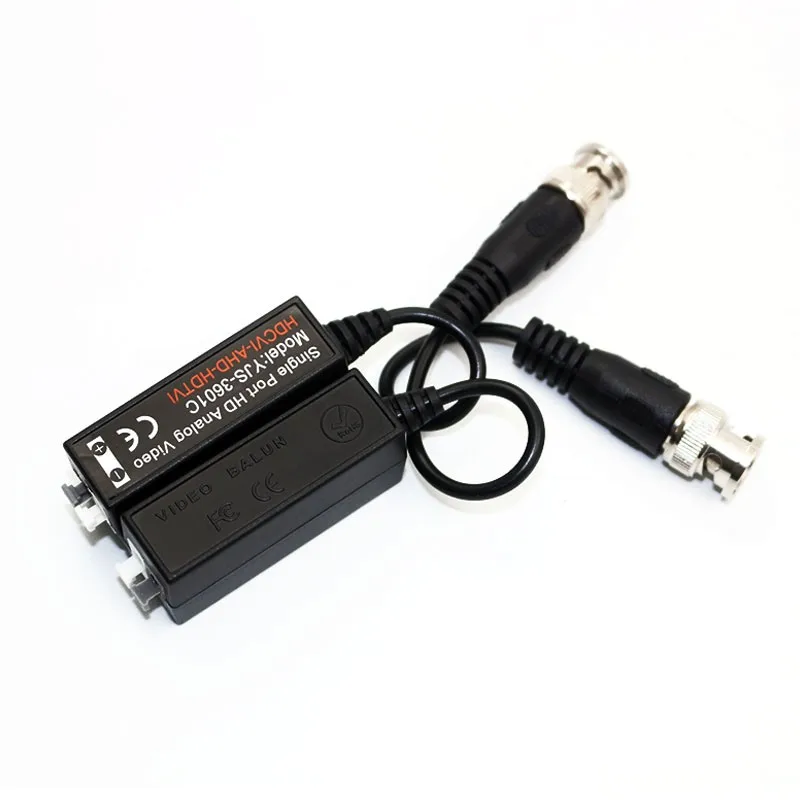

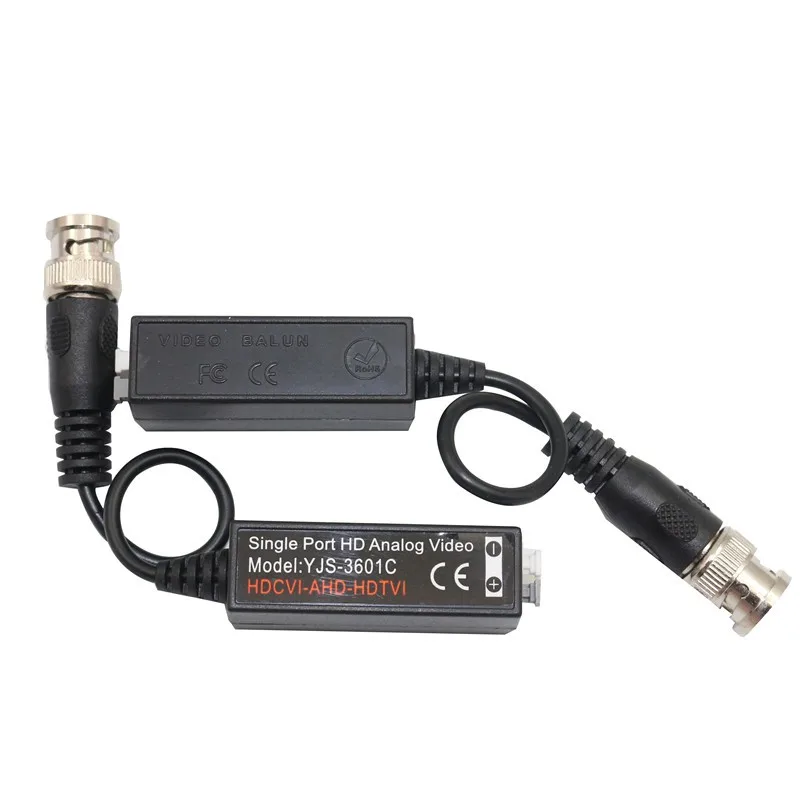

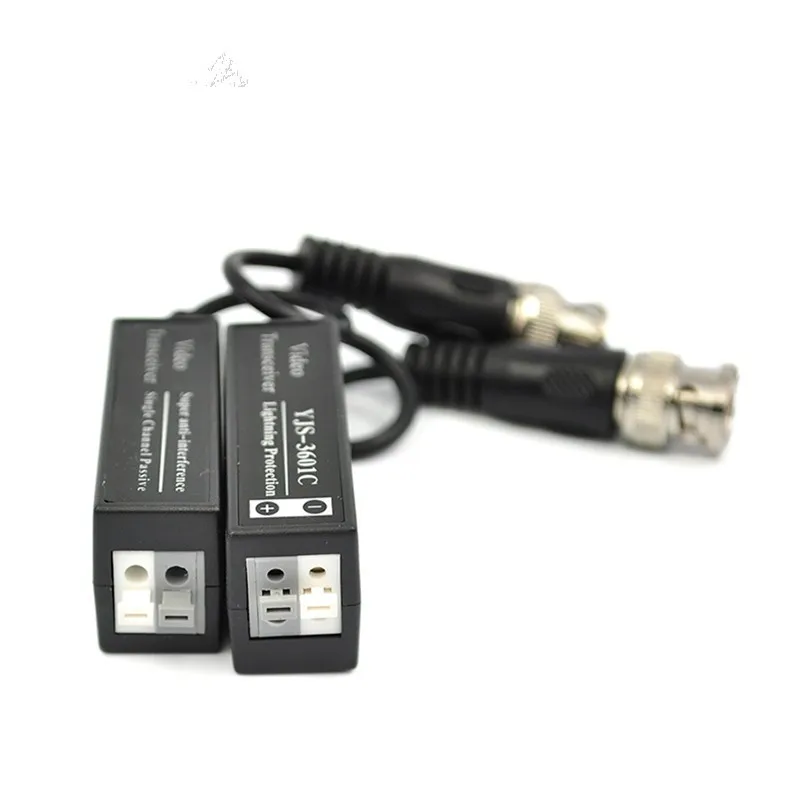

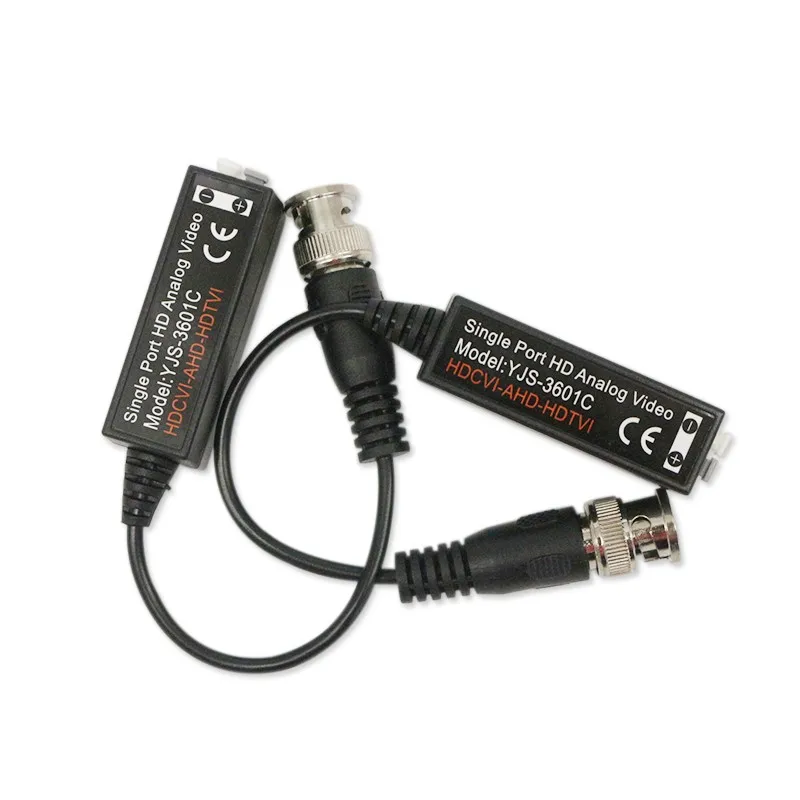

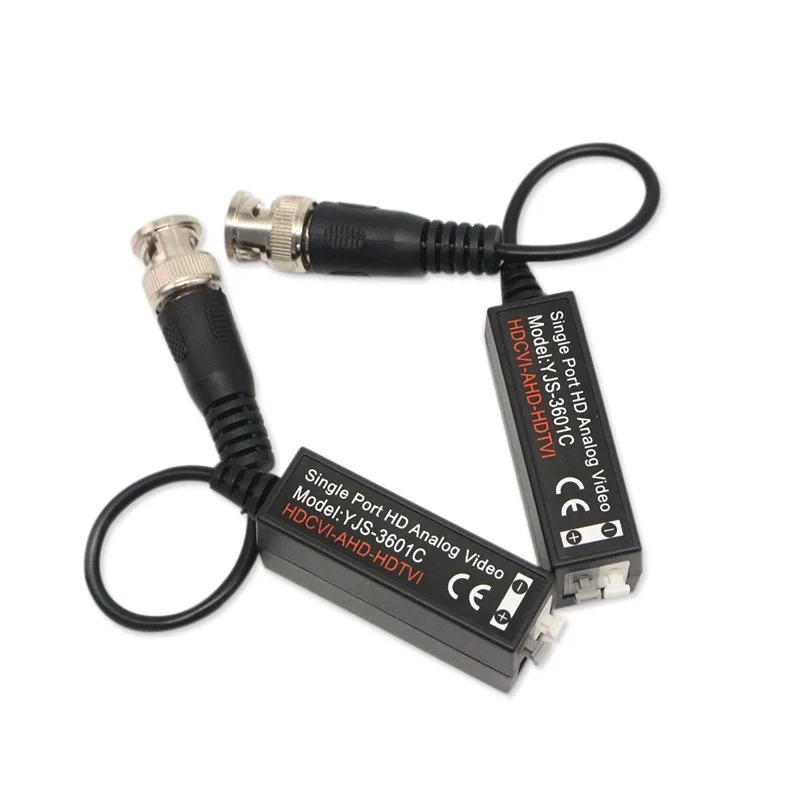

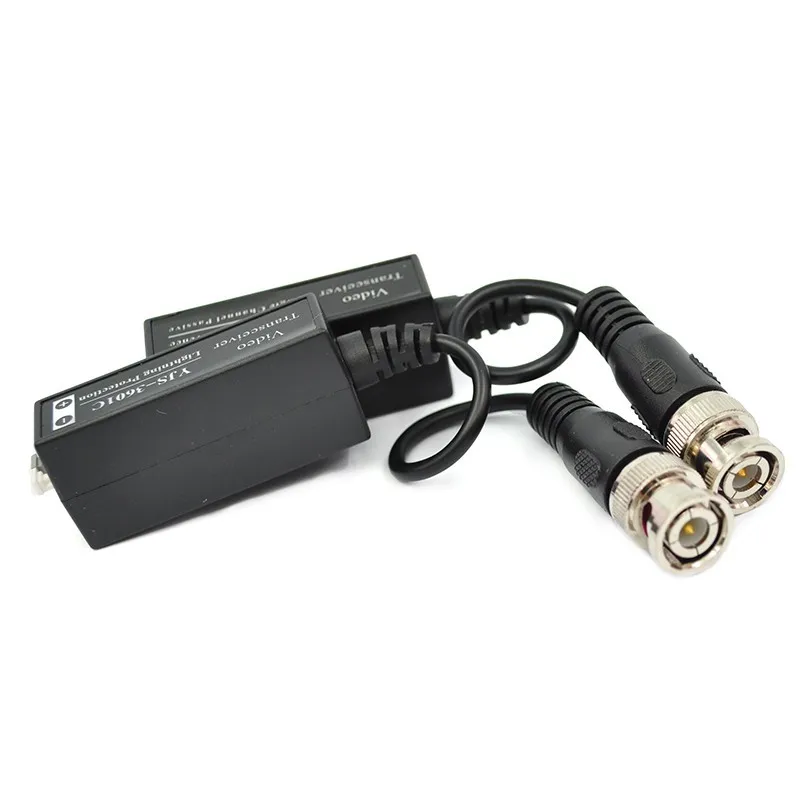

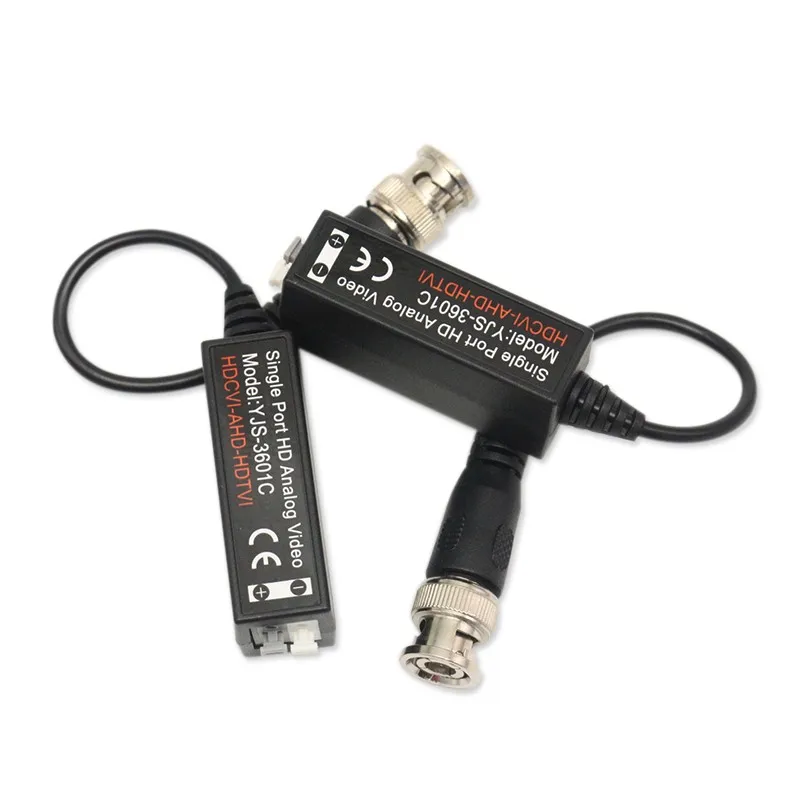

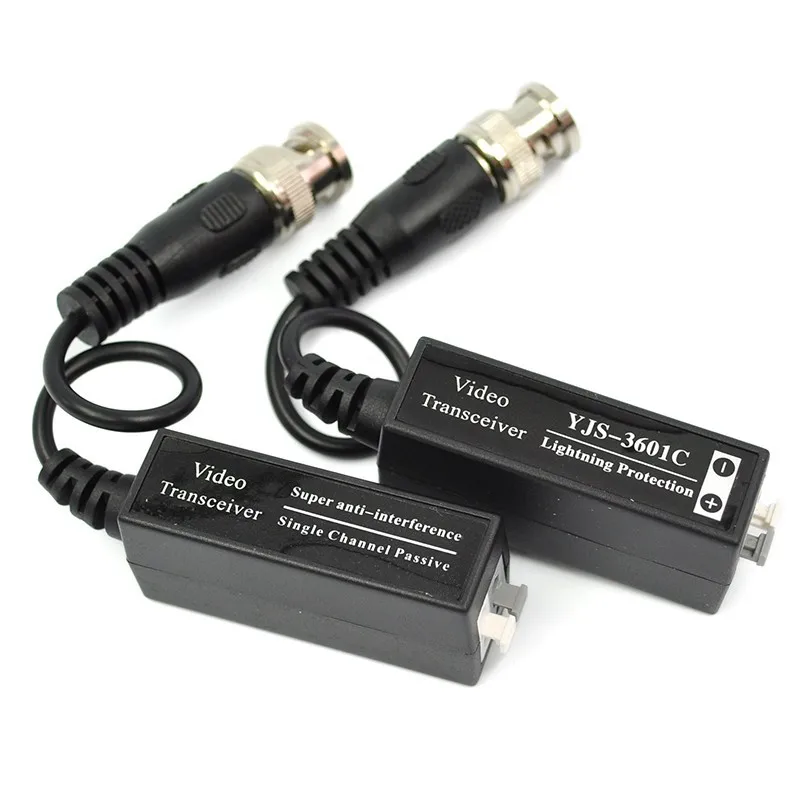

Detailed Image
Company & Factory
Shenzhen Yongjiasheng Technology Co.,LTD. is a professional company which is good at developing,manufacturer,selling and serving technology of security surveillance products,whose users are all over the world,which are successful in application of industry,civil use,aviation and military.The main products has gained certifications of European CE,US FCC,European RoHS and so on.
Range of products:AHD Video balun,Power supply,Power adapter,DC Connector,BNC Connector,F Connector,CCTV Microphone,IP Camera,Analog & HD Camera,DVR,NVR,VGA & HDMI Splitter,HDMI Switcher,USB & VGA & HDMI Extender,Video & Audio & HDMI Converter,HDMI Cable,Video Cable,Power Cable,Video & Power Cable,POE Switch,POE Splitter & Injecter,Surge protector,Housing,Bracket,Antijamming Equipment,Video Amplifier and so on.
The service aim:centering on customers,surviving in quality and service,developing in mutual benefits.We always supply superior service with custmers by high quality products,reasonable price,quick and punctual delivery.
Welcome every friend and professional colleague come to guide and negotiate business!
Winkasing is a CCTV manufacturer for over 10 years in China.
Factory Address.
No.16, Yanhe Road, Songmushan, Dalang Town, Dongguan City, Guangdong Province, China
Office Address.
Floor 5th, No.26, Changjin Road, Longgang District, Shenzhen City, Guangdong Province, China

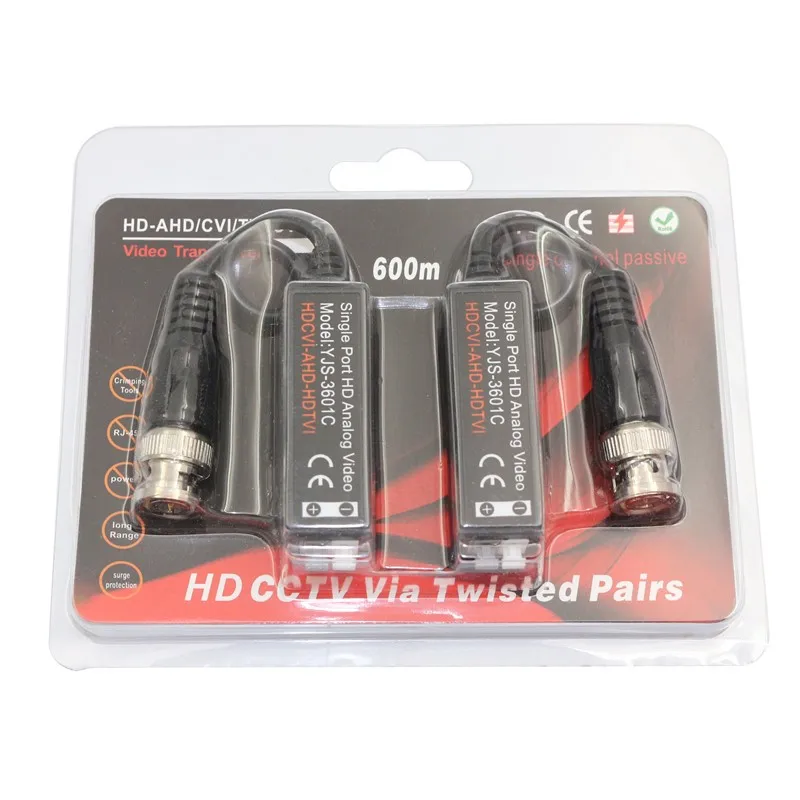

Packing&Certificate
FAQ & Service
Q: Are you a factory or trading company?
A: We are manufacturer.
Q: How can I get some samples?
A: We are honored to offer you samples, pls contact our staff and leave detailed contact information, we promise to keep your information confidential.
Q: How does your factory do regarding quality control?
A: Quality is the priority. We always attach great importance to quality controlling from the start to the end. All our products have gained CE, FCC, ROHS certification.
Q:What can you do?
A:1.All of our products have proceeded aging test before shipment and we guarantee safety while using our products.
2.Support imprint your logo on products and let your logo shine anywhere.
3.OEM/ODM orders are warmly welcomed !
Q:Warranty and return?
A:1.All products and accessories have been tested by 3 times before ship out.
2.We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.
Q:What is your main products?
A:Our main products are Video Baluns,CCTV Microphone,Power Supply,Connector and so on.
Q:Where is your location?
A:We locate in Shenzhen, Guangdong, China.
Q:Why does your price is higher than some Chinese supplier?
A:Because we pay more attention to the quality of the porduct.
Q:What is your brand name?
A:Winkasing.
