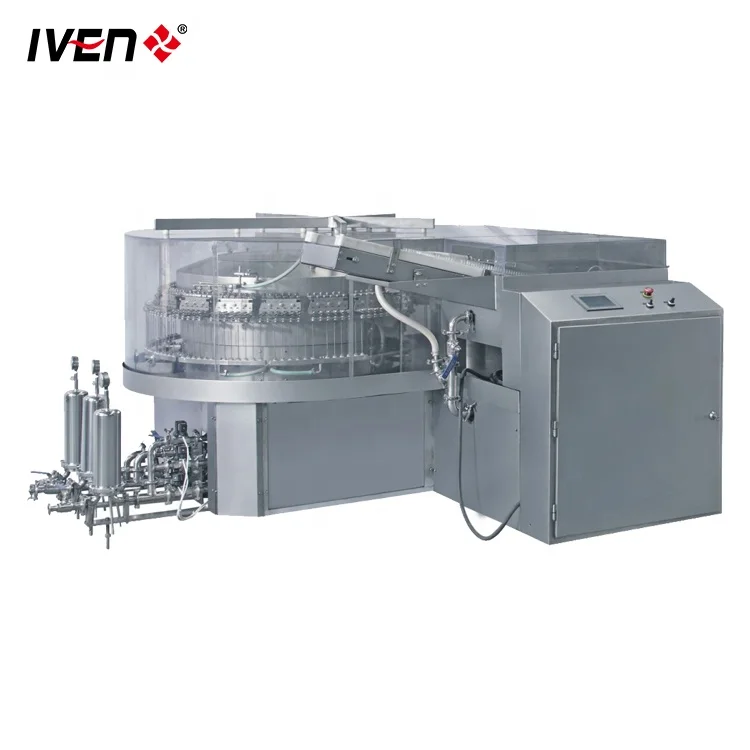

Brief Introduction It is used to washing the following products: ampoules, vials, oral liquid bottles, cartridges, syringes etc., suitable for the 1- 50ml containers.
Main Features 1.Auto alarm & stop when WFI recycled water temperature is not enough 2.Auto alarm & stop when water & air pressure is insufficient 3.Ultrasonic current display, faulty with alarm and machine stop function 4.Digital pressure gauge online records water & air pressure 5.Online record ultrasonic power and water temperature 6.Pipeline emptying function 7.Water tank no dead angle 8.Sanitary quick assembly connection for hose 9.Protection cover with auto lifting 10.Output counting
Main Parameters
Item
Main Content
Production Capacity
10000-40000 ampoules/hour
Ampoule Size
1-20ml ampoules
Broken Rate
≤0.3%
Ultrasonic
800 W
Clarity Detection Passing Rate
≥99.9%
Circulation WaterTemp.
40-60℃
Inner Wall Cleaning
3 water 3 air
Outer Wall Cleaning
1 water 1 air
IVEN Can Do !
IVEN provides integrated engineering solution for worldwide pharmaceutical and medical factory include the clean room, auto-control and monitoring system, pharmaceutical water treatment system, solution preparing and conveying system, filling and packing system, automatic logistics system, quality control system and central laboratory and etc. According to the pharmaceutical industry's regulatory requirements of different countries and customer's individual demand, IVEN carefully customizes engineering solutions of turnkey projects and helps customers to win the target markets, IVEN creates value to customers.
Turnkey Project for IV Solution Plant from A to Z
• Project Design • Pharmaceutical Water Treatment • Solution Preparation • IV Solution Production Line • Sterilization • Inspections Packing • Clean Room & HVAC • Stability Chamber • Laboratory Instruments • Utilities • Documentation & Qualification • Installation, Commissioning, Training • Service
