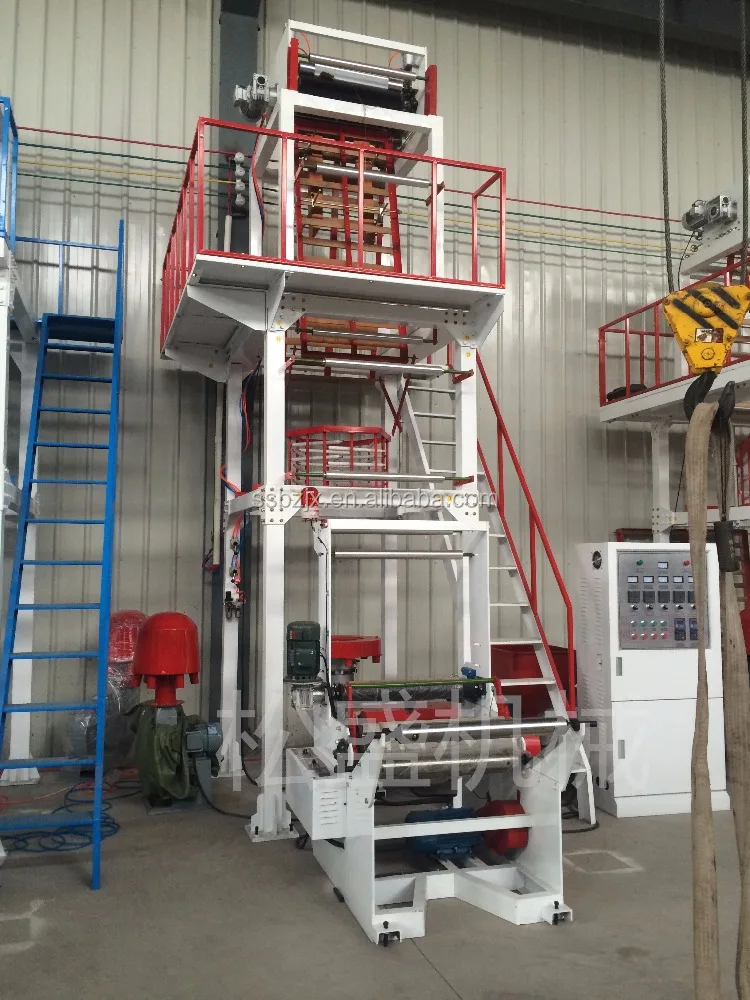

Пленки дуя машина линия машин по производству двустенных пленка
Пленки дуя машина линия машин по производству двустенных пленка
Пленки дуя машина линия машин по производству двустенных пленка

Пленки дуя машина линия машин по производству двустенных пленка

Share on (60749109694):


Price:9 000,00 $

Quantity:


Product Overview

Description


Product Description

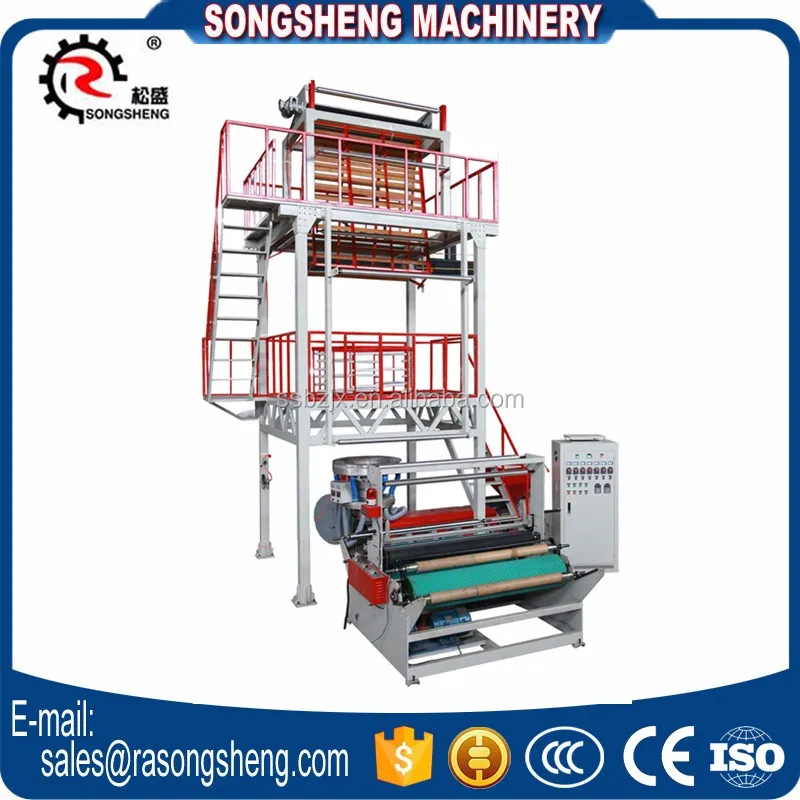

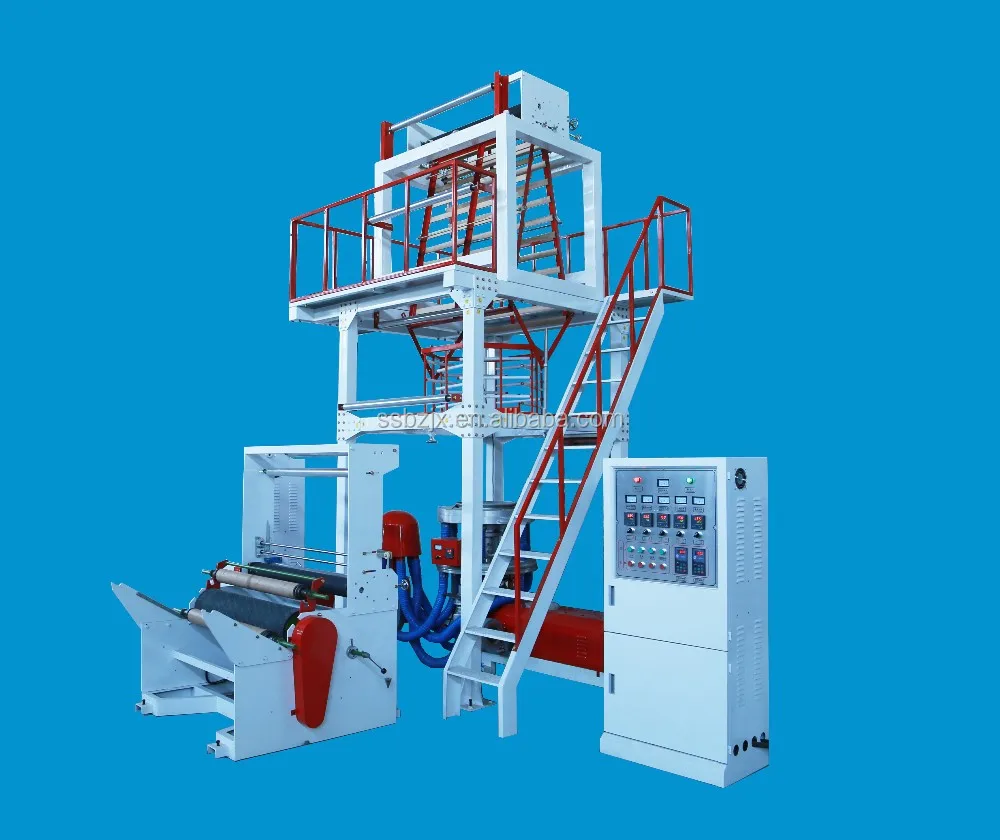

Main Machine Picture:

Product Application

It is fit to puff high density and low density polyethylene industry film, farm-oriented mulch film. The cylinder and the screw stems of the extruder are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after nitrogen treatment and precision finishing. It is double rolling and account the meter automatically.

\t
Main Technical Parameters
\t
SS-FM Series Film Blowing Machine
\t
\t
Model
\t
600
\t
800
\t
1000
\t
1200
\t
1500
\t
2000
\t
\t
Dia. of Screw
\t
50mm
\t
55mm
\t
60mm
\t
65mm
\t
80mm
\t
90mm
\t
\t
Ratio of Screw
\t
30:1
\t
30:1
\t
30:1
\t
30:1
\t
30:1
\t
30:1
\t
\t
Speed of Screw
\t
10-90rmp
\t
10-90rmp
\t
10-90rmp
\t
10-90rmp
\t
10-90rmp
\t
10-90rmp
\t
\t
Max. Output
\t
35-40Kgs/h
\t
45-50Kgs/h
\t
55-60Kgs/h
\t
65-70Kgs/h
\t
80-90Kgs/h
\t
130Kgs/h
\t
\t
Power of Main Motor
\t
11Kw
\t
15Kw
\t
18.5Kw
\t
22Kw
\t
37Kw
\t
42Kw
\t
\t
Die Model
\t
Φ50 & 80mm
\t
Φ60 &
120mm
\t
Φ100 &
220mm
\t
Φ120 &
250mm
\t
Φ150 &
350mm
\t
Φ150 &
250mm
\t


\t
Thickness of Film
\t
0.008-0.12mm
\t
0.008-0.12mm
\t
0.008-0.12mm
\t
0.008-0.12mm
\t
0.008-0.12mm
\t
0.008-0.12mm
\t
Max. Folding Width of Film
\t
100-600mm
\t
100-800mm
\t
300-1000mm
\t
400-1200mm
\t
500-1500mm
\t
800-2000mm
\t
Machine Weight
\t
1.5T
\t
2.0T
\t
2.5T
\t
3T
\t
4T
\t
5T
\t
\t
Machine Dimension
\t
4500*2000*
3800mm
\t
4500*2200*4200mm
\t
5000*2500*4500mm
\t
5500*2800*4800mm
\t
6800*3800*6500mm
\t
7500*2600*7000mm
Detailed Images

Machine Parts

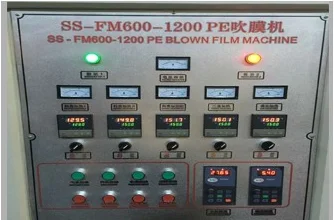

Name: Electic Box


Domestic famous brands, such as CHINT, people's electrical appliances

Main Features

Name: Screw
Original: Zhoushan, China.

Machine Parts

Name: Die Head
inside spiral, center feed
45C steel die runner hard chromium plating

fixed die  or   rotary die head

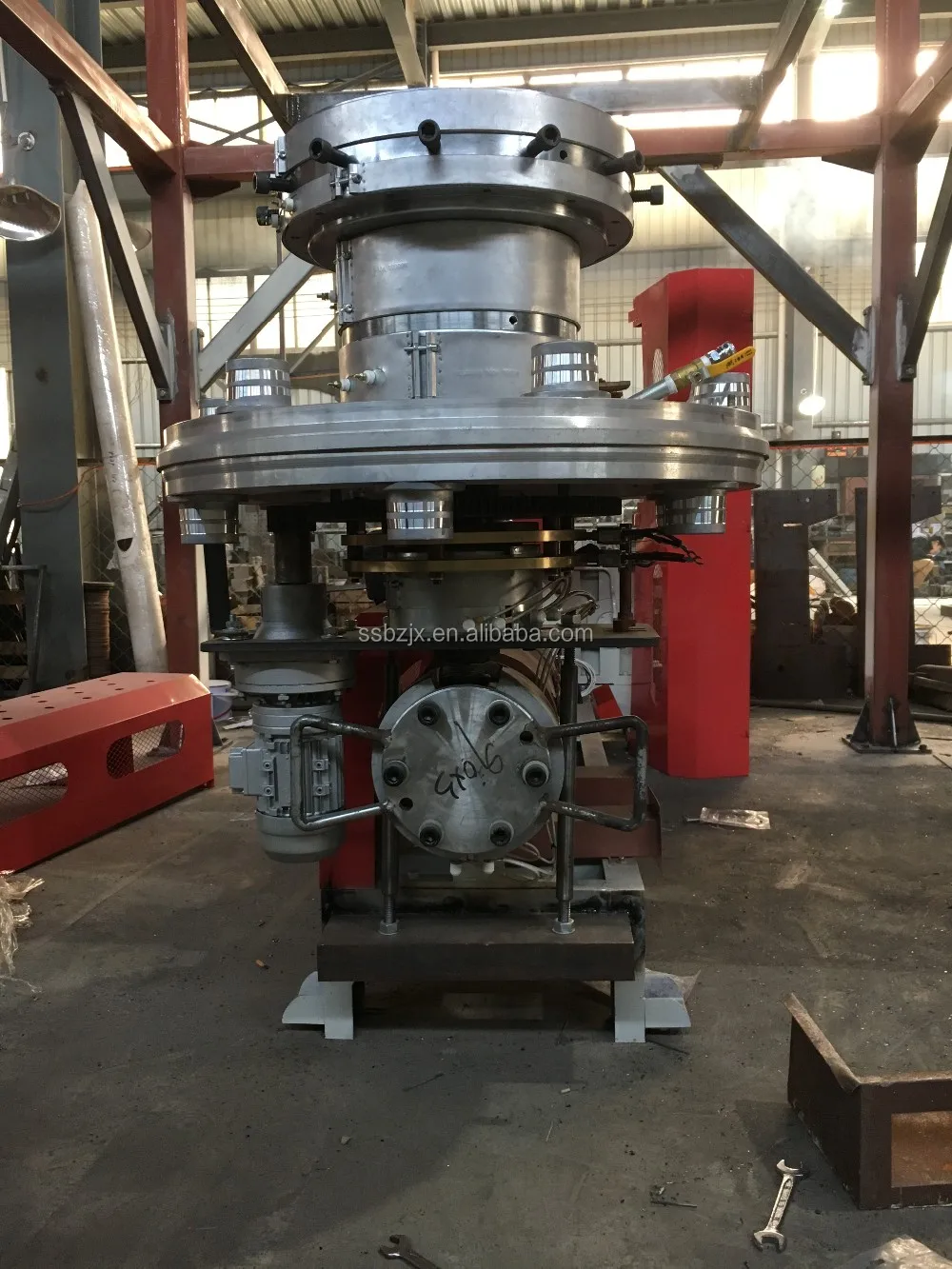

Die head

Normal: Fixed Die head
Choice: Rotary Die Head

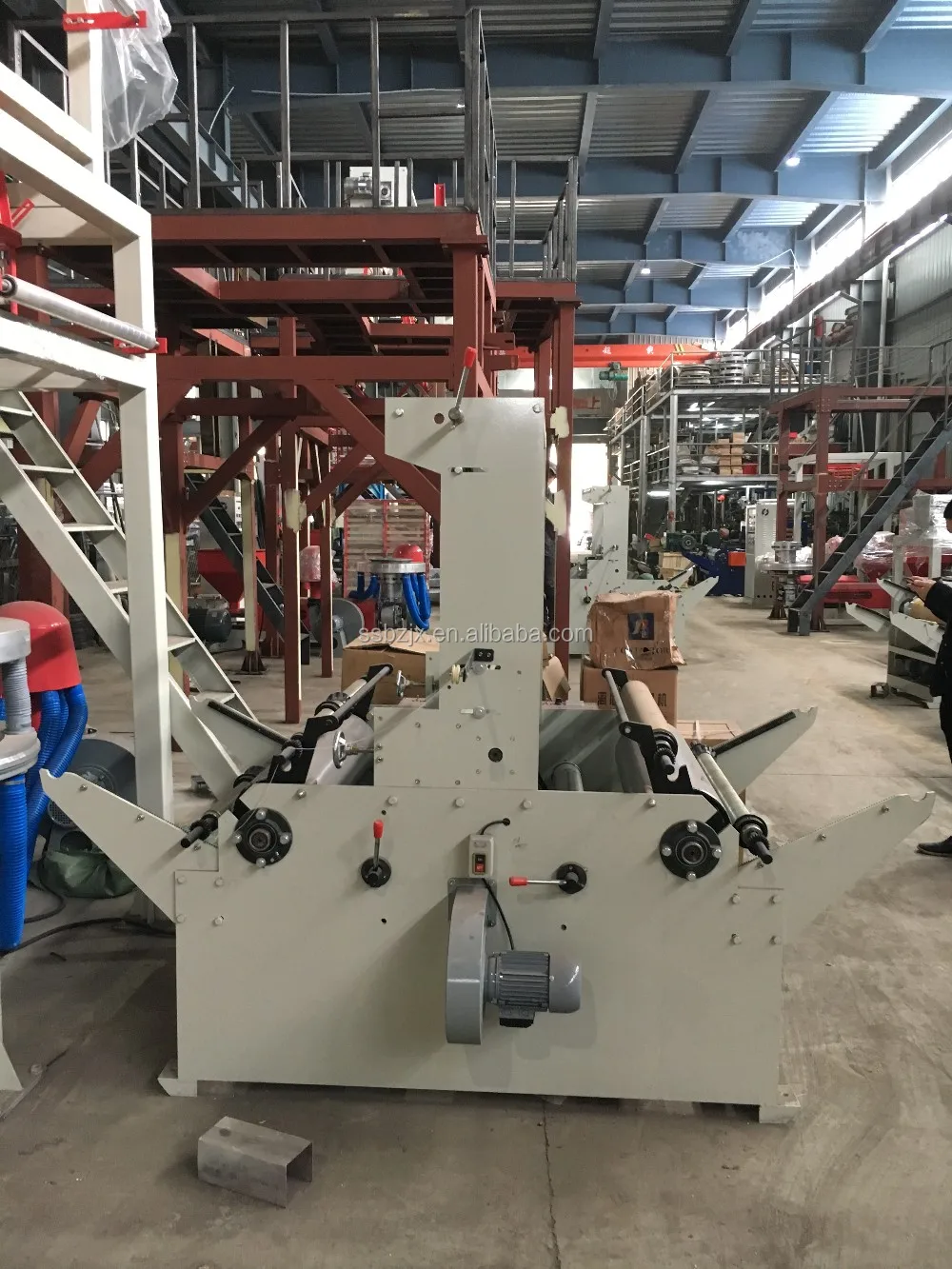

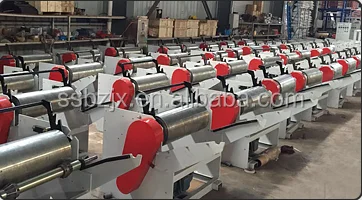

Winder

Normal: Single rewinding
Choice: Double rewinding
Single rewinding + drawing

Net changing device

Normal: Manual Type
Choice: Quick manual net changing
              Or Hydraulic net changing

Our Company

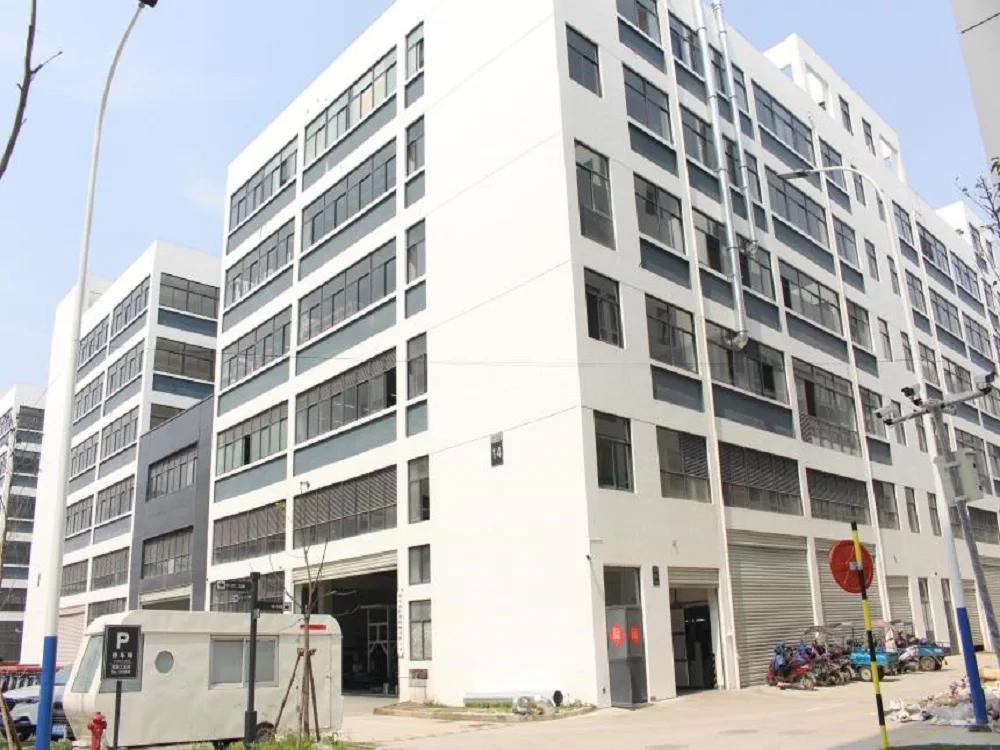

Company Information:

Ruian Songsheng Machinery Co., Ltd is located in China's plastic machinery production base- Ruian city. Company specialized in manufacturing film blowing machine, plastic bag machines and other equiped machines in one line for more than 10 years. We strive for quality and innovation in machine. We export the machines to worldwide as Southeast Asia, the Middle East, South Asia, Russian, North Asia, North America, Eastern Europe, Africa etc. Most welcome from all country to visit our company.
Please click this company picture back to the homepage if need.

Our Service

Pre-sales Service:                                                           After-sales Service

* Inquiry and consulting support.                                                    *Training how to instal the machine, training how to use
* Sample testing support.                                                                      the machine.
* View our Factory.                                                                                 * Engineers available to service machinery overseas.

* Pick up customer from air-port and stations.

Related Products

Catalog

Please scan the left QR code, you can get the useful information for different machines.

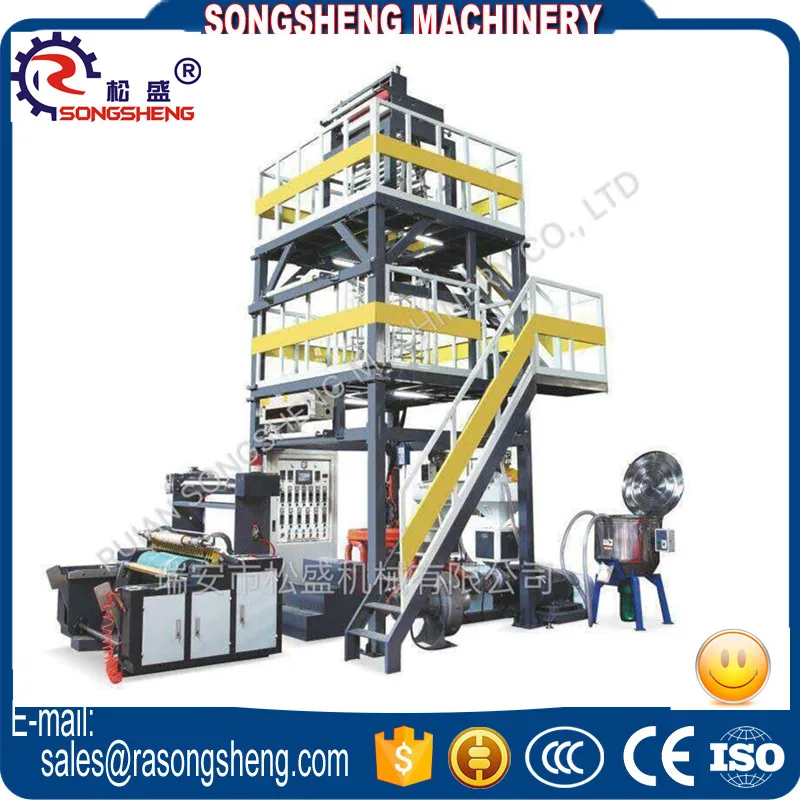

SS-ABA Series Three Layers Film Co Extrusion Machine


High Speed SS-HL Series PE Film Blowing Machine


SS-H2 Double Die Film Blown Machine


SS-CGS Fully Automatic Super High Speed Plastic Bag Making Machine


SS-DFR Series Automatic Plastic Bag Hot Sealing Machine


SSXJ Series Supermarket PE Rolling Bag Making Machine

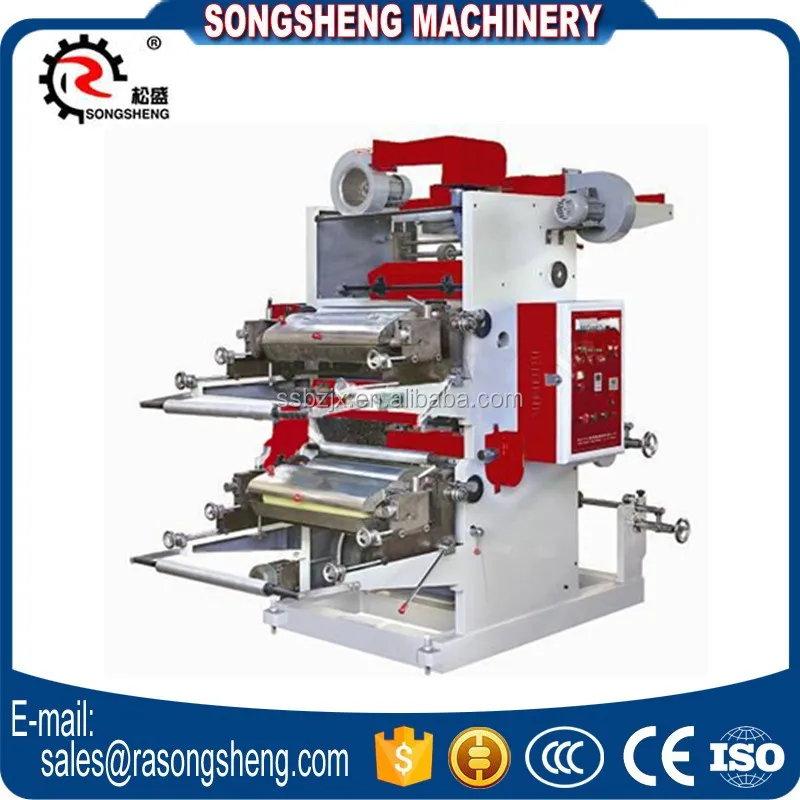

Plastic Film Two colors flexo printing machine

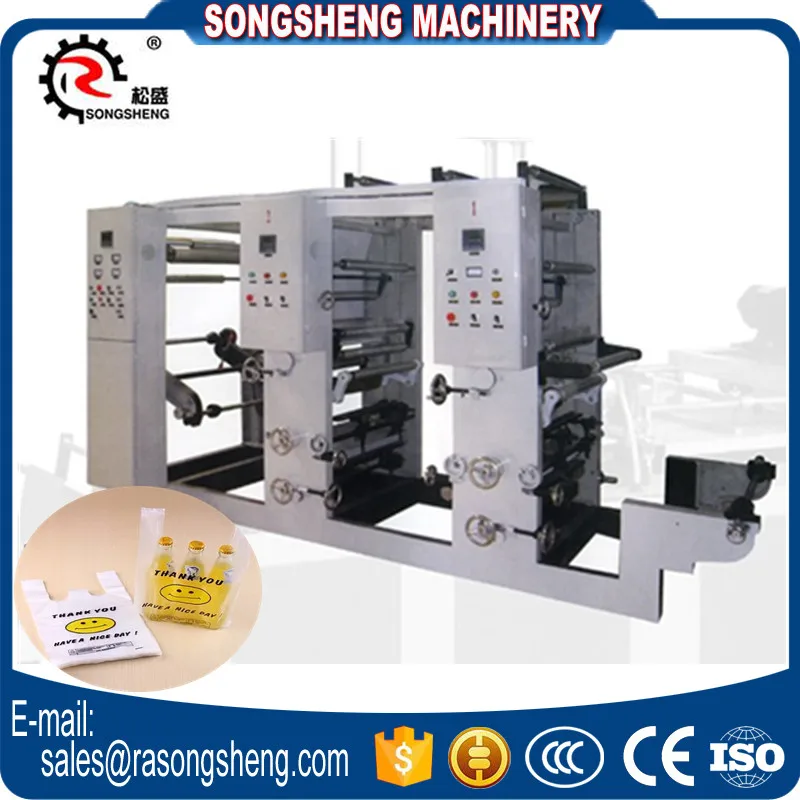

Two Colors Rotogravure Printing Machine





Plastic Bag Soft Handle Loop Making Machine


Factory Shows

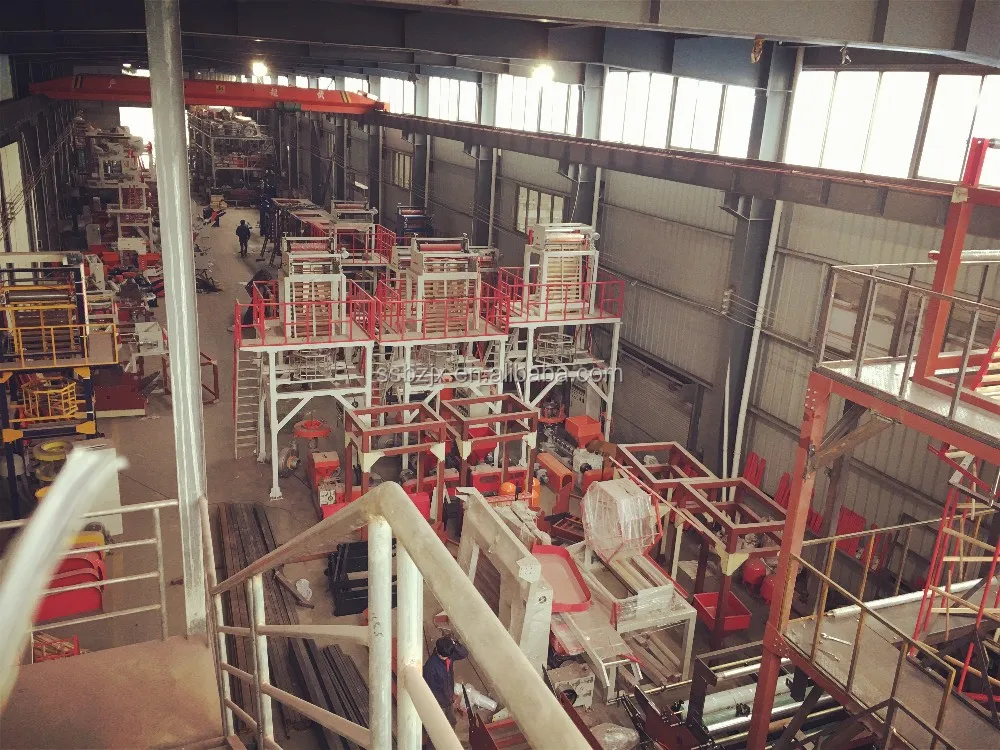

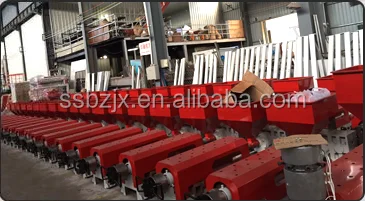

Film Blowing Machine Workshop:

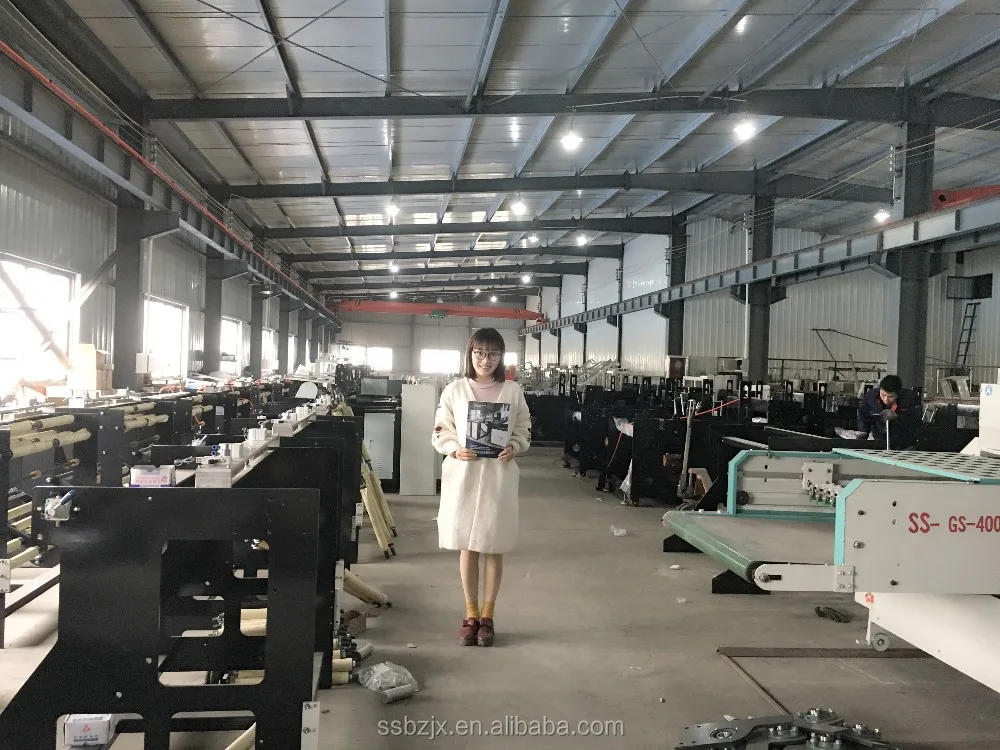

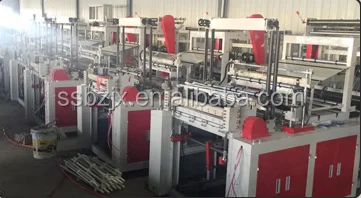

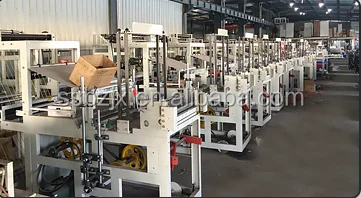

Bag Making Machine Workshop:


FAQ

Q: Are you factory or trading company?
     we are the manufacturer/factory for film blowing machine, plastic bag machine & printing machine etc.
Q: How does your factory do quality control?
     We have profession engineers' team to prove and ensure machine quality.
Q: Machine warranty?
    one year since machines arrived your port.
Q: What's your delivery time?

    Normally, it need 15 to 20 working days since get the deposit.
Q: How do you keep the after-sales service?
    We do business based on faith, we insist on " quality is the first and most important" . We will carefully check the material, produce, test and      adjust machines again and again. If have any doubts, please contact us online or by calling, we will reply ASAP.
Q: Where's your company located? how can we visit?
     Our company located in Jingye Road, Ruian Economic Development Zone. You can by air to Wenzhou airport or by bullet train to Ruian            Station. We welcome all friends from the world for future cooperation.
