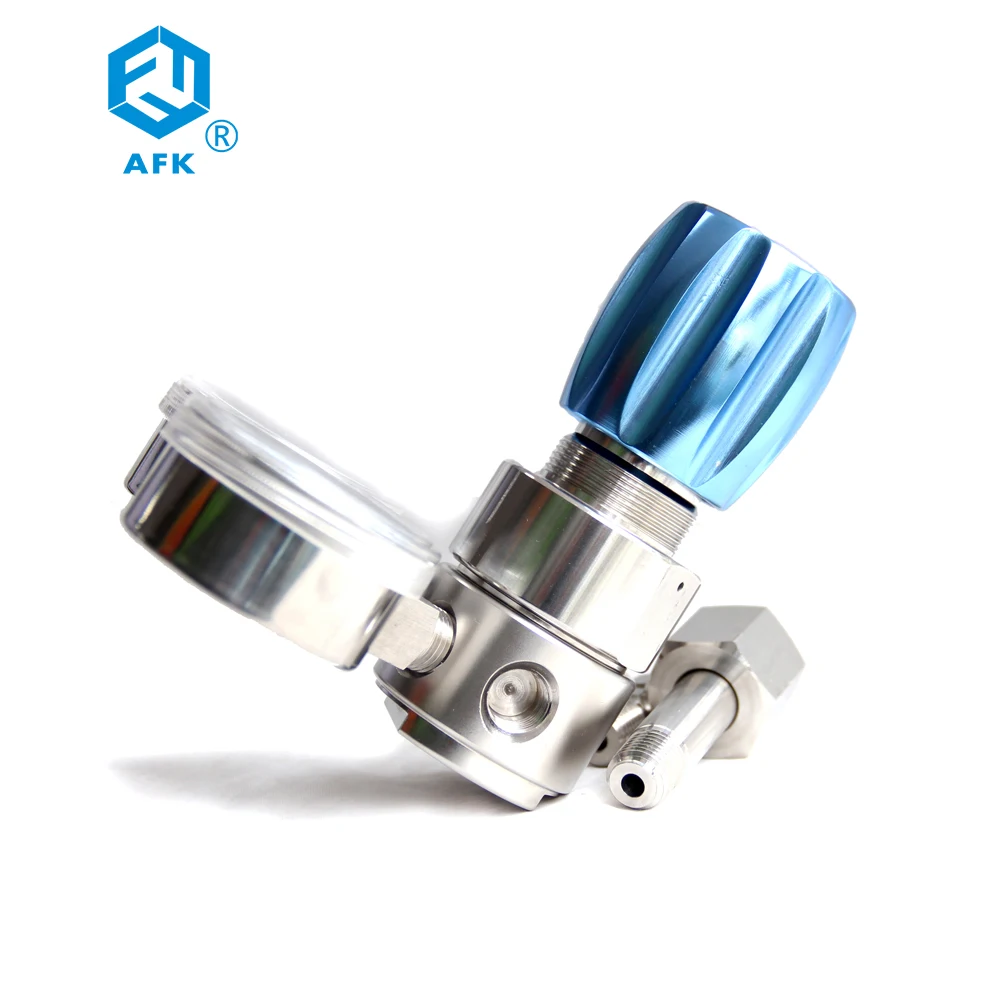

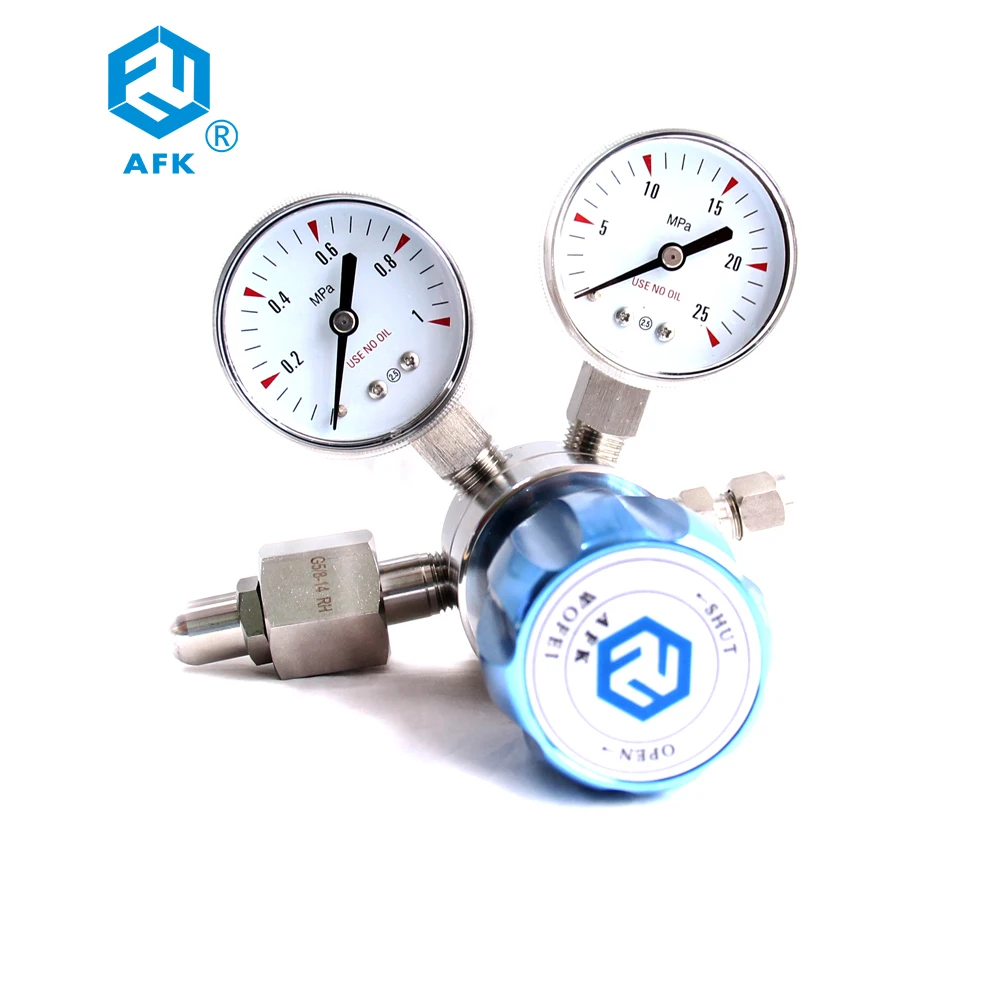

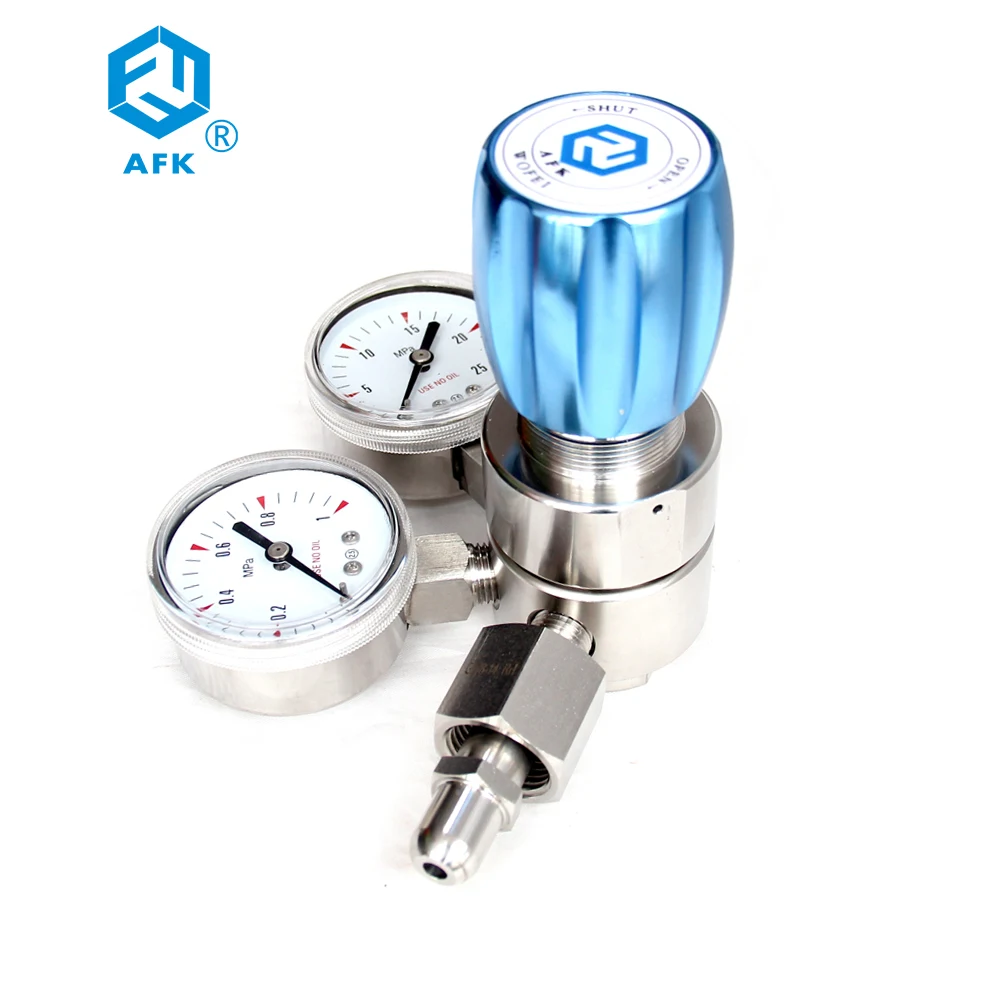

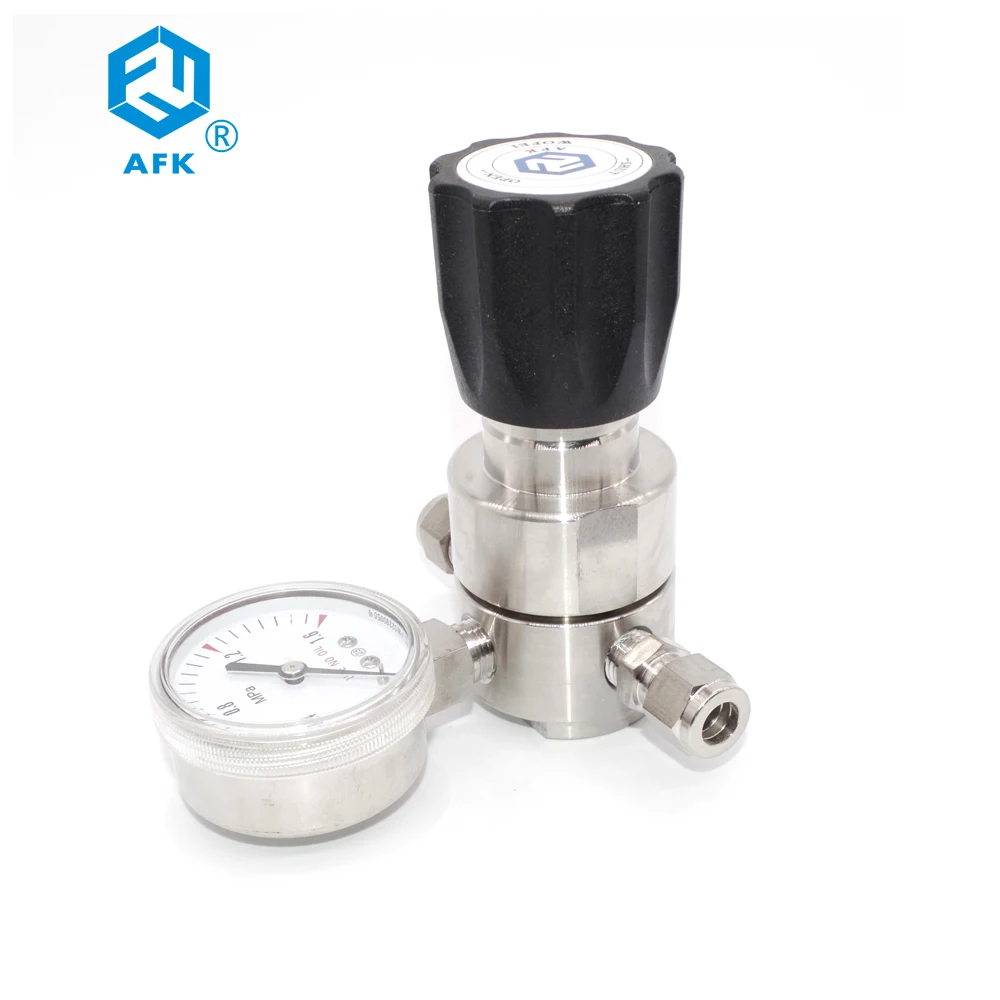

CGA 540 Stainless Steel Gas Regulator Helium with Manometer
- Category: Test Instruments >>>
- Supplier: Shenzhen Wofly Technology Co. Ltd.
Share on (60749693386):
Product Overview
Description
Product Description
R11 series stainless steel pressure regulator, sinlge stage diphragm reducing structure, stainless steel diaphragm pressure transmit, stable outlet pressure, suitable for purity gas, standard gas and corrosive gas etc.
Technical parameters
Maximum Inlet Pressure | 500,3000psig | ||||
Outlet Pressure Ranges | 0~25, 0~50, 0~50,0~250,0~500psig | ||||
Safety test pressure | 1.5 times maximum inlet pressure | ||||
Operating Temperature | -40°F to 165°F / -40°c to 74°c | ||||
Leakage Rate Against Atmosphere | 2*10-8atm cc/sec he | ||||
Cv value | 0.08 | ||||
Material of Parts
Body | 316L,Brass | ||||
Bonnet | 316L. Brass | ||||
Diaphragm | 316L | ||||
Strainer | 316L(10mm) | ||||
Seat | PCTFE,PTEE,Vespel | ||||
Spring | 316L | ||||
Plunger valve core | 316L | ||||
Detailed Image

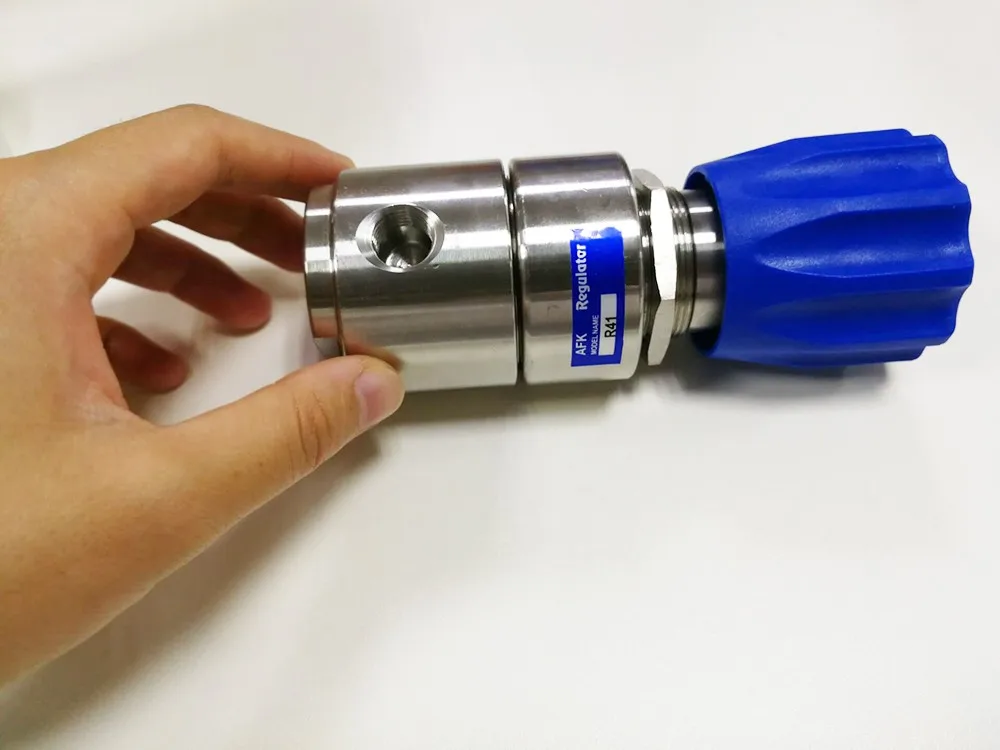

R11 single stage pressure regulator
Brand: AFK
Body ports: three
Body thread : 1/4NPT Female
Mount: Panel Mounting (with thread nut)
Body ports: three

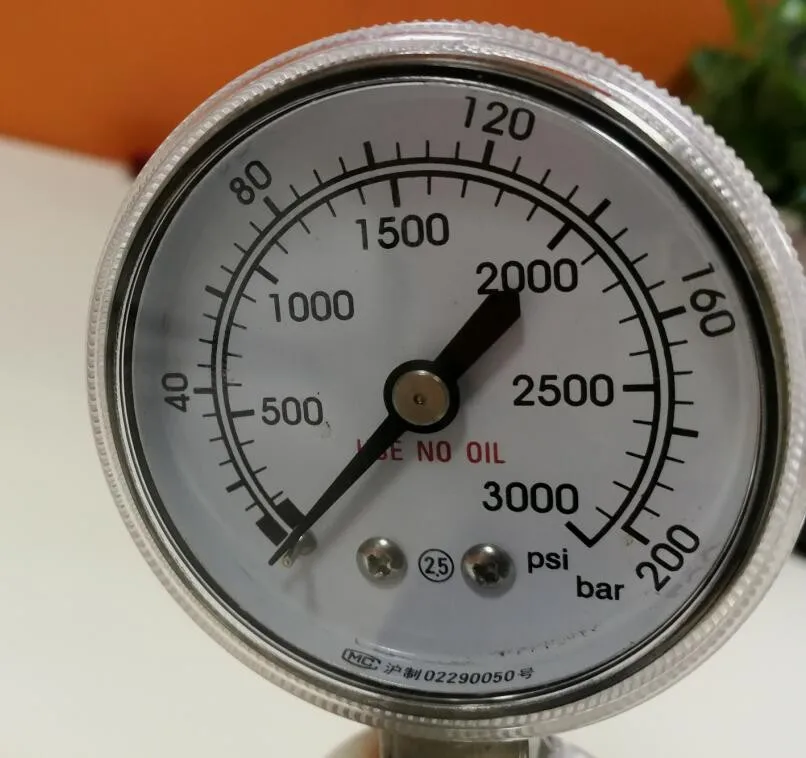

gauge: one (Mpa, PSI/bar)

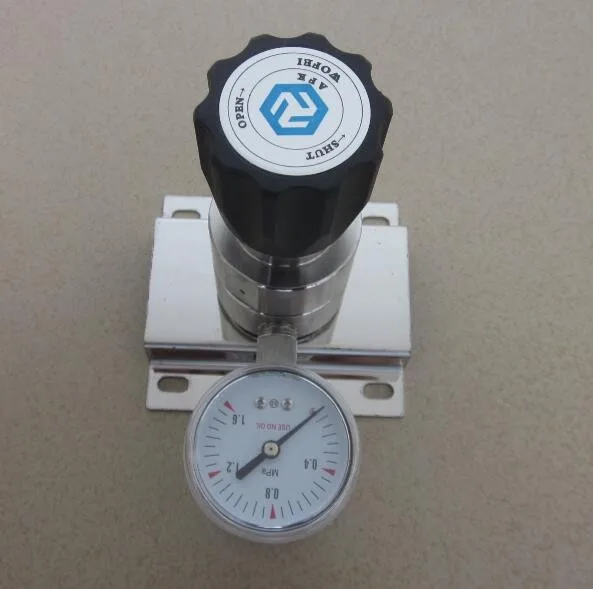

Mount: with a Panel (can be installed on the wall)

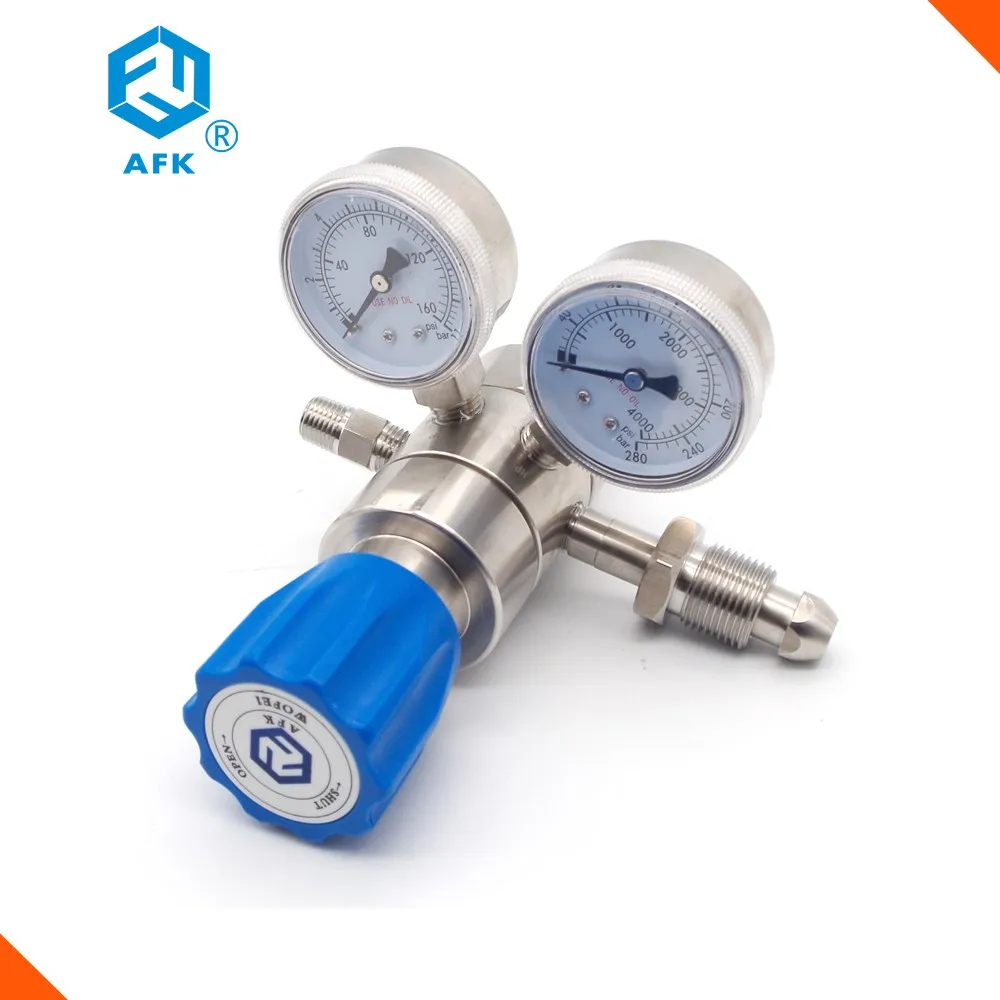

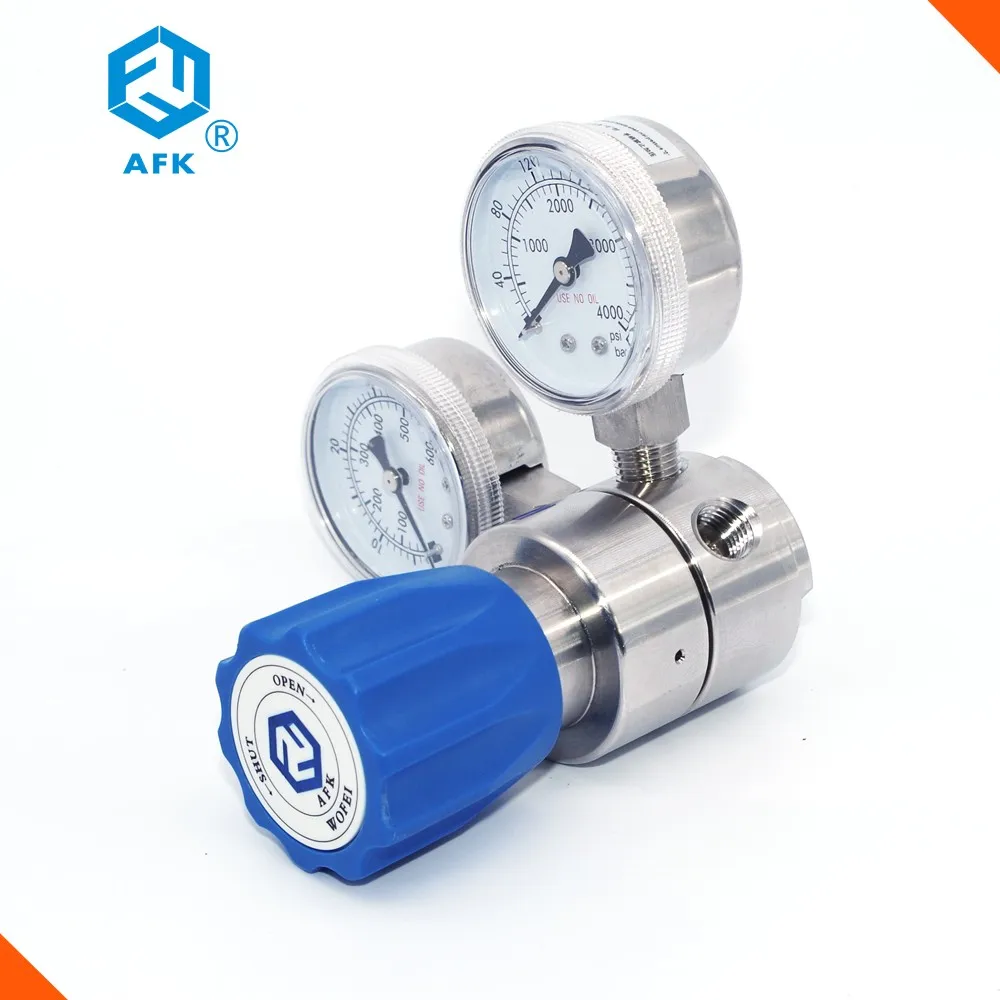

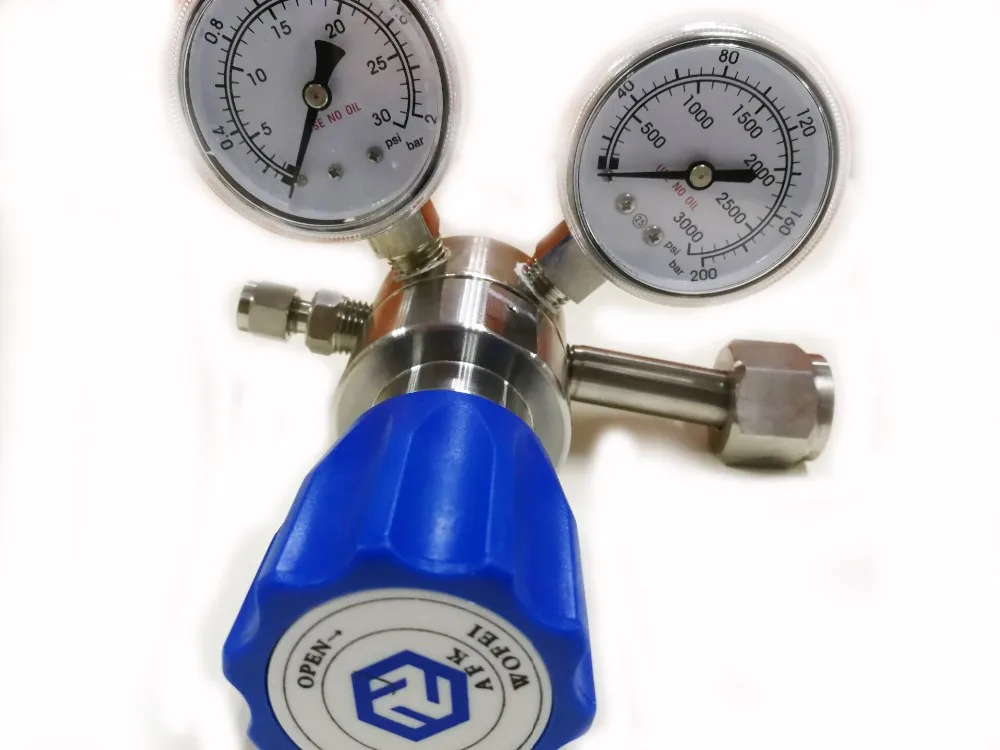

Details:

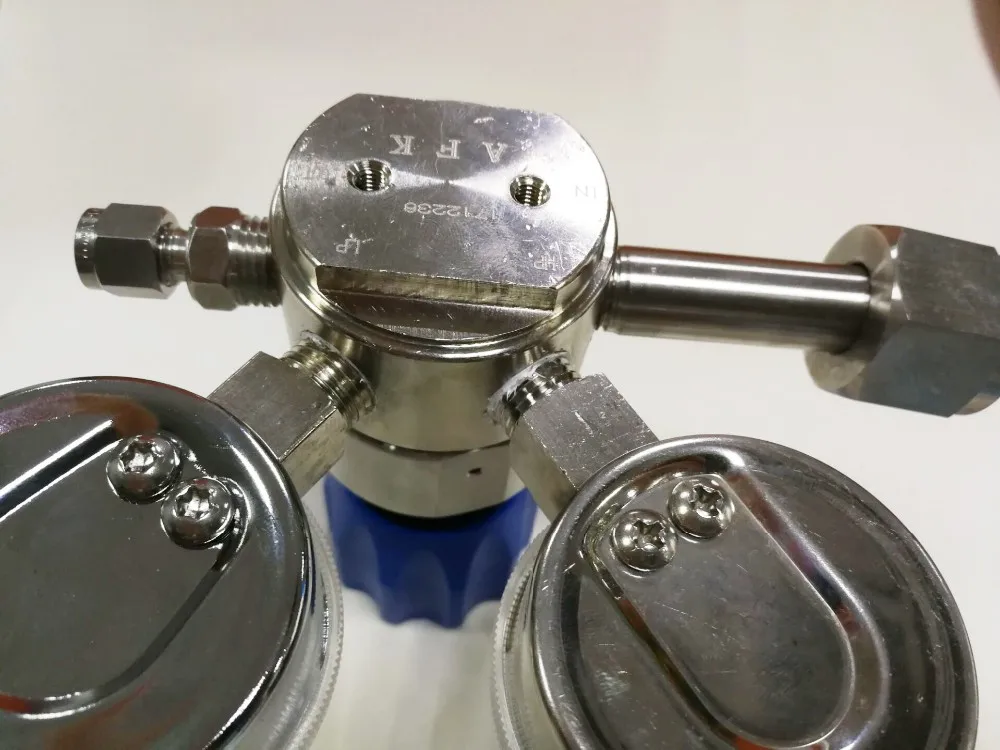

Body ports:four
Guage:two (PSI/bar)
Inlet connection:CGA580, CGA320, GA540,CA540, CGA660, CGA704 (BS341, DIN477, G5/8, W218 connector )
Outlet connection: 1/4 O.D fittings. (can be chosen)

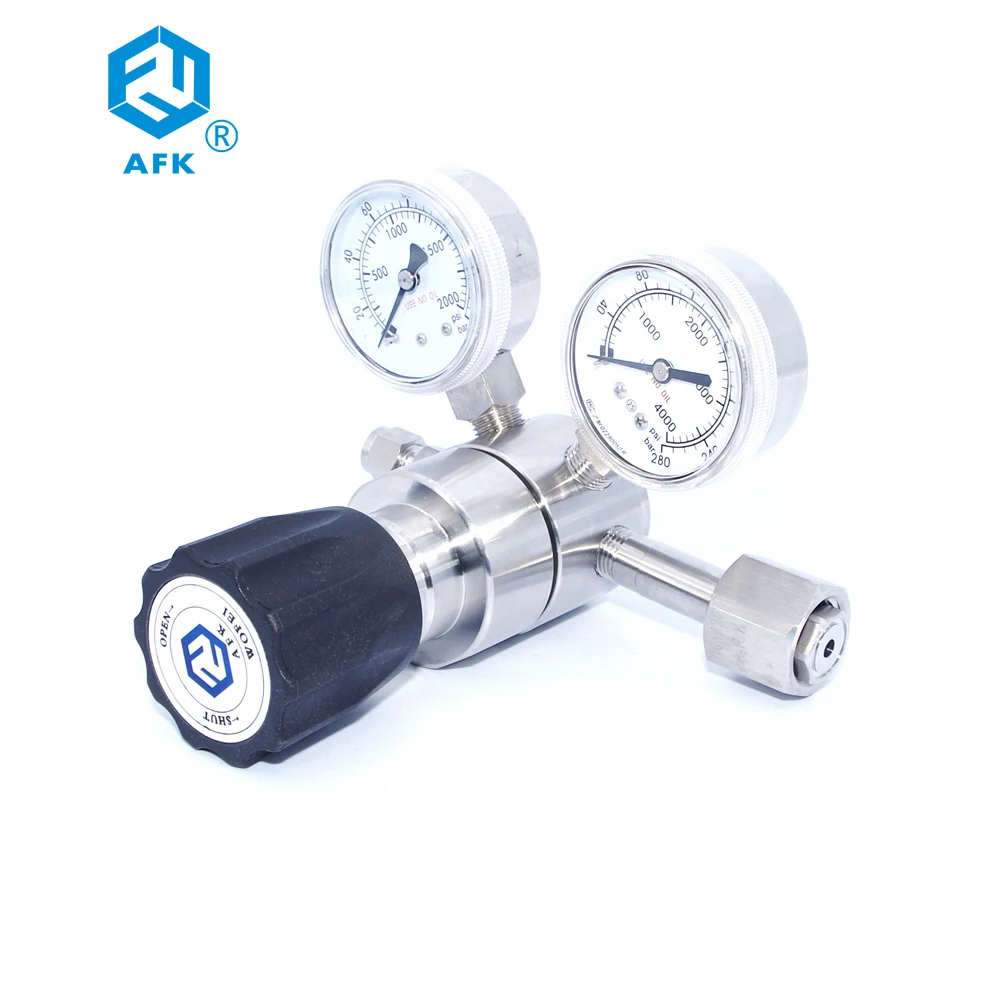

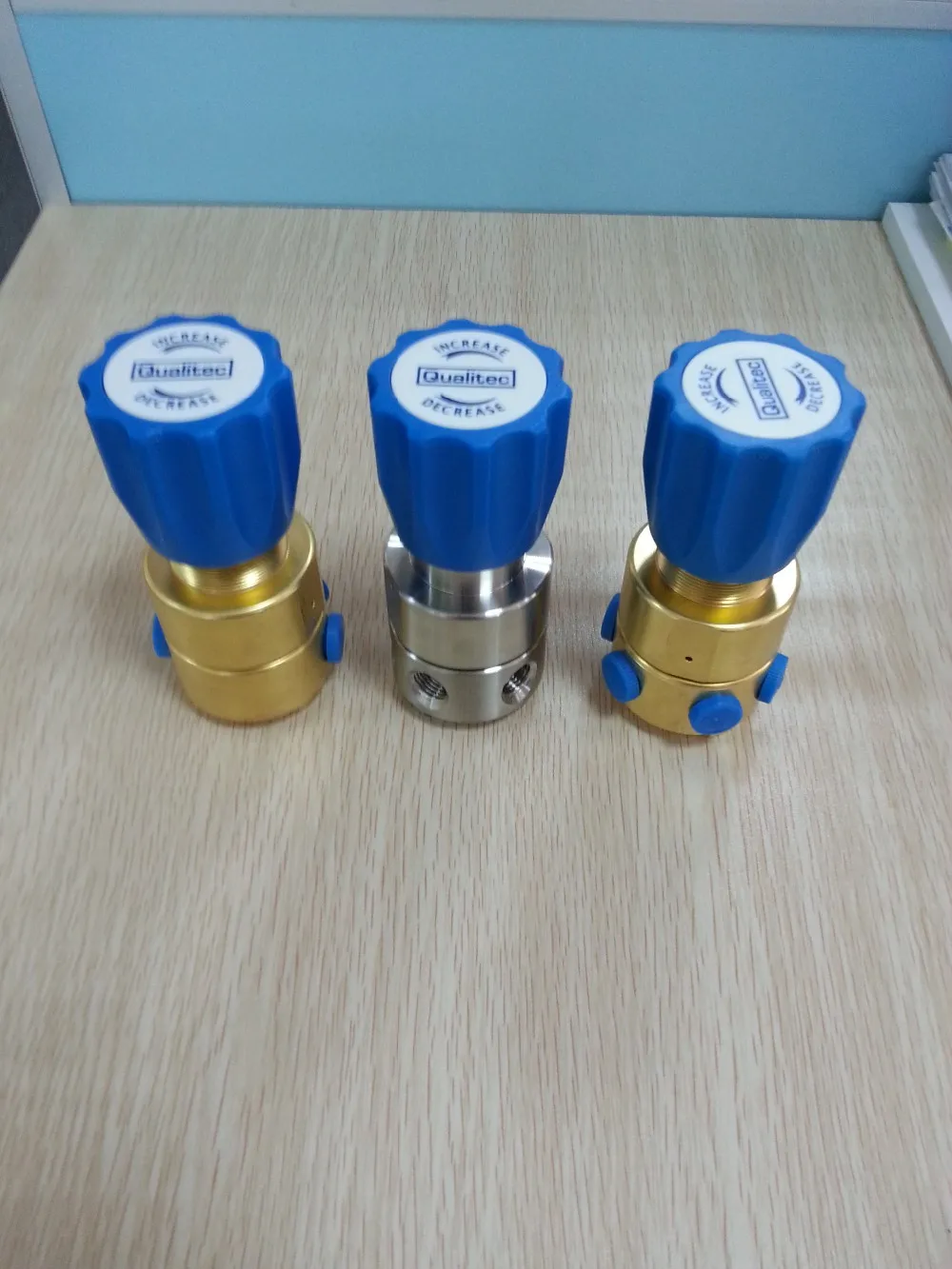

Details:

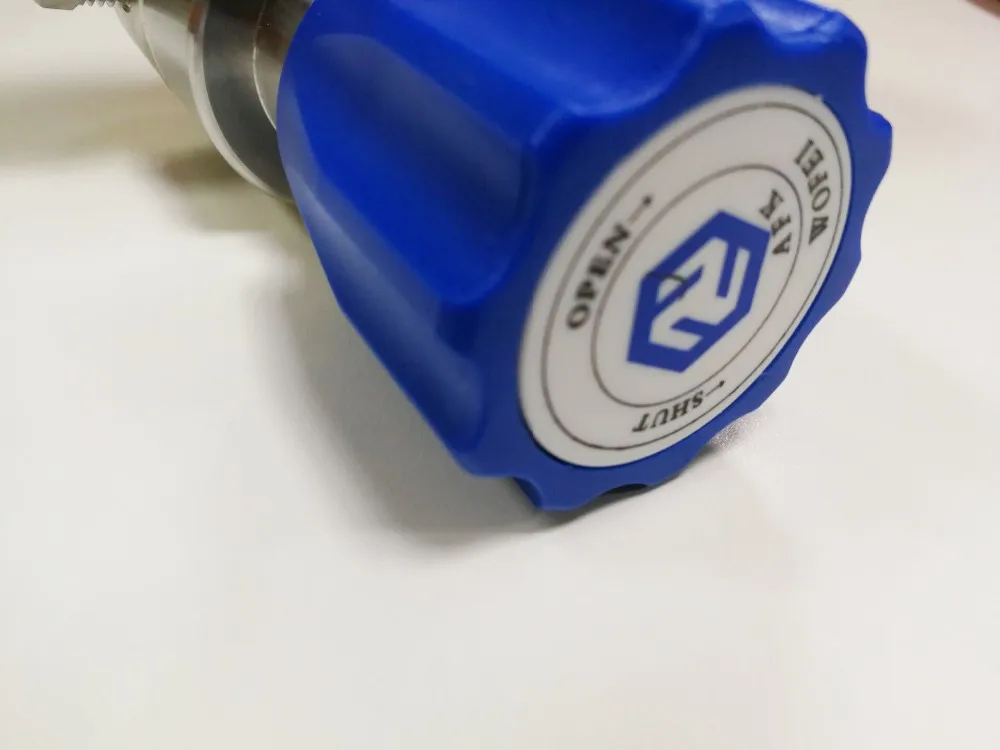

Knob: you can choose Black or Blue.
Body Material: stainless steel 316L, Brass and Nickel plated brass are available.
Gauge: No, one, two as your request.
Inlet and outlet connection: equipped them as your request.
Ordering Information
Pls inform us orde code such as R11-L-D-D-G-P-00-00.
Or else, pls inform us following information:
1. Media? co2, o2, He, H2, or others?
2. Inlet and outlet pressure?
3. Inlet connection and outlet connection? such as inlet connection:CGA320, outlet connection:1/4NPT M.
4.Flow rate?
5.Material? pls kindly specify. Nickel plated brass and ss316L are avaiable.

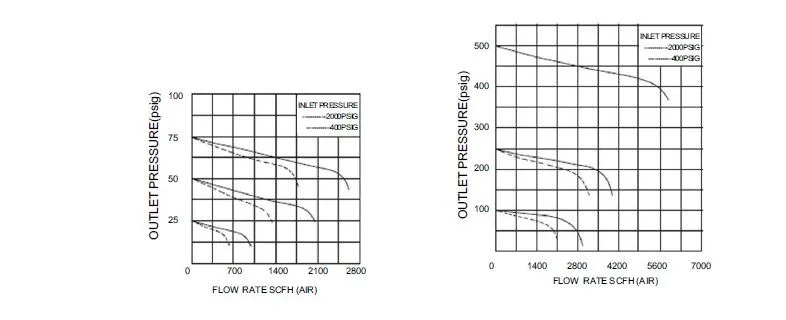

Flow Chart
Application
Laboratory
Electronic factory
Laser
Semiconductor
The quality of metrology institute
Aquarium
