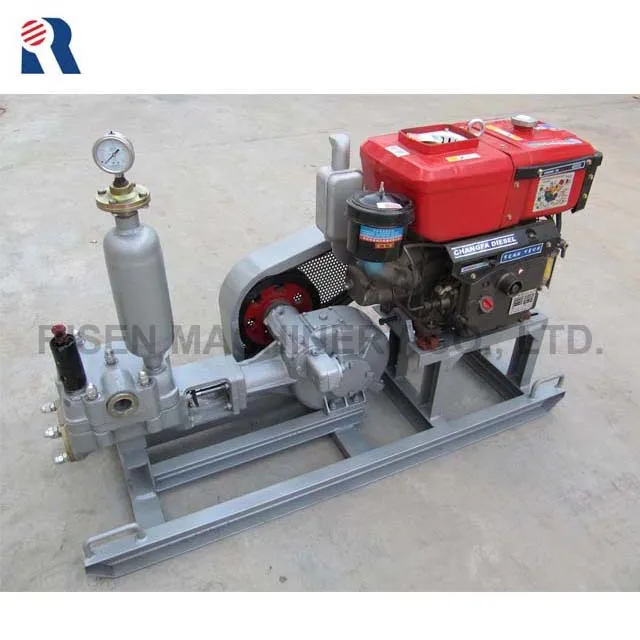

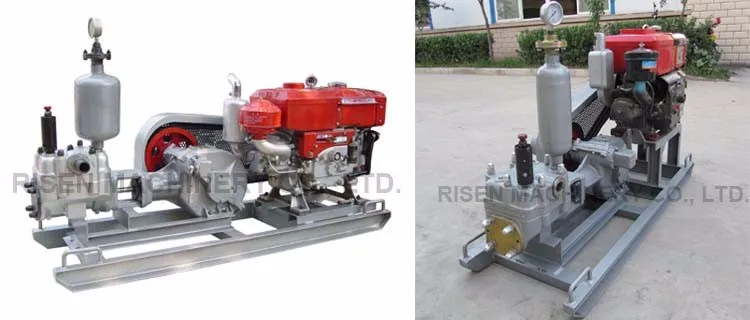

RISEN Cement Grout Pump - Diesel Grouting Cement Pump


Product Instruction & Application

Diesel grouting cement pump RISEN RG130/20 is a kind of single cylinder double action piston grout pump driven by diesel engine. It is applied for the processing of lower pressure grouting. This machine is suitable for the grouting with single cement slurry or other similar slurries.
The RG130/20 can be driven by E-motor or diesel engine or air motor.
The main application is:
Lower pressure grouting the cement slurry or similar slurry to do the sealing, strengthening and stabilizing of rock and soil in Tunneling, Mining, Hydro-power Project, Slope Stabilizing and underground project, etc

\t
SPECIFICATIONS FOR RISEN RG130/20 (DIESEL)
\t
Engine
\t
Diesel Engine Power
\t
hp
\t
11
\t





Main performance parameters
\t
Output:
\t
L/min
\t
130
\t
Working Pressure
\t
MPa
\t
2 (20 bar)
\t
Working Cylinder Dia.
\t
mm
\t
Φ75
\t
Piston Stoke
\t
mm
\t
85
\t
Piston Speed
\t
times/min
\t
180
\t
Inlet Hose Dia.
\t
mm
\t
51
\t
Outlet Hose Dia
\t
mm
\t
38
\t
Net Weight
\t
KG
\t
230
\t
Overall Dimension (L×W×H)
\t
mm
\t
1400*650*920

Main Features

\tSingle piston double acting
\tGear & Vee belt transmission makes this pump high mechanical efficiency and working reliability
\tIntegrated valve house and ball valve, together with compact structure
\tBody of pump is made of aluminum casting, low weight is an advantage for transport.
\tGrouting/pumping mud slurry, cement slurry, soluble glass etc.

Advantages

\tGearbox housing manufactured by thicker plate as our drawing;
\tStandard gears and shaft to ensure the enough strength;
\tIP55 100% new electrical motor;
\tElectrical control box manufactured by thicker plate and standard Schneider electrical elements;
\tStandard seal parts to ensure the excellent seal quality;
\tAll the casting units manufactured as our special design to ensure the enough strength;
\tPainted after sandblasting for a pretty appearance;

Factory Images
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
\t
Packaging
\t
Size
\t
150 (L) * 90 (W) * 120 (H)cm
\t
Weight
\t
360KG, G.W.
\t



Packaging Details
\t
For one RG130/20 with accessories, the normal package is a plywood crate (Estimated Size: L 150* W 90* H 120 cm). If container is too tighter, we will use the pallet for packing or pack it according to customers special request.
\t
Packaging
\t
Size
\t
150 (L) * 90 (W) * 120 (H)cm
\t
Weight
\t
360KG, G.W.
\t



Packaging Details
\t
For one RG130/20 with accessories, the normal package is a plywood crate (Estimated Size: L 150* W 90* H 120 cm). If container is too tighter, we will use the pallet for packing or pack it according to customers special request.
