3m3 concrete truck mixer with pump
US $2000-$4000

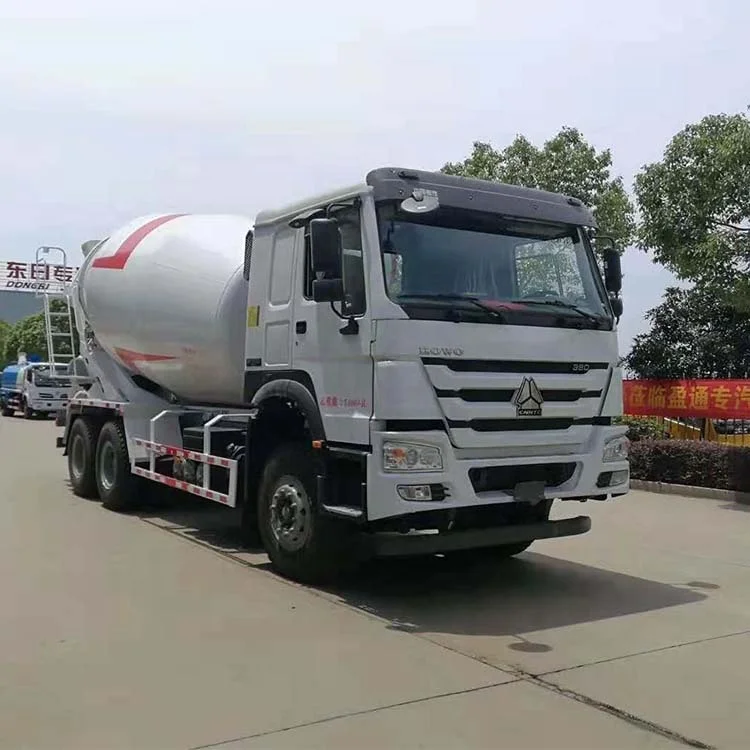

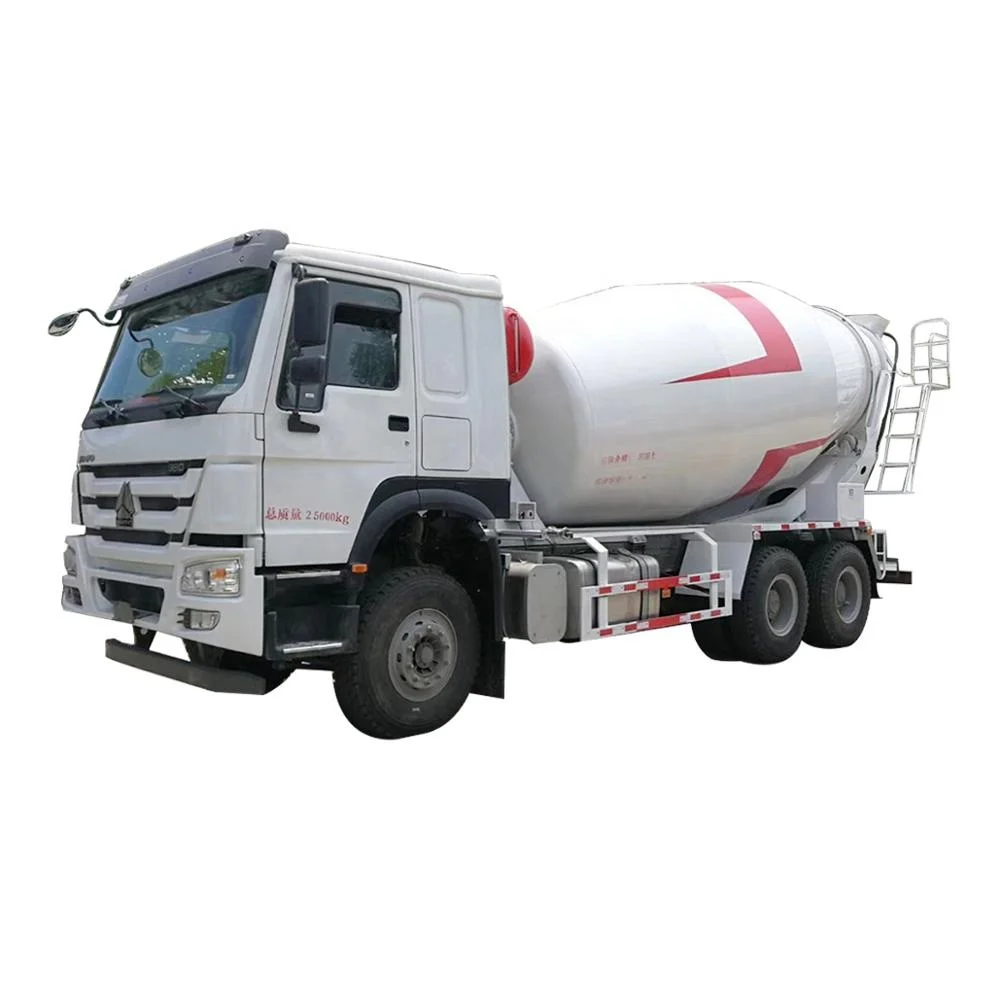

HOWO Sinotruk Low Price Truck Mounted Concrete Transit Mixer 10m3
- Category: Concrete Truck >>>
- Supplier: Hubei Xindongri Special Vehicle Co. Ltd.
Share on (60756270002):
Product Overview
Description
Product Description
10cbm Concrete Mixer Truck
| |||
Vehicle Parameters | |||
General | Vehicle Model | YZR5257GJBN4347E1B | |
Vehicle Brand | Sinotruk | ||
Chassis Brand | Sinotruk (ZZ1257N3841W) | ||
Overall Dimension(mm) | 9480×2496×3980 | ||
GVW/Curb/Rated loading Weight(kg) | 25000/13910/10960 | ||
Chassis Parameters | |||
Cab | Cab Seat | 2 | |
Air Conditioner | Yes | ||
Engine | Fuel Type | Diesel | |
Engine Model | WD615.69 | ||
Engine Brand | Sinotruk | ||
Power(kw/hp) | 247/336 | ||
Displacement(L) | 9.726 | ||
Emission Standard | Euro2 | ||
Chassis | Drive Type | 6*4 | |
Transmission | HW19710,10speed, Manual | ||
Wheelbase(mm) | 3800+1350 | ||
Tyre Specification | 12.00R20 | ||
Tyre No.(pcs) | 10+1 | ||
Max Speed(km/h) | 80 | ||
Paint | White | ||
Super Structure Parameters | |||
Tank Volume | 10cbm | Tank Material | High wear resistant high strength alloy steel (Q345) |
Tank Thickness | 5mm for drum;8mm for seal | Water supply | Pressure supply |
Charging speed | m3/min≥3 | Discharging speed | m3/min≥2 |
Discharge residual rate | ≤0.5(%) | Discharge range | 180degree |
Key Parts | ZF reducer and Rexroth hydraulic pump | ||
