GENZO New 5 inch 8 cores Android 9.0 Rugged PDA With 2D Barcode Scanner Handheld Logistic PDA With UHF A503

Share on:

Price:RUB 29,520.00
Price in USD:Details


Product Overview

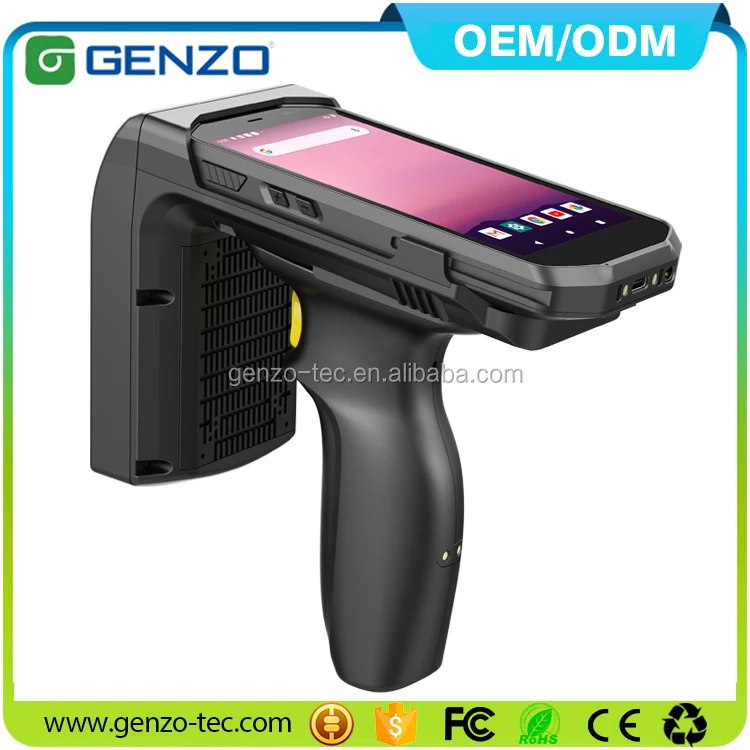

GENZO New 5 inch 8 cores Android 9.0 Rugged Handheld PDA With 2D Barcode Scanner Logistic PDA With UHF A503

Product Description


1.Support android 9.0 system;
2.Support standard TYPE-C;
3.Support NFC(13.56M);
4.Support GPS navigation;
5.Rugged IP65 protection level;
6.Support high strength Glass Touch Panel;
7.Support UHF Handheld Trigger, Scanning Handheld Trigger

8.Support 2D barcode scanner.

Dimension 147.7*74*16.4mm ,unit weight:220g
Qualcom-m MSM8953(8 cores octa-core)2.0 GHz
OS Android 9.0
LCD 5 inch   16:9  720*1280 IPS 330Nit
TP 5 points Corning Gorilla Glass Capacitive,(TP and Glass use full lamination technolog ) Rigidity: 7H up, anti-scratch,TP thickness:1.1mm,COF,support glove and wet hand touch
Flash 64GB       Support SDHC/SDXC   x1    Max:128G
Wi-Fi WIFI 802.11(a/b/g/n)   Frequency 2.4G+5.0G  dual band WIFI
Camera Rear 13.0MP HD Camera,with flash and auto-focus
BT BT4.0 (BLE) class1transmission distance:10m

3.8V/4000mAH  Support Back-Clip Battery, 8hrs(default50%volumn,default 200lumens brightness,play720PHD video),

Speaker  Built in8Ω/0.8W waterproof speaker x 1

Proximity Sensor,light Sensor,Compass  Sensor,Gyro Sensor,G_sensor

4G CMCC 5M:LTE 1/3/7/20/38/39/40/41
WCDMA 1/2/5/8
TD-SCDMA 34/39
GSM 2/3/5/8
Indicator light Indicator light of charge, red light will flash when device has low power. red long light when charging, green long light when full power
GPS support:GLONASS,QZSS,GPS;Capture sensitivity:-160 dBm;:Cold start time<30second,Hot start time:<28second,frequency:0.25 Hz … 10 MHz (configurable)
2D barcode scanner  Zebra SE4710
NFC Built-in NFC   Support 13.56mHz


UHF Scanner triggers - SLR1200/SLR5100

Docking Station

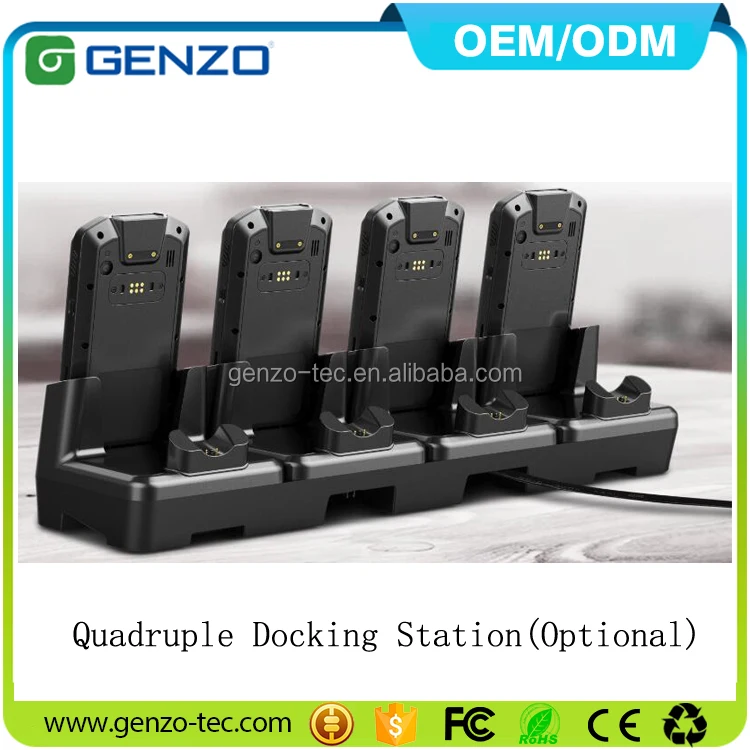

SINGLE-FILLED Docking/Or Quadruple Docking Station

Base Charging 2pin(Charge),Back 8pin (connecting UHF and Scanner Gun,data transmission)

Button Key

Silicone button: Power button, Volume +/- button,

Scan button × 2


SIM card x 1 , TF card × 1,

Type-C USB x 1,

Product Reliability Drop Height:1.2m composite wood floors, in operation status ,Operate Temperature:-10 °C to 50 °C ,Store Temperature:-20 °C to 60 °C ,Humidity: 95% Non-Condensing




Product Pictures

 A1A2A3A6A4A5A7A89191111   Other Modles3M-3M


Packaging Shipping


 Android Rugged industrial Handheld  PDA


Company Pntroduction


Mobile PDA With Barcode Scanner


Factory Pictures


Android  Handheld  PDA




 Android Rugged industrial Handheld  PDA

Our Service


We accept OEM&ODM for customer's request. It includes:
1. Burn customer's logo name as Boot Animation name.
2. Print customer's logo on shell or do customer's logo sticker.
3. Do customer's giftbox, we can offer beautiful giftbox for customer's reference.or provide AI/CDR  file for customer's own design.
4. Usuer Manual,customer can choice different languages and put them together.
5. Customer's Master Carton design are acceptable.

6.Develop products for customers,including appearance and internal structure design,motherboard development and mold design and production.

For all our products,we offer 24 months warranty.After the warranty period, we will also provide necessary replacement parts and technical support.

Usual,our Production line and QC department will test all the goods one by one for more than 3 times before send out.

So,there are almost no defective.if really have,you can send back us for repair or replacement.

You send back to us, you pay the shipping cost.

We send back to you,we pay the shipping cost.

But, all this warranty does not include accident, human fault or improper use.


Why choose us?

1. We are China leading
Rugged Tablet & PDA  manufacturer.

2. Alibaba Gold Supplier.

3. Inspected by the inspection of Bureau Veritas Certification.

4. 100% QC inspection before shippment.

5. Best quality & service with competitive price.




1.Q: Are you a factory or trading company?
    A: We are factory.we are manufacturing of Rugged PDA (4"/5"/6"), Rugged tablet    (7"/8"/10"),    Rugged and Semi-Rugged Notebook (11.6"/12.2"/14").

2.Q: Where is your factory located? How can I wisit there?
   A: Our factory is located in Shenzhen City, China. You can fly to Shenzhen airport directly, and    we will pick you up. Welcome to visit our factory.

3.Q: How can I get some samples?
   A: We are honored to offer you samples.

4.Q: How does your factory do regarding quality control?
   A: Quality is priority. We always attach great importance to quality controlling from to the end. Our factory has gained CE, FCC, ROHS,IP65,IP67 certifications and so on.
