Sinotruk Howo 4x2 waste collection truck 3 5 cubic meter compactor garbage truck price
- Category: >>>
- Supplier: Chusheng Vehicle Group Co. ltd
Share on (60757309228):
Product Overview
Description
Product Description

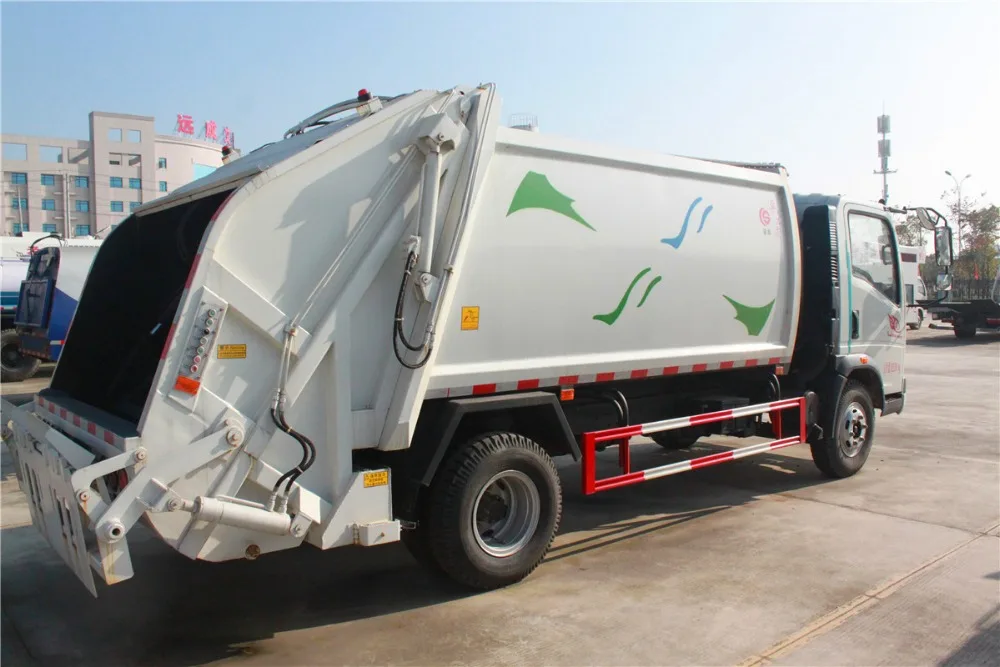

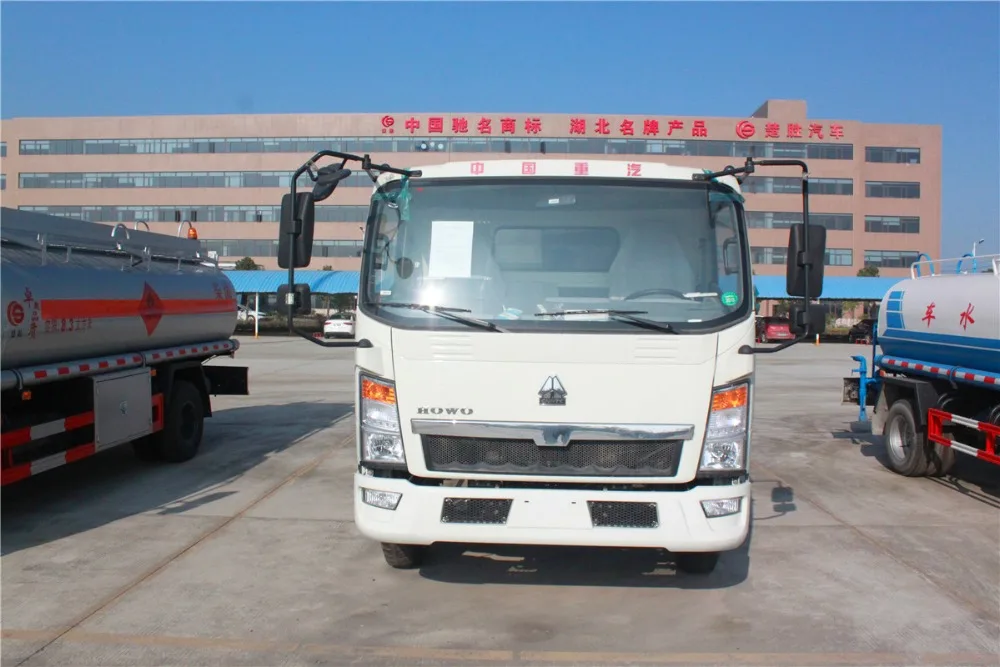

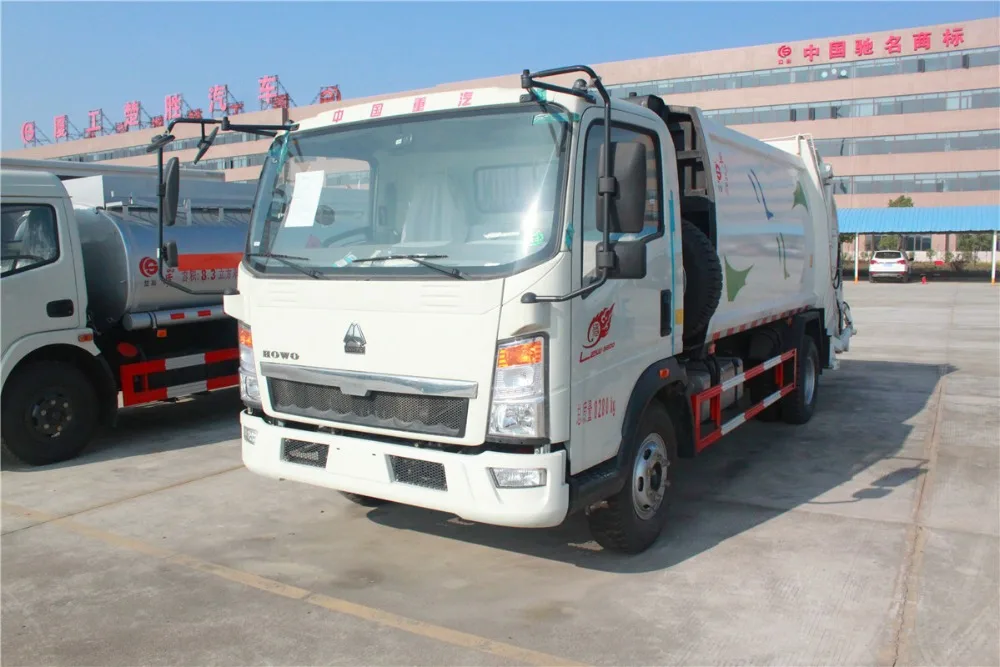

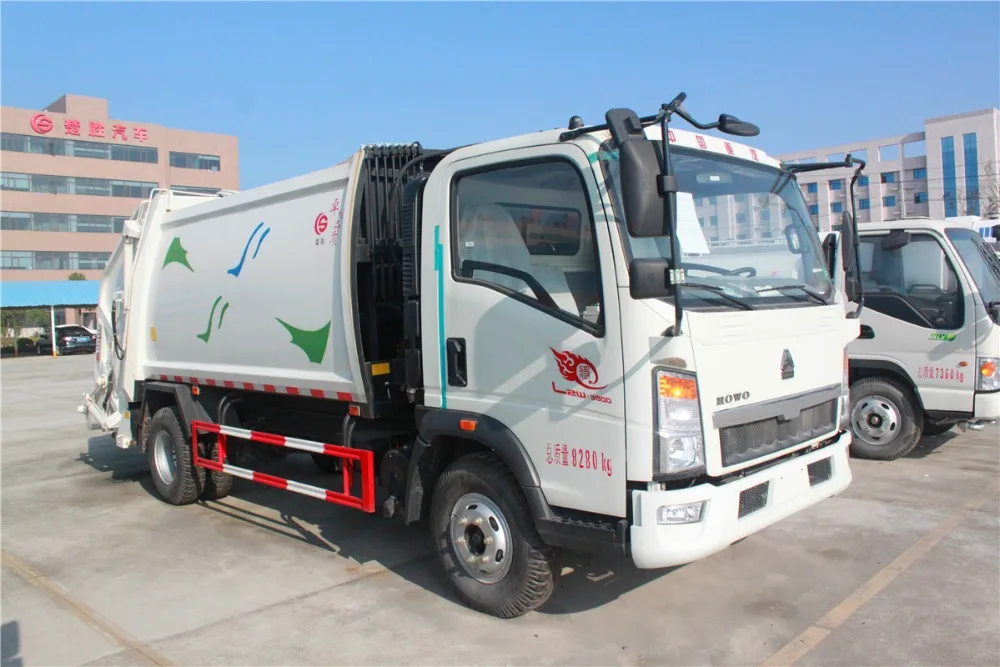

Sinotruk Howo 4x2 waste collection truck 3-5 cubic meter compactor garbage truck price
The truck is equipped with domestic advanced Class Two chassis, imported hydraulic and electrical components, which are stable and reliable performance. The drum shape structure is simple and elegant, and made of high-strength manganese, which is strong and durable.
Big carriage volume, two-way compression technology, horizontally compression cylinder, high compressed capacity and strong loading capacity.
Using composite seal and good anti-acid EPDM seal, they are both good sealing performance. There are sewage tanks to collect water in front and rear compartments, to prevent secondary pollution.
It’s easy and flexible to joint operate with manual and PLC control. All operating actions can be completed in the cab, which enhance reliability and improved safety and comfort.
Engine power output is automatic, lower fuel consumption and more economy.
Stuffing box has a safety valve lift mechanism and explosion-proof valve, which can improve the safety and also double insurance.
The feeding mechanism can choose bucket mechanism (with 330L steel or 240L plastic barrel), the arm mechanism (with 5 m³ ship-shape bucket) .
Technical Specs
Name Compactor garbage Truck
Dimension(LxWxH)\t6900X2320X2450(mm)
Total Mass\t8315Kg
Rated Payload\t5000Kg
Kerb Weight\t3315Kg
Passenger \t3
Approach/Departure Angle\t20/13
The Parameters of Chassis\t
Manufacture/Model\tDongfeng/EQ1070TJ9AD3
Driving Type\t4*2 left/right hand drive
Wheel Base\t3300 mm
Gearbox\tSix speed lever with five speed forward and one reverse, manual
Front/Rear Track\t1835/1640(mm)
Tyre\t7.00-16
The Number of Tyre\t6+1(spare tyre)
Front/ Rear Suspension\t1180/1920(mm)
Leaf Spring Number\t11/9+7, 8/10+7
The Paremeters of Engine
Manufacturer/Model\tChaoyang/CY4102-E3C
Rated Power\t95hp
Fuel Type\tDiesel oil
Displacement/Capacity\t3856ml
Emission Standard\tEuro3
Cylinder\tStraight/4/intercooling
Max. torque\t560N.m
Velocity\t2800rpm
The Parameters of Equipment\t
Container Capacity\t5 m3
Loading Circulation Time\t12- 30 s
Rubbish Discharging Time\t<= 30 s
Oil Pressure\t19.6 / 200 Mpa / kg
Compressed Proportion\t1:3 / 1:2
Rear Overhang\t2400 mm
Garbage Bin Turning-over Instrument\tAvailable
Detailed Images
Successful Cases

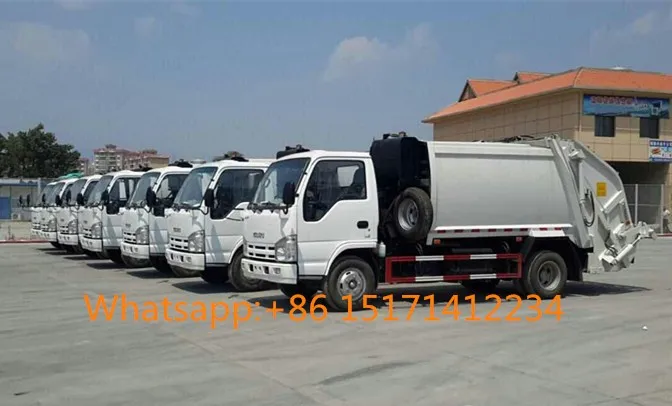

36units japanese brand compactor garbage truck exported to Myanmar
7units japanese brand road sweeper truck exported to Cambodia
6units HOWO brand fire fighting truck exported to Philippines

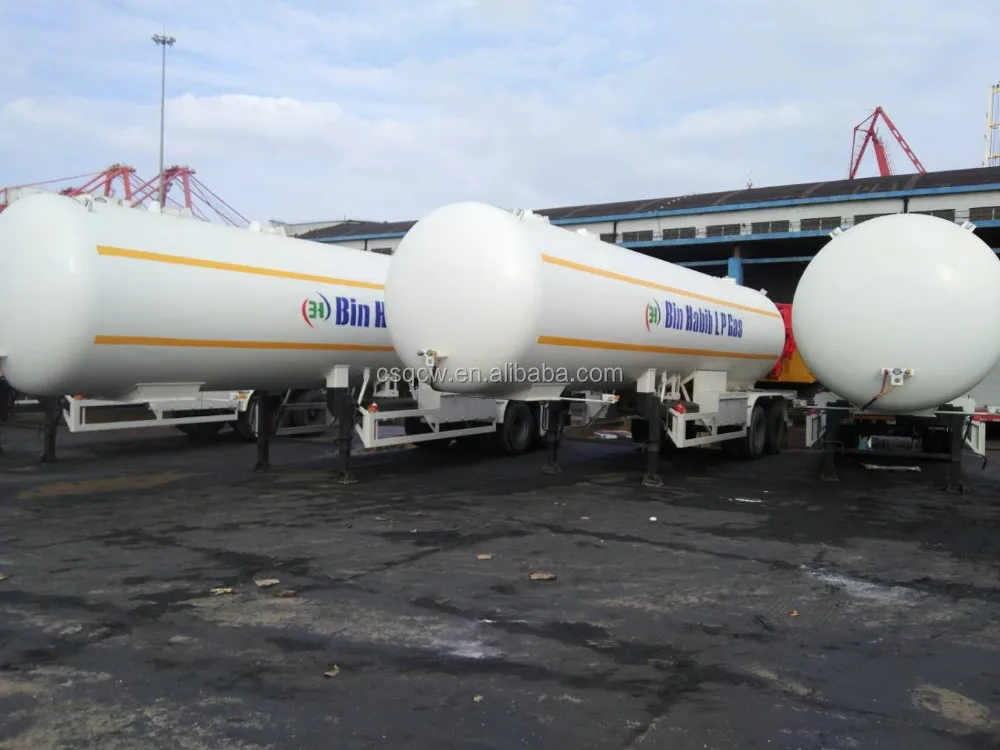

4units LPG Tank Semi Trailers exported to Bangladesh
Our Company
1. Xiagong Chusheng (Hubei) Special-purpose Vehicle Manufacturing Co., Ltd. is a famous and the biggest manufacturer with professional experience in special automobile field for more than 15 years in China. We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.
2. Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, Refrigerated Truck, Garbage Truck, Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck, Bulk Cement Truck, Van Truck, Sweeper Truck, Truck with Crane, Fire fighting Truck, High-altitude Operation Truck, Chemical Liquid Truck, Milk Transport Truck, LED Display Truck, Various Semi-trailer, Spare parts etc.
3. We have rich export experience to more than 60 countries, such as Ghana, Togo, Sudan, Kuwait, Peru, Nigeria, Benin, Angola, Tajikstan, Azerbaijan, Namibia, Burma, Korea, Iran, Afghanistan, Iraq, Philippines, Vietnam, Saudi Arabia, Mexico, Chile, Bolivia, Tanzania, Zambia, Zimbabwe, Yemen etc.
We have strict quality control of raw material, professional management team and technical workers, advanced equipments, strict inspection before delivery, excellent packing and shipping team.
Contace Us
For more information about Compactor Garbage Truck PRODUCTS, please contact:
Krystal Zhang
Sales Manager
Xiagong Chusheng (Hubei) Special Purpose Vehicle Manufacturing Co., Ltd.
Factory: NO.9, Jiliang Avenue, Suizhou Economic Development Zone,Suizhou, Hubei, China
Office: Room 1108, Eurasia Plaza, No.20 Jinyinhu Road, East- west lake District, Wuhan, Hubei, China.
Tel: +86-27-59215038; Fax: +86-27-59215082
Mob/: +86-15171412234
Web: www.cs-vehicle.com
