0.5 to 200m2 Industrial Food Freeze Dryer Fruit Dehydrator
US $25000-$28000
BIOBASE для лабораторного использования conmmercial использования, Горячая продажа серии пилот сублимационной сушилки машина цена
- Category: Freeze Drying Equipment >>>
- Supplier: Biobase Meihua Trading Co. Ltd.
Share on (60759397899):
Product Overview
Description

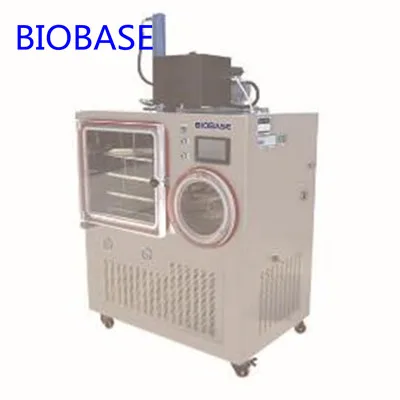

BIOBASE laboratory use conmmercial use HOT SALE Series Pilot Freeze Dryer machine price
Product Description

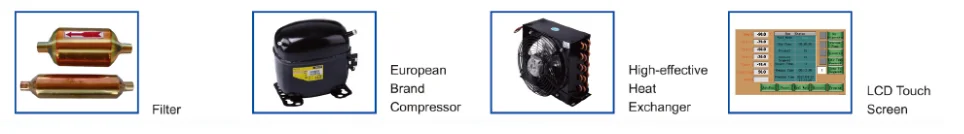

Features:
1. Pre-freezing and drying are in same place.
2. With cascade refrigeration technology.
3. Silicon oil is intermediate medium in the shelves for heating to ensure drying material uniformity.
4. Shelf temperature is adjustable and easy to control.
5. Tray is easy to operate and clean.
6. 7 inch LCD touch screen. Adopt PID intelligent control system.
7. With historical data inquiry function, can store history data for one month.
8. Equipped with USB interface on control panel. It can copy the data and history data directly without additional software.
9. Ice condenser and operation panel are made by stainless steel, corrosion-resistant and easy to clean.
10. Front door is with high transparent colorless organic glass, the test process can be easily observed.
Technical Parameters:

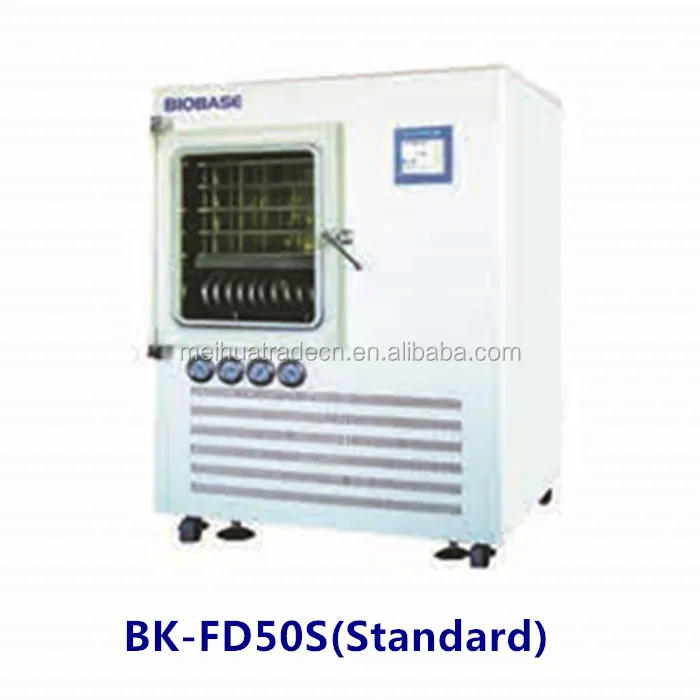

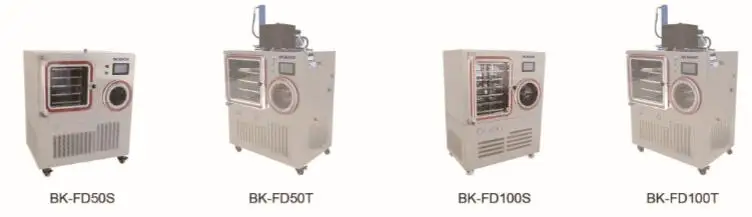

Model | BK-FD50S | BK-FD50T | BK-FD100S | BK-FD100T | ||
Freeze Drying Area | 0.5 m2 | 1 m2 | ||||
Shelf Temperature | -50℃~+70℃ | |||||
Cold Trap Temperature | -80℃ | |||||
Vacuum Degree | <10 Pa | |||||
Water Capture Capacity | 8Kg/24h | 15Kg/24h | ||||
Cold Trap Volume | 18L | 35L | ||||
Cold Trap Size (Diameter*H) | Φ255*350mm | Φ300*500mm | ||||
Drying Chamber Size (W*D*H) | 470*548*550mm | 640*685*550mm | ||||
Shelf & Tray Size | Shelf:305*455*17mm Tray: 300*450*20mm | Shelf:550*480*17mm Tray: 475*272*25mm | ||||
Qty. Of Shelf & Tray | Shelf: 4+1 Tray: 4 | Shelf: 4+1 Tray: 8 | ||||
Sample Loading Capacity (Liquid) | 8L | 16L | ||||
Height Between Trays | 90mm | |||||
Tray Temperature Difference | ±1℃ | |||||
Refrigerant | R404A + R23 | |||||
Condenser Cooling Mode | Air cooling | |||||
Defrost Mode | Electric defrosting | |||||
Stoppering Mode | / | Hydraulic | / | Hydraulic | ||
Total Qty. Of Vial | Φ20mm | 1040 | 2016 | |||
Φ18mm | 1944 | 3944 | ||||
Φ12mm | 3456 | 7020 | ||||
Vacuum Pump | 8L/S(29m3/h) | 15L/S(54m3/h) | ||||
Power Supply | AC220V/50Hz/60Hz(single phase) AC380V/50Hz/60Hz(three phase) AC220V/50Hz/60Hz(three-hase) | AC380V/50Hz/60Hz(three phase) AC220V/50Hz/60Hz(three phase) | ||||
Electric Defrosting Consumption | 500W | 600W | ||||
Silicone Oil Heating Rods Consumption | 800W | 1600W | ||||
Hydraulic Pressure Station Consumption | / | 1.5KW | / | 1.5KW | ||
Total Consumption | 7KW | 8.5KW | 8.5KW | 10KW | ||
Main Body Weight | 470kg | 730kg | ||||
External Size | 1200*850*1500/1850mm | 1500*1000*1600/1950mm | ||||
Packing Size (W*D*H) And Gross Weight | Main Body | 1250*900*1560mm (472kg) | 1250*900*1880mm (520kg) | 1700*1120*1800mm (650kg) | 1700*1120*1960mm (750kg) | |
Vacuum Pump | 715*280*315mm (65kg) | 715*280*315mm (85kg) | ||||
BIOBASE Exhibition
Certificates
Packaging & Shipping
Wooden package are commonly used. Let us know if you have special packaging requirements. We will make sure safe arrival and receipt of your goods.
Our Services
1. 100% product quality guarantee |
2. Quick delivery time |
3. Promptly reply you within 24 hours |
4. OEM service |
5. Giving best service and sincere greetings to our guest |
FAQ
1.Why choose BIOBASE?
We are the leading manufactuer in lab furniture and lab equipment, OEM & ODM service are offered. And we have our own overseas techinican and installation team.
2.How about the sample of Biobase product?
We could send you the samples but the freight and the sample are charged.
3.How about Biobase payment term?
T/T & L/C &Western Union(40% deposit, the balance before shipment)
4.How about BIOBASE delivery time?
Within 7-15 workdays after receiving deposit.
5.How about BIOBASE validity of quotation ?
Usually 30 days as the shipping freight and exchange rate can be fluctuant.
6.What is the shipping port?
FOB to Qingdao Port,China(also can ship according to customers’ request)
7.How about the package?
Bubble film + Cotton +Standard export wooden case.
8.How to inspect the goods?
Products will be checked by our QC staff frist, then our proejct manager. Client can come and check bythemselves or third party check is available.
