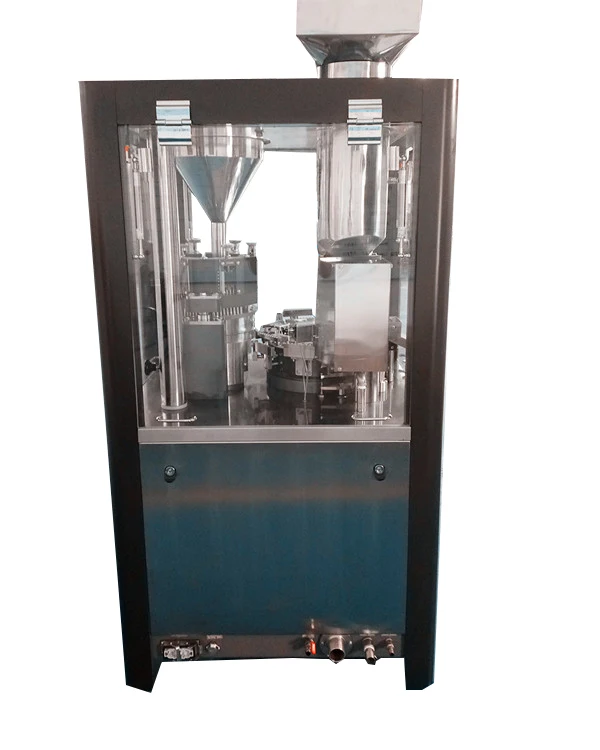

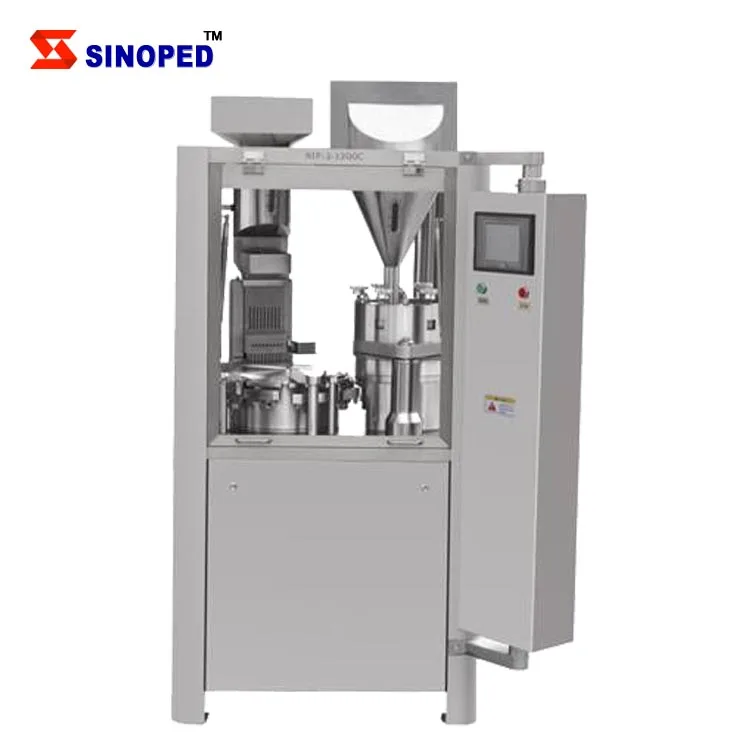

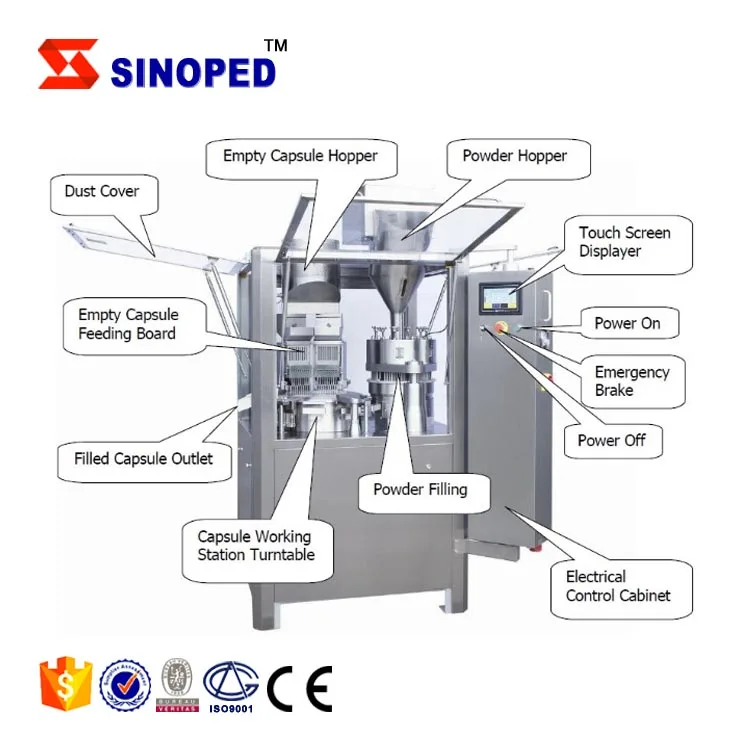

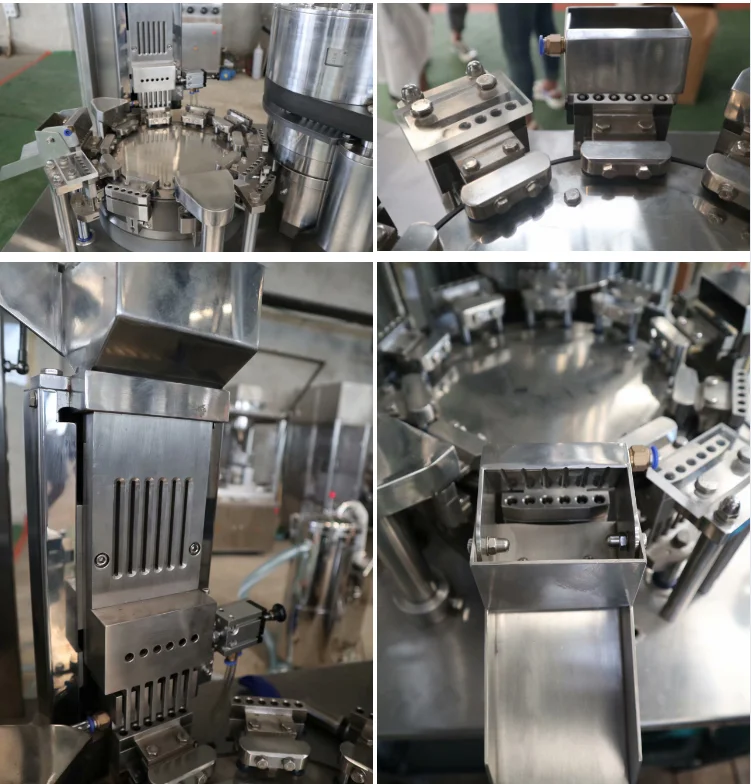

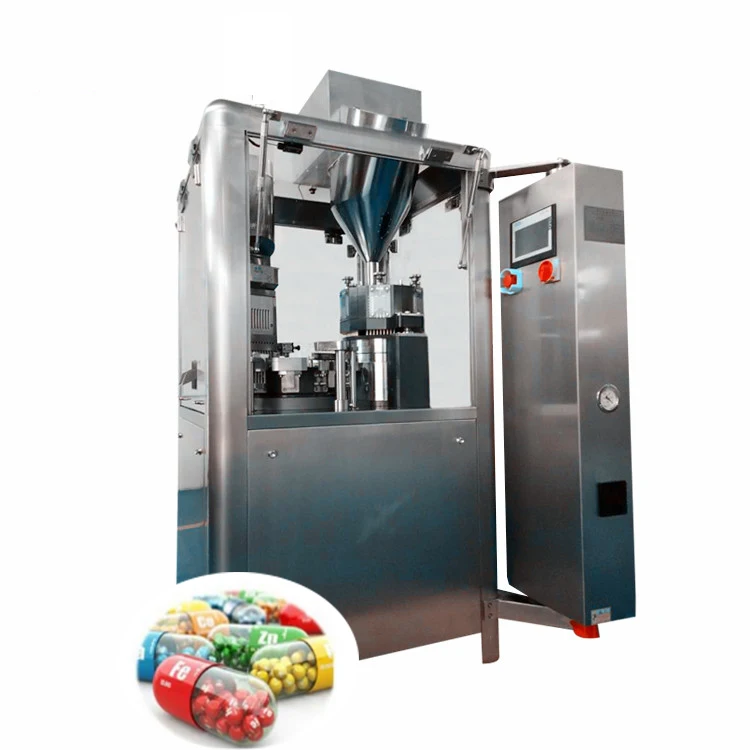

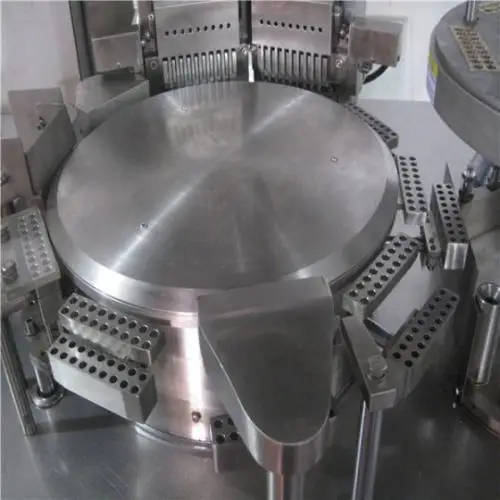

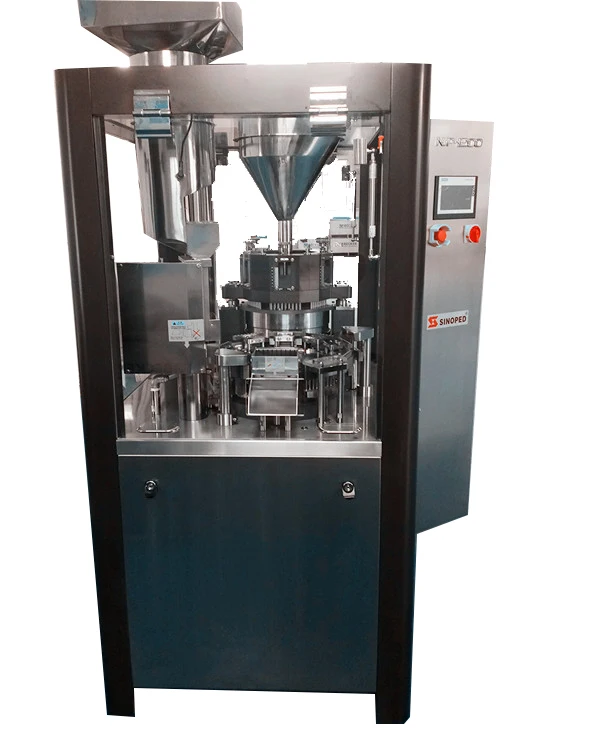

The capsule filling machine is an intermittent motion and hole plate type filling fully automatic capsule filling equipment. It
adopts optimization design combined the characteristics of Chinese medicine and requirements of compact mechanism, small volume, lower noise, precision filling dosage, multi-function, running stably etc. It can finish the

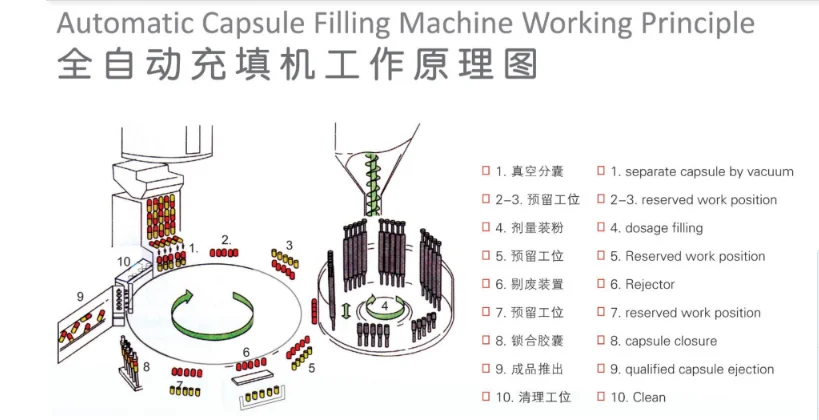

following motion at same time: capsule feeding, capsule separating, powder filling, capsule rejecting, capsule locking, finished capsule discharge and module cleaning etc. This machine is designed for meet the volume-produce on the basis of model NJP-1200.Capsule filling machine for Antiviral drugs medicine in Thailand automatic capsule filling machine, it increase the lifting mechanism that easy to clean, it saves the cost and manpower for the
enterprise that need volume-produce.


1. It has been improved the inner design turret, and imports beeline bearings for each machine from Japan directly, so that it can be sure a longer usage-life and precision of machine.
2. The working station cam runs under the good lubricating condition, and maintains the inner lubrication of cam slot to a full extent, increasing the pressure pulverization oil pump, thus extends the operation life of the spare parts.
3. Single movement for both upper and lower segments with two-lip seal provide a much better sealing performance.
4. It is controlled by the computer, has a stepless timing with the frequency-conversion, the numberal showing makes an easy operation and clear appearance.
5. The multi-bore dosing brings a precision dosage (it is controlled around ±3.5%); The capsule qualified rate is higher than 99%. It can be filled with the Chinese traditional medicine and the Western medicine.
6. It has a protector equipment for the operator and the machine, it has an automatic pause equipment when it is lack for the material, It has steady and safe working, it is the best choice for the hard capsule made factories

Technical parameters | ||
NJPmodel | NJP800 | |
capacity | 800bpm | |
Capsule size | capsule size ##00-#5 and safety capsule A-E | |
total power | 4.9kw | |
water supply | 500L/H,0.2-0.1Mpa | |
dust collector | 160m3/h | |
Supply Power | 380V/220V 50Hz | |
No. Of the hole | 2 | |
Accuracy | + 1% Depending upon the consistency | |
Main machine dimension | 930*790*1930mm | |
weight | 800kg | |
There will no further notification if the appearance or parameters of our products are modified. Thanks.



Sino Pharmaceutical Equipment Development (Liaoyang) Co., Ltd. (SINOPED) is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China. We belong to SINOPEC International Group.
We have a well-experienced team to manufacture pharmaceutical machinery and equipments and a professional design institute. With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipments including clean room project, soft-gel production line, glass-lined reactor, fermentor, centrifuge, granulator, mixer, dryers, pulverizer, tablet press, soft and hard blister packing machine, capsule filling machines, cartoner and rollers, etc.
Due to our good credit and service, , we have made great achievements in the past years. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas
In SINOPED you can get your desired goods with the best prices and good quality. Welcome your enquiries from all over the world.




One-year warranty period for whole machine except of tubes and human factors etc, and 12-month of after-sale service from the date when you receive machine or 12 months when installation finished;
Consultant services for whole machine life, and 24 hours technical support by email;
UPS, English software, user manual and the installation & debugging by our experienced technicians.
1. Can your machine meet our need well?
We will supply you a proposal as to your specific requirement, and each machine is customized to satisfy customer’s need well.
2. Are you a factory or a trading company?
We are the manufacturer, and have been in industry for more than ten years.
3. What's your payment way?
T/T by our bank account directly, or by Alibaba’s trade assurance service, or by the West Union, or in cash.
4. How can you ensure the machine’s quality after we put the order?
Before the delivery, we will send you machine’s pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
5. We are afraid you won't deliver us the machine after we pay you the money.
Please note our above business license and certificates. And if you don't trust us, you can use Alibaba’s trade assurance service or by LC.
6. Why choose your company?
We have been engaged in the manufacturing of various packing machines professionally over 10 years, and we can provide better after-sales service.
