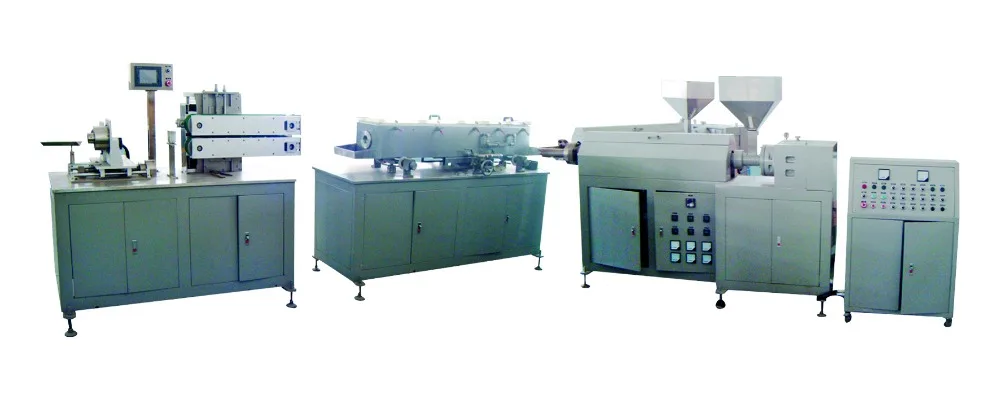

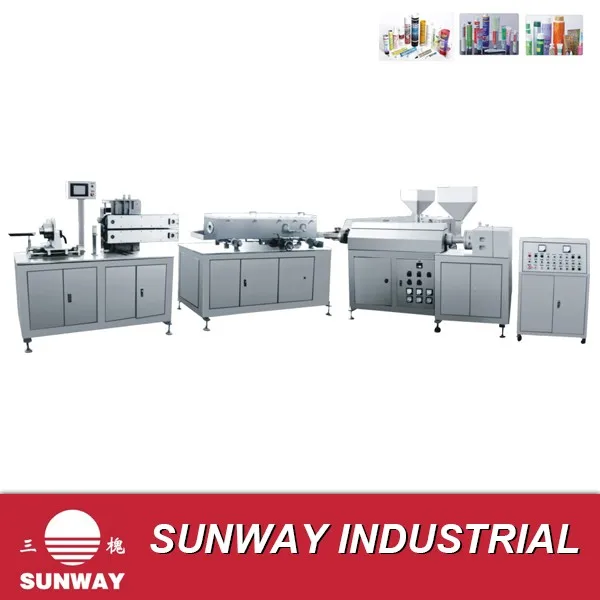

High Quality Tube Extruder Machine

Share on (60763252650):


Price:$34,000.00

Quantity:


Product Overview

Description


Product Description
Product Description

Product details

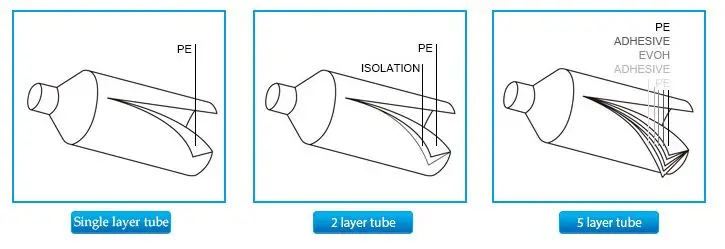

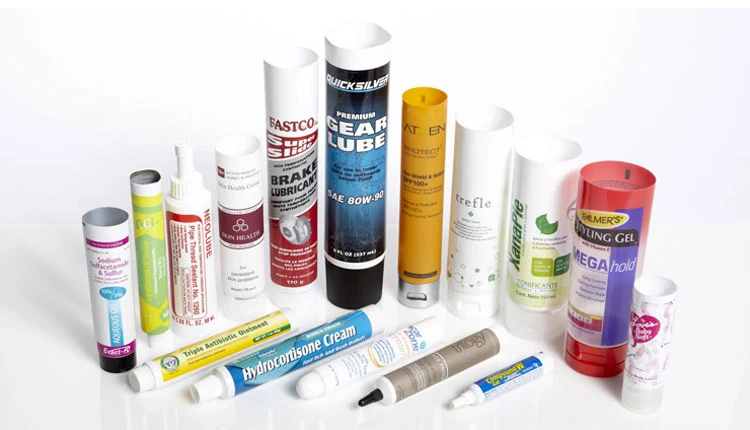

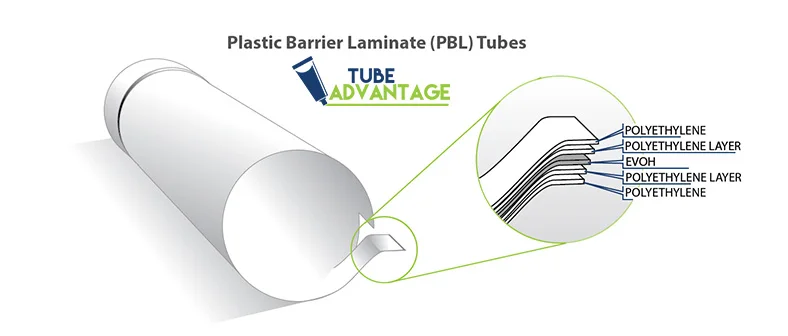

1.The two-layer co-extruded tubes can save material costs(use example:pearl+PE/PE color master batch)

2.According to different materials,two kinds of temperatures can be individually controlled. With convenient operation, the best material fluidity and solubility can be achieved.

3.The co-extruded tubes made by the two-layer machine is more glossy than the single-layer tubes.

Main Technical Parameters
Screw diameter(Inner layer)
ø40mm, 15HP
Screw diameter(Outer layer)
ø40mm, 10HP
Screw length-diameter ratio(Inner layer)
32/1
Screw length-diameter ratio(Outer layer)
32/1
Screw type
Full flight
Water consumption
40L/min,5-10°C
Power consumotion
66kw
Extrusion linear speed
8m/min
Cutting speed
100pcs/min
Applicable diameter
ø19-60mm
Mechanical dimensions
6500x4000x2100mm
Weight
3240kg
Company information

Established in 1984, the main products of Nantong Sunway Machinery Manufacturing Co.,LTD cover laminated tube making line, PE Extrusion tube making line, toothpaste & cosmetic cream-like production and packing equipment, homogenizing mixer, tube filling & sealing machines, conveyors and so on. We are sure that our high quality products and excellent service will attract more and more customers' appreciation. Contacting us is the first step to build up a successful business relationship with us. If you are interested in any of our products, please feel free to contact us directly for more information. We look forward to cooperating with you for the mutual in the near future.


Packing & Delivery
Packing & Delivery

Packaging Details:Wooden case
Delivery Time:45 working days


Certifications
Certifications

Related Products
Related Products

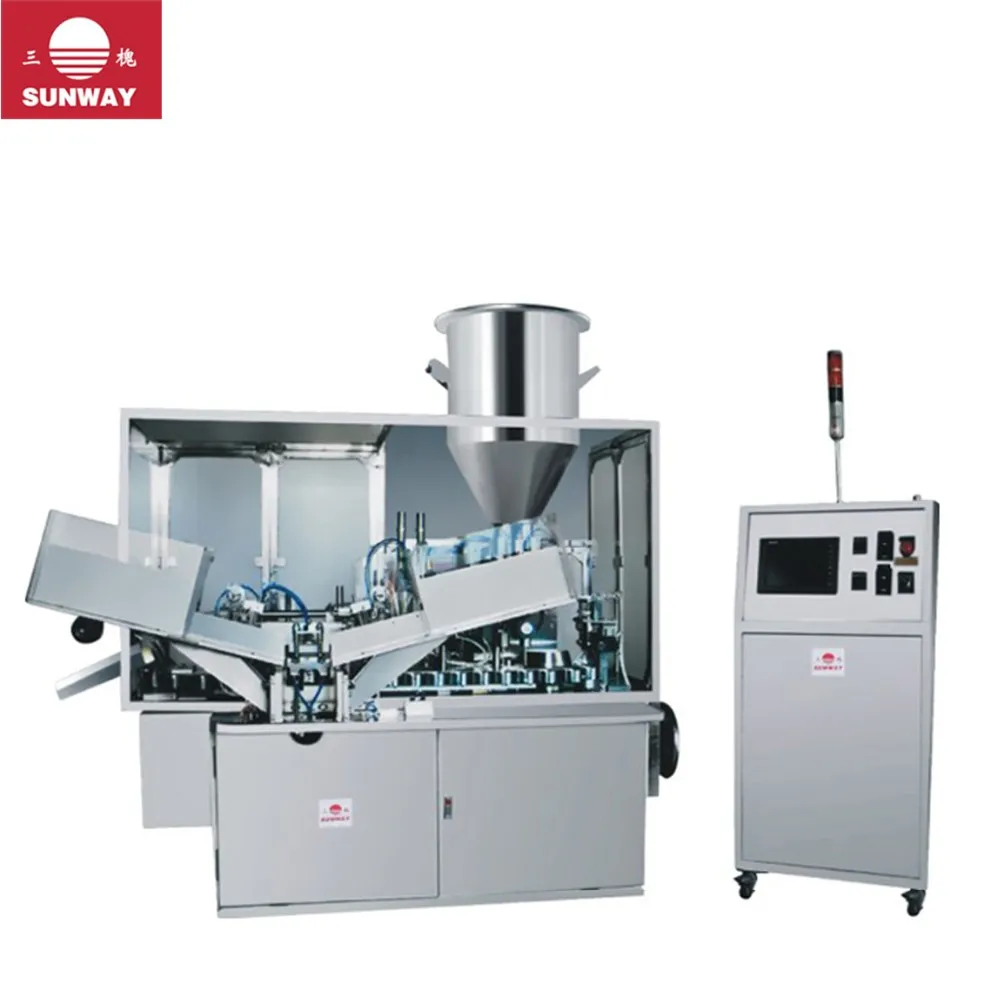

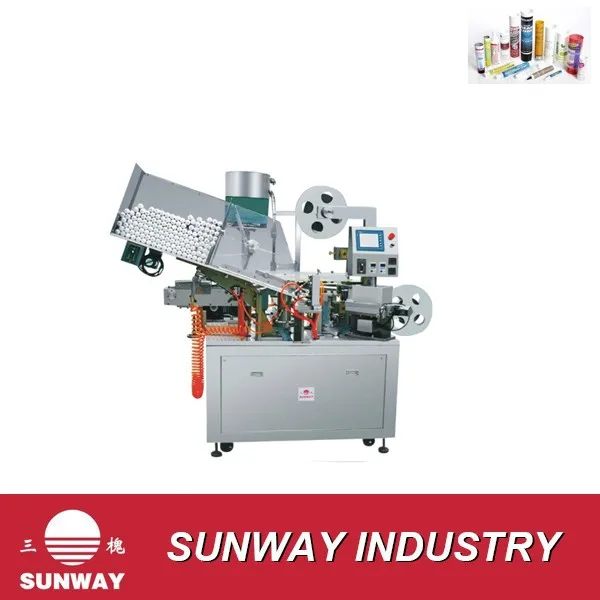

Automatic Tube Filling and Sealing machine

91.8% Response Rate

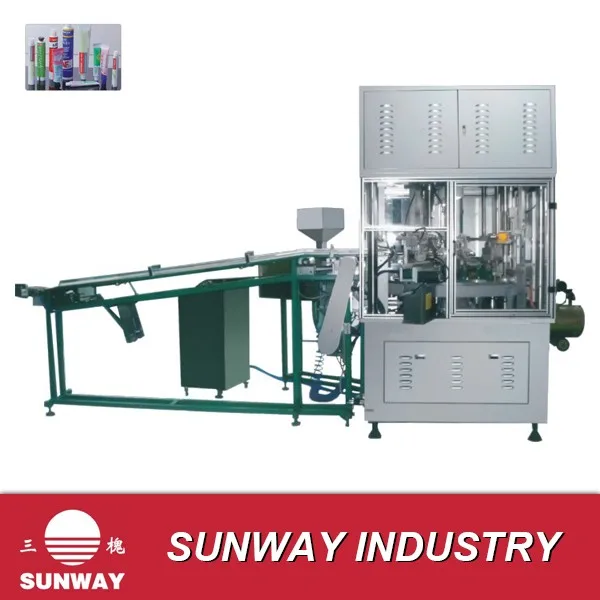

Plastic Tube drilling and capping machine

91.8% Response Rate

Automatic tube shoulder injection machine

91.8% Response Rate


Our Service
Our Service

1. After-sale-service
2. Engineer will go to customer factory to install and test machines
3. Help customer change the semi-automatic line to be automatic line
4. Design the machines connection according with the area of factory

5. Help to train the worker to let them can produce qualified tube
