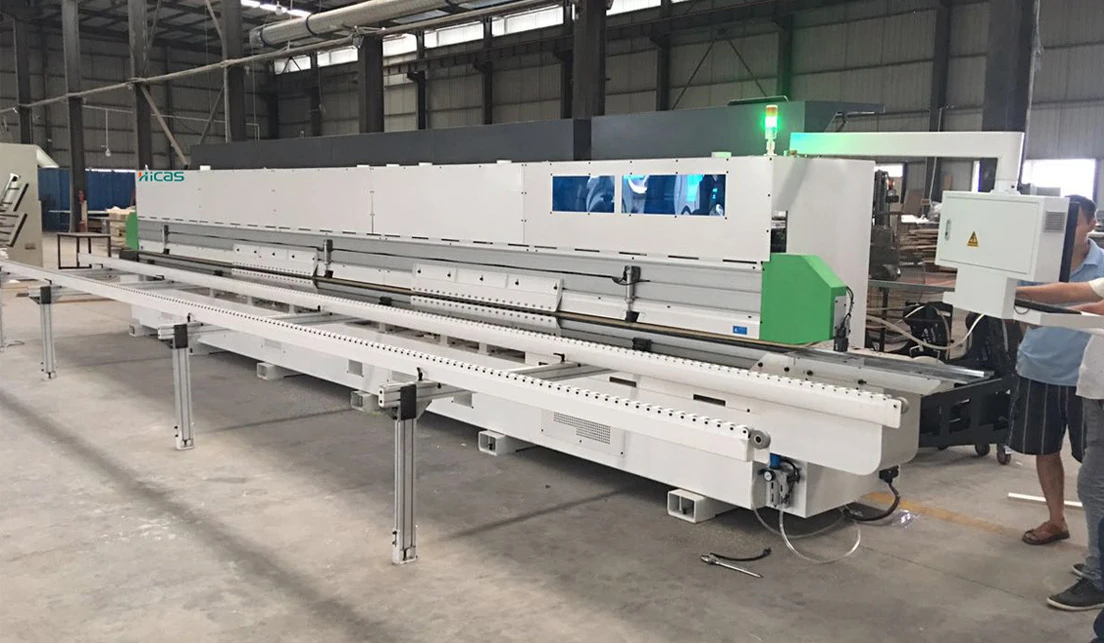

Pvc Automatic Edge Banding Machine With Pre Milling
- Category: Wood Based Panels Machinery >>>
- Supplier: Qingdao High-Class Service Import & Export Co. Ltd.
Share on (60763464347):
Product Overview
Description
Product Description
Applicable products:
Solid wood panels, fiberboard, particle board, MDF, other panels furniture edge. PVC, polyester, mealine and wood material for edge mainly.
Product Paramenter
Name | Edge Banding Machine |
Model | HC468J |
Motor | 16kw |
Machine size | 7500*760*1600mm |
Working speed | 0-23m/min |
Edge band width | 10-65mm |
Edge band thickness | 0.4-3mm |
Panel thickness | 9-60mm |
Panel width | ≥60mm |
Working pressure | 0.7mpa |
Voltage | 415V 50HZ 3PHASE |

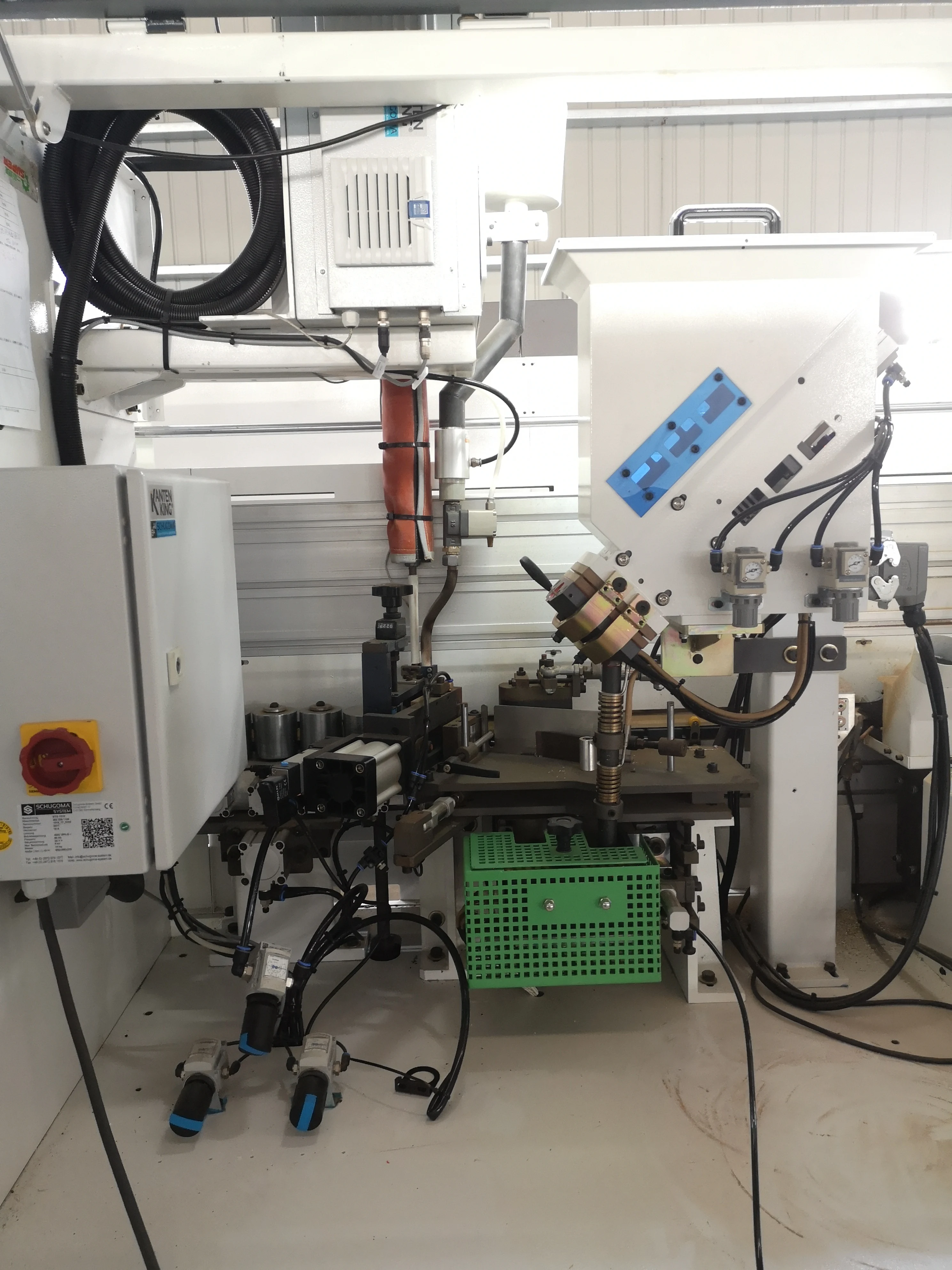

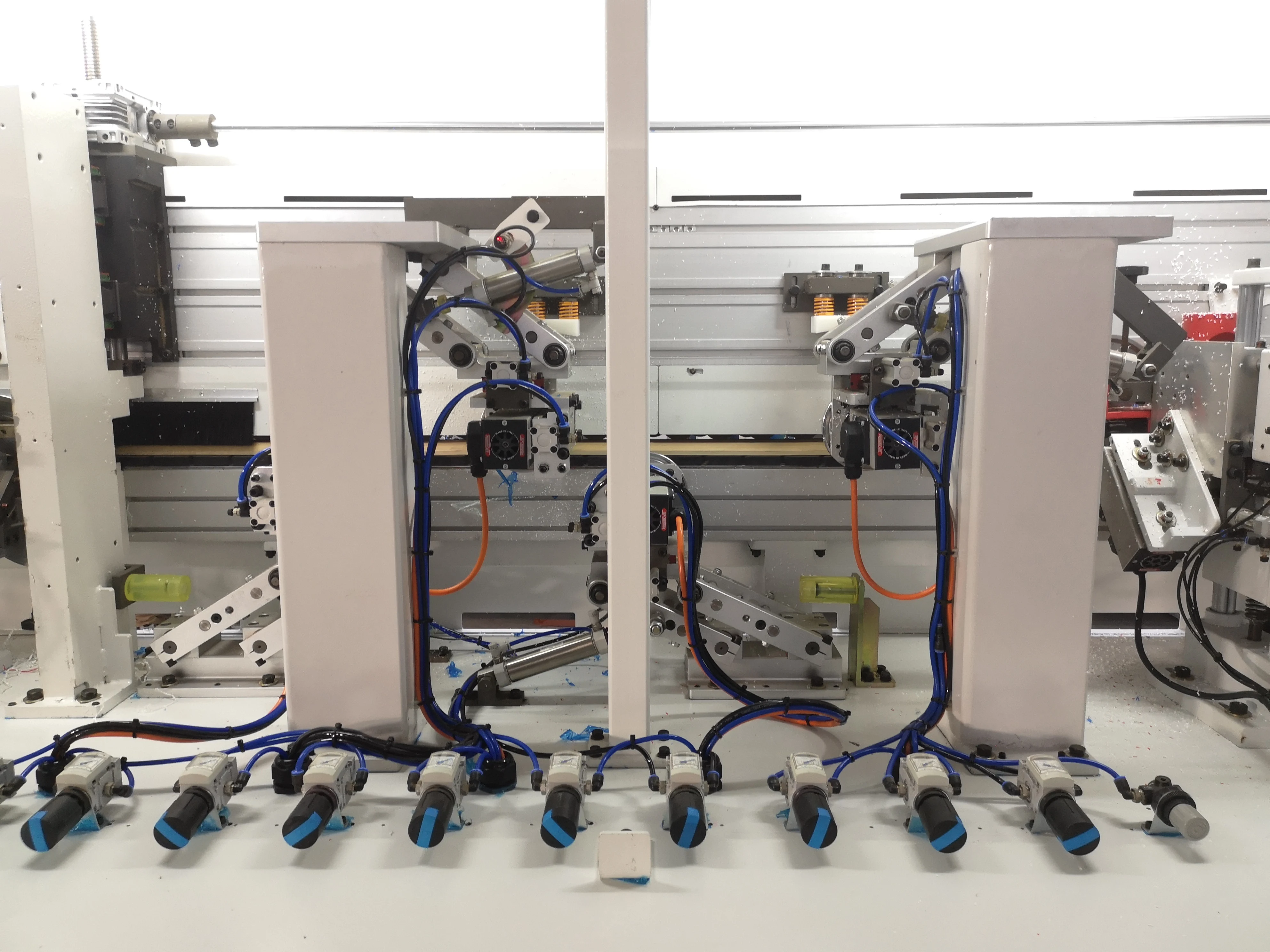

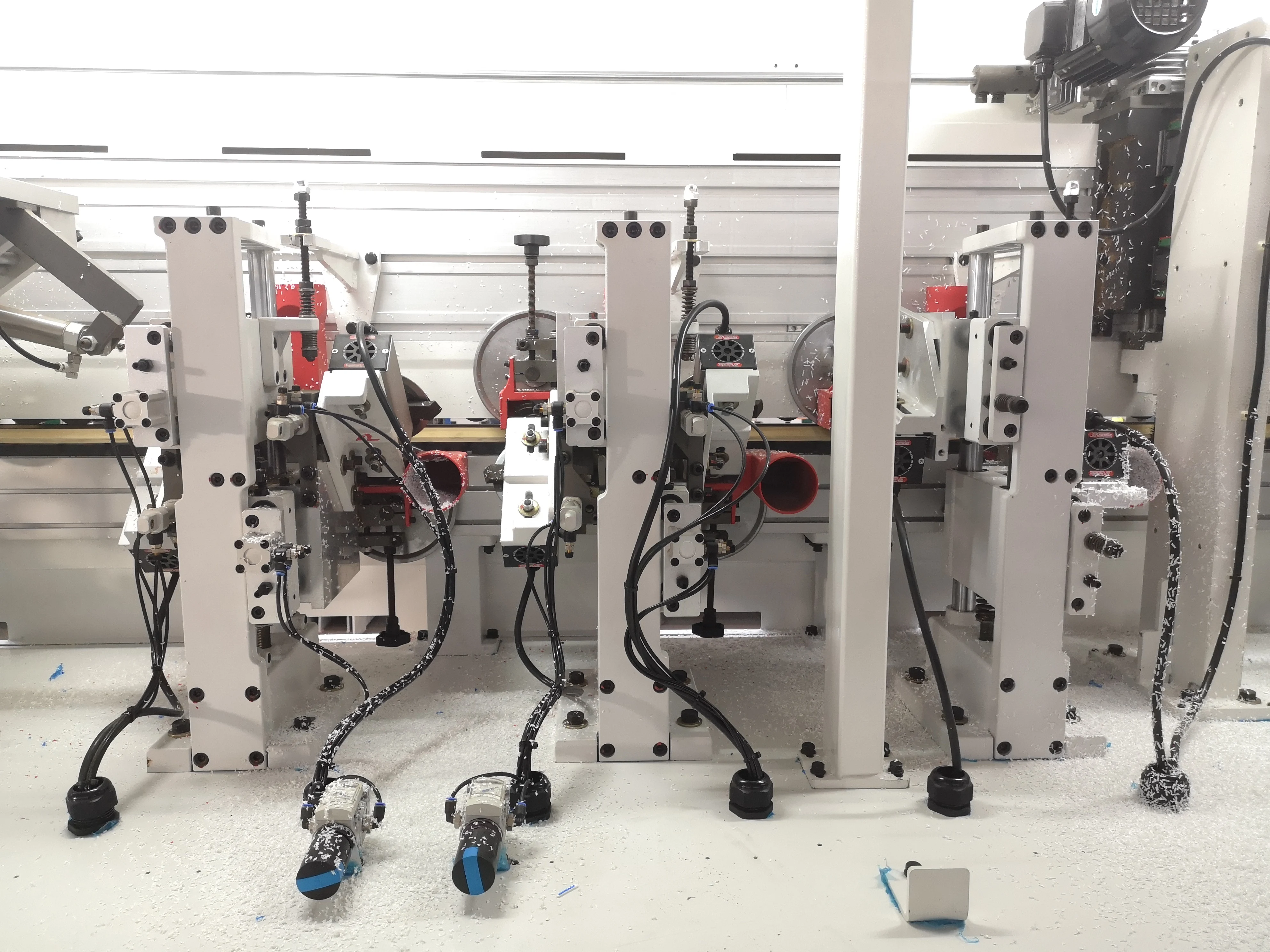

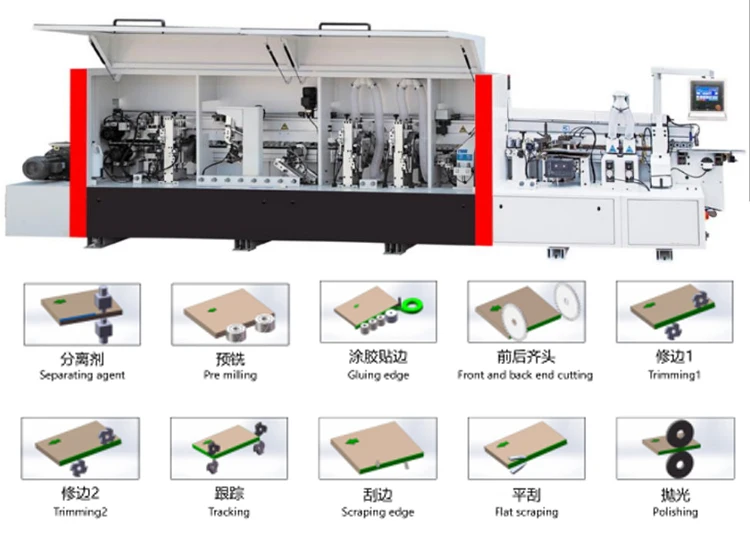

Details Images
Spray Unit
Isolate the glue on the surface of the panel in up and
bottom side
Pre-milling
Remove the possible waving texture on edge to achieve better edge banding affection
Gluing and Pressing
Spread the glue on both banding panel and band, ensure a more solid adhesion force
End cutting
High precision trimming with hardened linear guide
Trimming
Fine trimming of the top and bottom edges. Complete with 2 high-frequency motors
Corner Rounding
Two heads corner rounding: high precision guaranteed perfect look and touch
Scraping
Scraping eliminates the imperfections resulting from previous machining operations on the top and bottom of the edge
Flat Scraping
Removes excess glue from the top and bottom of the panel
Polishing
The buffing device adopts cotton material polishing wheel to sand the finished edge band more smoothly
Touch Screen(DELTA)
High performance control with simply operation

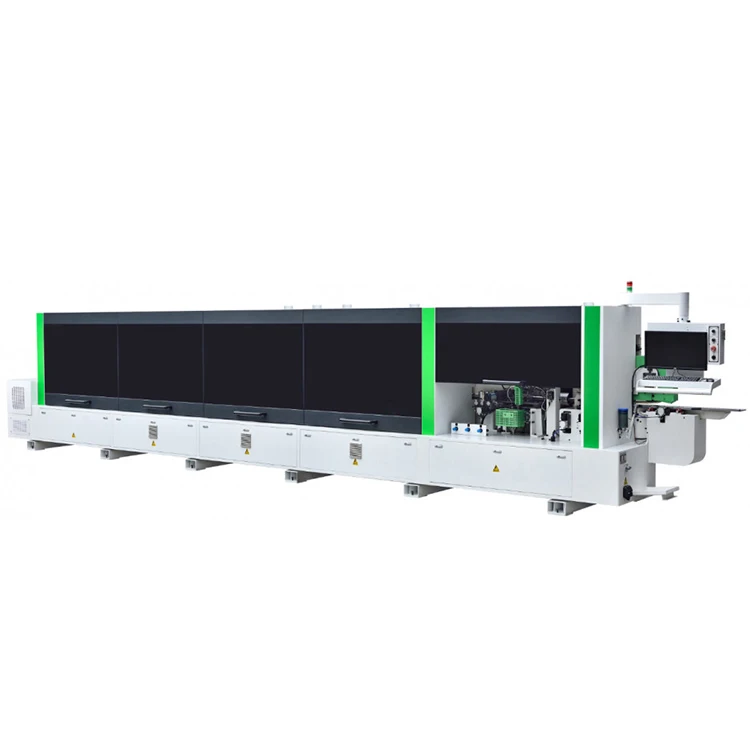

Final Product
Company Profile
Our Company：
HICAS group is one leading manufacturing and exporting company of wood working machine in China. We are committed to provide one-stop service to our customers all over the world.
HICAS was established in 2003 with two manufacturing centers in Foshan and Qingdao, covering about 40,000 square meter.
1.Founded in 2003.
2.Owns 2 factories manufacturing nailess plywood box machine, wood pallet machine,wood crate machine, nailless plywood box.
3.Owns 70% Market Share(Nailless plywood box machine) in China.
4.Expertized in R&D, Manufacturing, Marketing,Training, and Service.
5.Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training.
6.Supply Technical Solution base on Cost Analysis and Optimal Allocation.
HICAS was established in 2003 with two manufacturing centers in Foshan and Qingdao, covering about 40,000 square meter.
1.Founded in 2003.
2.Owns 2 factories manufacturing nailess plywood box machine, wood pallet machine,wood crate machine, nailless plywood box.
3.Owns 70% Market Share(Nailless plywood box machine) in China.
4.Expertized in R&D, Manufacturing, Marketing,Training, and Service.
5.Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training.
6.Supply Technical Solution base on Cost Analysis and Optimal Allocation.
7.Customer and feedback
Product packaging
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. Do you offer installation?
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
5. Do you have any machines in our country?
6. Can you customized the machine?
Our machines can be customized made according to buyers’ request.
7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.
8. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian, Spanish, French, German
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request. all cost in buyer’s account (the machine quotation does not include this cost), including all transportation cost between China and buyer factory (two way), visa and Insurance cost, hotel and eating in buyer country is responsible by buyer, extra labor salary USD200/day.
2. Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
5. Do you have any machines in our country?
Our machines have been sold to more than 20 countries all over the world, like Russia, Singapore, Uzbekistan, The USA,Malaysia,Peru, Colombia, Vietnam, Slovakia, etc.
6. Can you customized the machine?
Our machines can be customized made according to buyers’ request.
7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.
8. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian, Spanish, French, German
