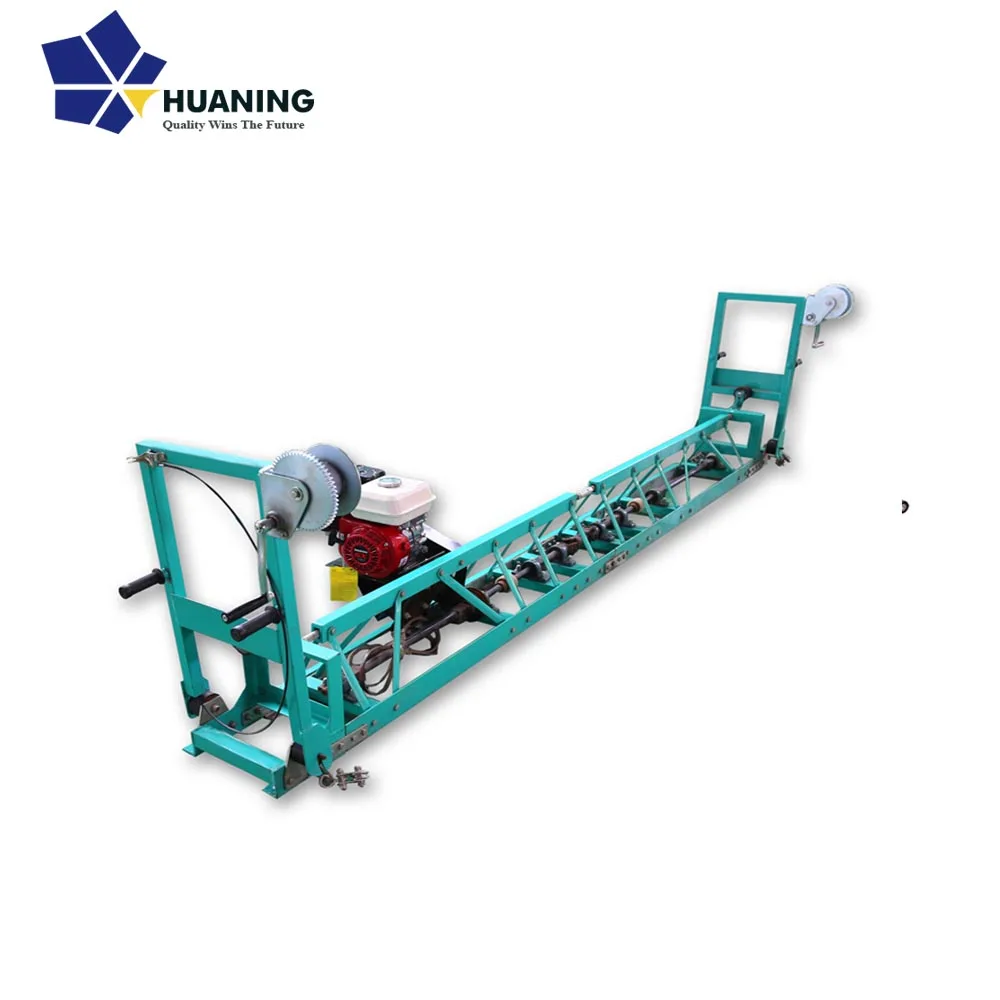

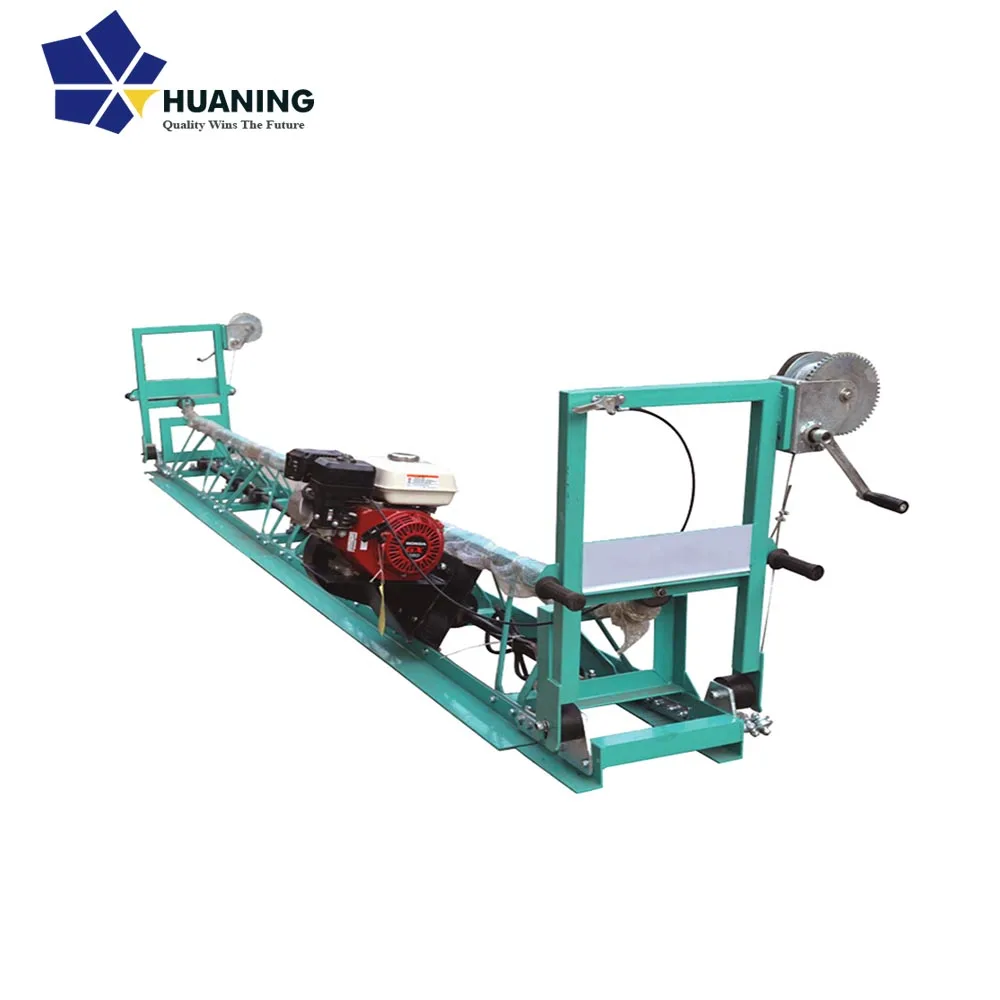

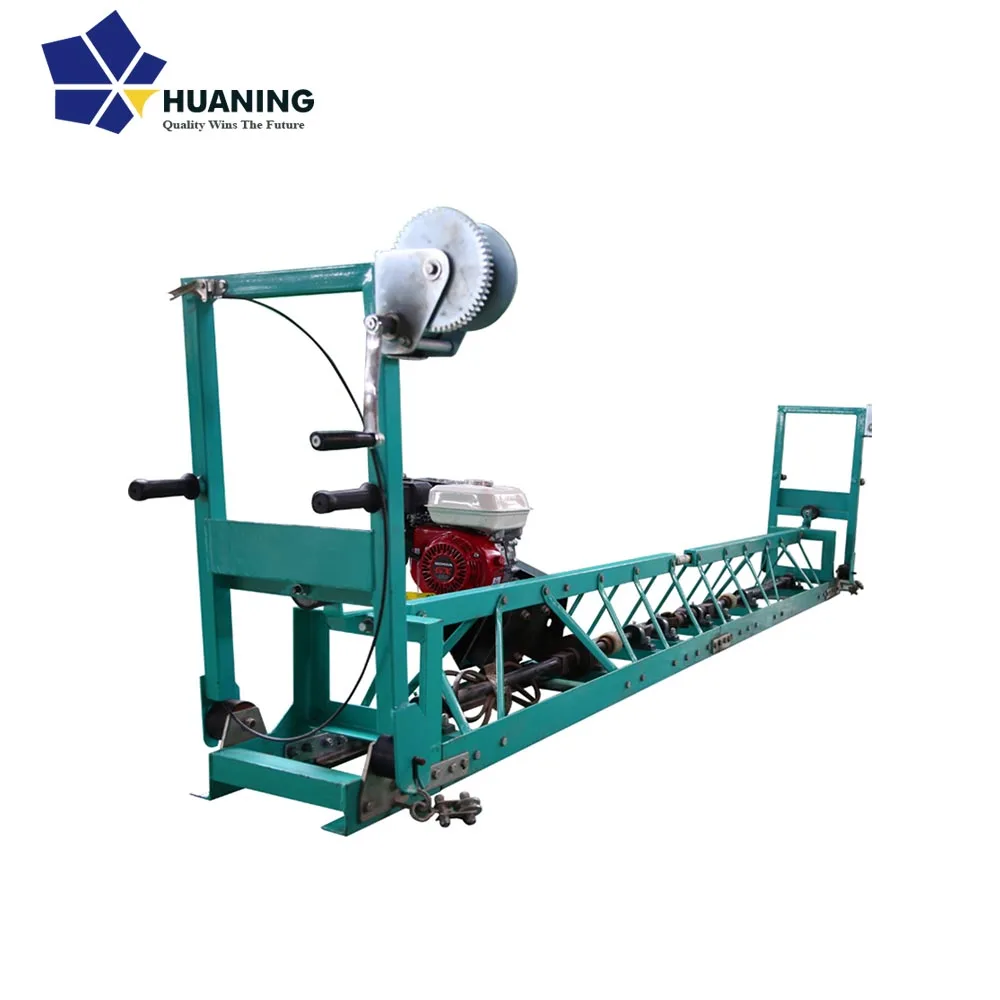

3 6m Concrete Truss Screed Land floor Leveling Machine 5.5hp Optional Color

Product Overview

Description

Within the effective length, vibration concrete compaction, pulp extraction, scraping and leveling of various concrete ground projects such as roads, bridges, squares, and factories can be completed at once.

Features

1. Assembled with the Honda four-stroke gasoline engine, with the automatic centrifugal clutch, the engine starts without load.

2. Compared with the traditional construction equipment, it has higher construction efficiency and connection flatness, greatly improves the integrity of the concrete floor, has higher strength, and can withstand greater compliance.

3. The high-strength steel truss structure and the sprayed steel scraper will not be hard deformed due to vibration and have a longer service life.

4. Provide three kinds of length standard unit sections 0.25 meters, 1 meters, 2 meters, the leveling span freely combined according to need, installation and removal fast and flexible.

5. Maximum leveling thickness up to 250mm (slump in 8-12), longest leveling span of up to 16 meters. After the whole machine is accurately adjusted, the error in the entire plane can be minimized.

6. Hand-operated winch can easily control the running of the whole machine, saves labor and can evenly control the working speed. Under normal circumstances 3-4m/min. That is to say 30-60m2/min.



Model	SCL-55	SCL-90	SCL-130
Engine type	Honda GX160	Honda GX270	Honda GX390
Engine	Gasoline	Gasoline	Gasoline
Power	5.5hp	9hp	13hp
Length	3-6m	6-10m	10-16m
2m combination section	405x2000mm
1m combination section	405x1000mm
0.5m combination section	405x250mm
Exciting force	11KN
Weight	40kg/meter
Arch angle	15°
Height	45cm
Width	40cm
