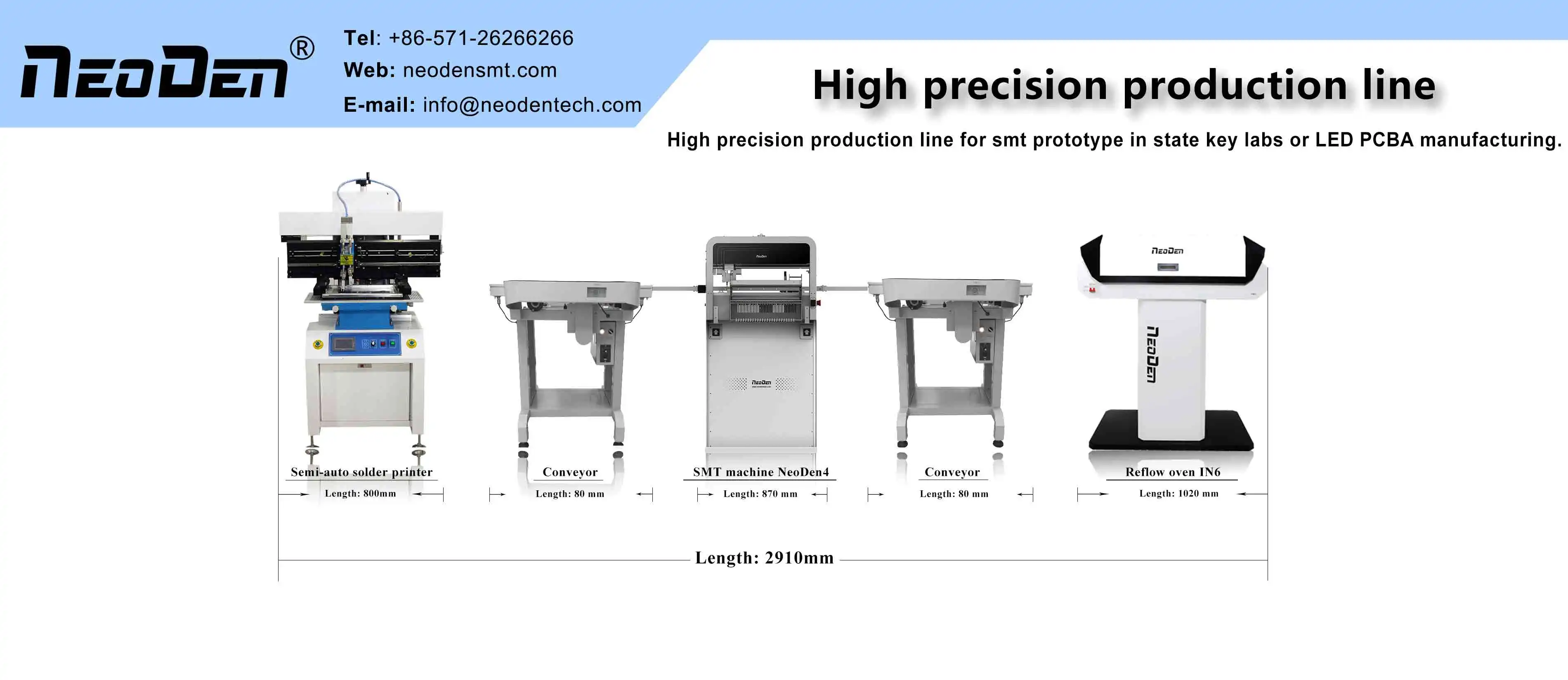

pcb assembly line: semi auto solder paste printer YS600, neoden4 pick and place machine, smt conveyor J08, reflow ovenT5L
- Category: Electronic Products Machinery >>>
- Supplier: Hangzhou Neoden Technology Co. Ltd.
Share on (60763907426):
Product Overview
Description
Item Description

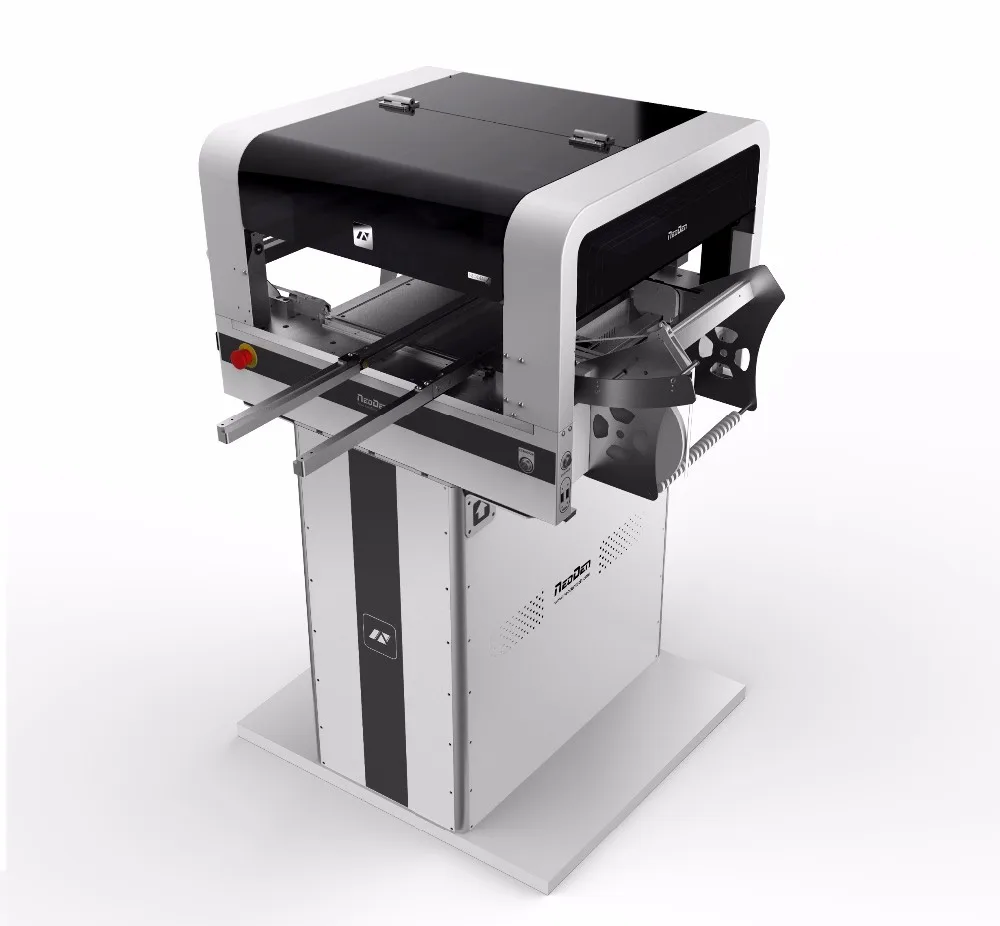

NeoDen4 is a flexible pick and place machine for all types of production
With placement rates of 10,000 cph, up to 48 feeder slots, auto rails and electronic feeders, users can move from prototype into production on the same machine, saving programming and job setup time.
It is a compact placing machine that offers the flexibility (component flexibility, PCB flexibility and production flexibility) and speed to meet the demands of an ever-changing market.
Application industry: household appliances industry, auto electronics industry, power industry, LED industry, security, instruments and meters industry, communication industry, intelligent control industry, internet industry of things and
military industry, etc..
With placement rates of 10,000 cph, up to 48 feeder slots, auto rails and electronic feeders, users can move from prototype into production on the same machine, saving programming and job setup time.
It is a compact placing machine that offers the flexibility (component flexibility, PCB flexibility and production flexibility) and speed to meet the demands of an ever-changing market.
Application industry: household appliances industry, auto electronics industry, power industry, LED industry, security, instruments and meters industry, communication industry, intelligent control industry, internet industry of things and
military industry, etc..
Main features
Specification
Accessories
1 Vibration feeder *1
2 Nozzle *6
3 8G Flash Drive* 1
4 Power Cord(3m) *1
5 Rail extension parts *1
6 Double Sided Adhesive Tape *2
7 Allen wrench Set *5
8 Tool Box *1
9 Reel holder stand *1

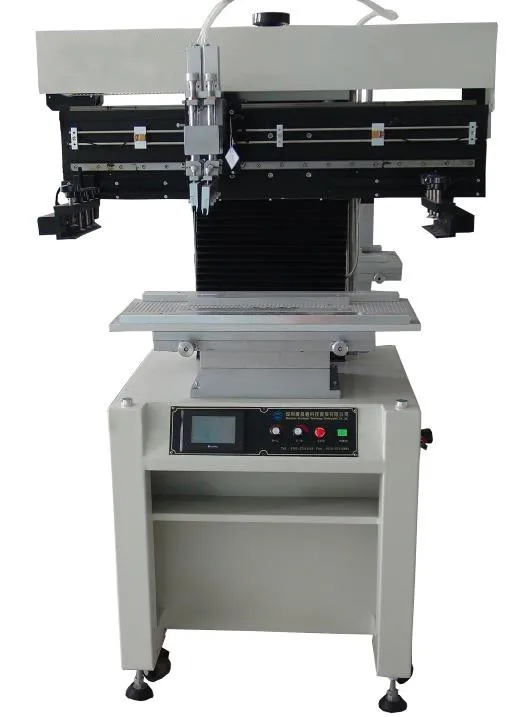

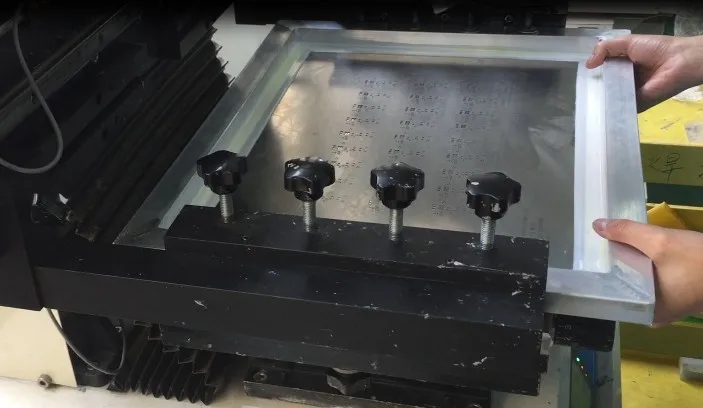

Semi-auto solder paste printer YS350
PCB size:Max: 400*240mm
Printing area: 500*320mm
PCB fixed system: Pin positioning
Frame size: L(550-650)*W(370-470)
Adjusting for table: front/rear±10mm,left/right±10mm
Printing Accuracy: ±0.2mm
Repeating Accuracy: ±0.2mm
PCB thickness: 0.2-2.0mm
Air source: 4-6kg/c㎡
Power supply: AC220V 50HZ
Dimension: L800*W700*H1700
Packing size: 1050*900*1850
Net weight: 230kg Gross weight: 280KG
PCB size:Max: 400*240mm
Printing area: 500*320mm
PCB fixed system: Pin positioning
Frame size: L(550-650)*W(370-470)
Adjusting for table: front/rear±10mm,left/right±10mm
Printing Accuracy: ±0.2mm
Repeating Accuracy: ±0.2mm
PCB thickness: 0.2-2.0mm
Air source: 4-6kg/c㎡
Power supply: AC220V 50HZ
Dimension: L800*W700*H1700
Packing size: 1050*900*1850
Net weight: 230kg Gross weight: 280KG

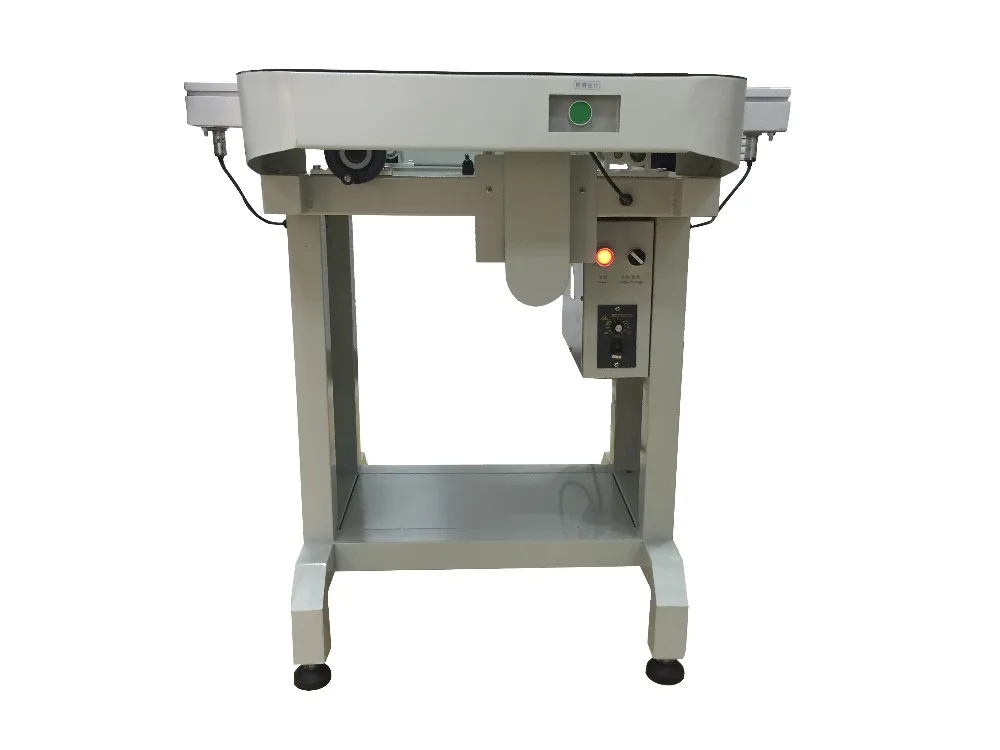

SMT conveyor J08
Conveyor Length:0.8m
Gross Weight:49KGs
Packing Size:87*72*24cm
Power Supply:220V

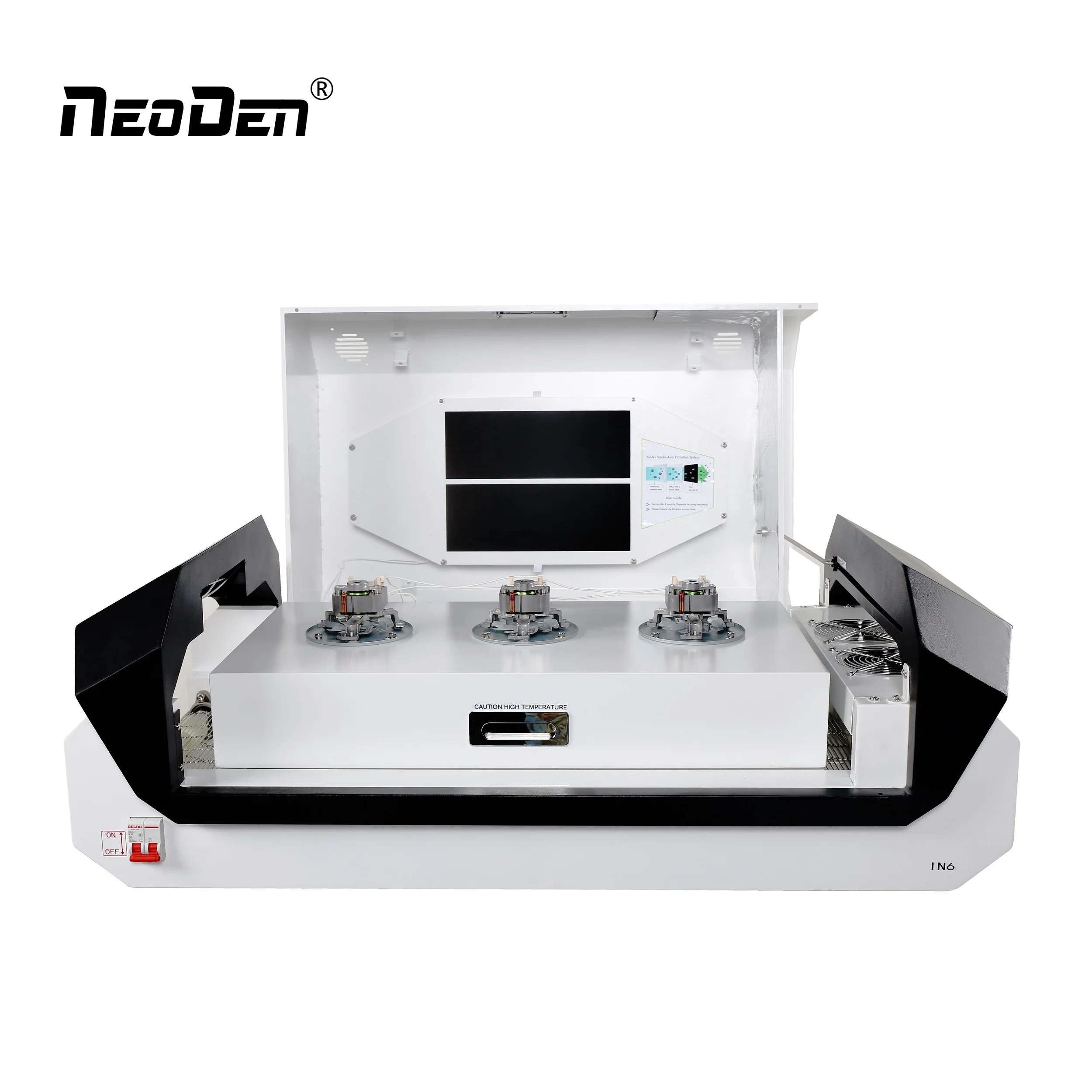

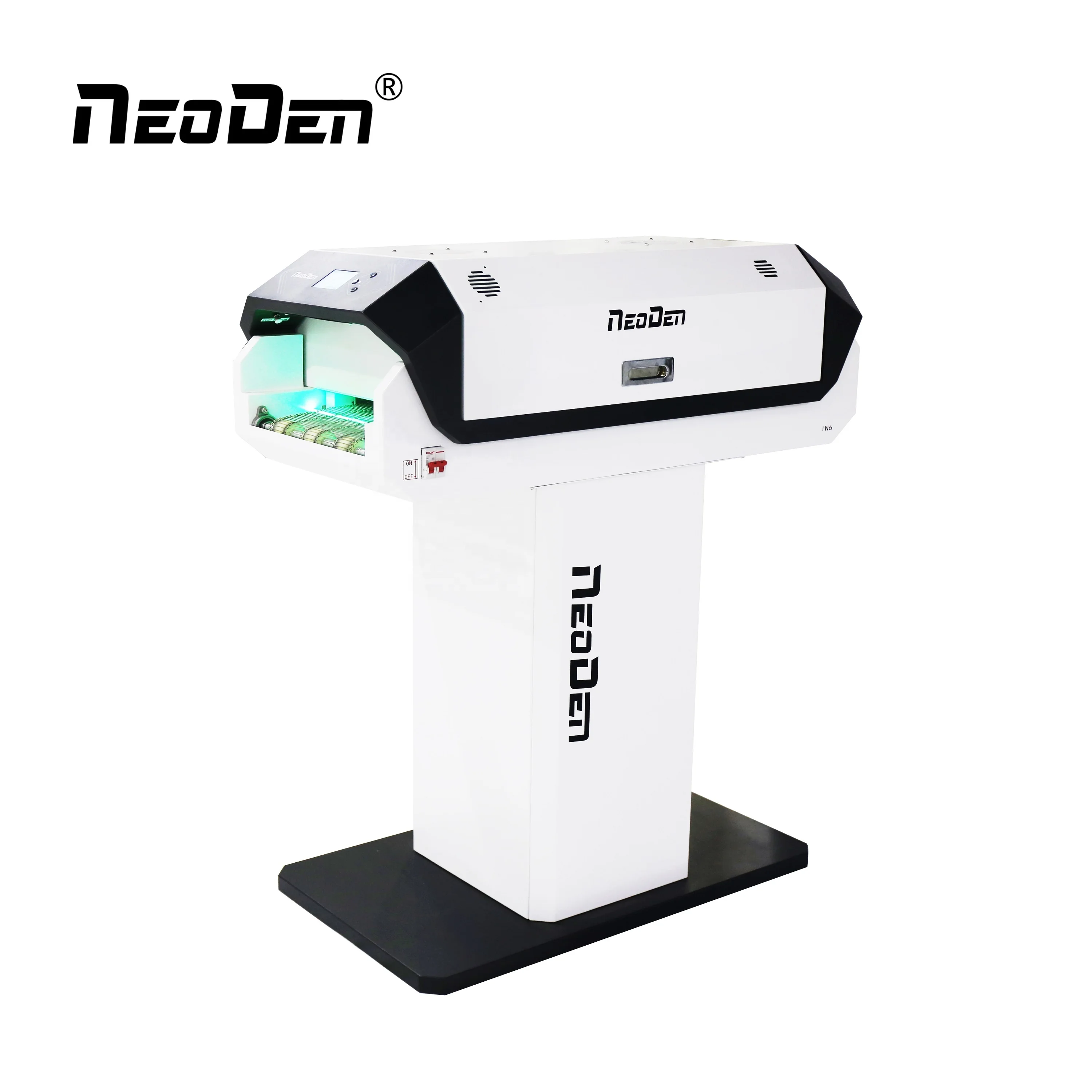

Item | Neoden IN6 | ||||
Heating zone quantity | upper3/down3 | ||||
Cooling zone quantity | 1 | ||||
Conveyor speed | 15 - 60 cm/min (6 – 23 inch/min) | ||||
Standard Max Height | 30mm | ||||
Operation direction | left→right | ||||
Temperature control range | Room temperature~300℃ | ||||
Temperature control accuracy | ±0.5℃ | ||||
Soldering width | 260 mm (10 inch) | ||||
Length process chambe | 680 mm (26.8 inch) | ||||
Heat-up time: approx. | 15 min. | ||||
Dimensions | 1020 x 507 x 350 mm (L x W x H) | ||||
Net weight | 49 Kgs | ||||

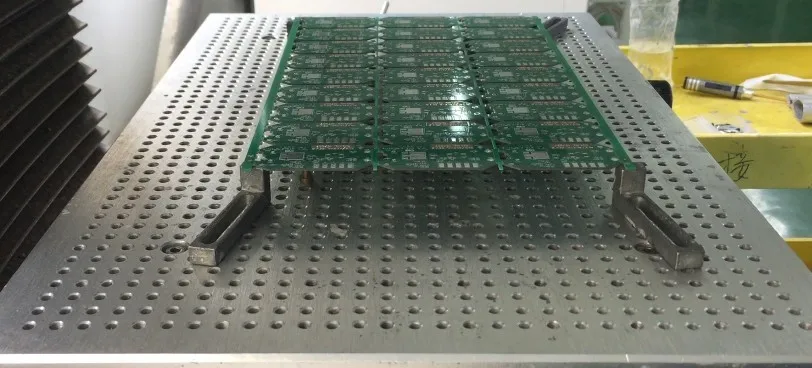

Placement effect
