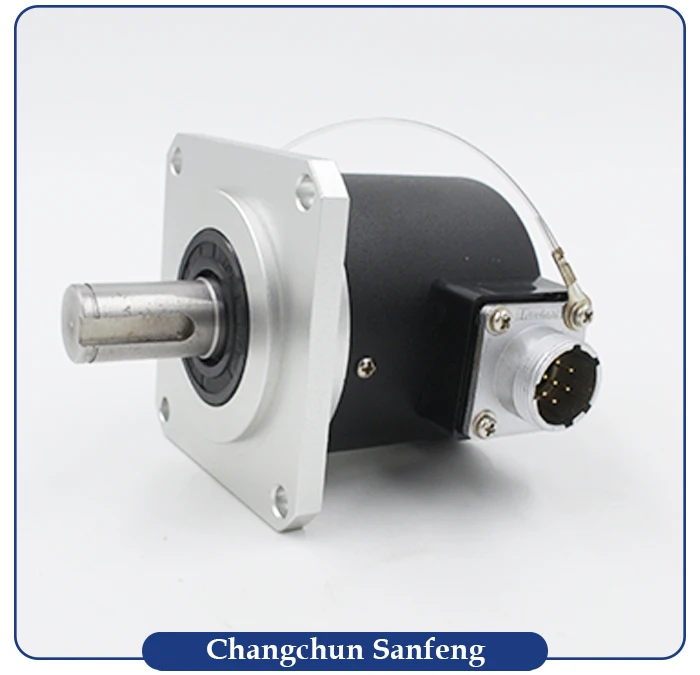

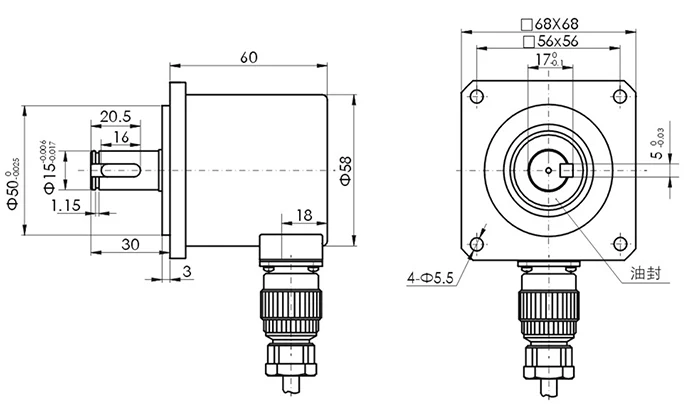

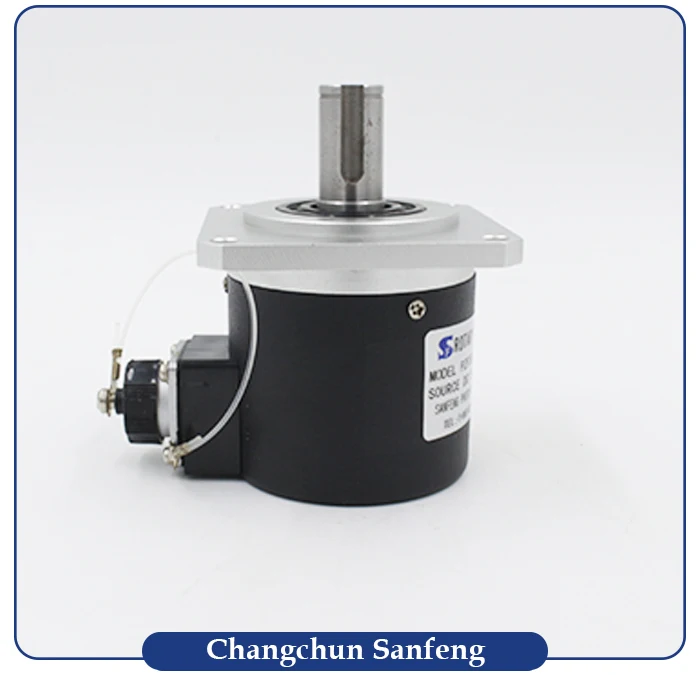

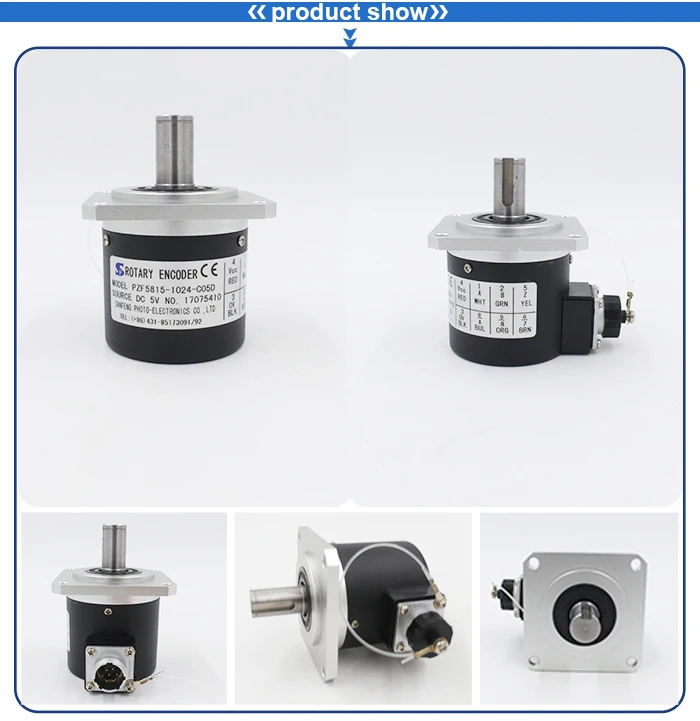

Sanfeng brand new waterproof position sensor highly recommend optical incremental rotary encoder

Resolution

500~8192P/R

Supply Voltage

DC5V / DC 10V~30V

V_H Output Voltage

≥Vcc*70%

V_L Output Voltage

≤0.5V

Current Consumption

≤150mA

Output Phase

A.B.Z

Frequency Response

100kHz Max

Rise / Fall Time

≤1μS / Driver ≤0.1μS

Starting Torque

5*10^-2N*m(+25℃)

Shaft Loading

Radial

50N

Axial

50N

Rotating Inertia

6.5*10^-6Kg*m²

Max Rotating Speed

6000r/min

Vibration Resistance

50m/s²(10~200Hz)2 Hours in XYZ Direction

Shock Resistance

980m/s²(3 Times in XYZ Direction)continue 6mS

Protection

IP54

Operation Temperature

-10℃~+70℃

Storage Temperature

-20℃~+80℃

Operating Humidity

30~85%RH

Weight(no cable)

0.62Kg

Accessories

SF/PF Coupling

Cable Color

Red

Black

White

Green

Yellow

Blue

Pink

Brown

Shield

Output Form

C/E/F

VCC

0V

A

B

Z

-

-

-

FG

P/L/D/H/M

VCC

0V

A

B

Z

A(_)

B(_)

Z(_)

FG

CX16K9P plug

1

7

3

4

5

-

-

-

10

CX16K9P plug

4

3

1

2

5

8

9

6

7

CX16K10P plug

4

6

1

2

3

7

8

9

10
