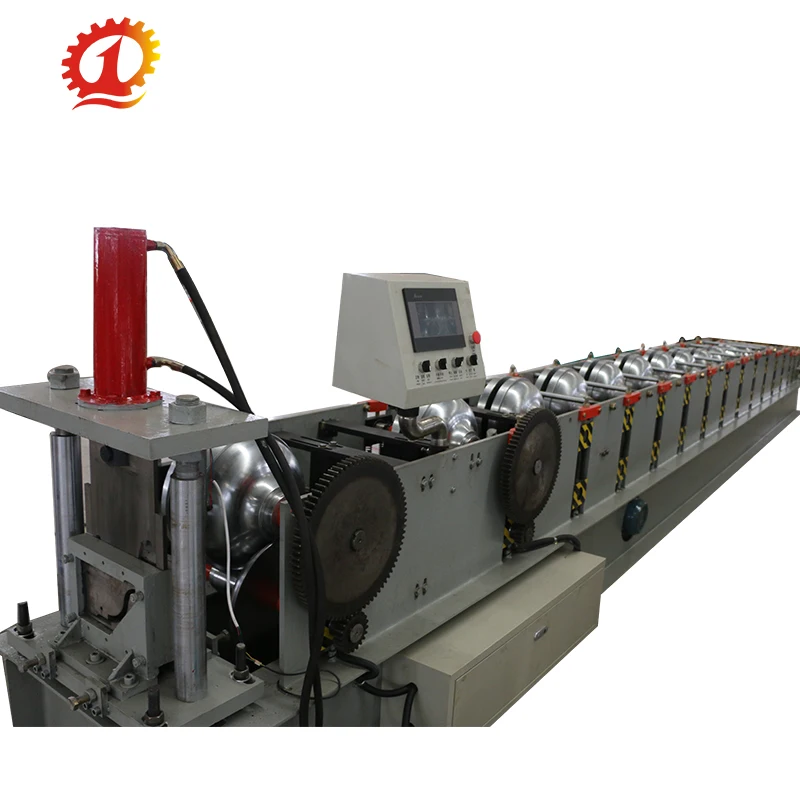

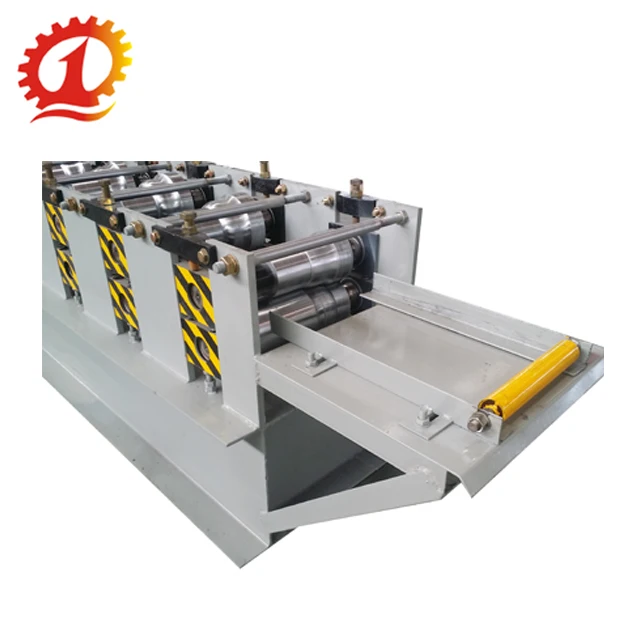

Aluminum water gutter forming machine

Name of Roll Forming Machine

Aluminum water gutter forming machine

1

Suitable raw material

PPGI/PPGL/GI/GL Steel Coils

2

Thickness of coil sheet

0.3-0.6mm

3

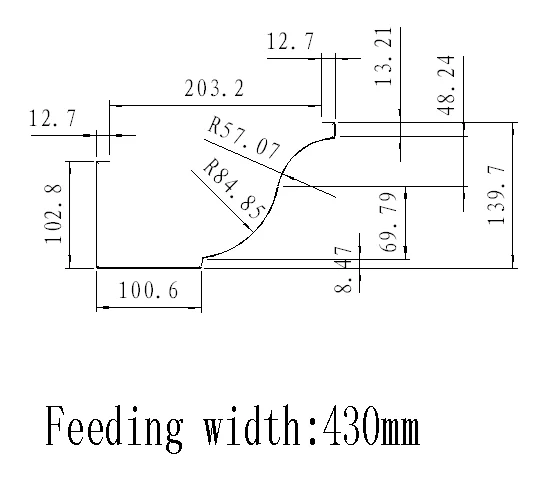

Feeding Coil width

430mm

4

Effective width

203.2mm

5

Under frame

400H-beam

6

Diameter of Soild shaft

70mm, high grade 45# steel,with keyway

7

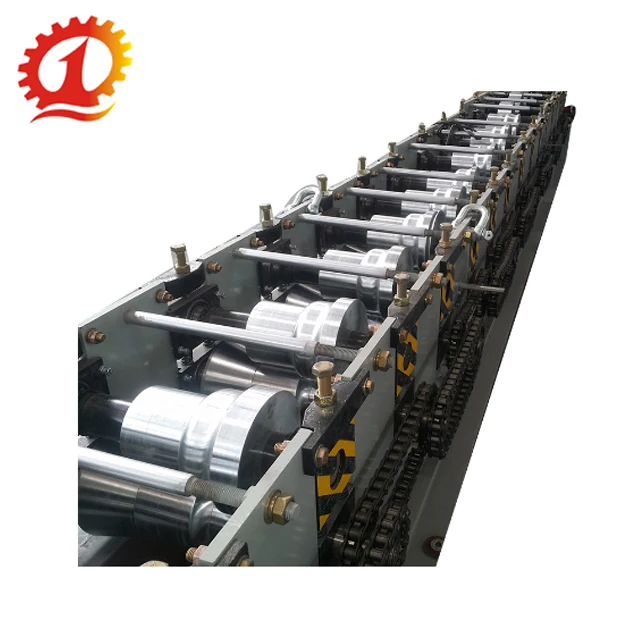

Roller

 45# steel hard chrome coated 0.05-0.07mm

8

Thickness of middle plate

18mm

9

Forming stations

16

10

Drive type

By chain(1.0 inch) link bearing model 6210

11

Power of main motor

3kw with Cycloidal reducer, Lichao, Shanghai

12

Power of pump station

3kw, Lichao, Shanghai

13

Forming speed

About 15-20m/min

14

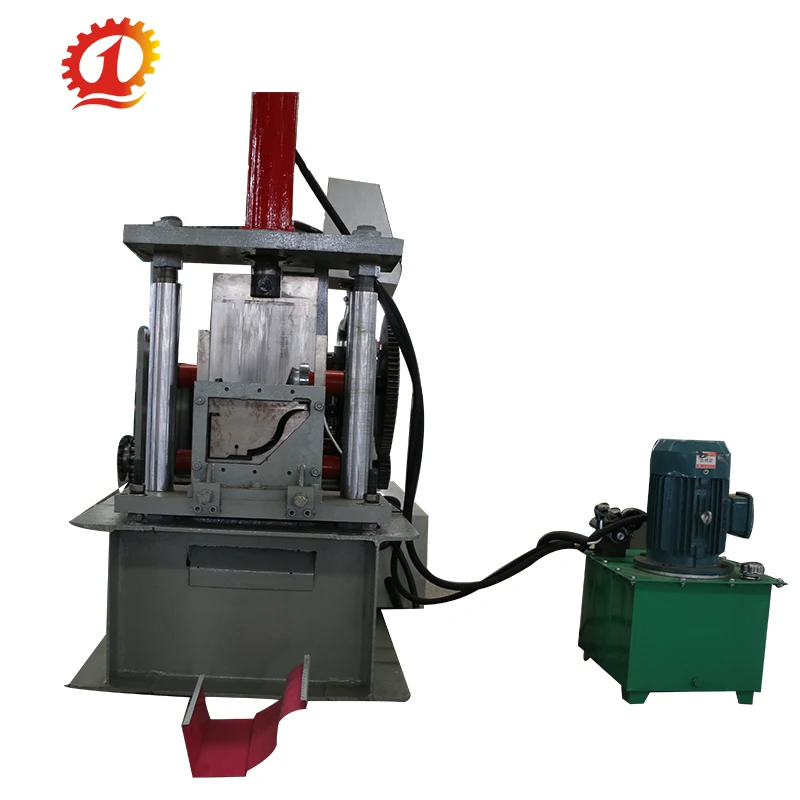

Hydraulic cutting

Controlled by PLC

15

PLC

DELTA, TAIWAN / Mitsubishi, Japan

16

Material of cutting blade

Cr12Mov, quenching 58-62℃
