Manufacturer 12V 24V 300W 600W 25A SZ100 single color synchronous sync led dimmer
- Category: >>>
- Supplier: Shenzhen Hoion Lighting Co. Limited
Share on (60767362484):
Product Overview
Description
Original Manufacturer SZ100 25A sync led dimmer 12-24V 3 years warranty CE, RoHS
We are manufacturer and specialized in led control field from 2010 years.
Our main products include:
Constant voltage controllers for DIM/CCT/RGB/RGBW/RGBWW:
RGB controller Wireless RF controller IR remote controller LED dimmer,
RGB amplifier SPI controller LED Audio Controller DMX512 decoder
Constant current RF dimming driver for DIM/CCT:
RF 2.4G SYNC dimming driver (DIM) RF 2.4G SYNC dimming driver(CCT)
RF 2.4G remote control RF 2.4G multiple-zone remote control
Our advantage:
1.Stable quality---3 years warranty
2.Reliable cooperation based on ISO9001 quality control system and delivery time control.
3.Experienced on the OEM/ODM work.

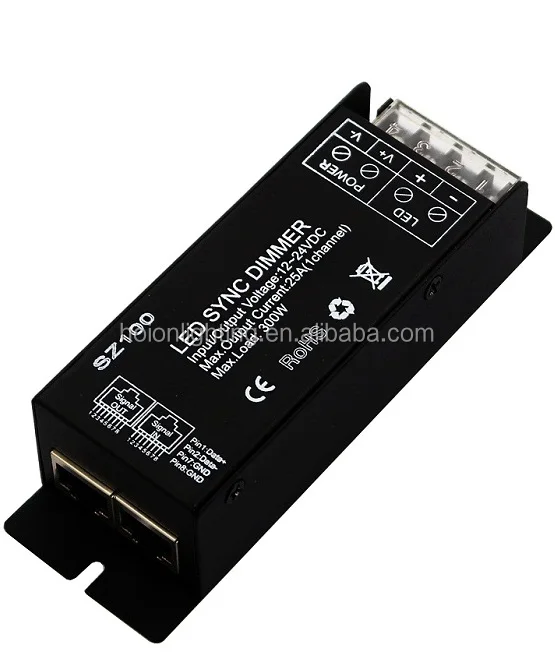

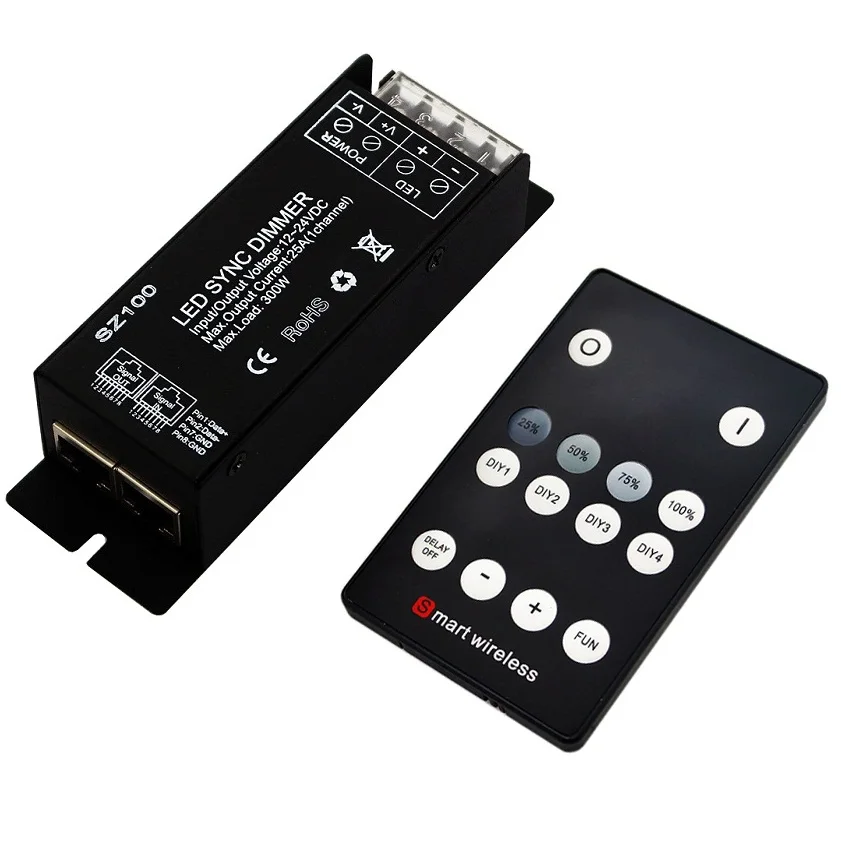

Product Description
HX-SZ100-SYNCDIM-14K ,adopt the most advanced PWM (Pulse Width Modulation) digital dimming technology, especially design for single color led strip. Adopt RF remote control, transmission Distance up to 20m,no need line-of-sight. 14 function buttons, intuitive panel allowing intelligent lighting with brilliant simplicity. Particularly, HX-SZ100-SYNCDIM series are designed with big power output as 25A (1CH)/300W in the Max. Further, it can be easily connected by RJ45 to achieve all units work synchronization.
Product Feature
l Adopt PWM technology, dimming from 0% to 100%, smooth and flicker-free.
l Adopt RF remote control, transmission Distance up to 20m,no need line-of-sight.
l High watt output design, up to 300W/CH.
l Easy connection to achieve multiple dimmers sync-work by RJ45 terminal.
l HX-SZ100-SYNCDIM series are designed with big power output as 25A (1CH)/300W in the Max.
l 2-year warranty
Technical Parameters
Working temperature | -20-60℃ |
Input voltage | DC12V~24V |
Output | 1 channel |
Output gray | 256 levels |
Max. Output current | 25A |
Max. Output power | 12V: 300W; 24V: 300W |
Frequency of RF remote control | 433.9MHz |
Net weight | 280g |
Gross weight | 340g |

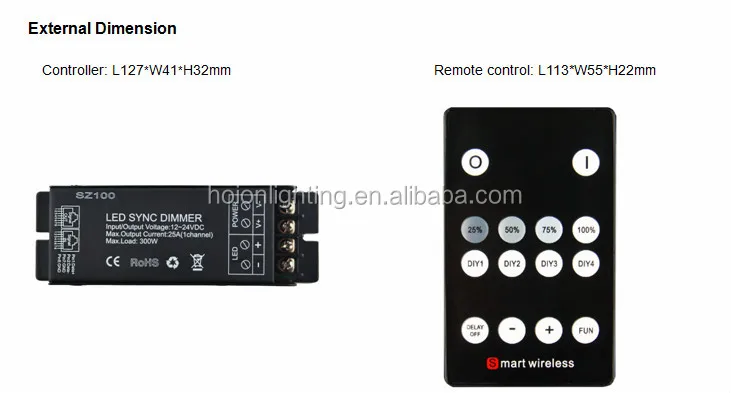

Dimension | L127*W41*H32 (mm) |
Packing size | L147*W85*H73 (mm) |
Product Function
Adopt RF full touch control, with one dimming ring and 5 function buttons. Particularly, there is a sense light in the remote control center. It shows the exactly light which is touched.

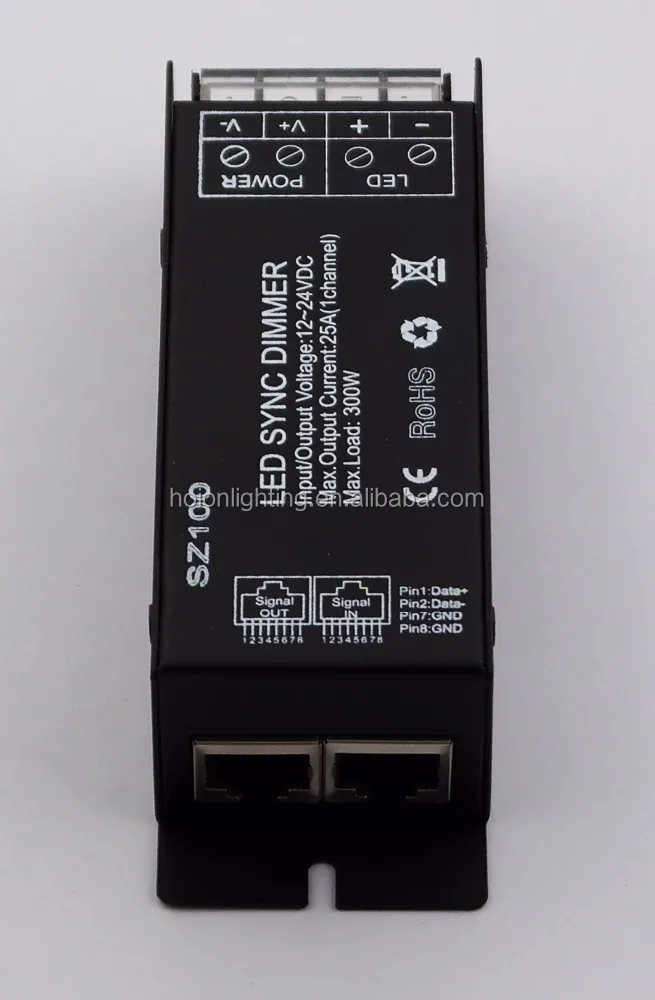

Interface Specifications

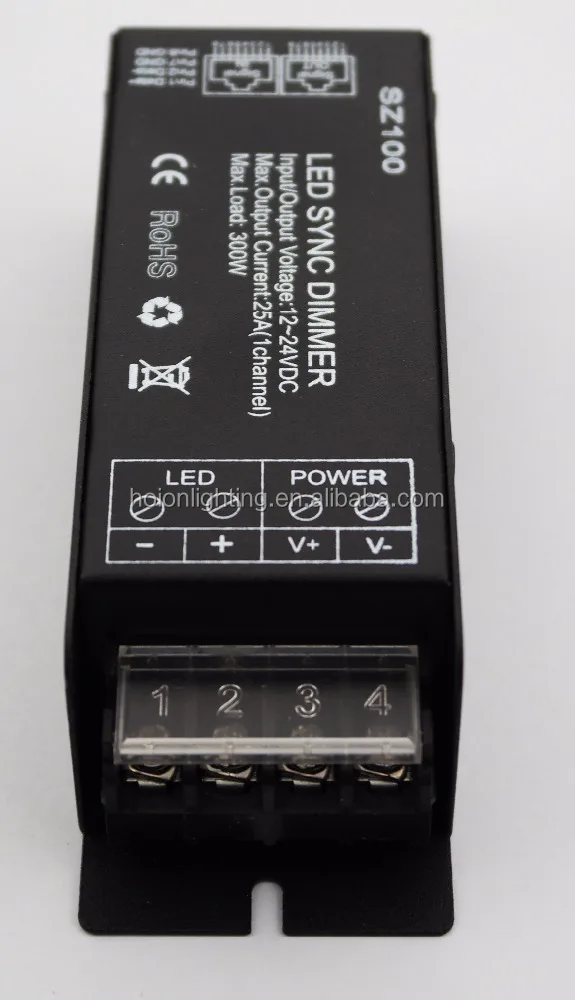

Adopt strong load capacity connector as Input/Output terminal
Direction for use

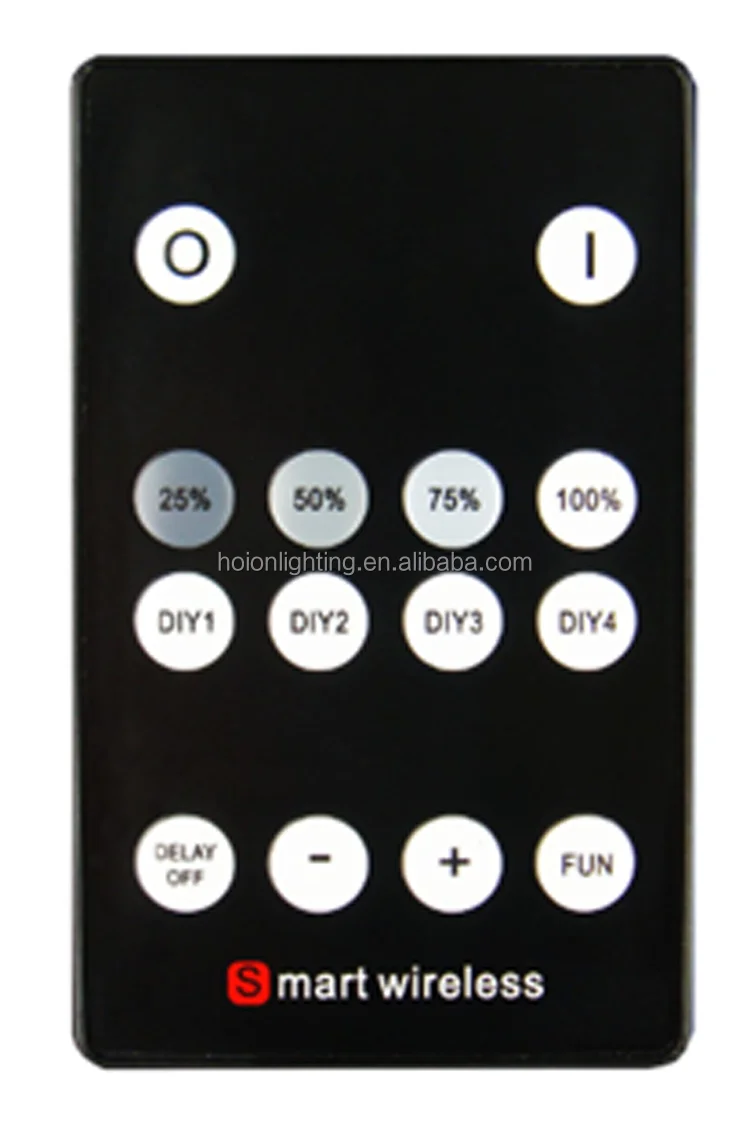

This product adopts RF 14-key remote control, intuitive panel allowing intelligent lighting with brilliant simplicity.
The function of each button as below:
OFF |
| ON | |
| |||
25% level | 50% level | 75% level | 100% level |
Scene 1 | Scene 2 | Scene 3 | Scene 4 |
| |||
Delay Off 30’s | Brightness/Speed- | Brightness/Speed+ | Dynamic mode |

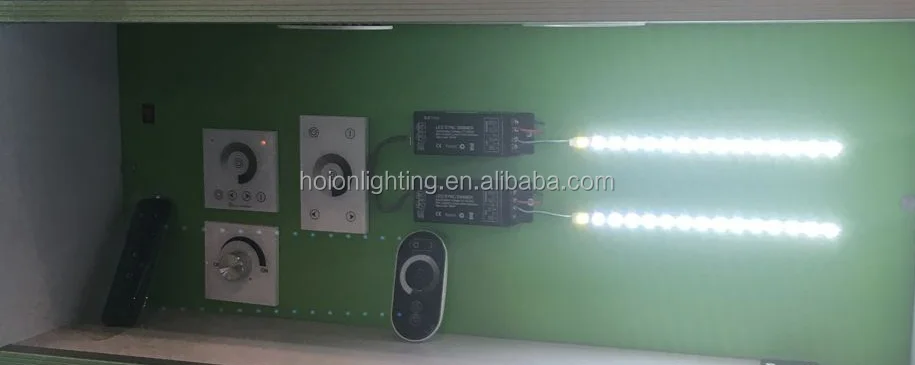

Typical Applications
Conjunction Diagram
Product information for placing order
Product name | Item number |
RF Dimmer | HX-SZ100-SYNCDIM-14K |
