galvanized metal roof ridge cap roll forming machine
- Category: >>>
- Supplier: Botou Mingtai Roll Forming Machinery Co. Ltd.
Share on (60768186025):
Product Overview
Description
Color coated metal sheet roof tile ridge cap tile cold roll forming machine colored steel profile galvanized cap making machine
Working Flow

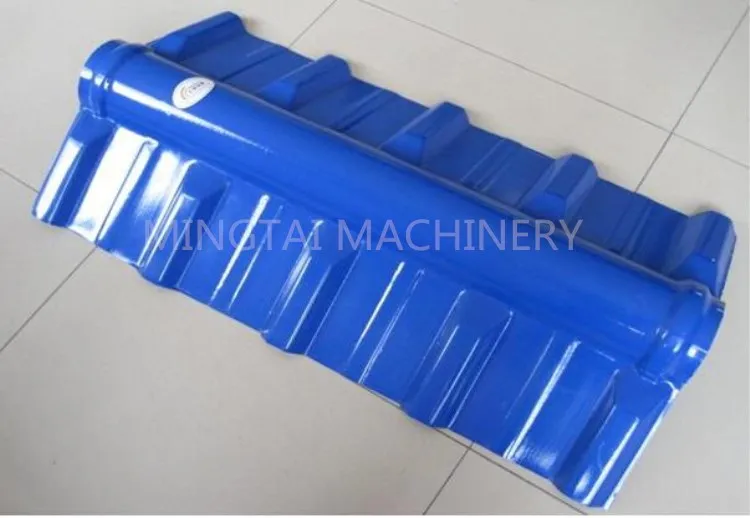

Tiles Drawing
Color coated metal sheet roof tile ridge cap tile cold roll forming machine colored steel profile galvanized cap making machine
Product Description
Color coated metal sheet roof tile ridge cap tile cold roll forming machine colored steel profile galvanized cap making machine
NO. | Item | Specification |
1 | Processing materialNew products zinc 312 ridge cap steel light keel panel roll forming machine price | PPGL/PPGI |
2 | Processing thickness | 0.2-0.8mm |
3. | Coil width | 500mm |
4. | cover width | 312mm |
5. | Material of main frame | 300H steel |
6. | Diameter of Soild shaft | 70mm, high grade 45# steel |

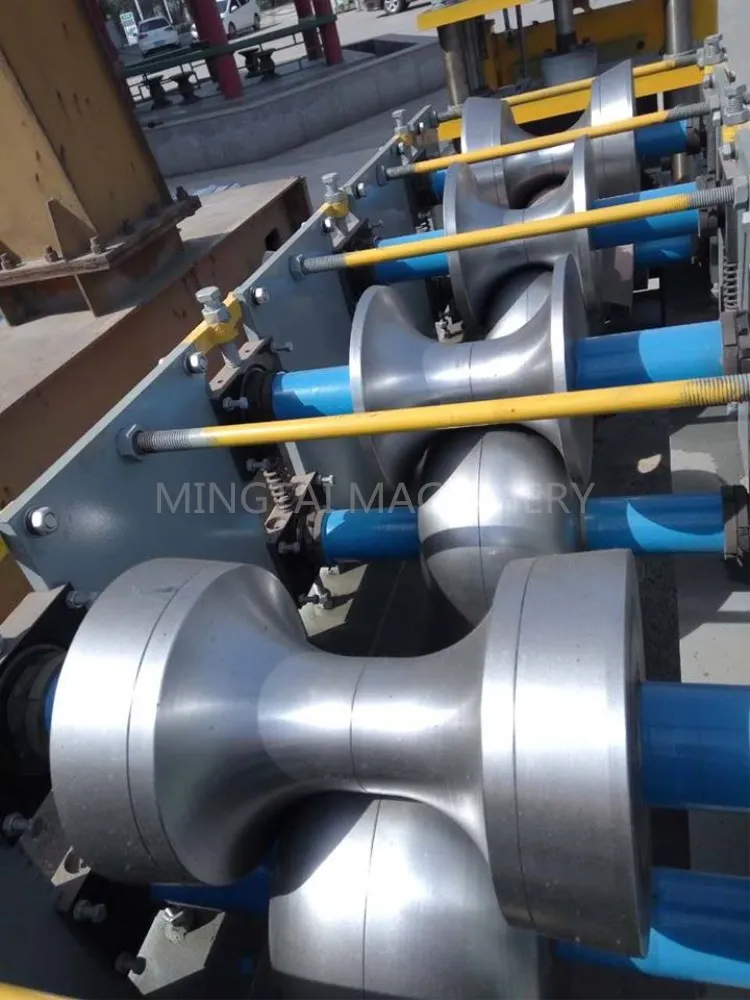

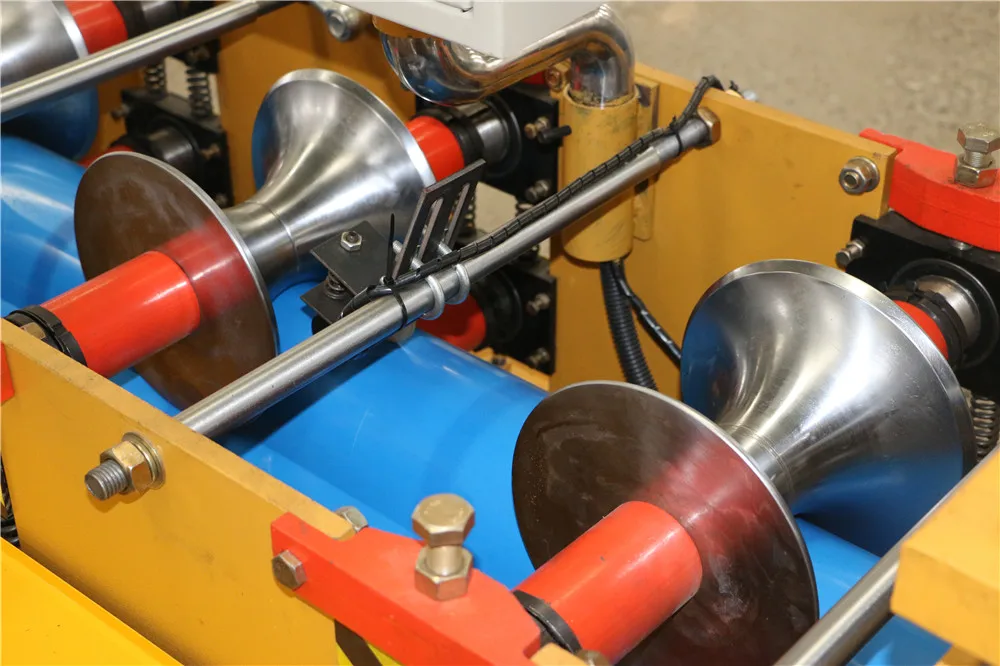

7. | Roller | Quenched and tempered treatment, hard chrome coated 0.05-0.07mm |

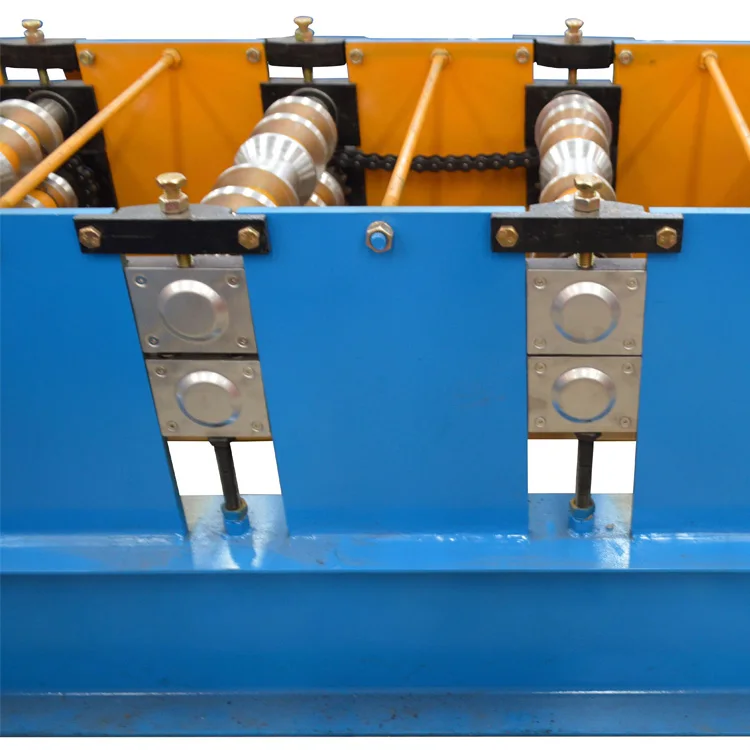

8. | Thickness of middle plate | 16mm |
9. | Forming station | 16 station |
10. | Transmission | By chain(1.0 inch) link bearing model 6210 |
11 | Power of main motor | 5.5kw with Cycloidal reducer |
12 | Power of pump station | 4kw |
13 | Forming speed | about 8-10m/min |

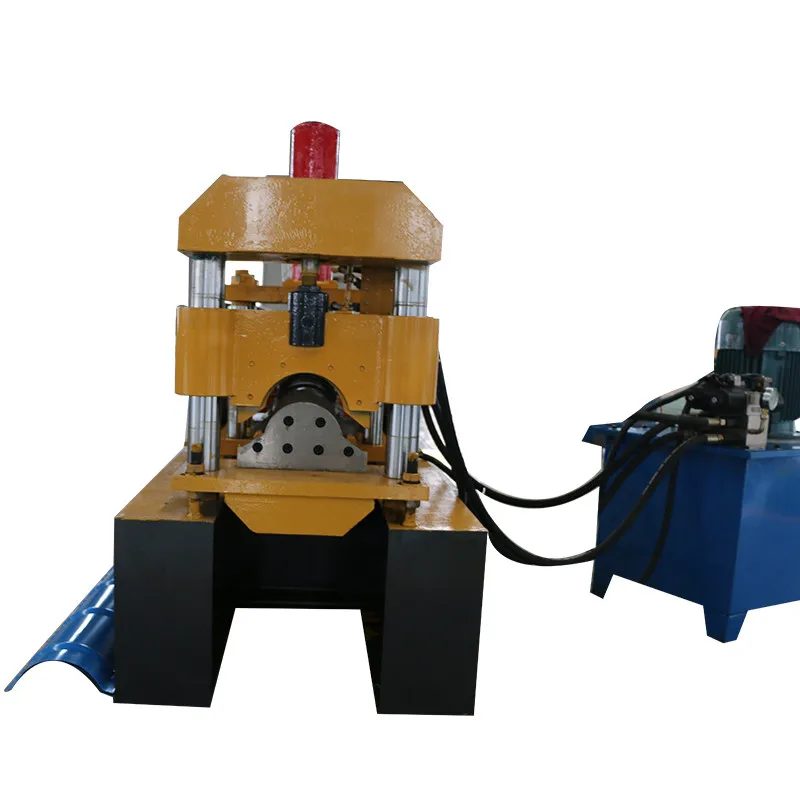

14 | Hydraulic cutting | Controlled by PLC |
15 | PLC | DELTA(TAIWAN)/Mitsubishi |
16 | Material of razor blades | Cr 12, quenching 58-62℃ |
17 | Frequency converter | It has the advantage of slowing down before cutting, to ensure the length accuracy(±1mm, far better than industrial standard ±3mm). |
18 | Switch | CHNT |
19 | Transducer | SAJ |

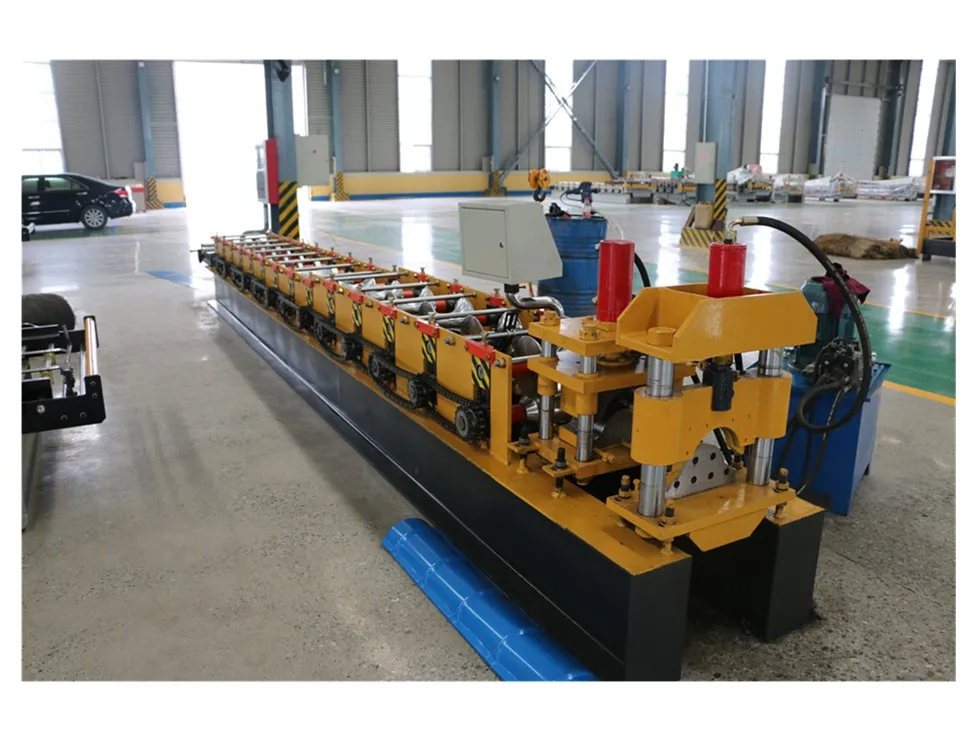

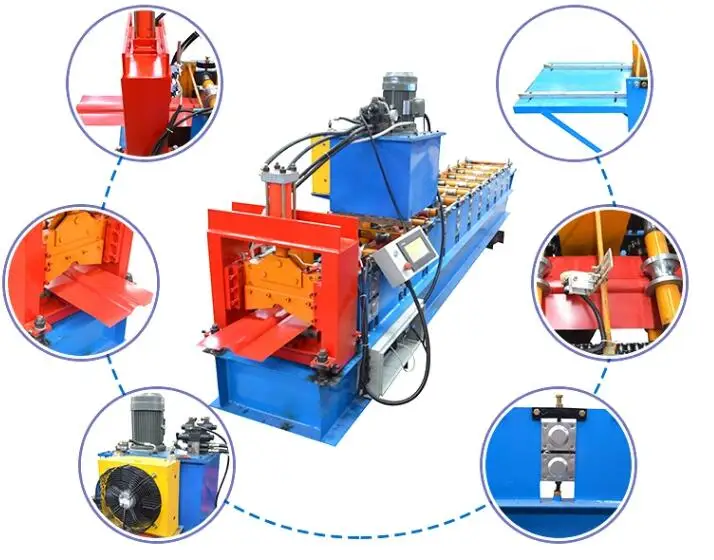

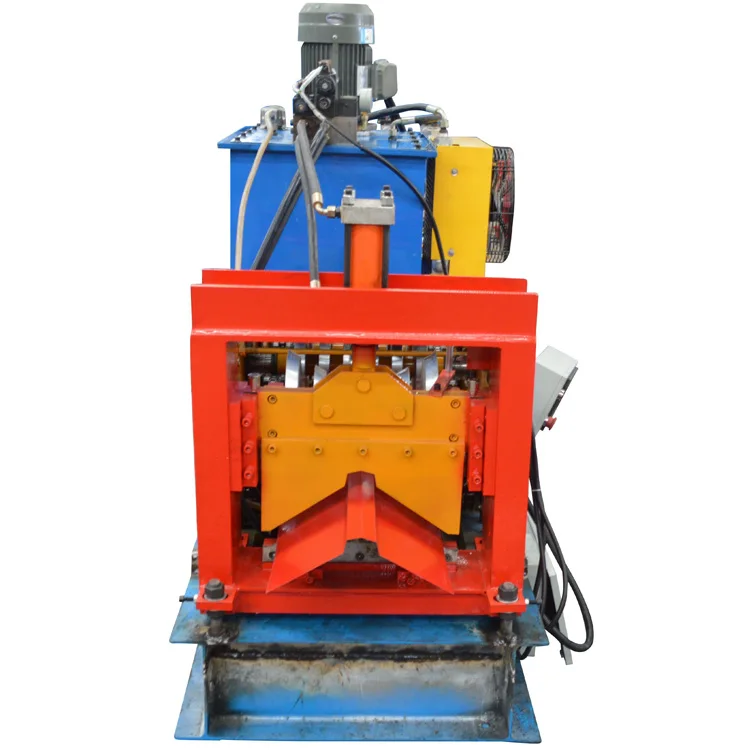

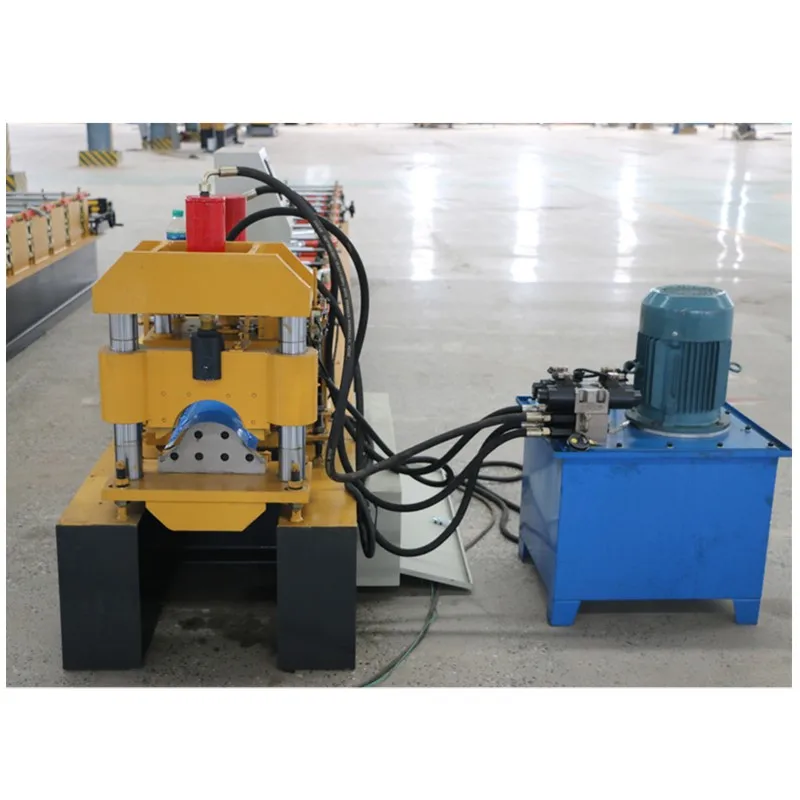

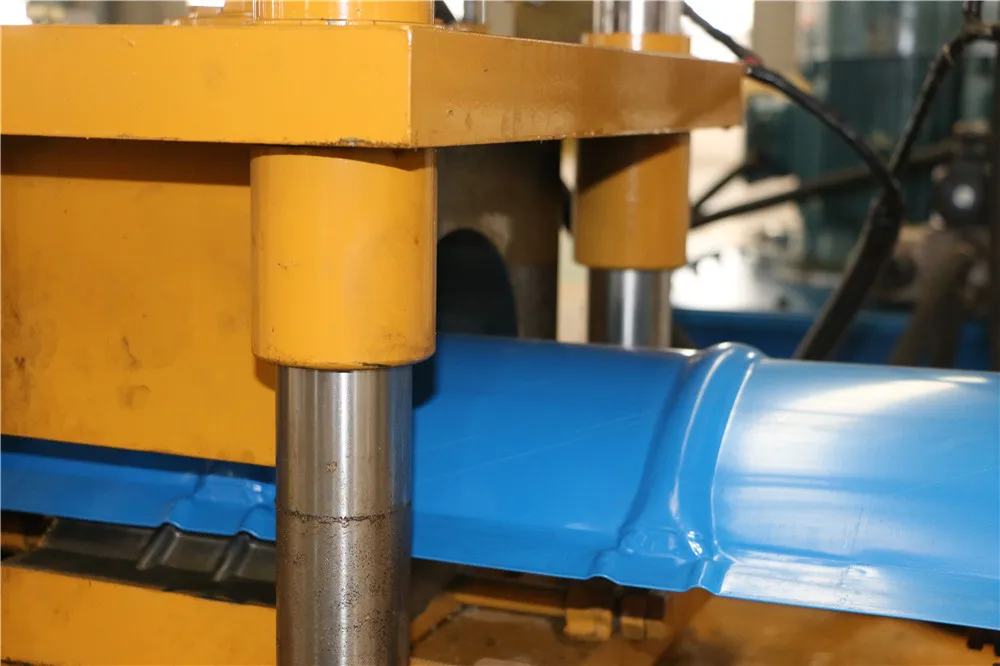

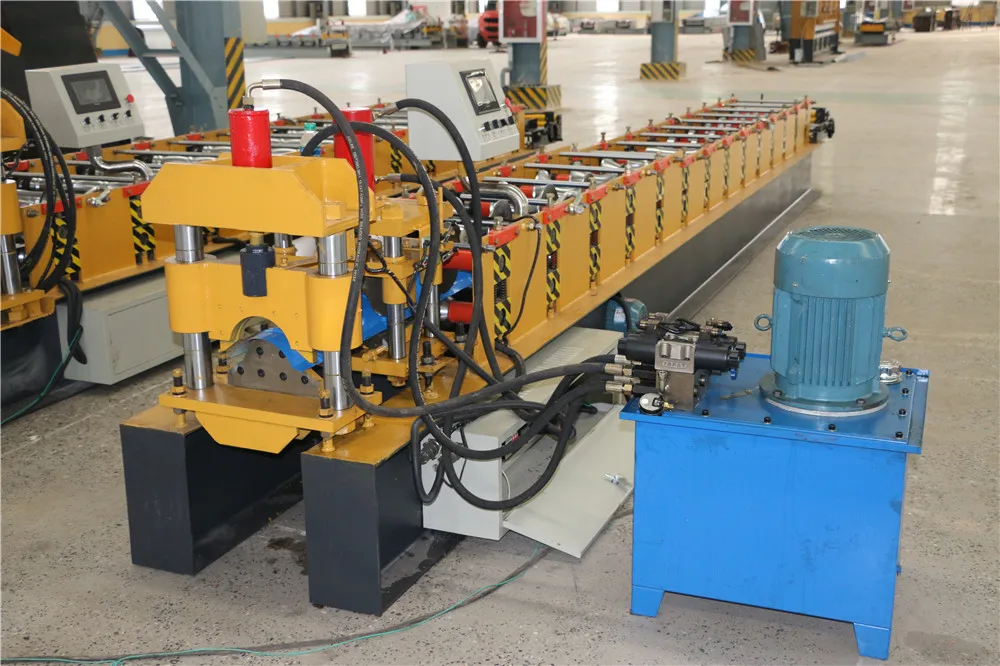

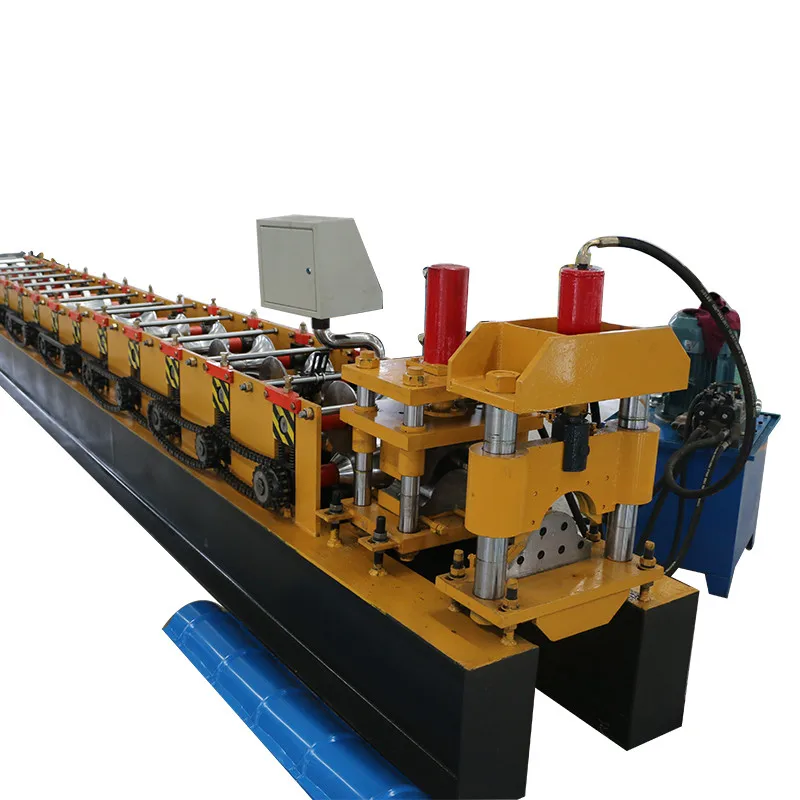

Machine Show
Color coated metal sheet roof tile ridge cap tile cold roll forming machine colored steel profile galvanized cap making machine
Manufacture process
Packaging & Shipping
Packing
1. One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
Our Services
1). Payment Term: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery.
2). Delivery Time: The seller guarantees the equipment will be ready for shipment within 30working days after receipt of deposit from the buyer. This machine is in stock now
3). Service: We could send the technician to your country to fix the machine if you need.
4). Warranty: 12 months During the warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.We will also send one set CD and specification(Chinese and English) to you with the machine, they can teach you how to operate the machines.
