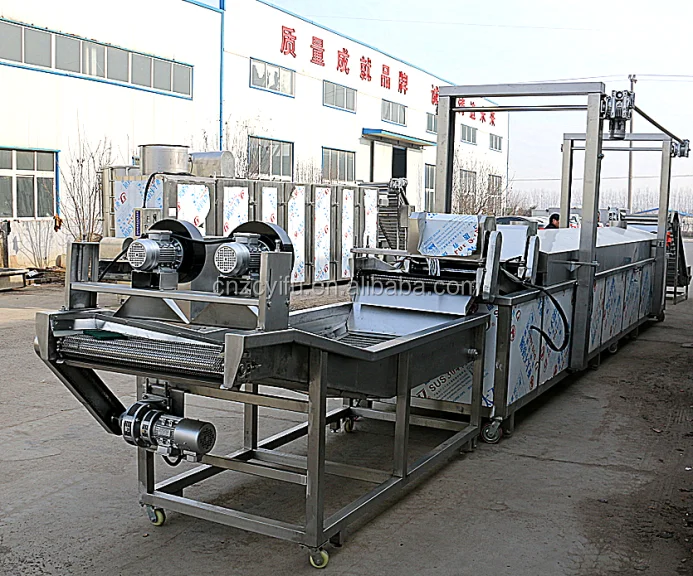

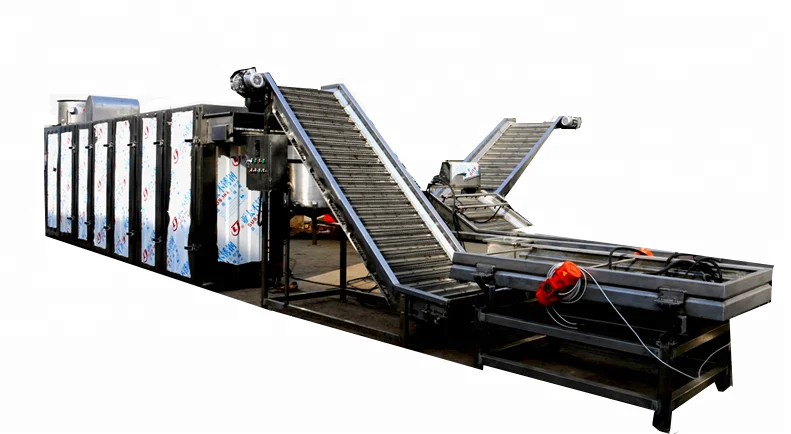

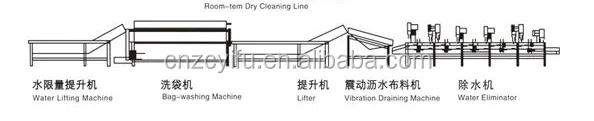

Floor lift+ bubble ozone cleaning +strong air drying complete production line. Other fruit and vegetable processing equipment can be customized according to customer requirements
1. Floor hoist
The whole machine is made of 304 stainless steel, the transfer part is carried out by special grade rubber belt for food, and the raw material is hoisted.
2. Bubble machine
Material: stainless steel voltage: 380 V power rate: 2kw dimension: 2 250 × 940 × 1280mm processing capacity: 1000 kg / h

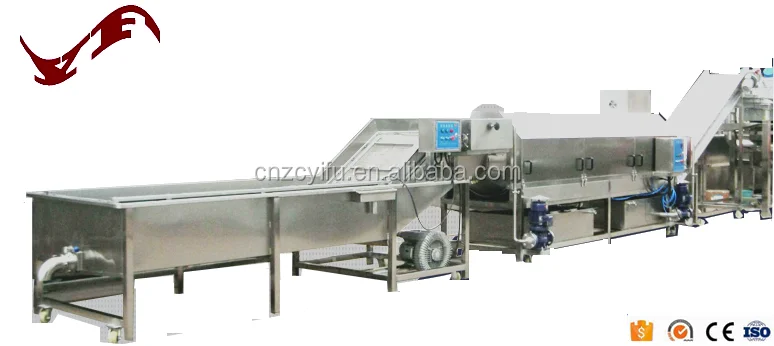

Bubble cleaning machine, this machine uses high pressure gas to produce bubbling, circulating water pump surfs, ozone antivirus and lifting high pressure spray water to keep clean vegetables. Cleaning process spray and high pressure nozzle continuous water supply, water supply adjustable, convenient for customers according to the amount of vegetable handling and cleaning degree of flexible adjustment. At the same time, in this process, customers can add appropriate amount of agents according to their own conditions, re-disinfection or preservation. Refrigeration equipment can also be installed to reduce the material temperature and increase the preservation time.

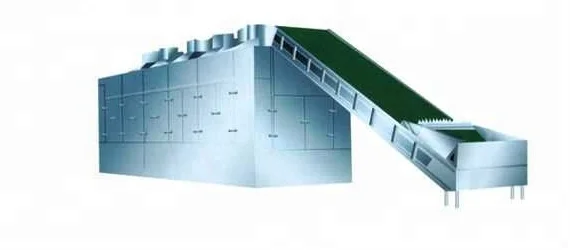

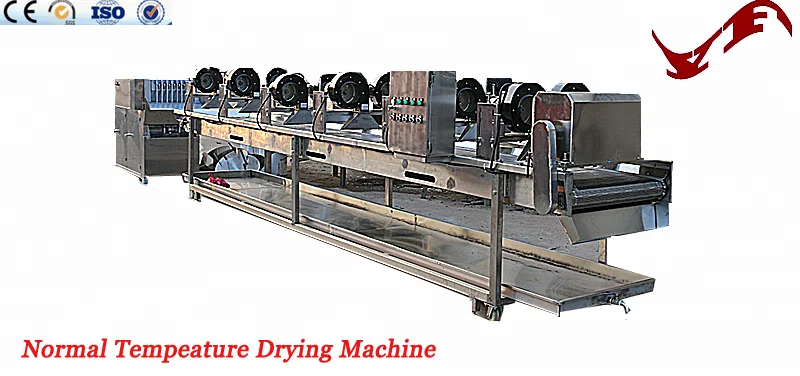

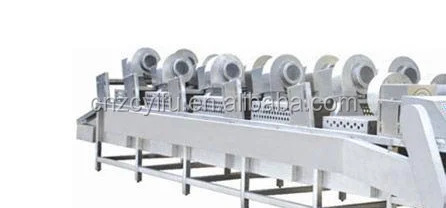

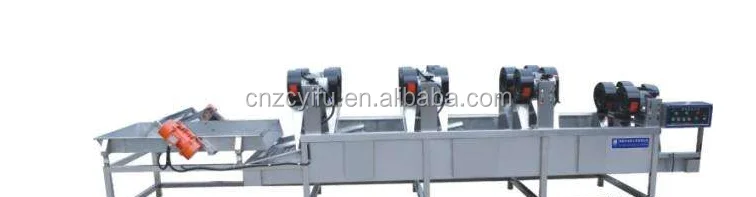

Structure and performance characteristics of Air-drying equipment for bagged Food
1. frame: the whole uses SUS304 stainless steel to make, conforms to the national food production safety standard.

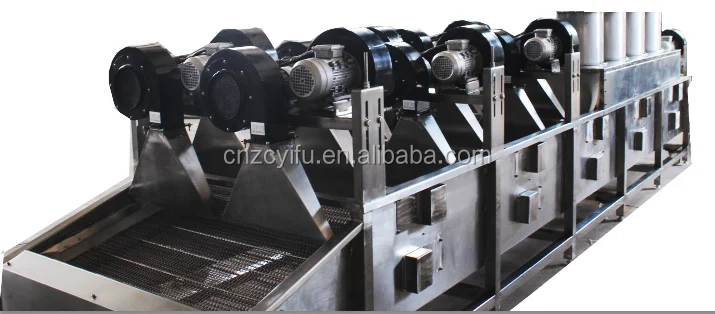

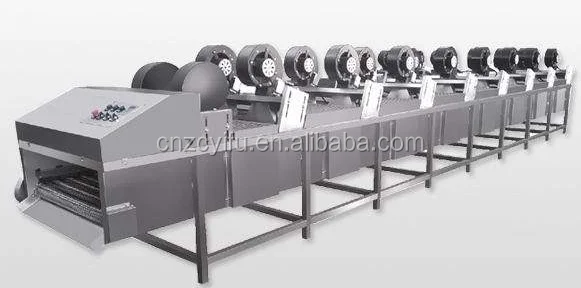

2.fan: adopt large air volume as fan, the distance between each group fan and fan is 1 m, air drying efficiency is high, fan height can be adjusted freely according to different product.
3.Stainless steel mesh cover: in order to prevent the product from being blown off in the air-drying, there is a punched stainless steel mesh cover in the space of the equipment. The product will only flip inside and won't be blown out The shield can be removed for easy cleaning.
4.transmission system: mainly consists of transmission chain, transmission sprocket, bearing seat, driving shaft, driven shaft and net belt. The net belt is driven by each driven shaft independently, the net belt itself has no pull force, the service life of the net belt is increased, and the service life of the net belt is improved, which is convenient for disassembly and maintenance. The net belt all has the brush to protect the edge, the protection product is not easy to be squeezed, the damage, in view of the product dead corner too many, needs to carry on the net belt to flip many times, this may achieve the better air drying effect; each time flips the chain independent drive, reduces the chain pull force, Extend service life.
5.electronic control system
The control system is integrated with the equipment with frequency conversion reducer, speed and slow adjustable, the reducer drives the transmission chain operation, which is brought to the net belt to run.
6.the equipment outlet end with screen, feed end with stainless steel baffle, prevent material from running out, the outlet can better gather the product.
7. The equipment is generally equipped with two types of mesh belt: stainless steel mesh chain / PP chain, stainless steel mesh chain is mostly used in bag products, not afraid of falling and not afraid to touch, nylon chain plate is suitable for bulk, easily damaged products, and acts as a buffer when material is dropped. Prevent damage to large products.
8.the feeding end is provided with a device to prevent material from flying out.

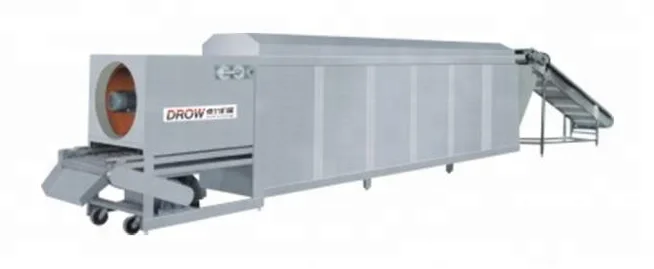

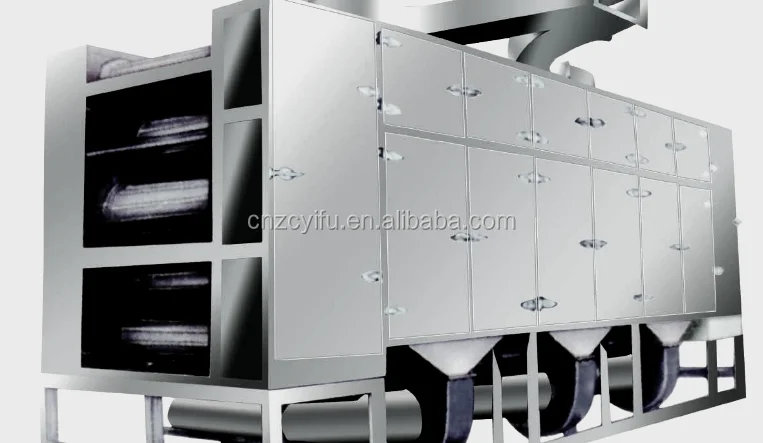

The main part of the machine uses SUS304 stainless steel material, stainless steel mesh belt running smoothly, simple maintenance, long service life. The running speed and drying temperature of the whole machine can be set according to the need of production, the degree of automation is high, labor is saved and production efficiency is improved. High power circulating fan ensures uniform temperature distribution, no dead angle of convection, ensures product quality, accelerates moisture evaporation and improves production efficiency.
Main technical parameters of wind trunk line
Type
600
800
1000
1200
Power(kw)
11
15
26
33
Dimension(mm)
6200*1250*1700
6200*1450*1700
8200*1750*1700
10200*1750*1800
Capacity(T/h)
0.8
1
1.2-1.5
2-2.5
Customized for all Capacity..
Our Services
1. The company guarantees that all the machines sold will be tested before they leave the factory, and will not be shipped to the customers until they have passed the inspection, so as to ensure that the machines can be used normally and quickly after the customers receive the machines, so as to completely avoid the production losses of the customers.
2.Provide a full set of installation, commissioning, maintenance, technical advice and other pre-sale after-sales service, sold products within a year of free maintenance.
3. Service principle: the warranty period of the product is 12 months.
During the warranty period, the supplier will repair and replace the parts damage caused by the quality reasons free of charge, and the damage of spare parts outside the warranty period will only be subject to the cost of providing spare parts. Equipment damage caused by factors considered by the buyer, supplier maintenance or the provision of accessories are priced at cost.
Packaging & Shipping
1.Packing: covered with film and put into the export standard wooden case, using the cystosepiment to prevent breaking . The wooden case fix inside the container tightly by the rope.Export standard wooden case with pallet for unloading. 2.Shipping Direct ly for sending the machines to customers within shortest voyage as we can. And all main BL for ensuring the safety of the machines. We update the shipping information to customer in time
